Duct - Air Wave - RH (LHD) (Remove and Replace)
Correction code
18108102
0.60
NOTE: Unless otherwise explicitly
stated in the procedure, the above correction code and FRT reflect all of the work
required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.NOTE: See Flat Rate
Times to learn more about FRTs and how they are created. To provide feedback on
FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when
performing the below procedure.
Remove
- Remove the glove box.
-

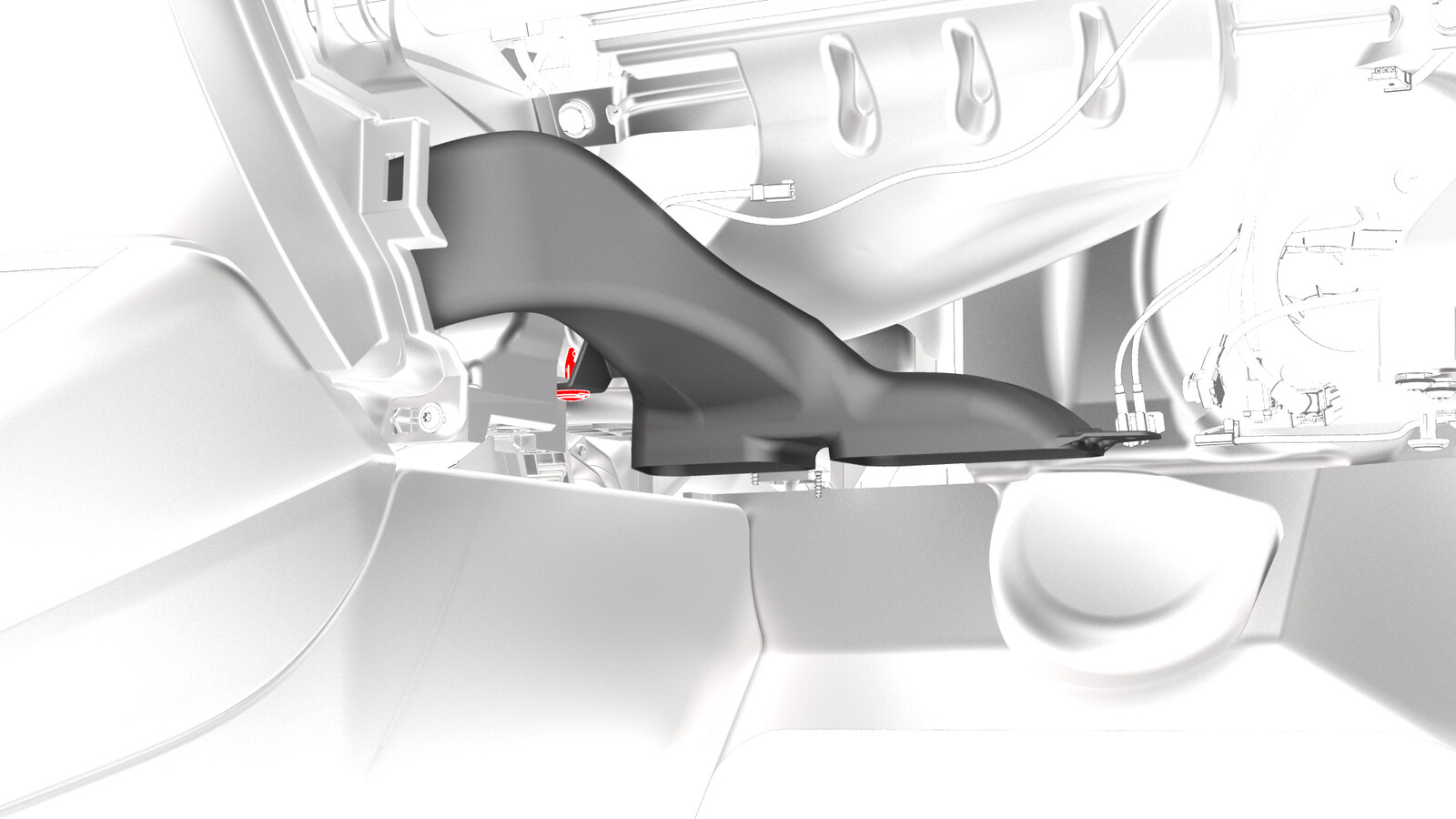

Release the clip that attaches the RH footwell air duct to the HVAC module, and then remove the duct from the vehicle.
-

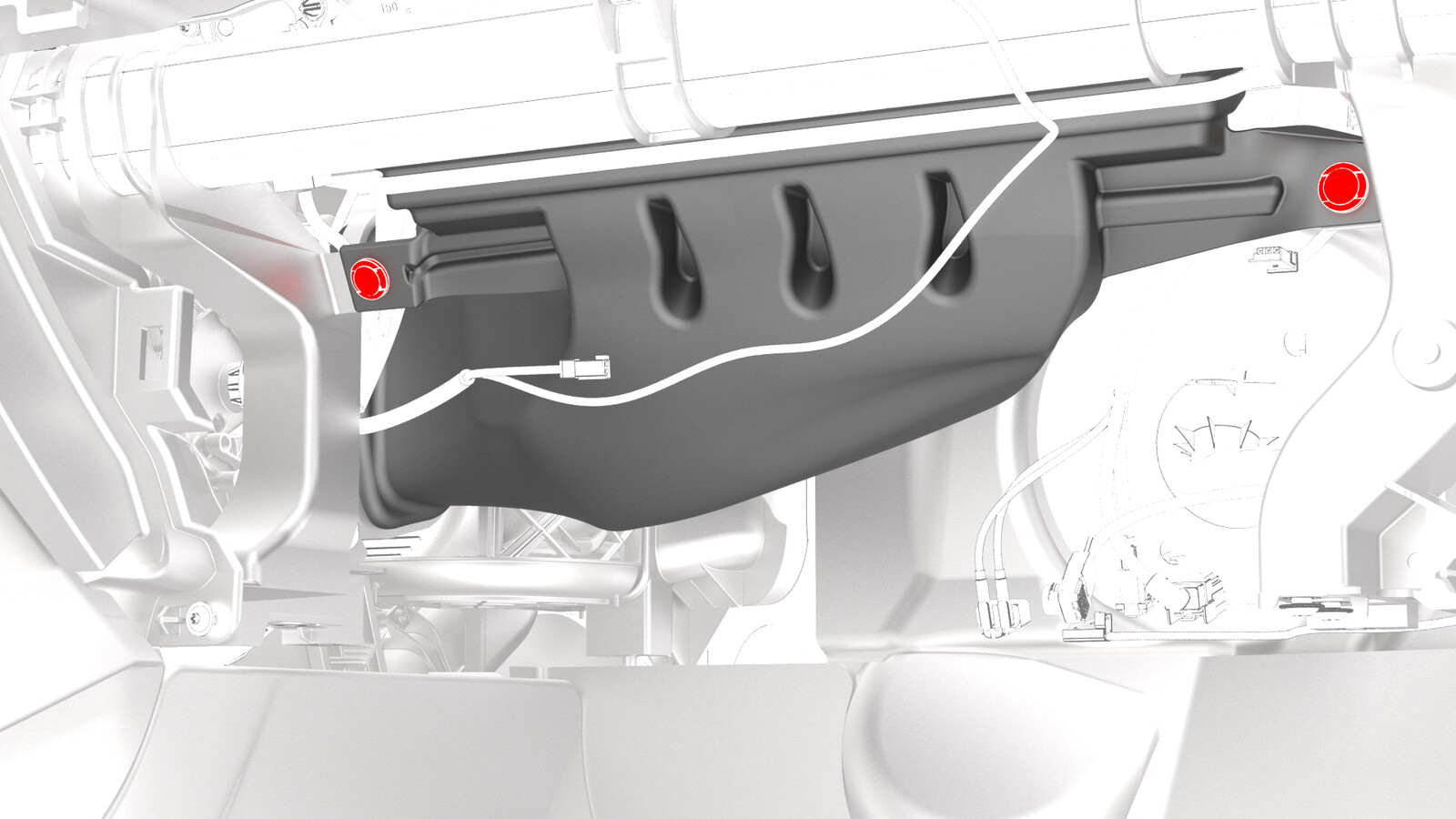

Release the clips that attach the RH air wave duct to the cross car beam, and then remove the duct from the cross car beam.
Install
Installation procedure is the reverse of removal.
