Rear Carpet - Trunk (2-Piece) (Remove and Replace)

Correction code 15302702 15302701 FRT 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components.
  • 2025-12-01: Released new procedure.

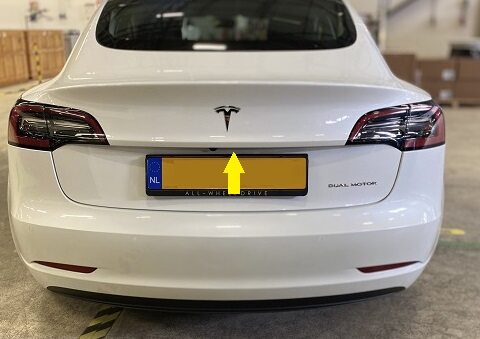

  1. Open liftgate from exterior switch

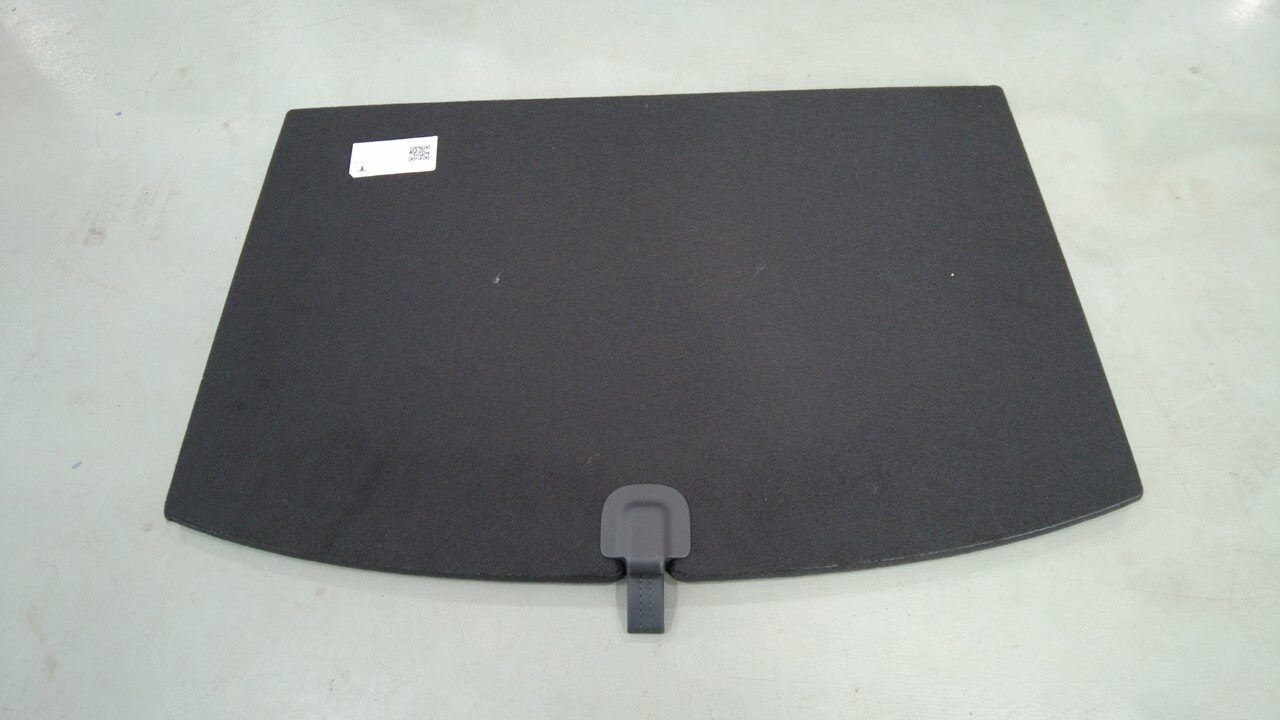

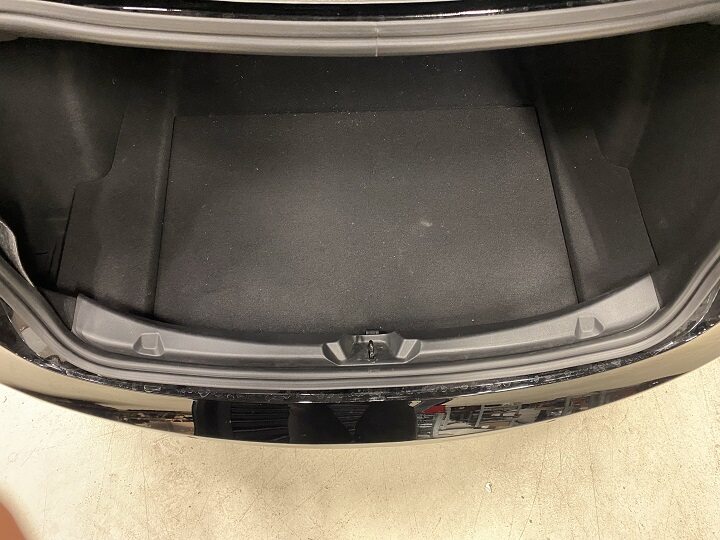

  2. Remove load floor
    Informational PurposesAn informational icon, calling your attention
    Note
    Use pull tab located at rear edge of panel

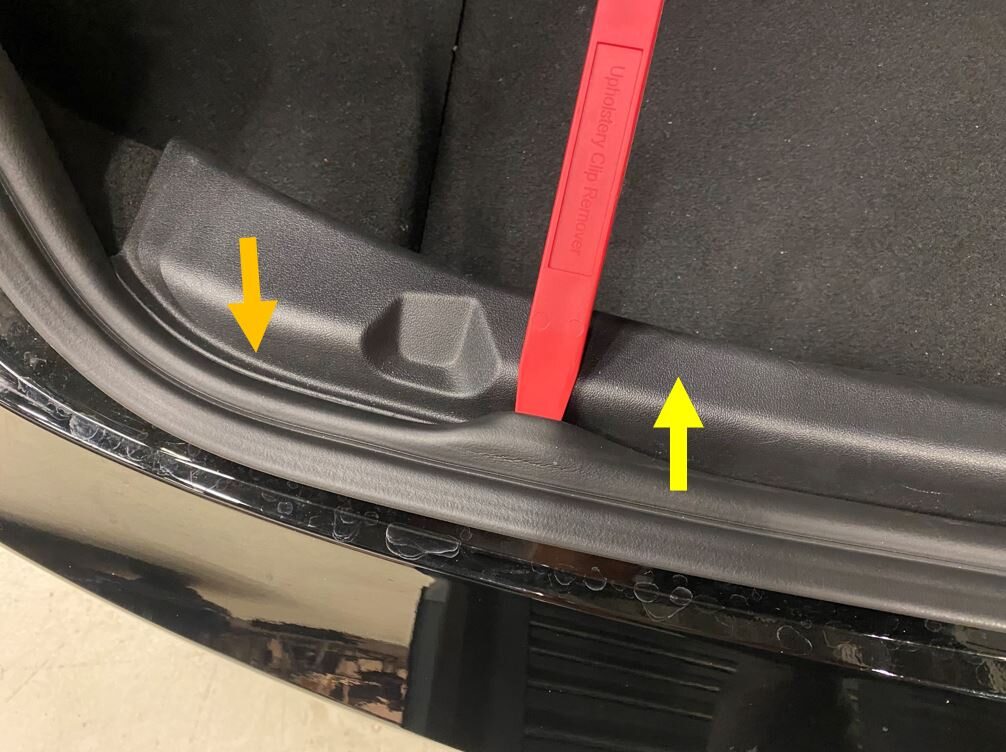

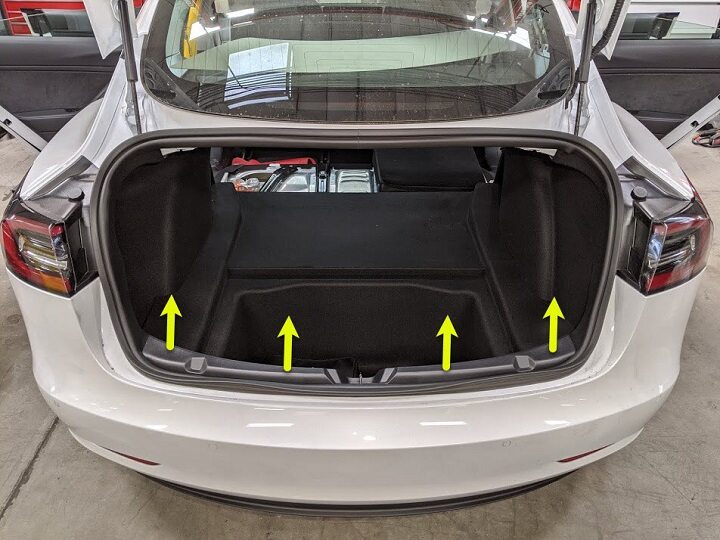

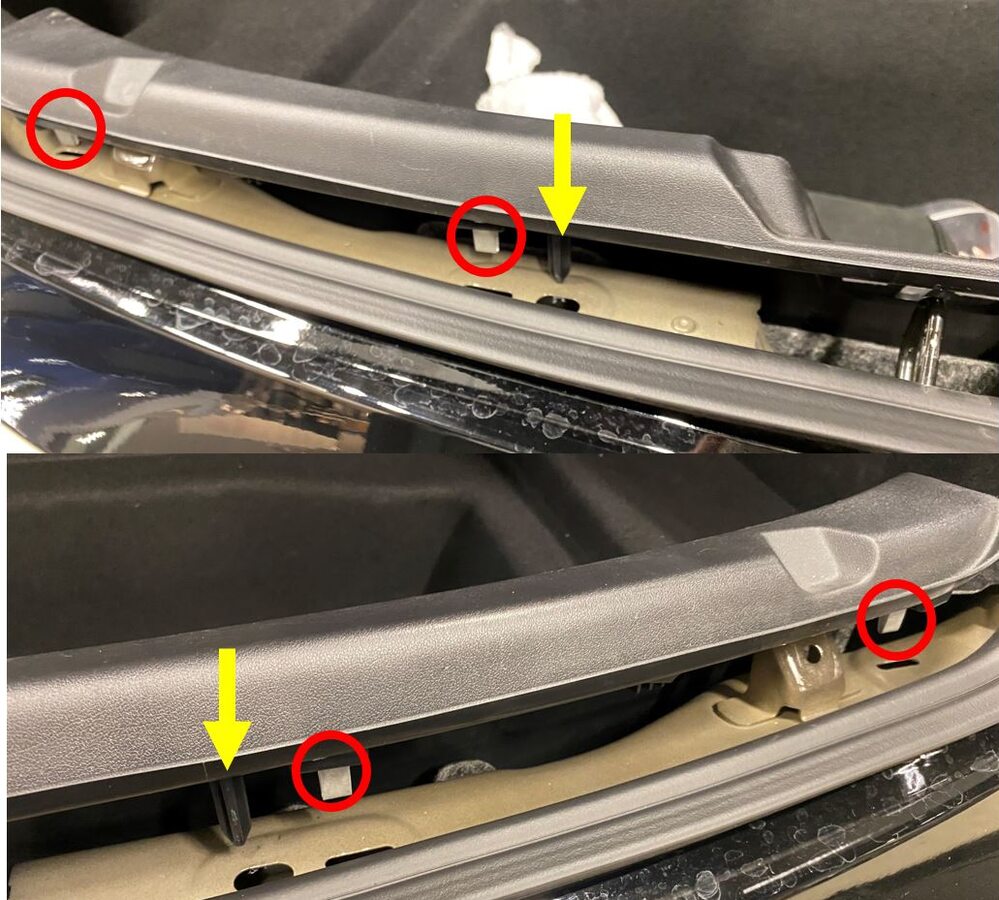

  3. Remove trunk sill trim assembly
    Informational PurposesAn informational icon, calling your attention
    Note

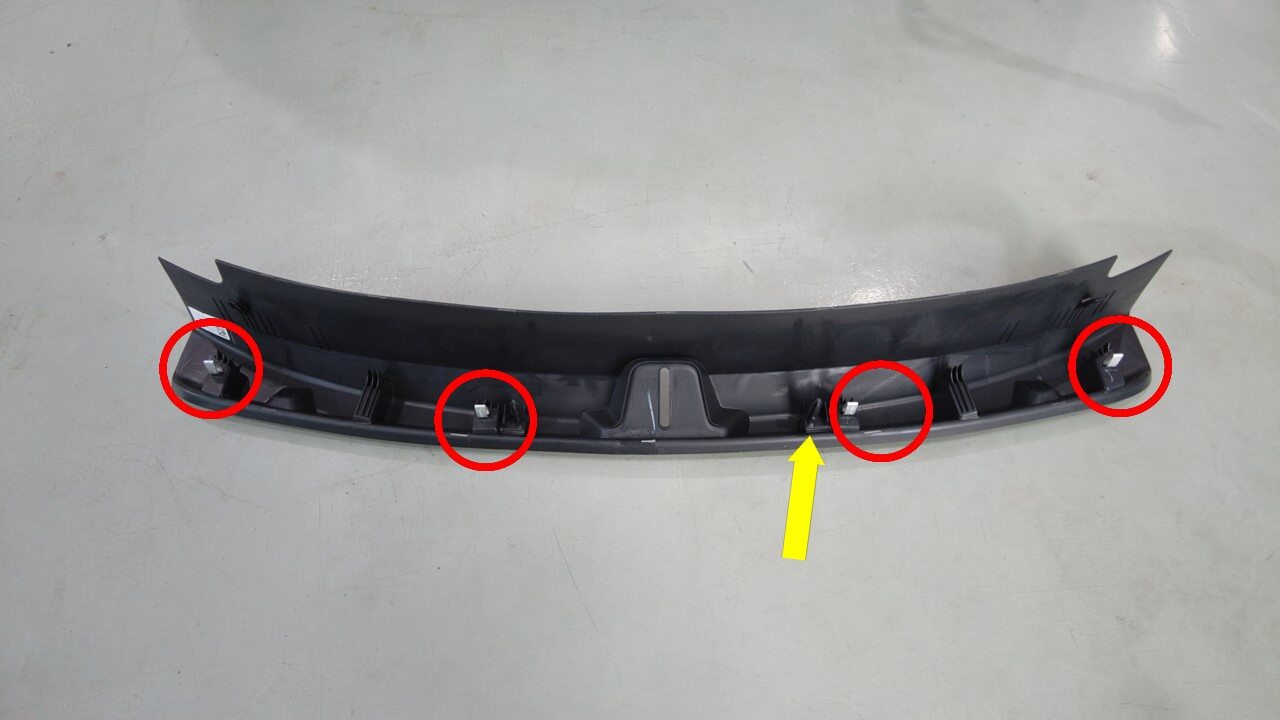

    4x clips, 1x location pin, Pull corner upward release clip on the end the away from body for remaining clips

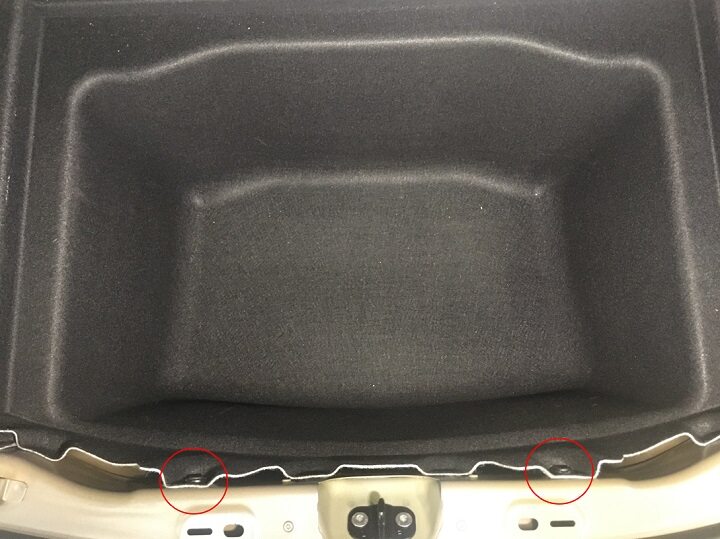

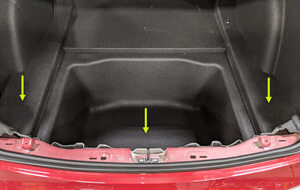

  4. Remove clips securing rear trunk carpet
    Informational PurposesAn informational icon, calling your attention
    Note
    2x push clips

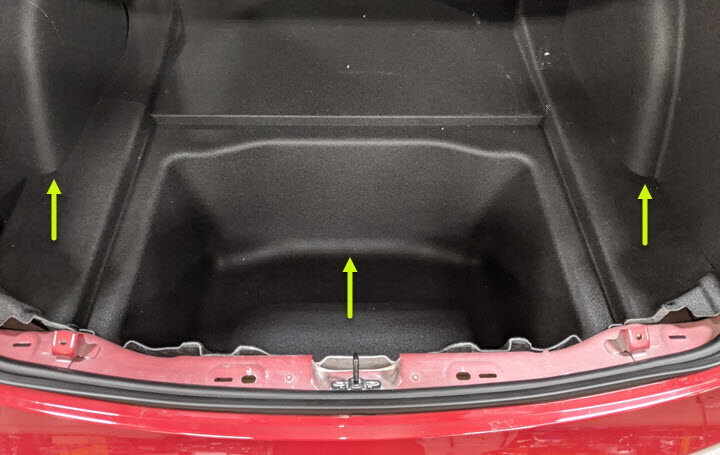

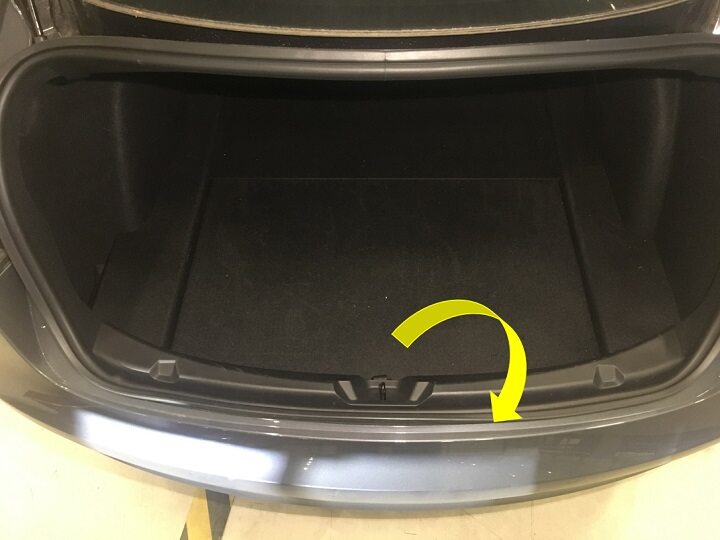

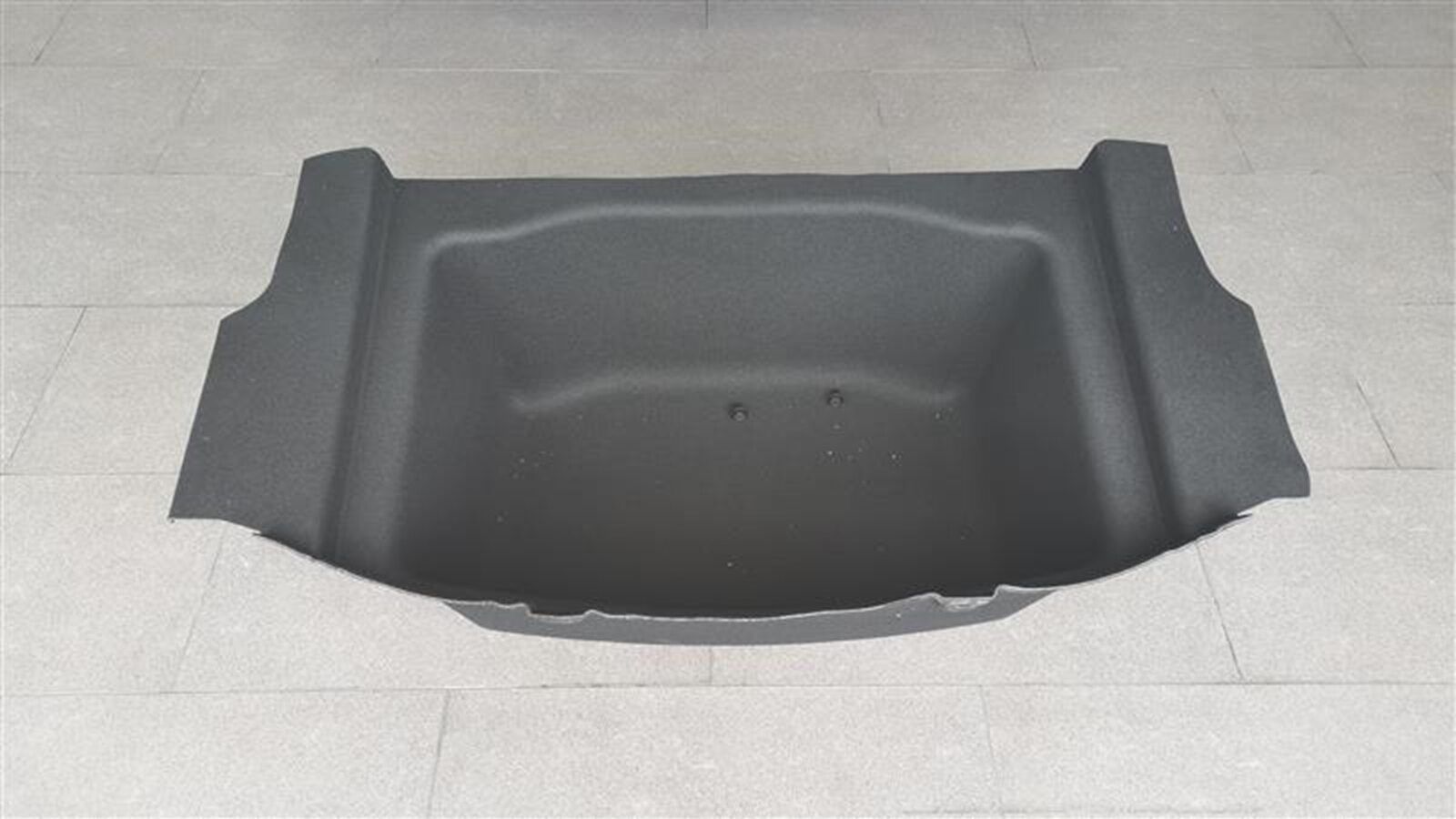

  5. Remove rear trunk carpet from vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    4x velcro strips

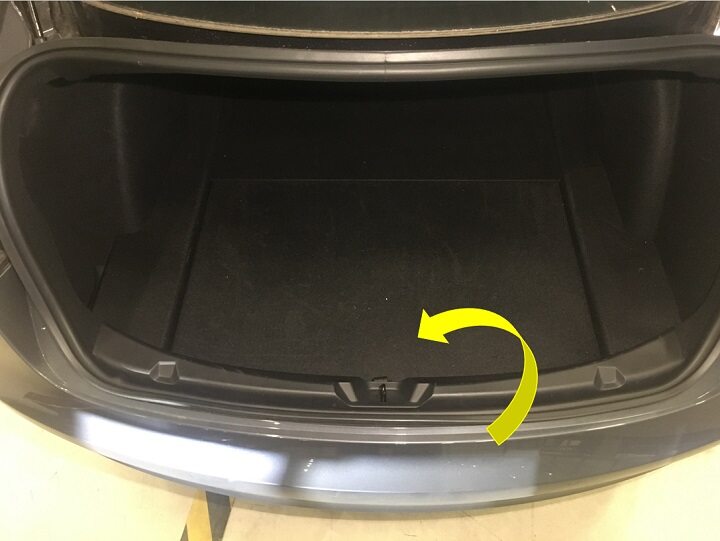

  6. Install rear trunk carpet into vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    4x velcro strips, Fully seat carpet at velcro strips
  7. Install clips securing trunk carpet
    Informational PurposesAn informational icon, calling your attention
    Note
    2x push clips
  8. Install trunk sill trim assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    4x clips, 1x location pin, Align the latch with center slot then 2 locator to their slot and then press to secure the clips, Adjust the seal to overlap the trim
  9. Install load floor
  10. Close trunk
