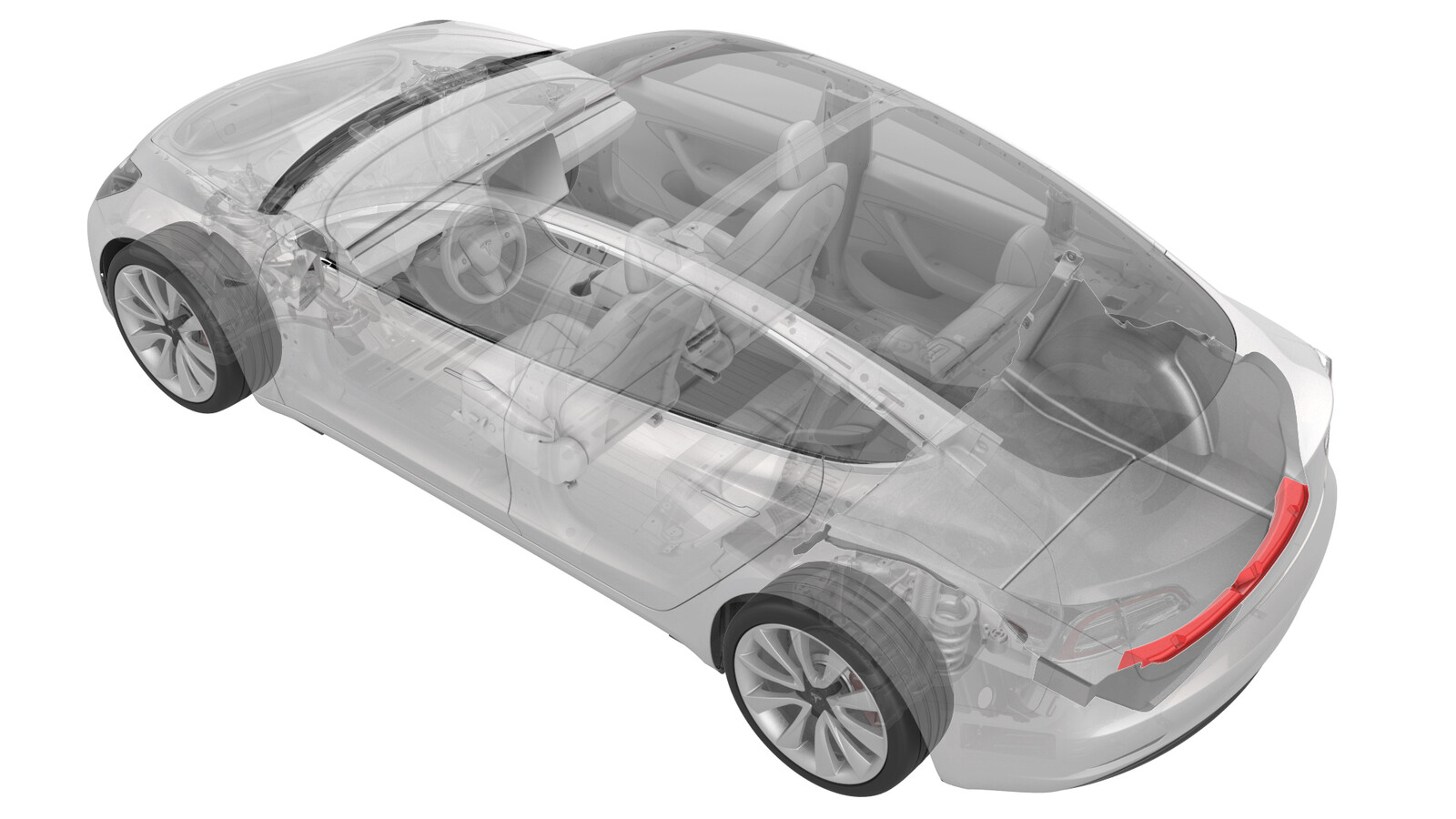

Trim - Sill - Trunk (Remove and Replace)

Correction code 15244802 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so.NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.

Remove

  1. Remove the trunk floor trim. See Trim - Floor - Trunk (Remove and Replace).

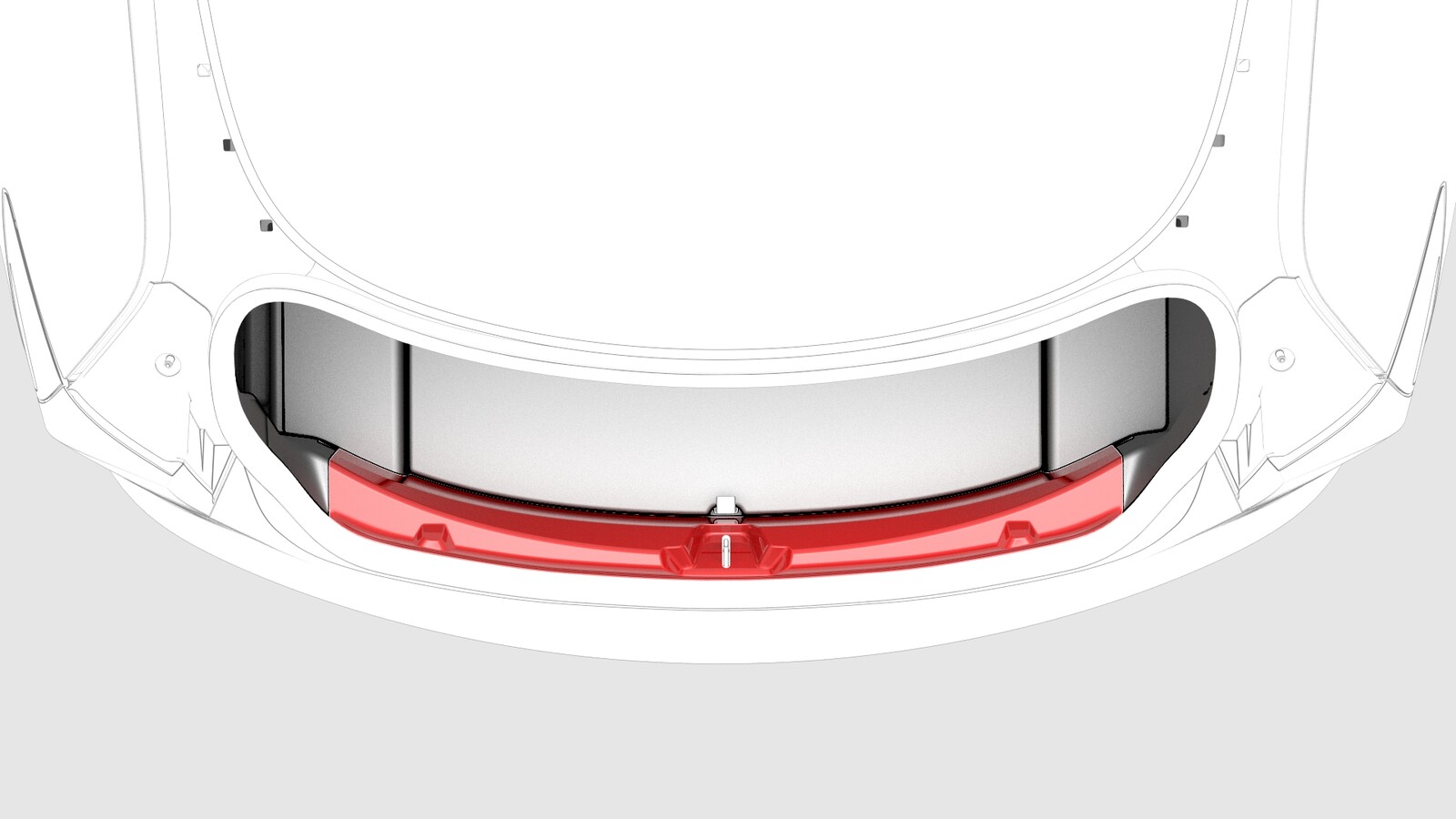

  2. Release the clips that attach the trunk sill trim to the body.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Pull the corner of the trunk sill trim upwards to release the corner clip, and then release the remaining clips.

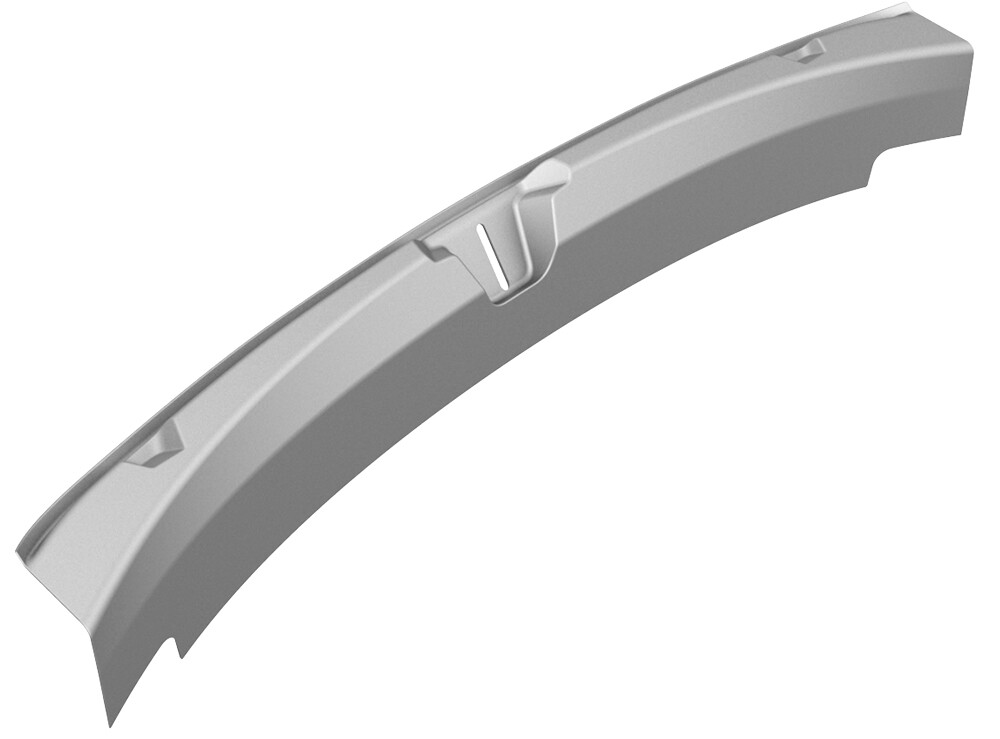

  3. Remove the trunk sill trim from the vehicle.

Install

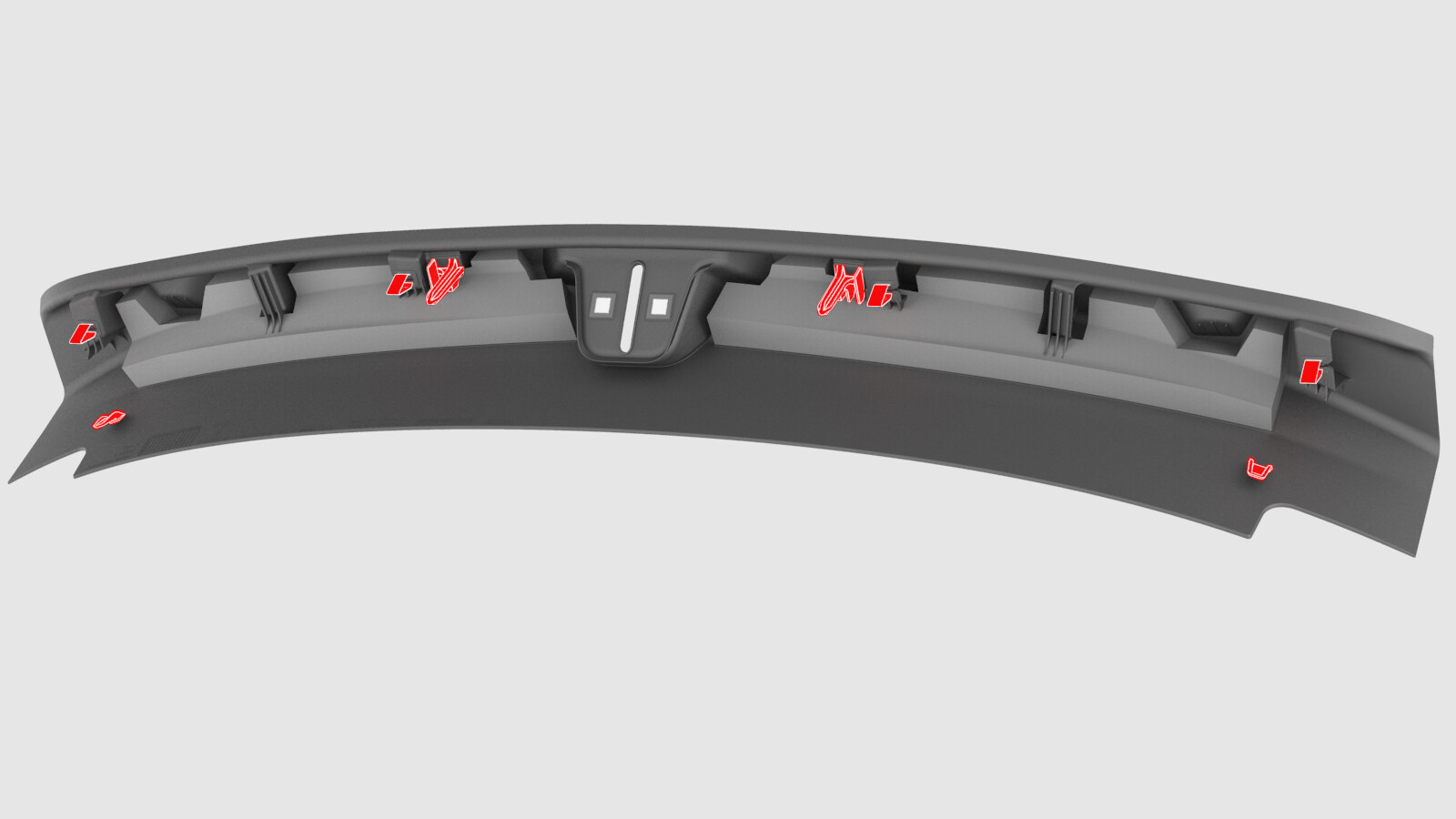

  1. Align the trunk latch with the slot in the trunk sill trim, align the long tabs (x2) with the slots on the trunk lid, and then press down on the trim to attach all remaining clips and tabs.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure that the trunk seal overlaps the trunk sill trim.
  2. Install the trunk floor trim. See Trim - Floor - Trunk (Remove and Replace).
