Harness - Seat - Driver (Remove and Replace)

Correction code 17101802 0.84 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Equipment:

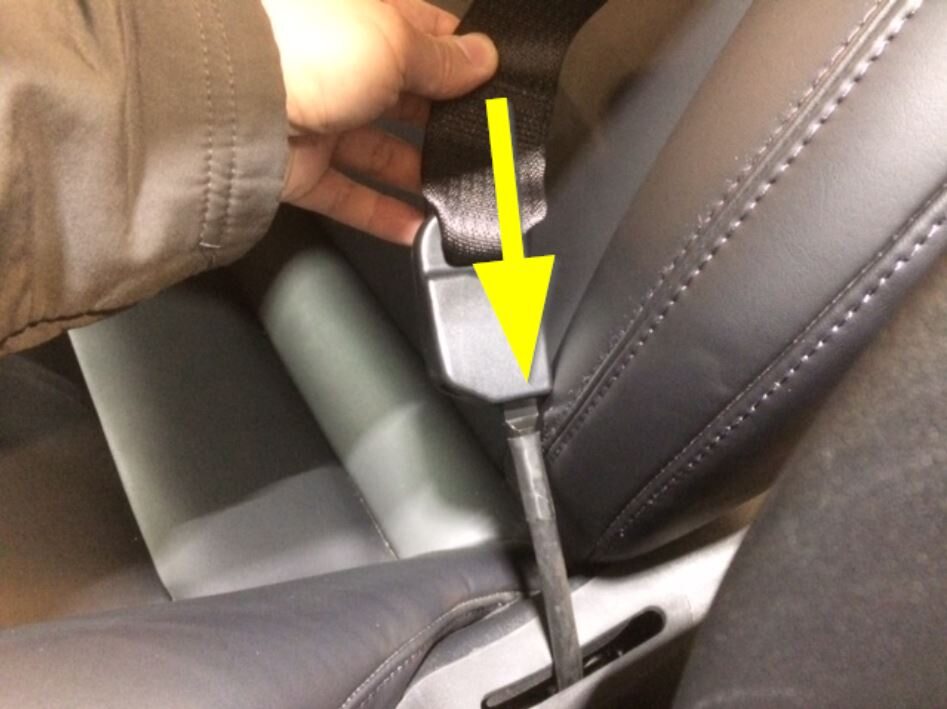

  • 1133787-00-A Key, Seat Belt Release, Model 3
  • 1082447-07-A Torx Plus T45
Informational PurposesAn informational icon, calling your attention
Note
The below procedure describes the removal of the driver's seat harness on a LHD model. The procedure for RHD models is similar while illustrations may be mirror-imaged.

Remove

  1. Open all four doors.
    Informational PurposesAn informational icon, calling your attention
    Note

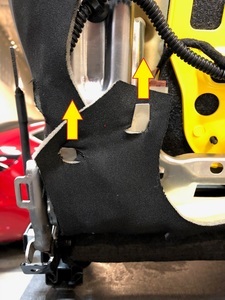

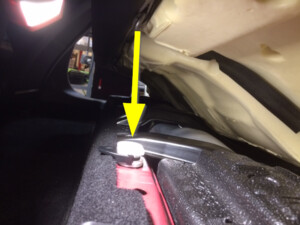

    If vehicle is being powered down, Latch rear doors to prevent accidental closure.
  2. Lower all four windows.
  3. Move the front seats forward.
  4. Remove the 2nd row seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace).

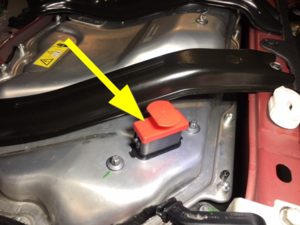

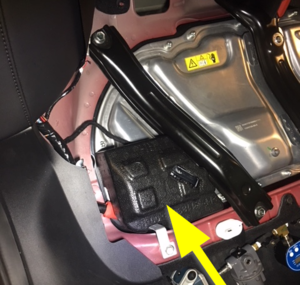

  5. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  6. Remove the LH front seat from the vehicle. See Seat Assembly - 1st Row - LH (Remove and Replace).

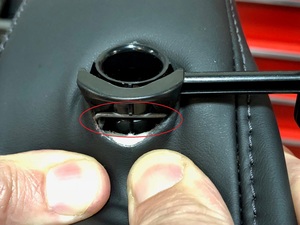

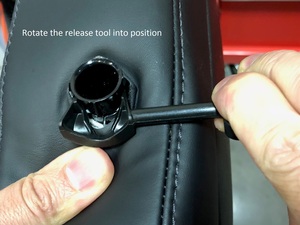

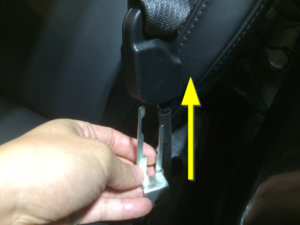

  7. Install the outboard headrest release tool.
    Informational PurposesAn informational icon, calling your attention
    Note

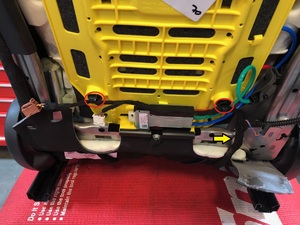

    Depress the material around the headrest post to expose the release clip, Ensure both tangs of the release tool engage the retaining spring, The release tool is rotated into position, Images show headrest removed for clarity.

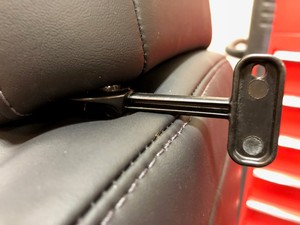

  8. Install the inboard headrest release tool.
    Informational PurposesAn informational icon, calling your attention
    Note
    Depress the material around the headrest post to expose the release clip, Ensure both tangs of the release tool engage the retaining spring, The release tool is rotated into position, Images show headrest removed for clarity.
  9. Remove the headrest from the seat.
    Informational PurposesAn informational icon, calling your attention
    Note
    2x locking clips. Remove by pulling straight up, out of the seat.
  10. Remove the inboard headrest release tool.
    Informational PurposesAn informational icon, calling your attention
    Note
    Rotate the release tool out of position. Do not pull straight up or out.
  11. Remove the outboard headrest release tool.
    Informational PurposesAn informational icon, calling your attention
    Note
    Rotate the release tool out of position. Do not pull straight up or out.
  12. Unhook the straps securing the lower seat back section, then move the seat back flap away from the underside of the seat.

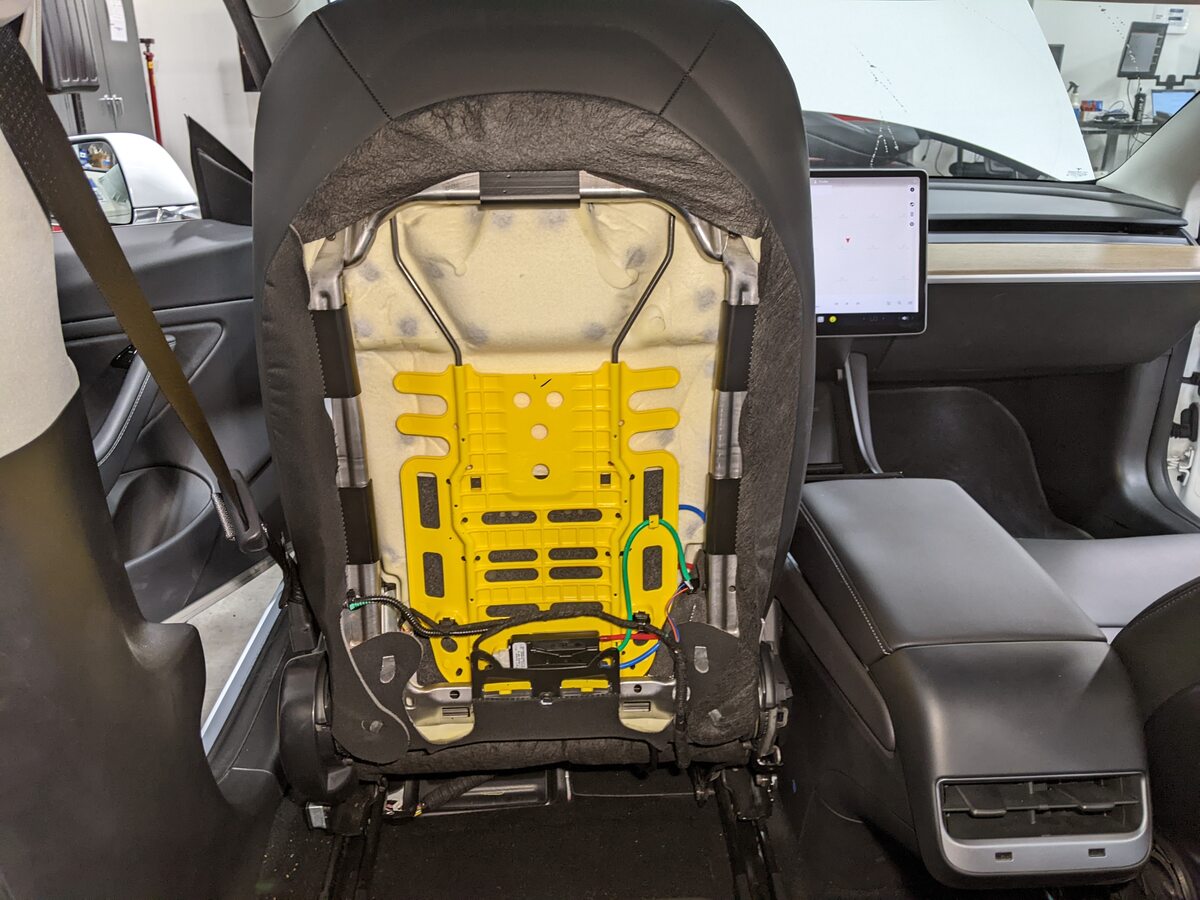

  13. Remove the seat back from the LH front seat.
    Informational PurposesAn informational icon, calling your attention
    Note
    8x clips. Start at the top of the seat and pull the shell away from the frame. When the side clips are free, pull the bottom and carefully roll the bottom tabs out of the slots. If pulled straight out, the clips on the seat back can break off. Release remaining clips from underneath seat assembly. Move seat as needed for access.
  14. Remove the upper flap covering the outboard corner of the seat back frame.
    Informational PurposesAn informational icon, calling your attention
    Note
    Pull the upper flap straight up to release from tabs.

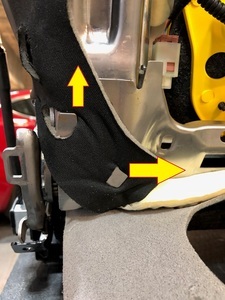

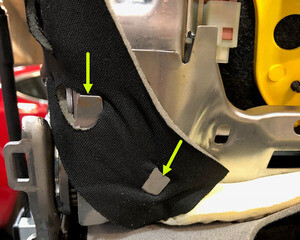

  15. Remove the lower flap covering the outboard corner of the seat back frame.
    Informational PurposesAn informational icon, calling your attention
    Note
    Pull the lower section of trim away from the retaining tab to release, then pull the trim straight up off of the upper retaining tab.

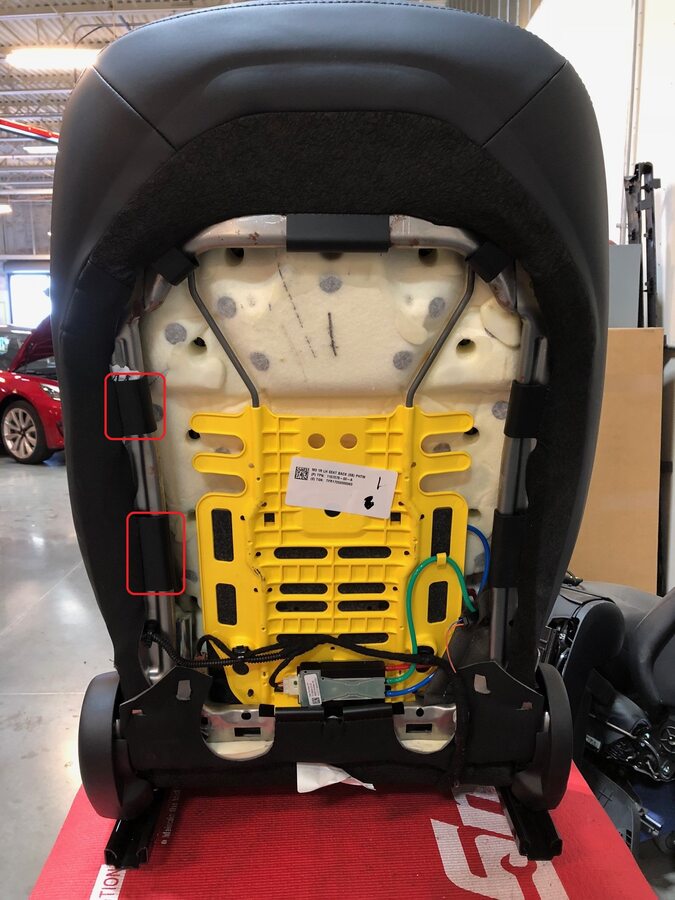

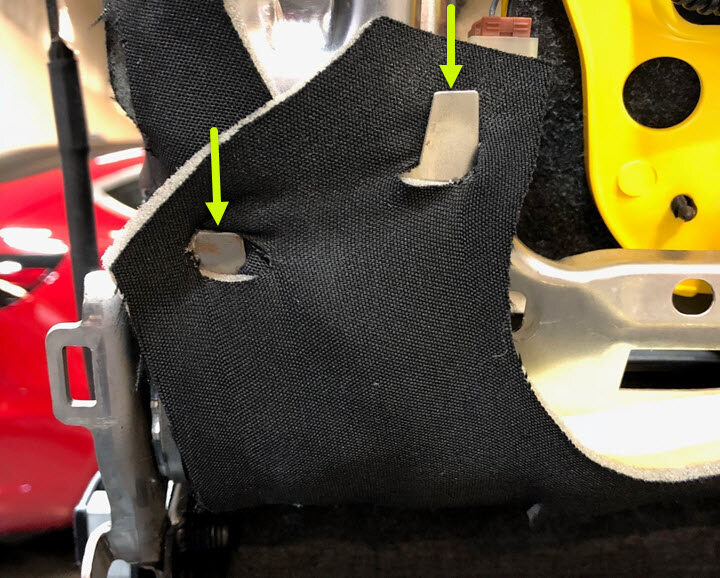

  16. Remove the outer clips securing the seat upholstery to the seat back frame.
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips. To release, rotate the clips off of the frame from the inside out.

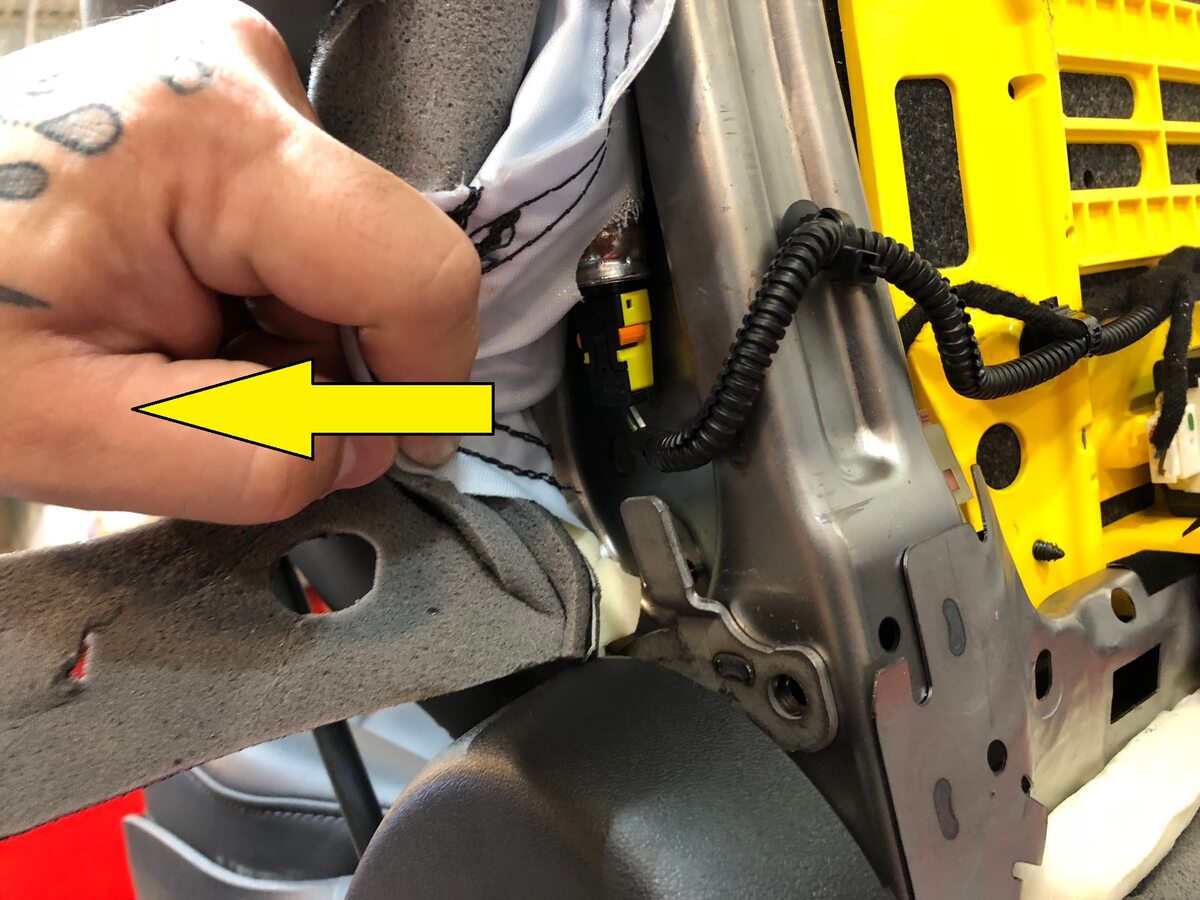

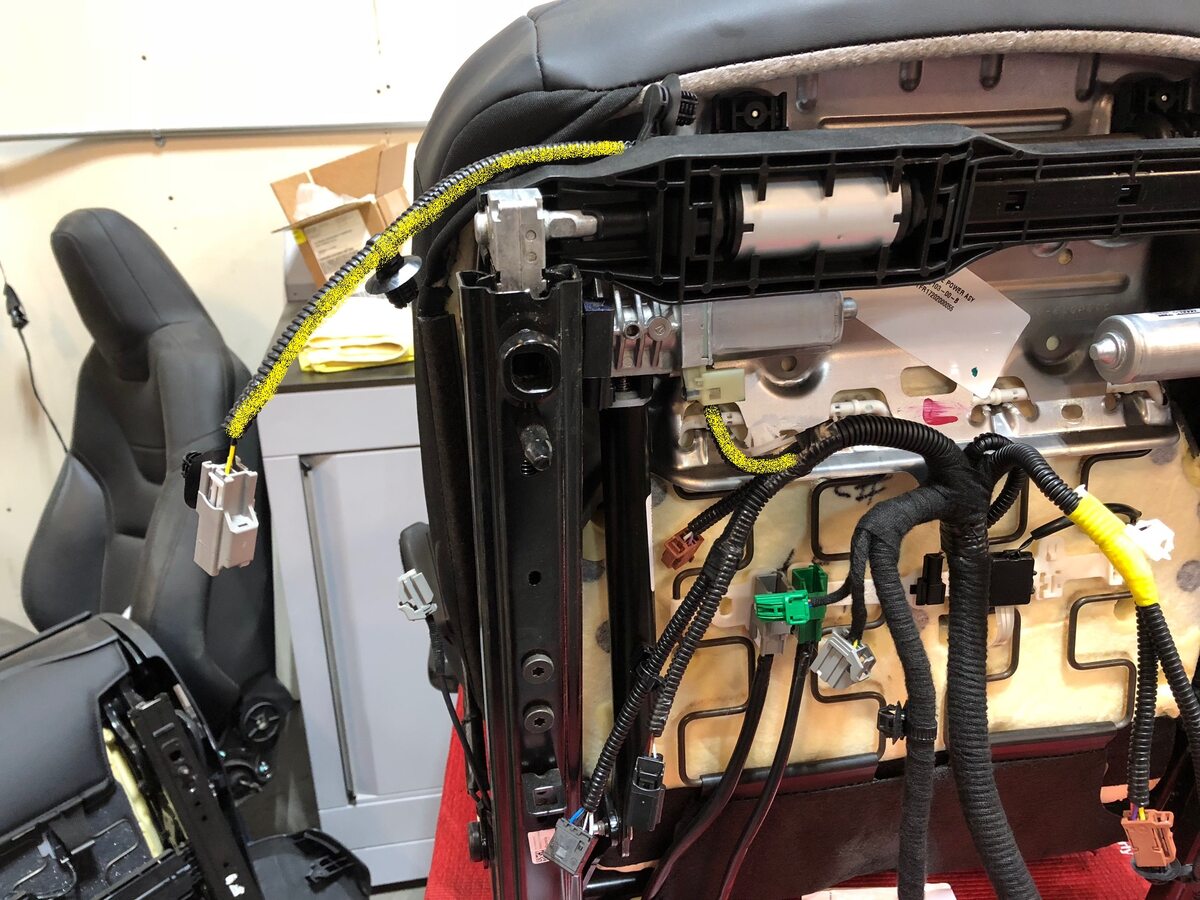

  17. Pull the seat upholstery away from the air bag to gain access to the air bag electrical connector.

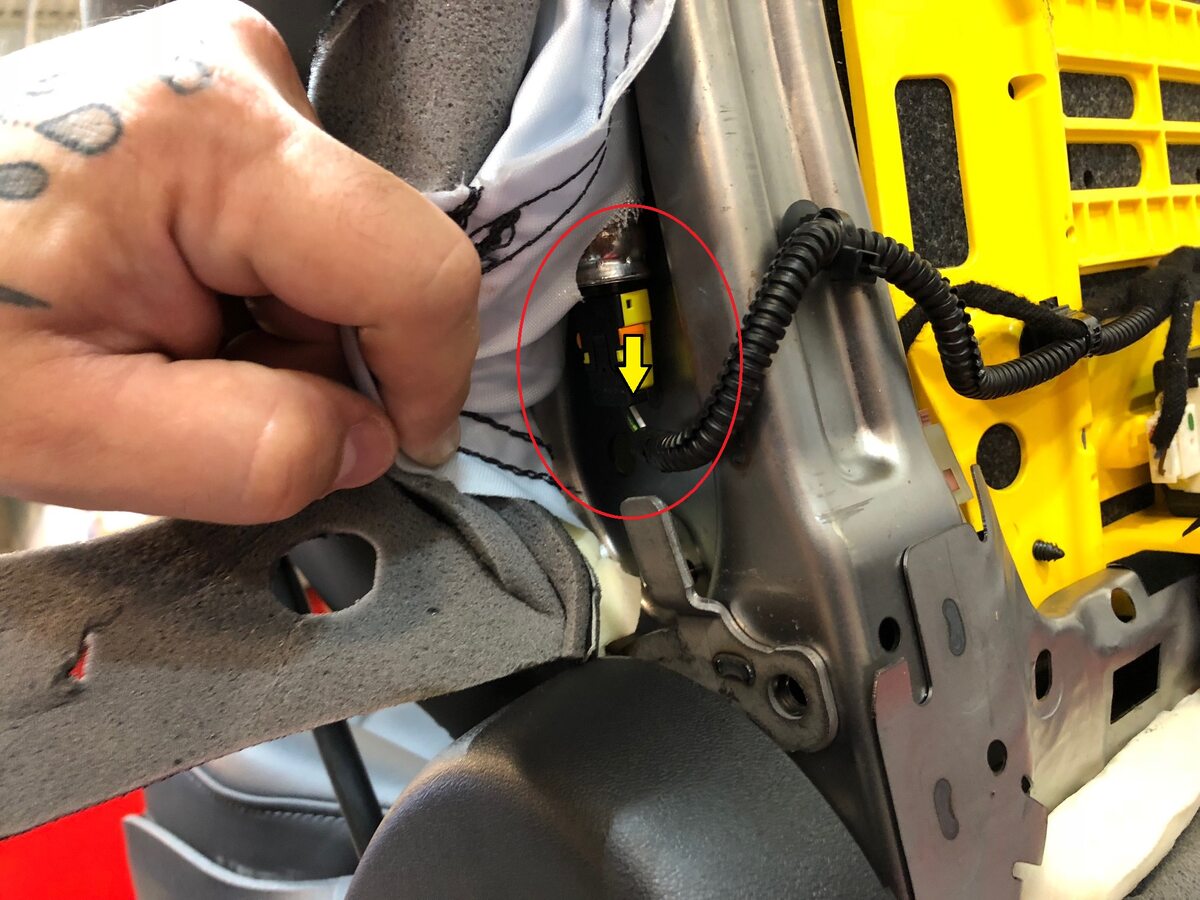

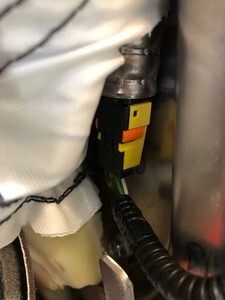

  18. Disconnect driver seat air bag.
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector. Pull both of the orange tabs down to release the connector.

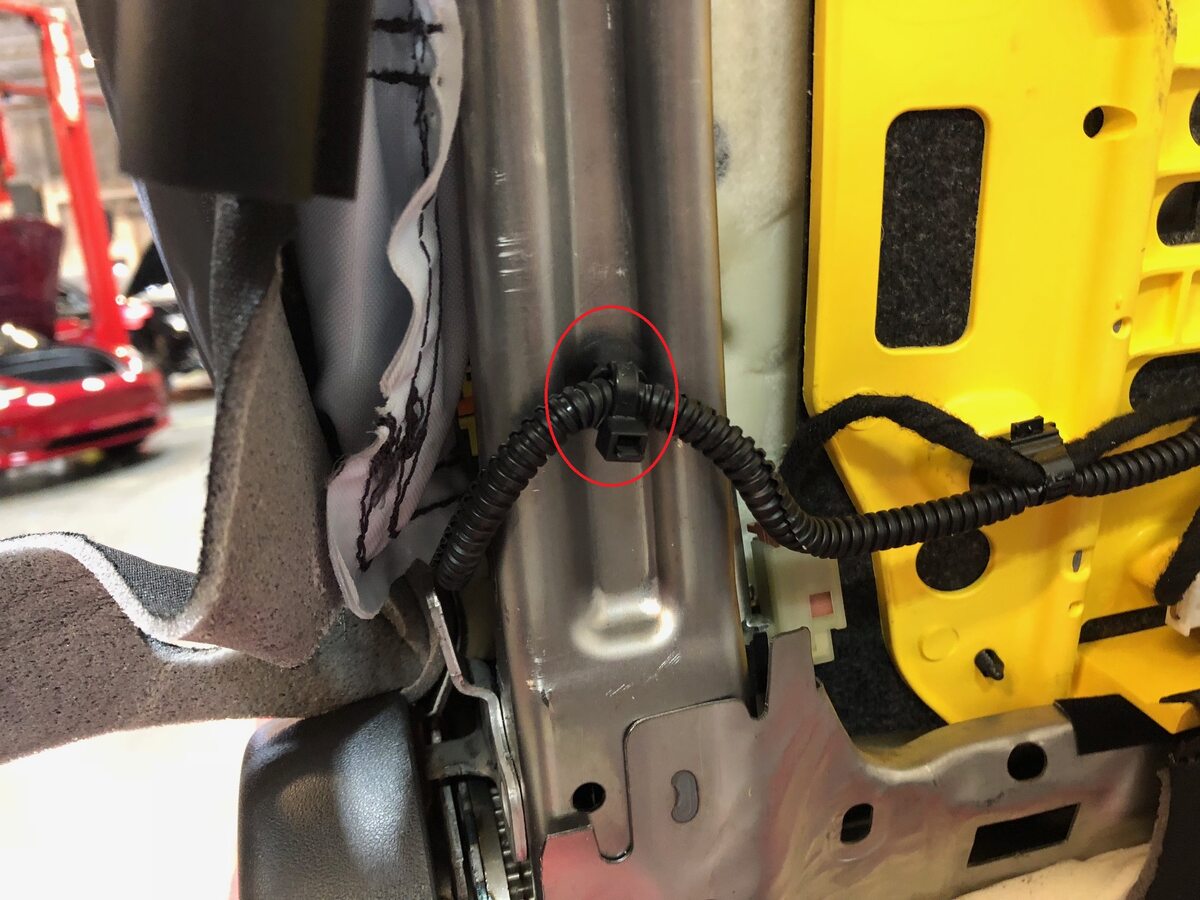

  19. Remove the harness clip securing the airbag pigtail to the seat back frame.
    Informational PurposesAn informational icon, calling your attention
    Note
    1x fir tree clip.

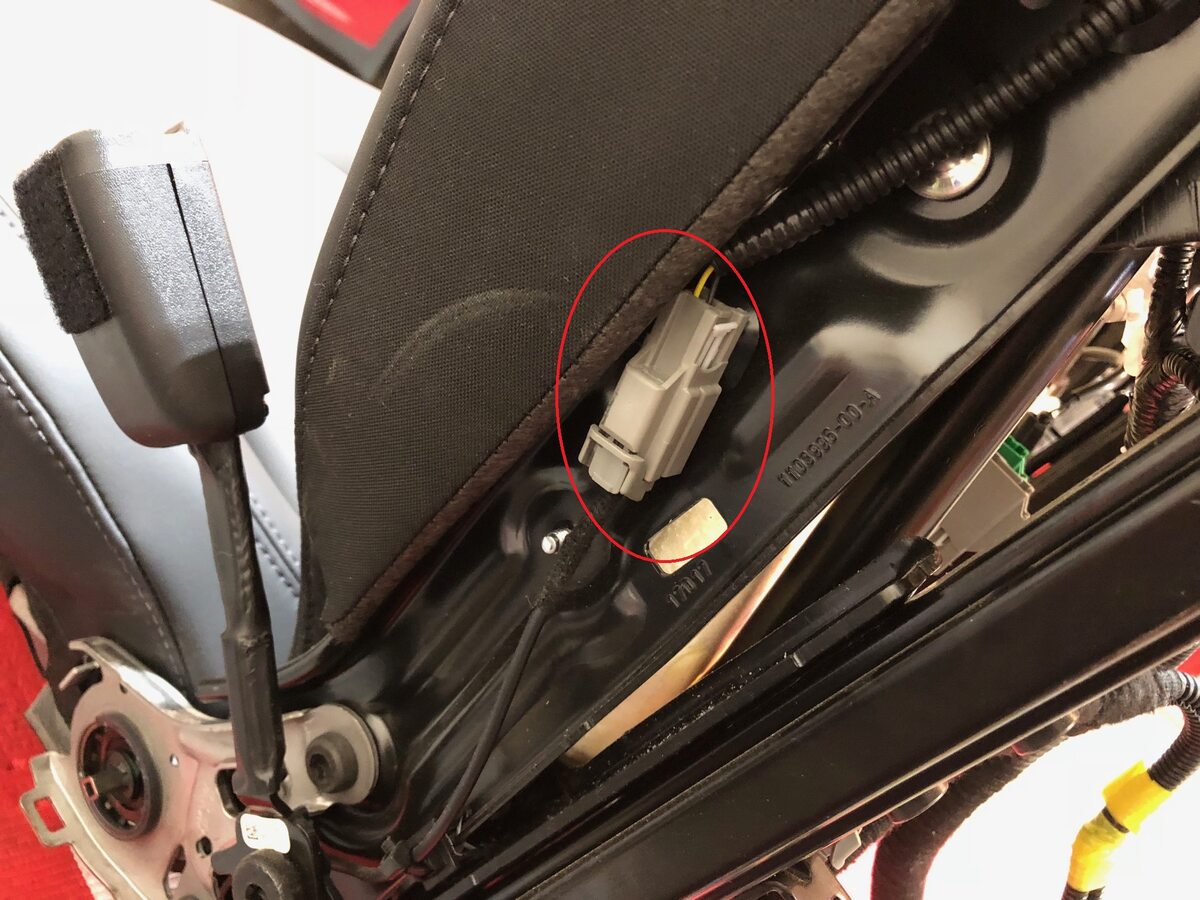

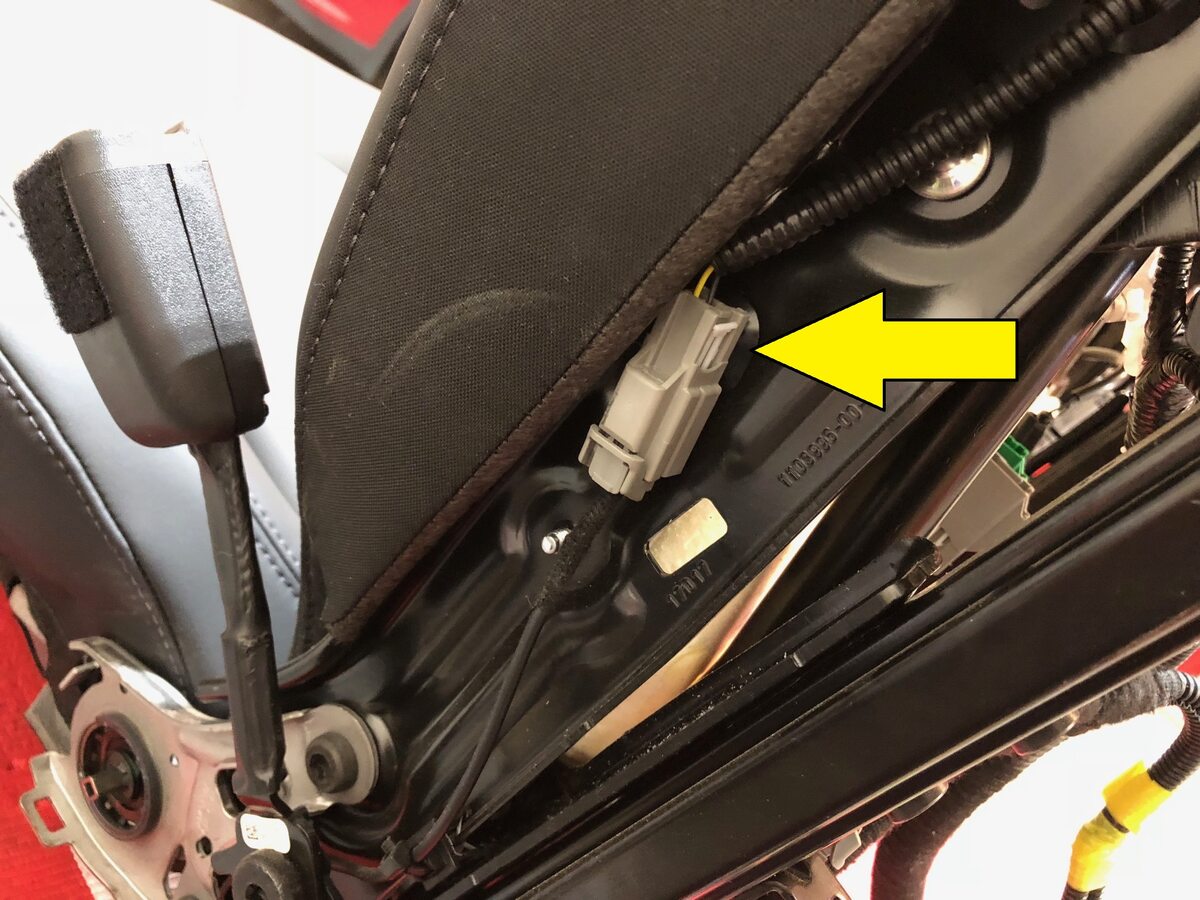

  20. Disconnect the recliner motor.
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector

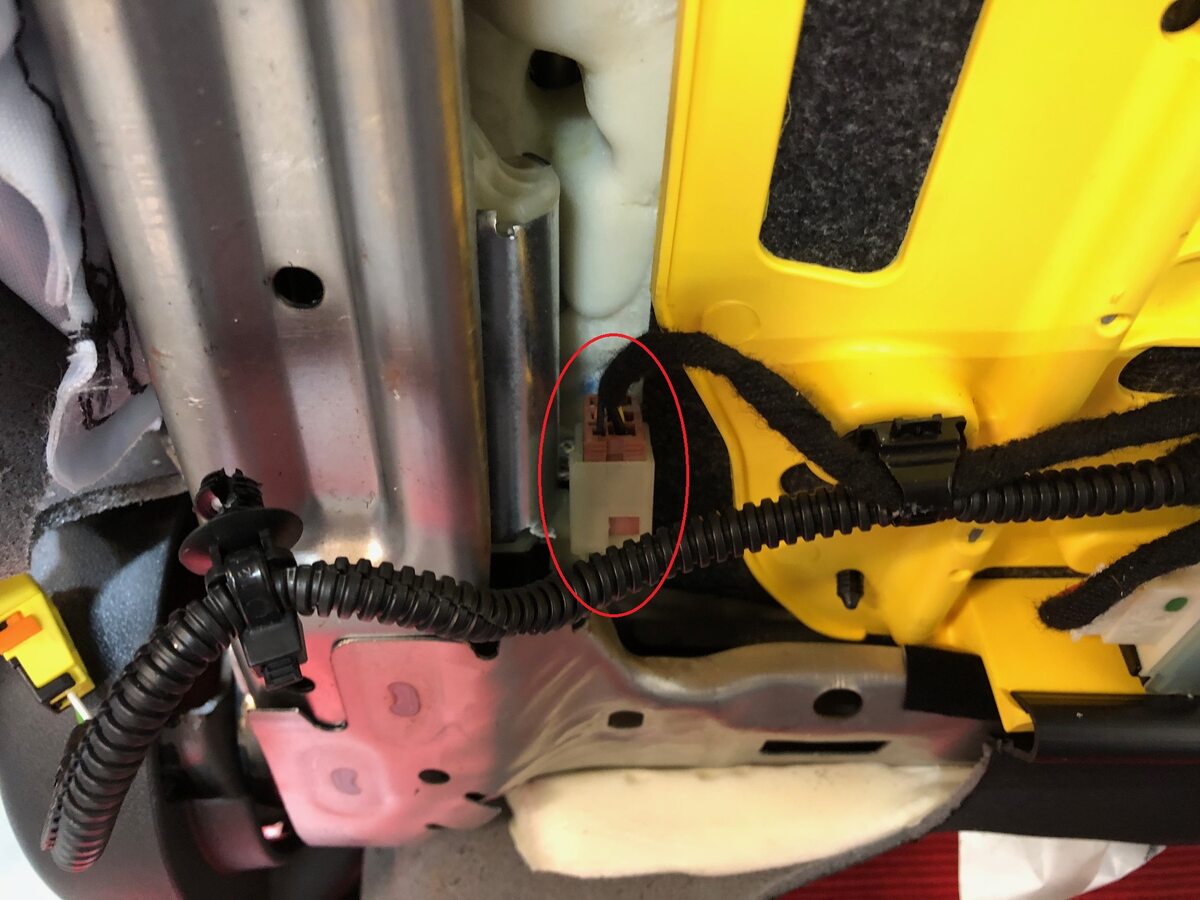

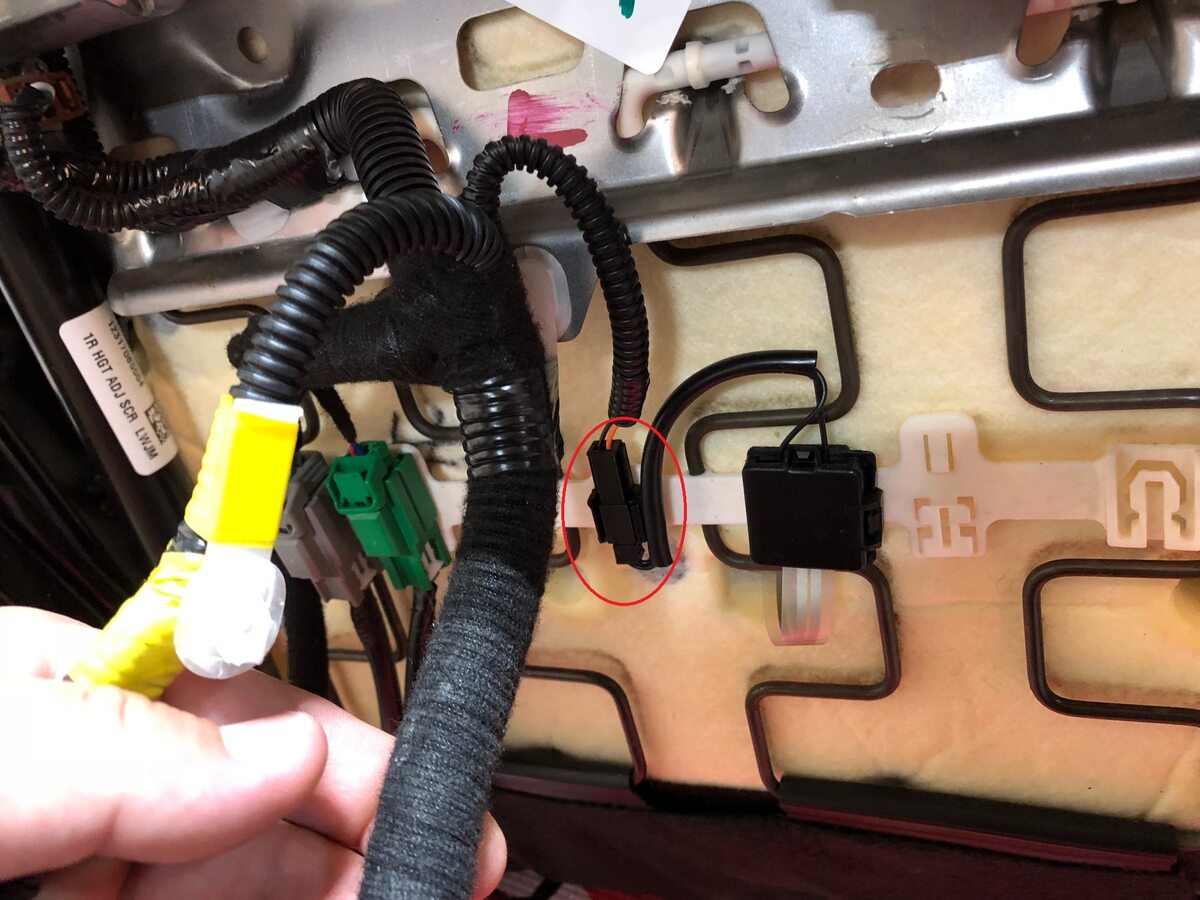

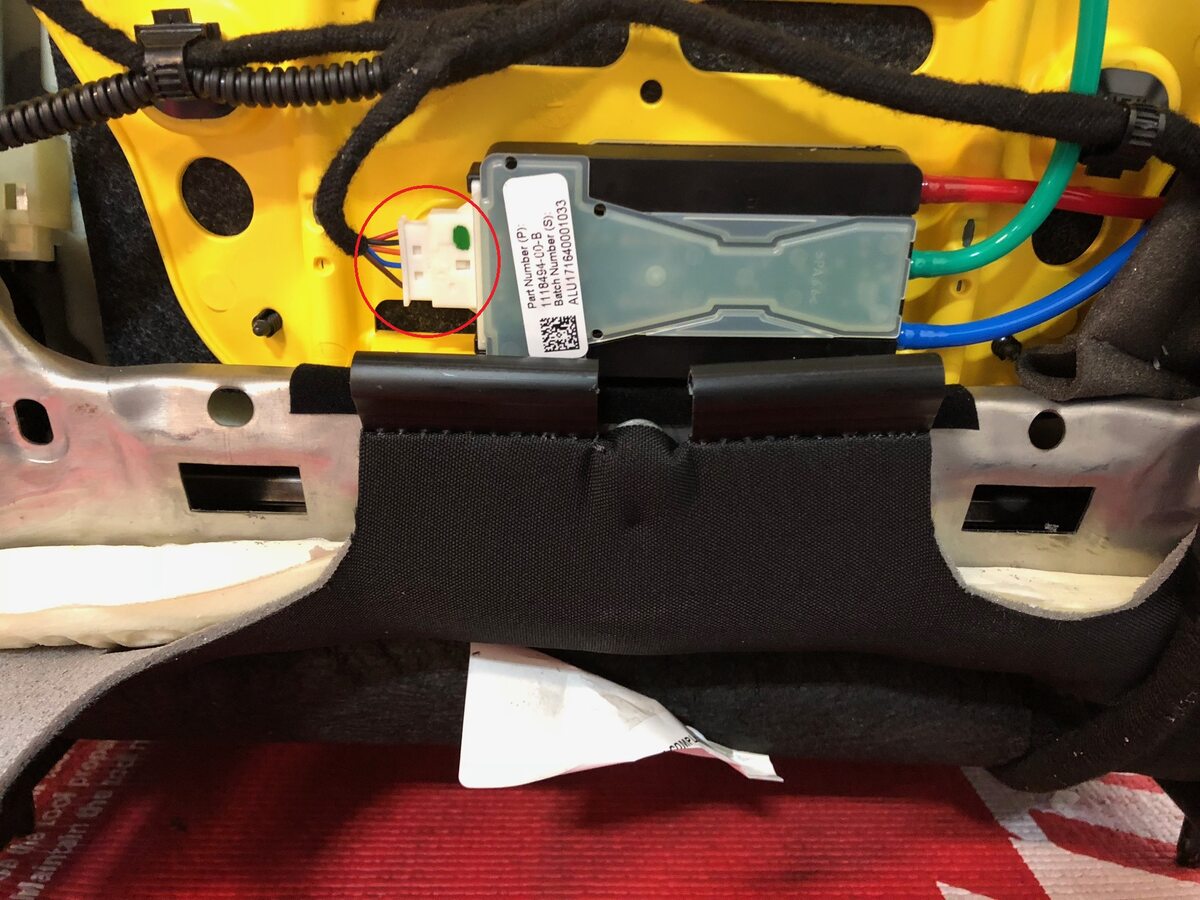

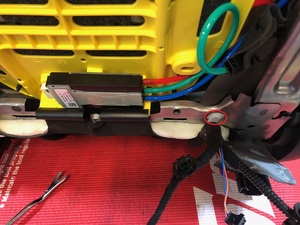

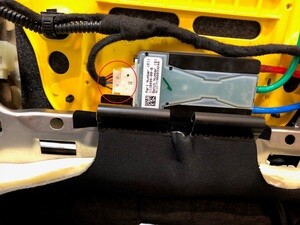

  21. Disconnect the lumbar valve pack and ECU.
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector

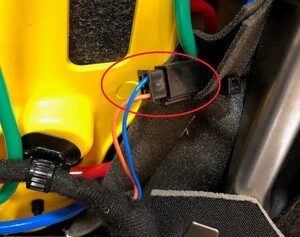

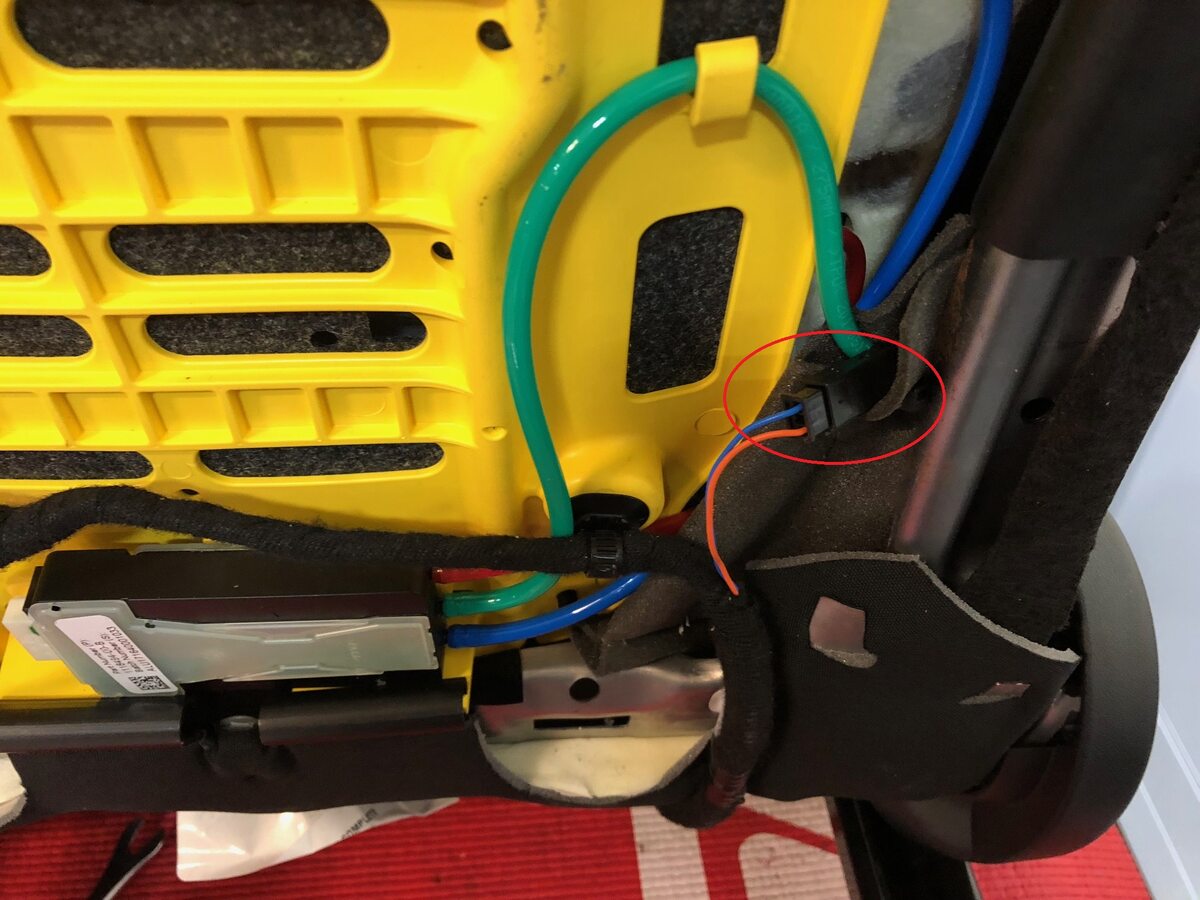

  22. Disconnect the lumbar pump.
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector

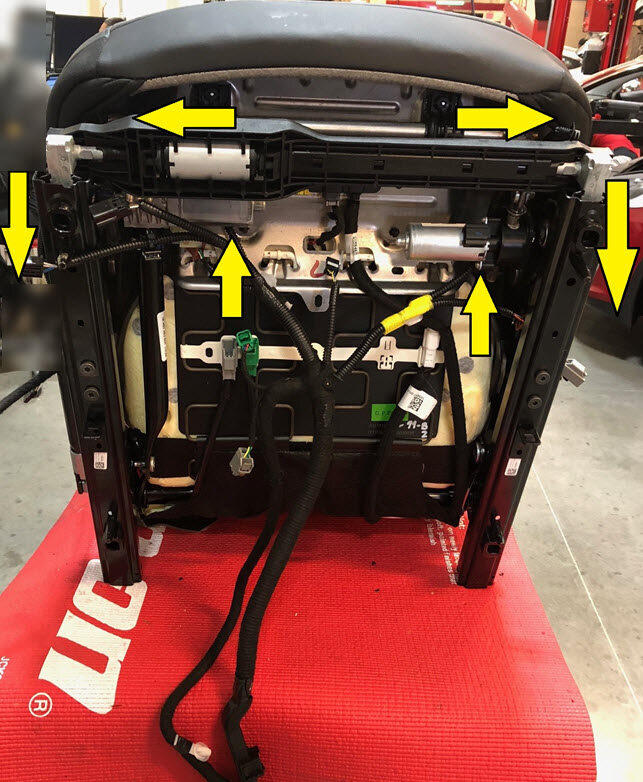

  23. Remove the seat harness from seat back frame.
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips
  24. Remove screw securing outer side cover to the seat.
    Informational PurposesAn informational icon, calling your attention
    Note
    1x screw, T20, 4 Nm. Ensure the front of the seat is high enough to access the T20 screw.
  25. Release the outer side cover clip from the seat, but do not remove it.
    Informational PurposesAn informational icon, calling your attention
    Note
    1x clip, Do not fully remove, possible damage to the trim/switch pack/harness
  26. Silde the cover downward to release the outer side cover rear tab from the LH front seat.
    Informational PurposesAn informational icon, calling your attention
    Note
    Do not fully remove to avoid damaging the trim, switch pack, or harness.

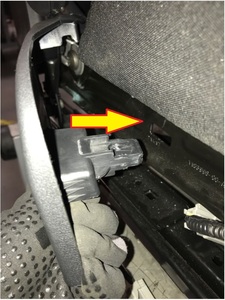

  27. Disconnect the LH front seat switch connector.
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • Pick Miniature Soft Grip, 90 degree tip, 6 in

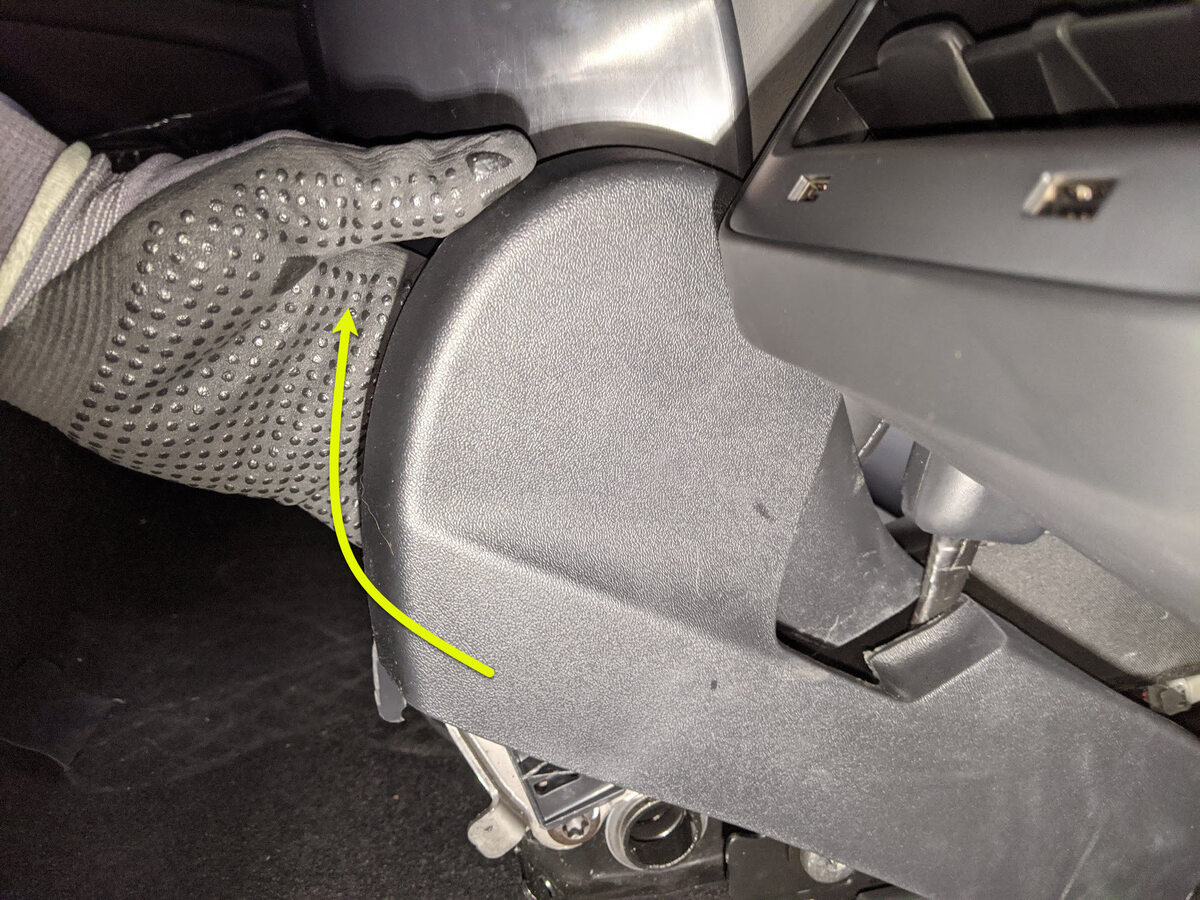

  28. Remove the outer trim from the LH front seat.
    Informational PurposesAn informational icon, calling your attention
    Note
    Pull the rear of the trim outward, then lift it off the seat, ensuring clearing the cushion and the pretensioner.
  29. Slide outer cover rearward to release clip from frame and lift up over pretensioner to remove the LH front seat outboard side shield.
    Informational PurposesAn informational icon, calling your attention
    Note
    1x clip

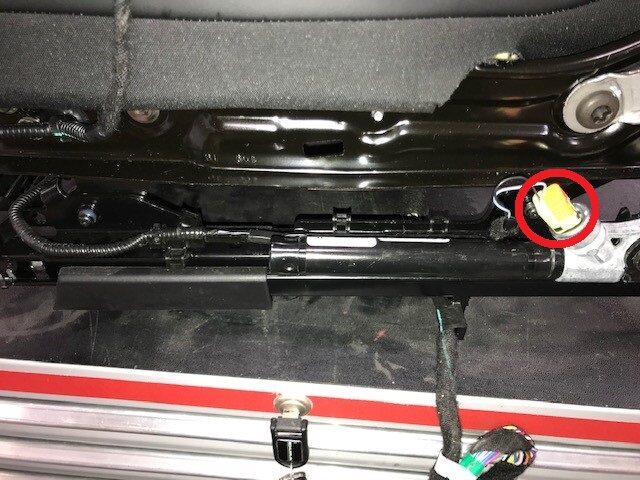

  30. Disconnect the seat belt pretensioner.
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector. Pull both of the orange tabs down to release the connector.

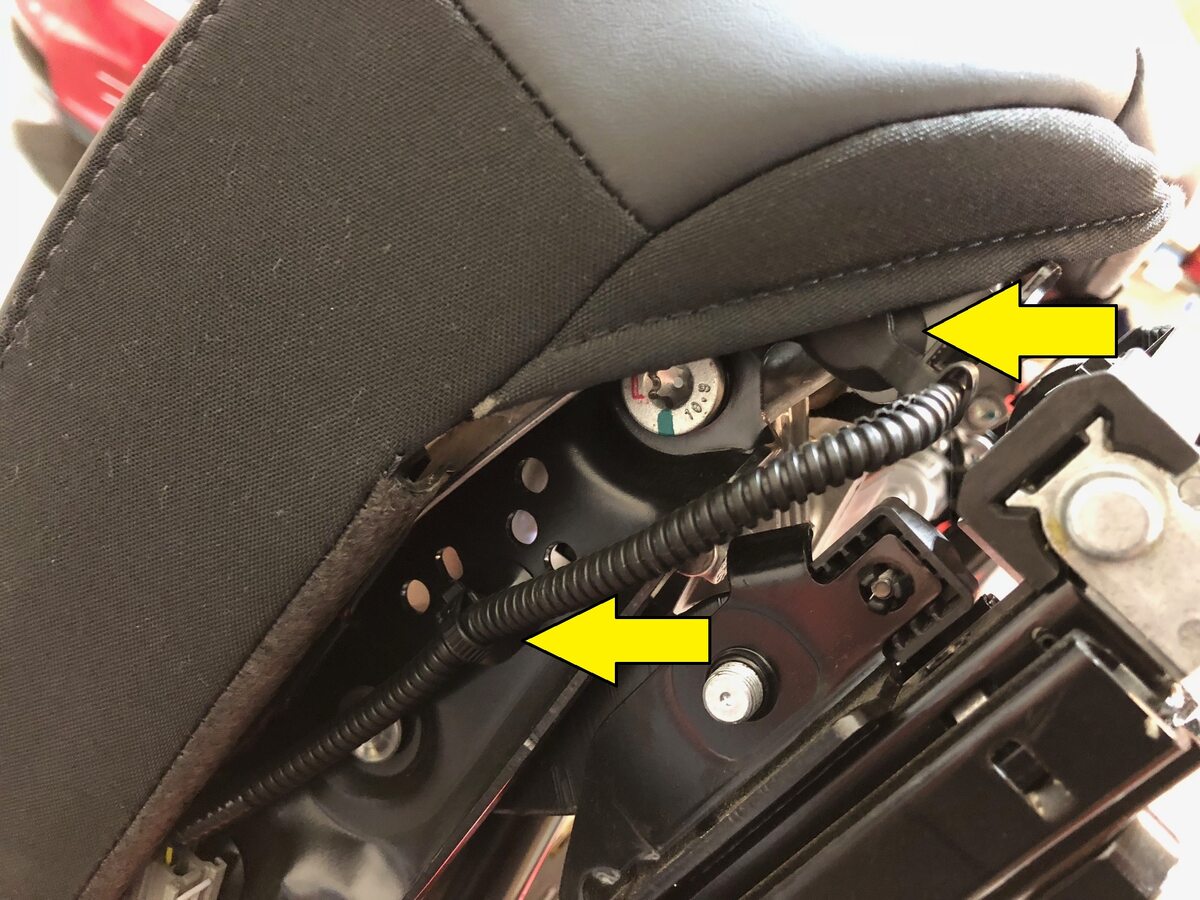

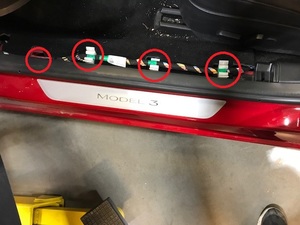

  31. Release seat belt pretensioner harness clips.
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips. Use 90 pick to release harness clips from seat track rail.
  32. Remove clips securing seat switch harness to seat cushion frame.
    Informational PurposesAn informational icon, calling your attention
    Note
    2x fir tree clips
  33. Rotate the seat to gain access to the underside of the seat.
  34. Use a clip prytool to remove the harness retaining clip under the tilt motor.
    Informational PurposesAn informational icon, calling your attention
    Note
    1x retaining clip
  35. Disconnect the tilt motor connector.
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector

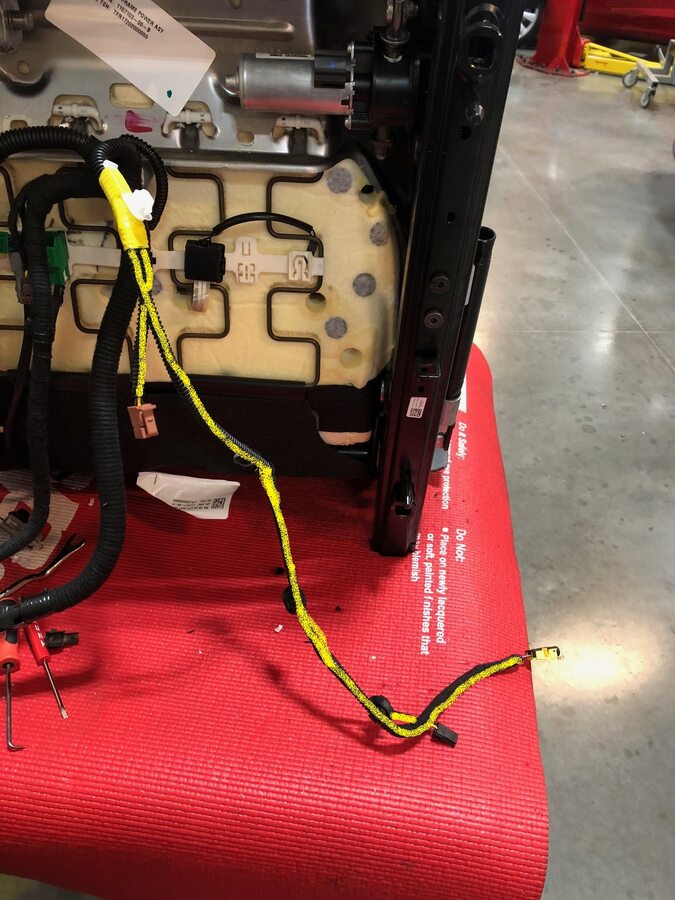

  36. Route the seat belt pretensioner leg of the seat harness away from the seat.
    Informational PurposesAn informational icon, calling your attention
    Note
    Route the harness leg from behind the tilt motor and away from the bottom of the seat.
  37. Disconnect the seat back heater connector.
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Green
  38. Disconnect the seat cushion heat pad.
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  39. Remove the clip securing the harness to the under side of the seat, next to the seat heater connectors.
    Informational PurposesAn informational icon, calling your attention
    Note
    1x retaining clip

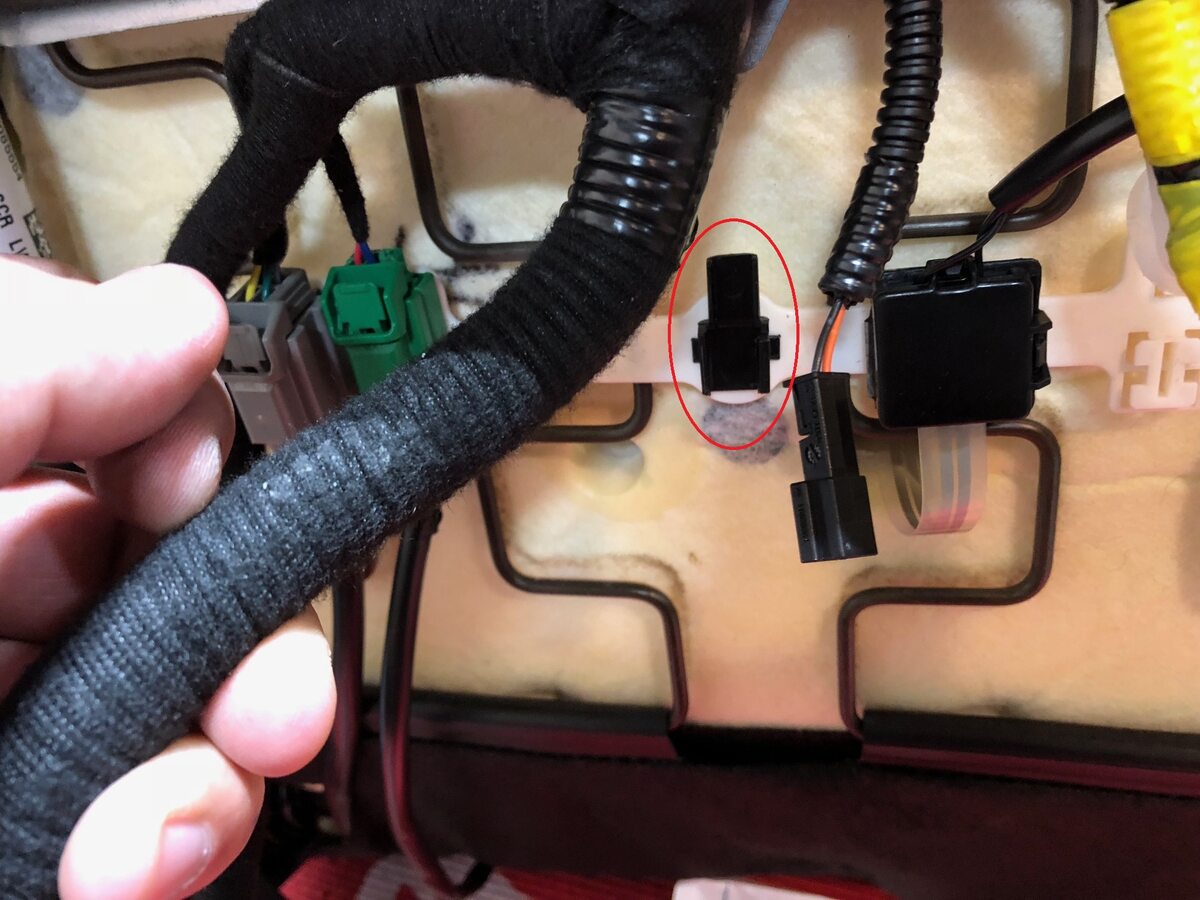

  40. Disconnect the seat occupancy sensor and set the sensor harness pigtail aside.
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  41. Remove and discard the retaining clip that secures the seat occupancy sensor connector to the seat bottom.
    Informational PurposesAn informational icon, calling your attention
    Note
    The new harness comes with the retaining clip installed on the harness connector.

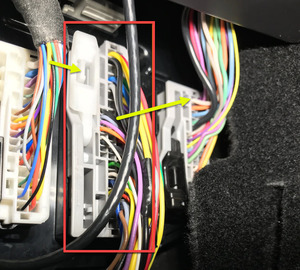

  42. Remove the retaining clip under the main seat harness junction.
    Informational PurposesAn informational icon, calling your attention
    Note
    1x retaining clip

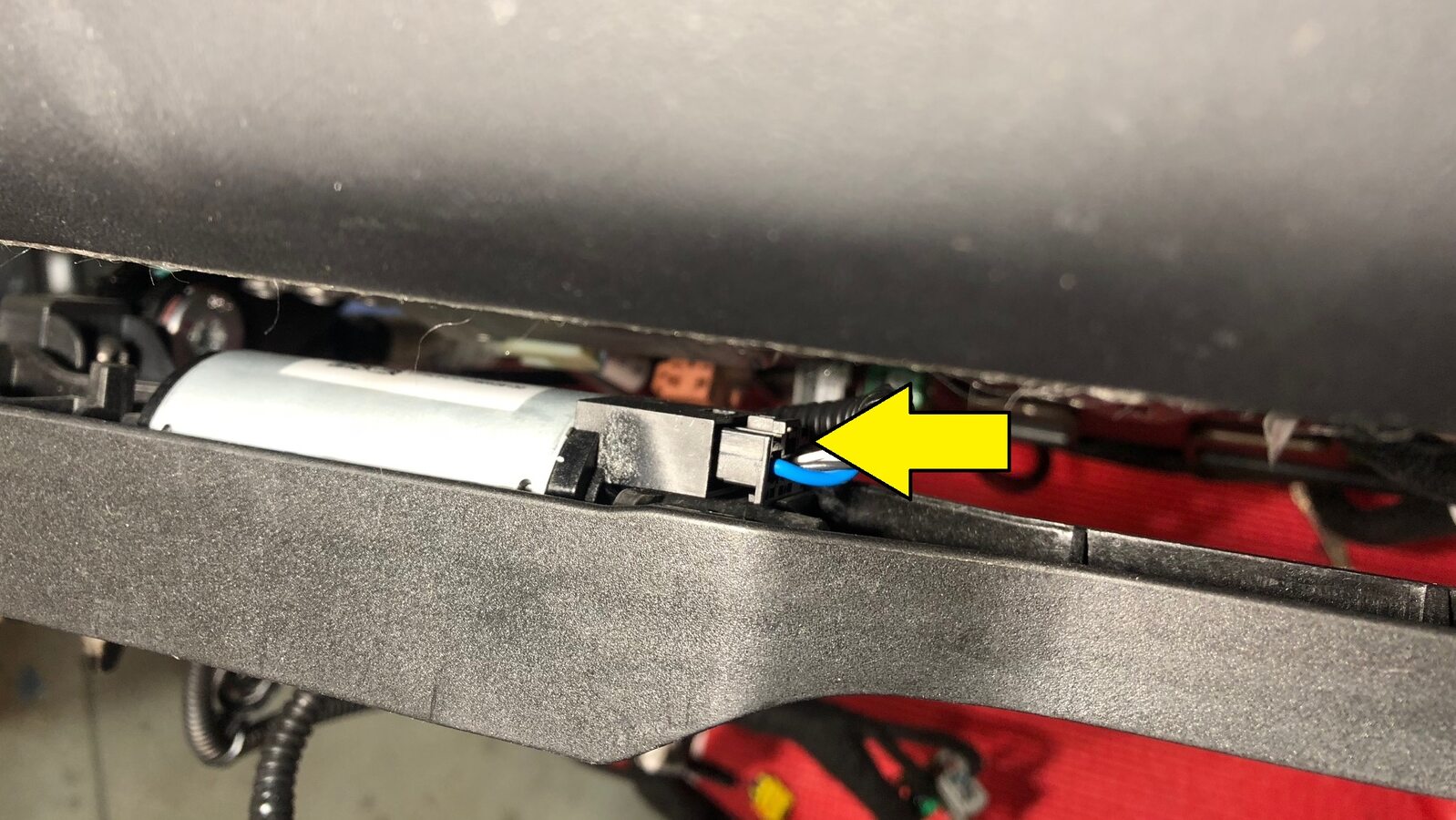

  43. Disconnect the height motor connector.
  44. Remove the clip securing the harness to the seat cushion frame under the lift motor.
    Informational PurposesAn informational icon, calling your attention
    Note
    1x retaining clip

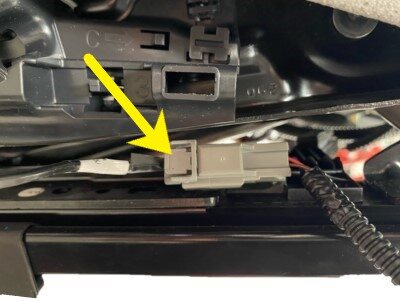

  45. Disconnect the LH front seat track motor connector.
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector

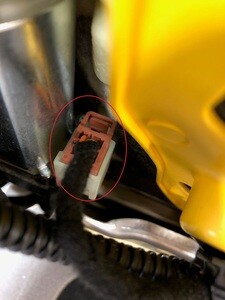

  46. Disconnect the seat track position sensor connector.
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector. If this connector is not configured on the vehicle, skip this step.

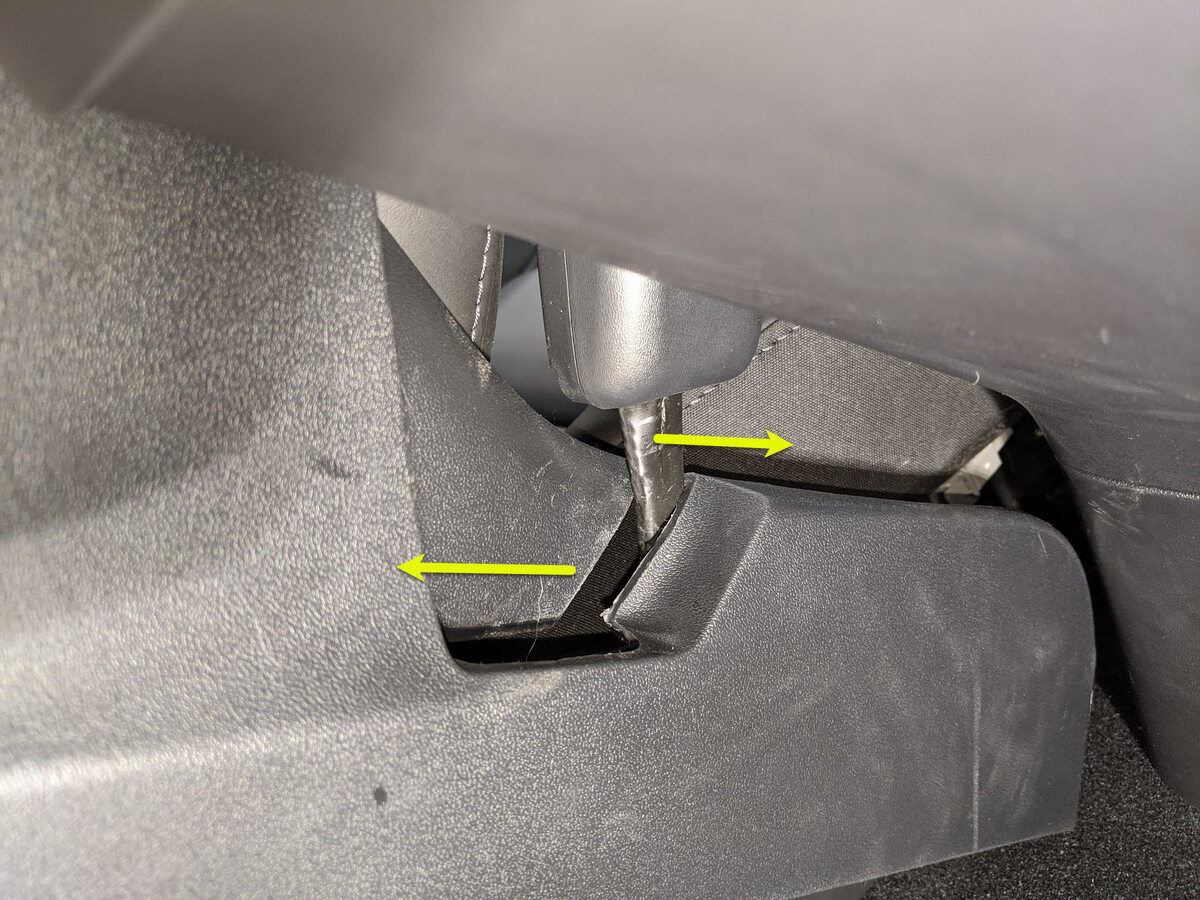

  47. Remove the inner side shield from the seat.
    Informational PurposesAn informational icon, calling your attention
    Note
    3 x clips. Release the side clips from the seat bottom frame, then pull up on rear of the trim to remove it.
  48. Disconnect the LH front seat buckle connector.
  49. Release the clip that attaches the seat belt buckle connector to the seat cushion frame.
    Informational PurposesAn informational icon, calling your attention
    Note
    1x fir tree clip
  50. Remove the clips securing the seat belt buckle connector harness to the seat cushion frame.
    Informational PurposesAn informational icon, calling your attention
    Note
    2x fir tree clips
  51. Route the seat belt buckle leg of the harness away from the seat to allow the seat harness to be removed.
    Informational PurposesAn informational icon, calling your attention
    Note
    Route the seat belt buckle leg around the lift motor and away from the seat, The harness will be completely free from the seat at this point.

Install

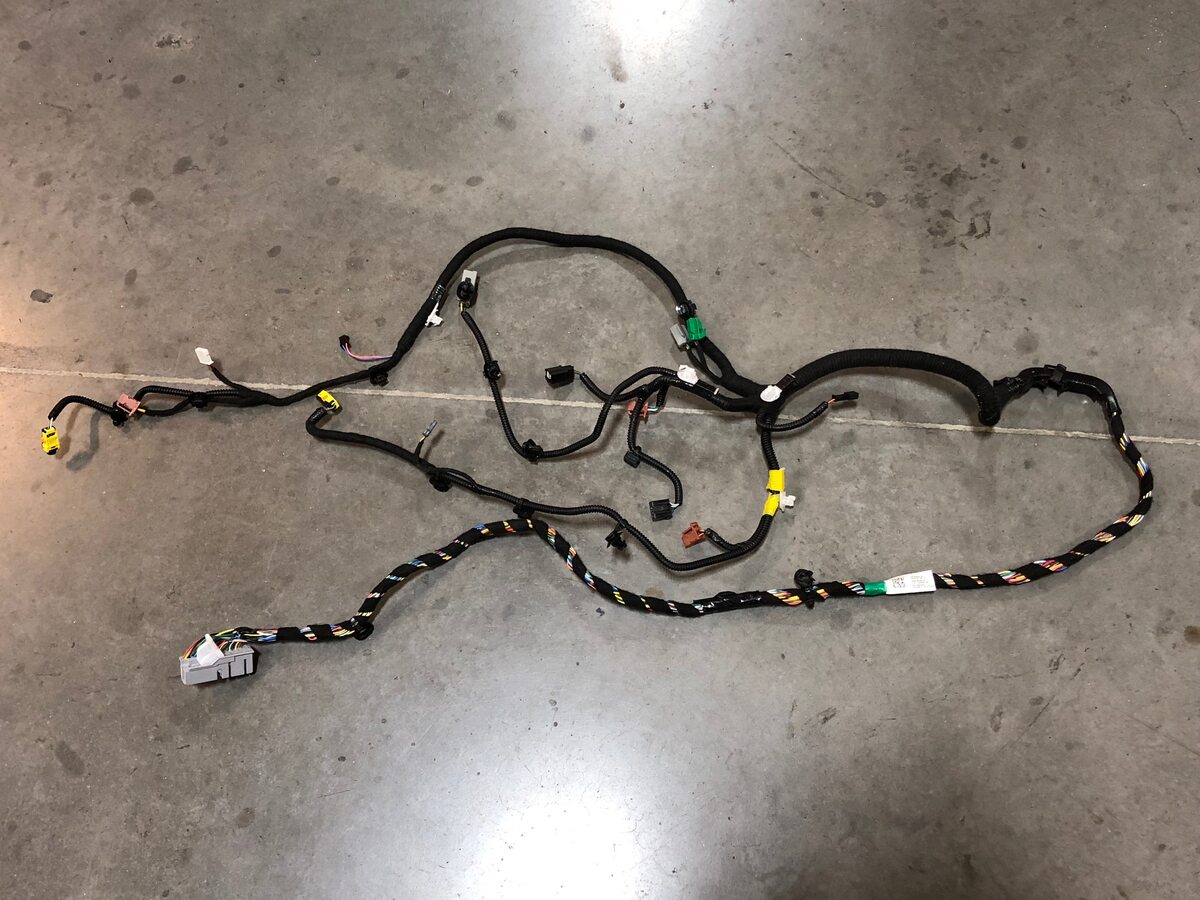

  1. Position the new seat harness for installation.
    Informational PurposesAn informational icon, calling your attention
    Note
    Route the harness under the lift motor and tilt motor placing the harness legs in the correct locations, Harness clips will be installed later
  2. Install the clips securing the seat belt buckle connector harness to the seat cushion frame.
    Informational PurposesAn informational icon, calling your attention
    Note
    2x fir tree clips
  3. Install the clip that attaches the seat belt buckle connector to the seat cushion frame.
    Informational PurposesAn informational icon, calling your attention
    Note
    1x fir tree clip
  4. Connect the LH front seat buckle connector.

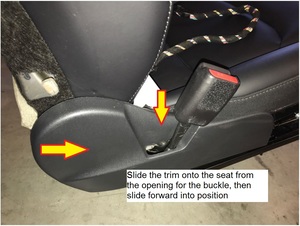

  5. Install LH inner side shield to driver seat
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips, Slide the trim onto the seat from the opening for the buckle, then slide forward into position
  6. Connect the seat track position sensor connector.
    Informational PurposesAn informational icon, calling your attention
    Note
    If this connector is not configured on the vehicle, skip this step.
  7. Install the harness clips to the seat track motor.
  8. Connect the LH front seat track motor connector.
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  9. Connect the height motor connector.

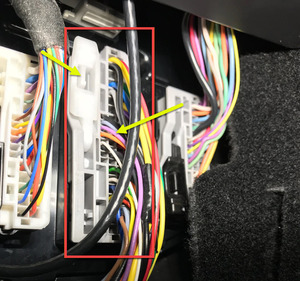

  10. Install the retaining clip under the main seat harness junction.
    Informational PurposesAn informational icon, calling your attention
    Note
    Depending on the harness build date, it may be a tri-clip style or a single clip.
  11. Connect the seat occupancy sensor and install the clip to the seat bottom.
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, 1x retaining clip. Ensure the harness is not routed between cushion and frame to avoid friction.
  12. Install the clip securing the harness to the under side of the seat, next to the seat heater connectors.
    Informational PurposesAn informational icon, calling your attention
    Note
    1x retaining clip
  13. Connect the heat pad connector.
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  14. Connect the seat back heater connector.
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  15. Connect the tilt motor connector.
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  16. Install clips securing the seat switch harness to the seat cushion frame.
    Informational PurposesAn informational icon, calling your attention
    Note
    2x fir tree clips
  17. Install seat belt pretensioner harness clips.
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips. Position seat belt pretensioner harness clips to seat track rail and press down on each clip to secure.
  18. Connect the LH front seat belt pretensioner connector.
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  19. Position the outer side cover to LH front seat and slide forward to secure the rear tab.
    Informational PurposesAn informational icon, calling your attention
    Note
    Apply light pressure to the rear of the outer trim to fully seat it onto the seat frame. A fully installed trim should show no visible metal from the frame and must align with the contour of the seat back.

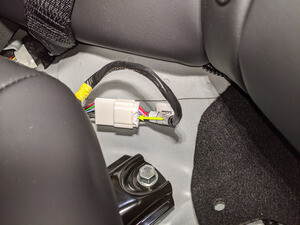

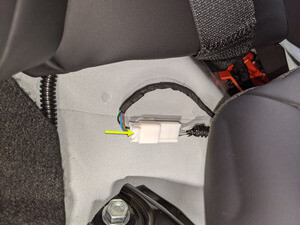

  20. Connect seat switch connector.
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector

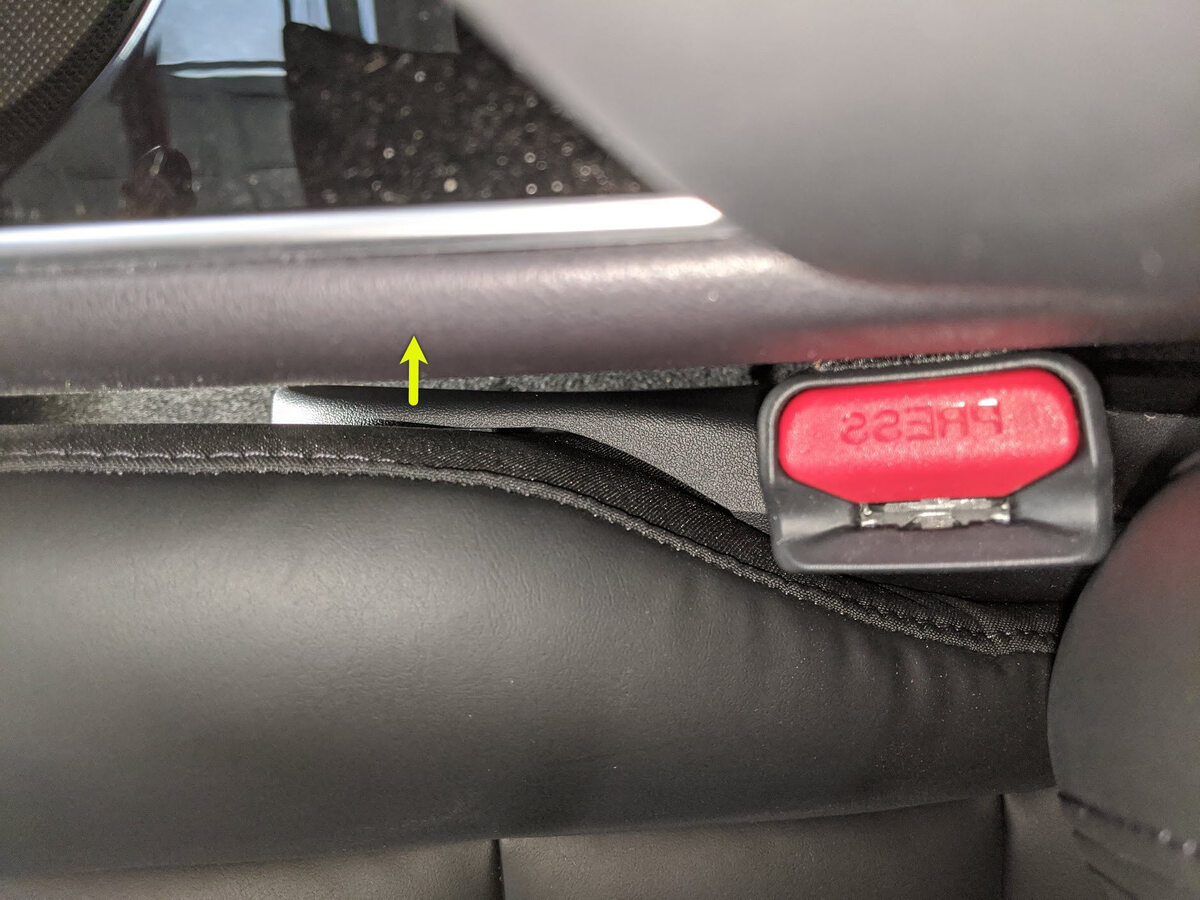

  21. Secure the outer side cover clip to the LH front seat.
    Informational PurposesAn informational icon, calling your attention
    Note
    Apply pressure to the outer seat trim to fully seat the trim clip. The trim should sit flush against the seat cushion.
  22. Install the screw securing outer side cover to the LH front seat.
    Informational PurposesAn informational icon, calling your attention
    Note
    1x screw, T20, 4 Nm
  23. Rotate the seat to normal upright position.
  24. Install the seat harness to seat back frame.
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips
  25. Connect the lumbar pump connector.
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  26. Connect the lumbar valve pack and the ECU connector.
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  27. Connect the recliner motor.
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector

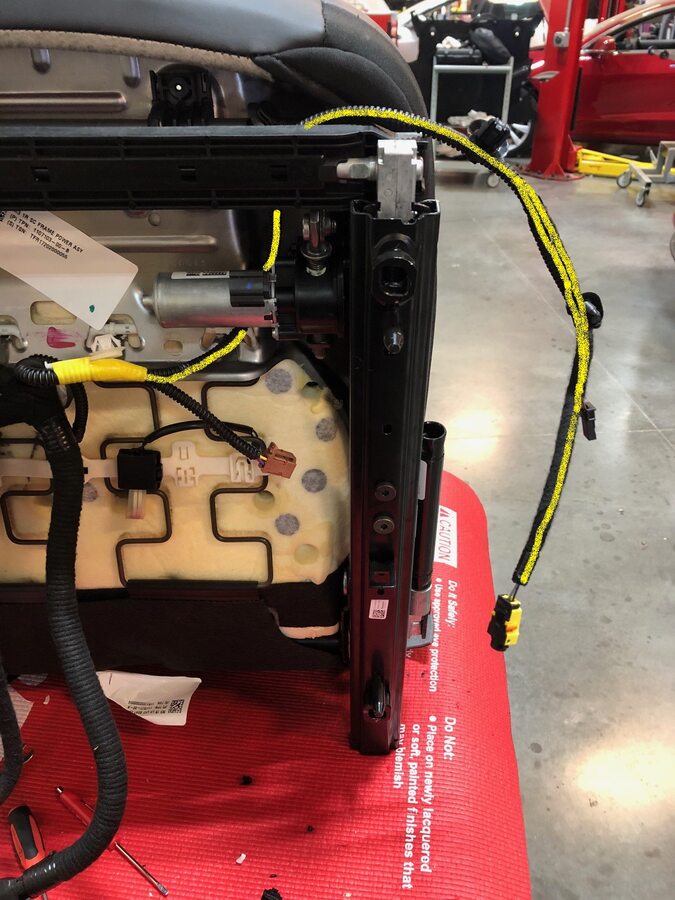

  28. Install the harness clip securing the airbag pigtail to the seat back frame.
  29. Pull the seat upholstery away from the air bag to gain access to the air bag electrical connector.
  30. Connect LH front seat side air bag.
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  31. Install the outer clips securing the seat upholstery to the seat back frame.
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips
  32. Install the lower flap covering the outboard corner of the seat back frame.
    Informational PurposesAn informational icon, calling your attention
    Note
    Pull the flap over the metal tangs to secure.
  33. Install the upper flap covering the outboard corner of the seat back frame.
    Informational PurposesAn informational icon, calling your attention
    Note
    Pull the flap over the metal tangs to secure.
  34. Install the seat back shell base assembly to seat back frame.
    Informational PurposesAn informational icon, calling your attention
    Note
    6x clips. Install the lower clips first and rotate the shell up into place, Light pressure may need to be applied to the shell to ensure it's fully seated, The headrest posts will engage the seat back when installed.

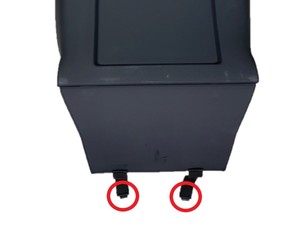

  35. Hook the strap clips for the seat back shell onto the seat suspension.
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips, Ensure the straps are tight for proper fit and installation.
  36. Install the headrest into passenger seat.
    Informational PurposesAn informational icon, calling your attention
    Note
    2x locking clips, Ensure the headrest is fully seated, An audible click will be heard when installing the headrest, Ensure the headrest is seated by tugging up on the headrest.
  37. Install the LH front seat into the vehicle. See Seat Assembly - 1st Row - LH (Remove and Replace).
  38. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  39. Remove the 2nd row seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace).
  40. Move LH front seat to original position.
  41. Move RH front seat to original position.
  42. Raise all windows and close all four doors.
    Informational PurposesAn informational icon, calling your attention
    Note
    Unlatch rear doors before closing.
