Crush Can - Front Subframe - LH (Remove and Replace)
Correction code
10101602
0.78
NOTE: Unless otherwise explicitly
stated in the procedure, the above correction code and FRT reflect all of the work
required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.NOTE: See Flat Rate
Times to learn more about FRTs and how they are created. To provide feedback on
FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when
performing the below procedure.
- 1133185-00-A Skt, 3/8in Dr, XZN M14, Tri-Square
Remove
- Remove the front end carrier. See Carrier - Front End (Non-Heat Pump) (Remove and Replace).
-

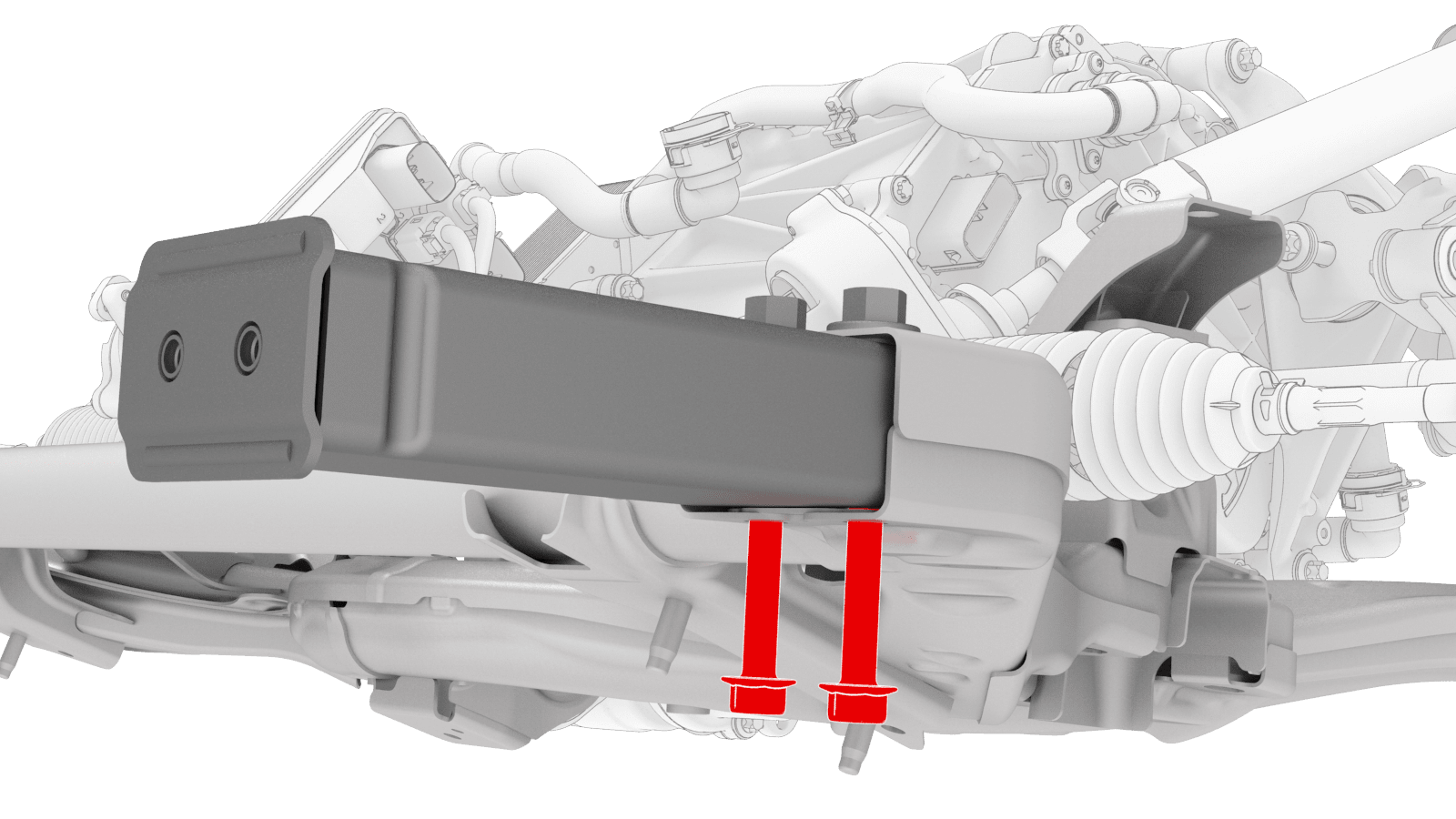

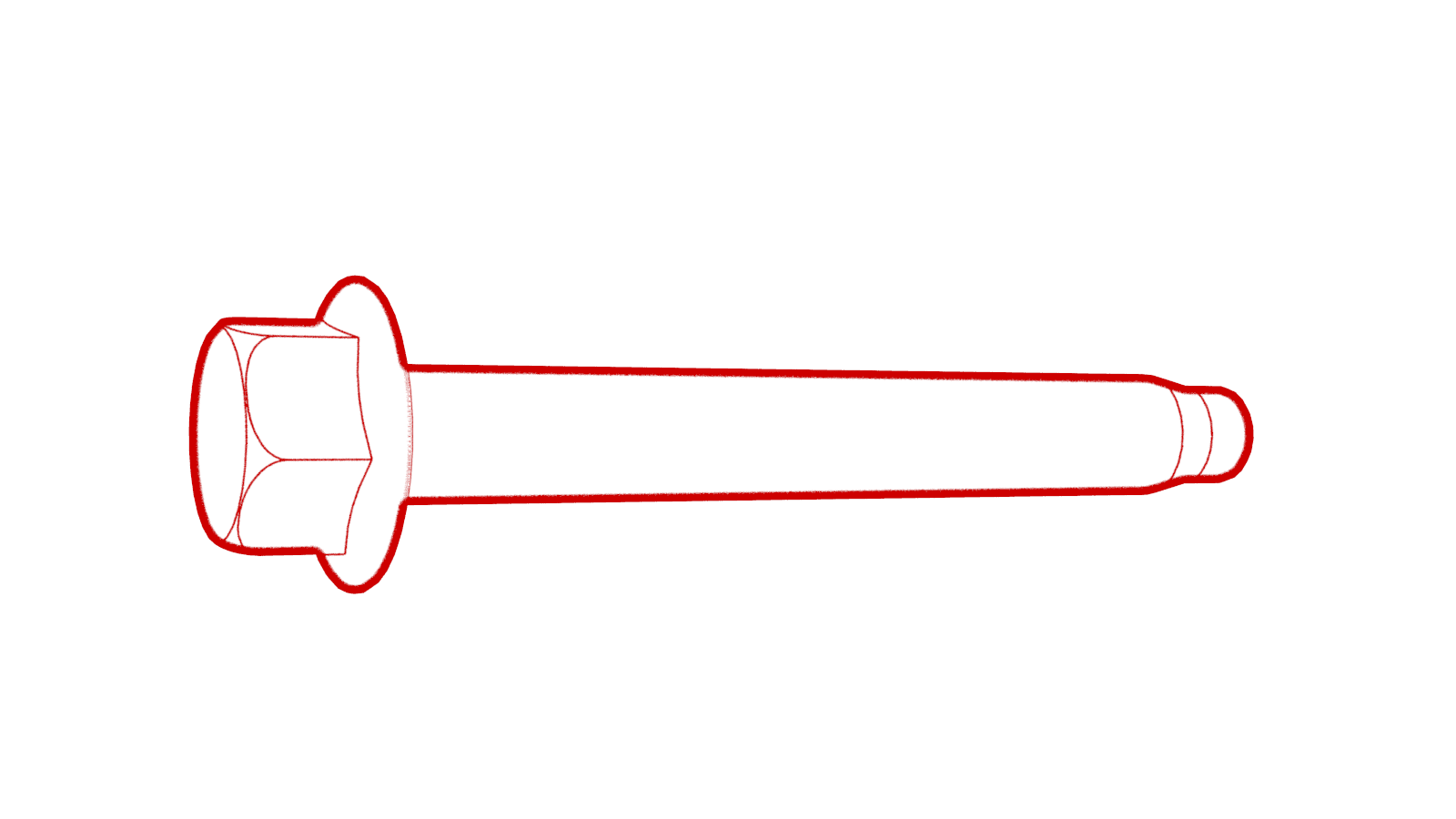

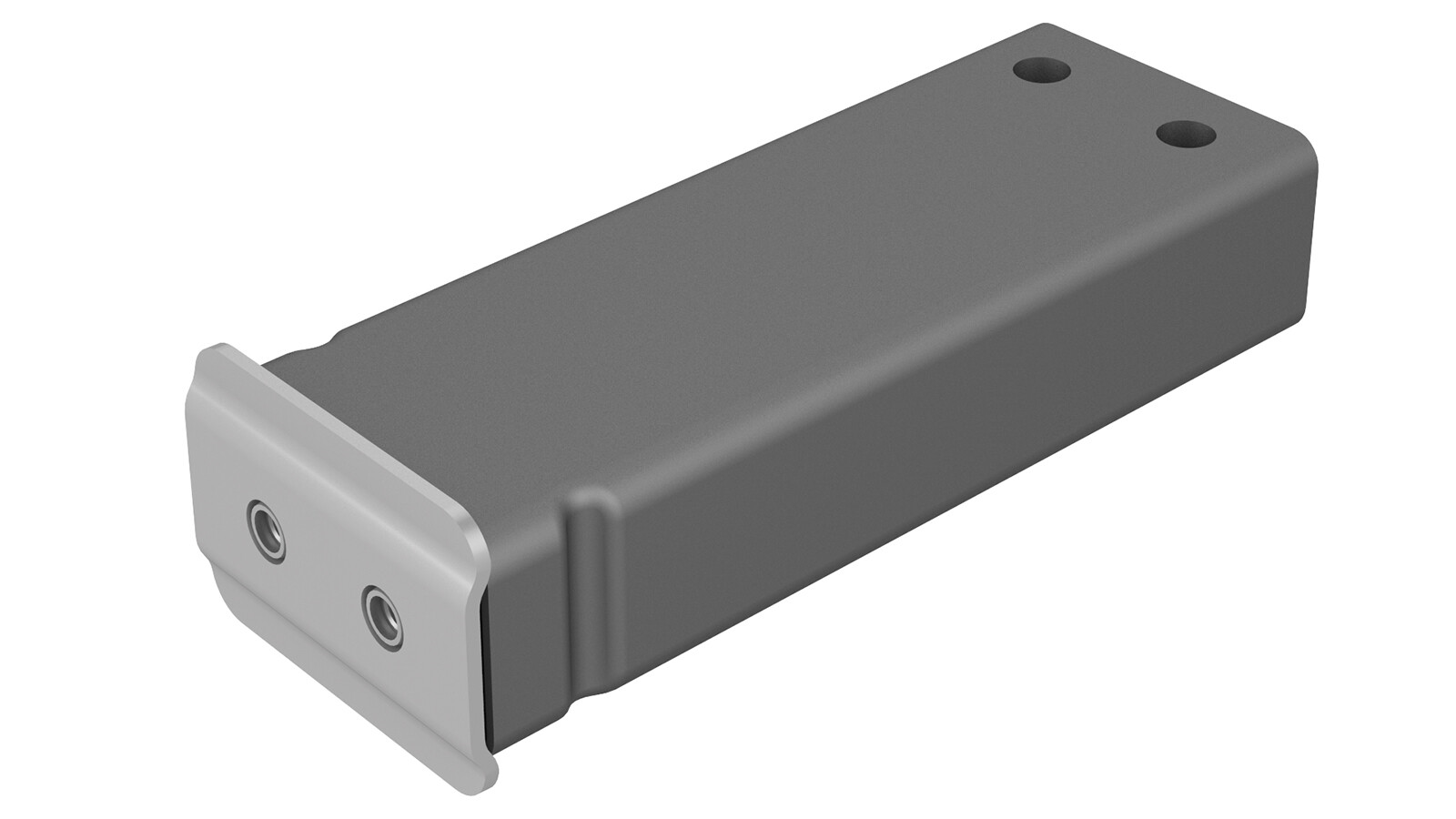

Remove the bolts that attach
the LH crash can bracket to the front subframe, and remove the bracket from
the subframe.53 Nm (39.1 lbs-ft)
Install
Installation procedure is the reverse of removal.
