Pyrotechnic Battery Disconnect (Remove and Replace)

Correction Code 17570102

CAUTION
Supplemental Restraint System (SRS) components can be hazardous if not serviced and handled correctly. See Air Bag and Supplementary Restraint System (SRS) Precautions
CAUTION
In the event of an airbag or seatbelt pretensioner deployment, certain components must be replaced, and other components must be inspected for damage. Refer to the Collision Repair Manual for a specific list of items that must be inspected and replaced.

Removal

  1. Disconnect 12V power. See Disconnect 12V Power .

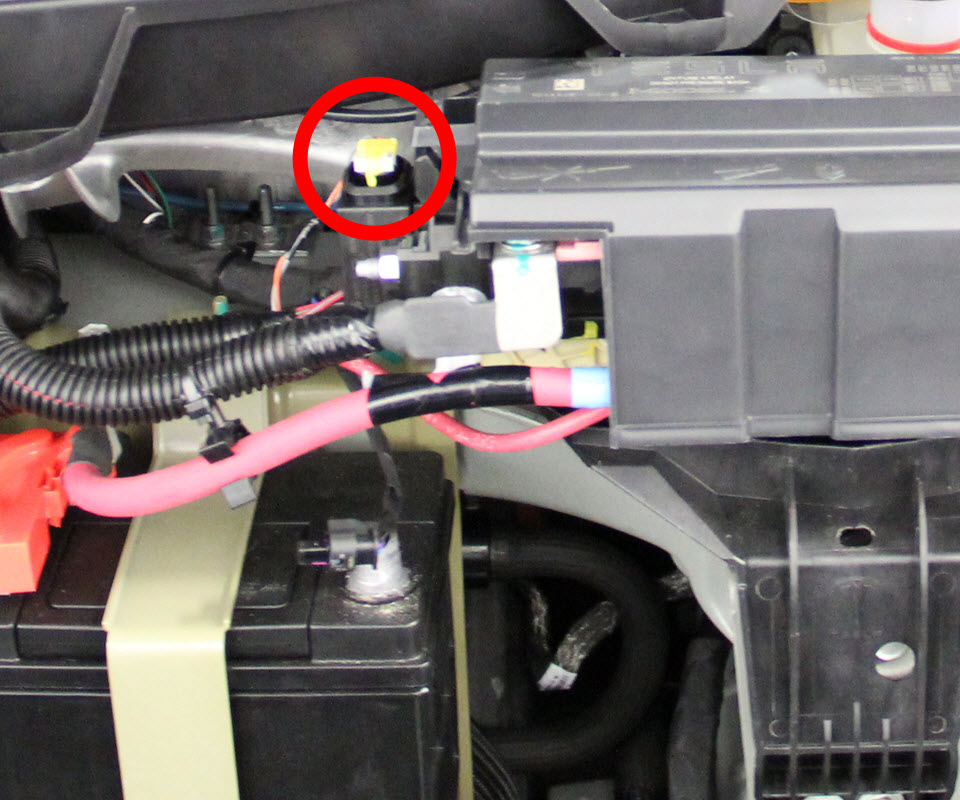

  2. Disconnect the pyrotechnic battery disconnect harness.

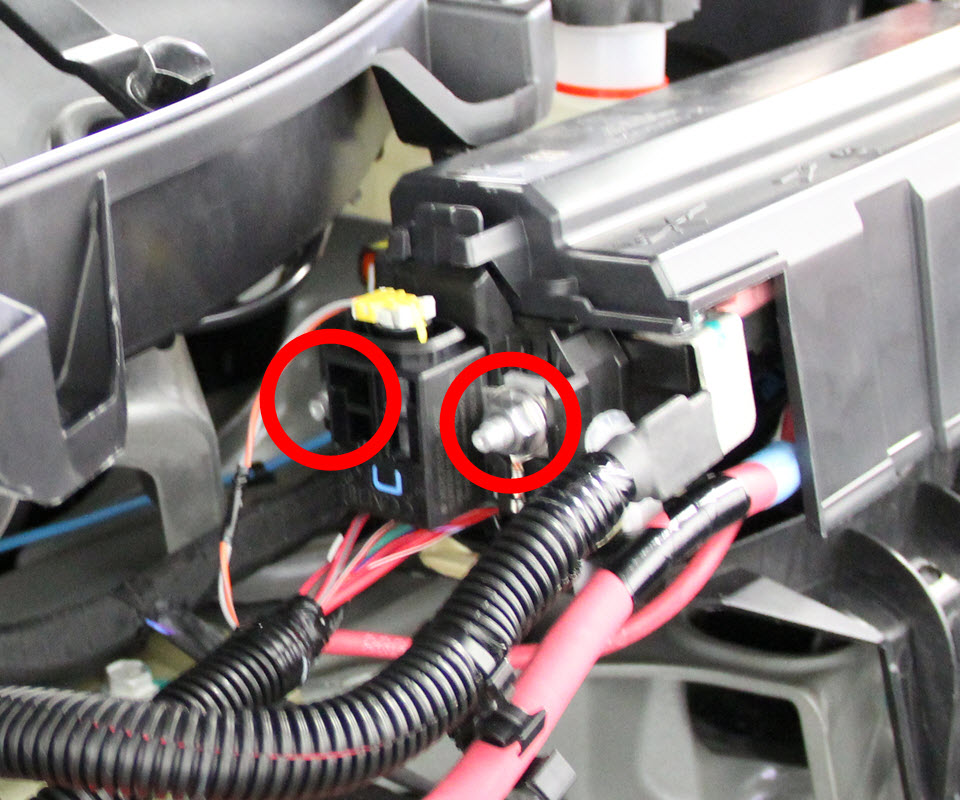

  3. Remove the nuts that secure the pyrotechnic battery disconnect (torque 15 Nm).
  4. Remove the pyrotechnic battery disconnect from the vehicle.

Installation

Installation procedure is the reverse of removal, except for the following:

Make sure that the ring terminals are positioned on the pyrotechnic battery disconnect mounting studs before reinstalling the nuts.
