Sensor - Wheel Speed - ABS - Rear - LH (Remove and Replace)

Correction Code 33100702

Removal

  1. Remove the rear wheel (refer to procedure).

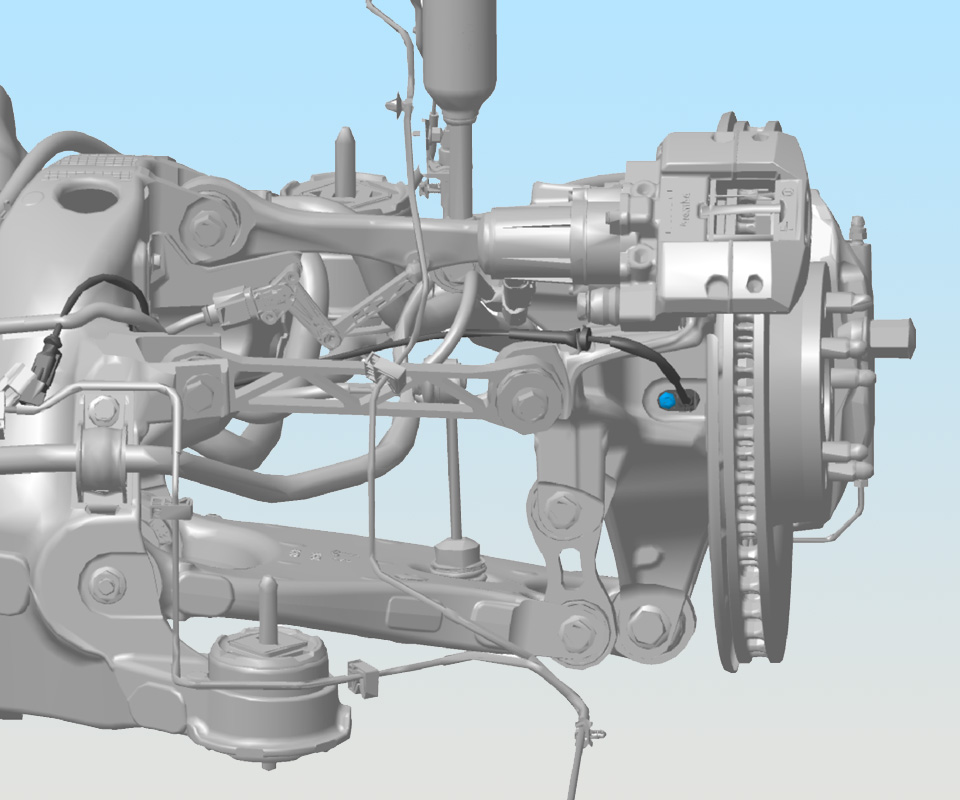

  2. Remove the bolt that secures the wheel speed sensor to the knuckle (torque 8 Nm).
    Note
    Components have been removed in this graphic to aid clarity.
  3. Remove the mid aero shield (refer to procedure).
  4. Disconnect the wheel speed sensor electrical connector.
    Note
    Components have been removed in this graphic to aid clarity.

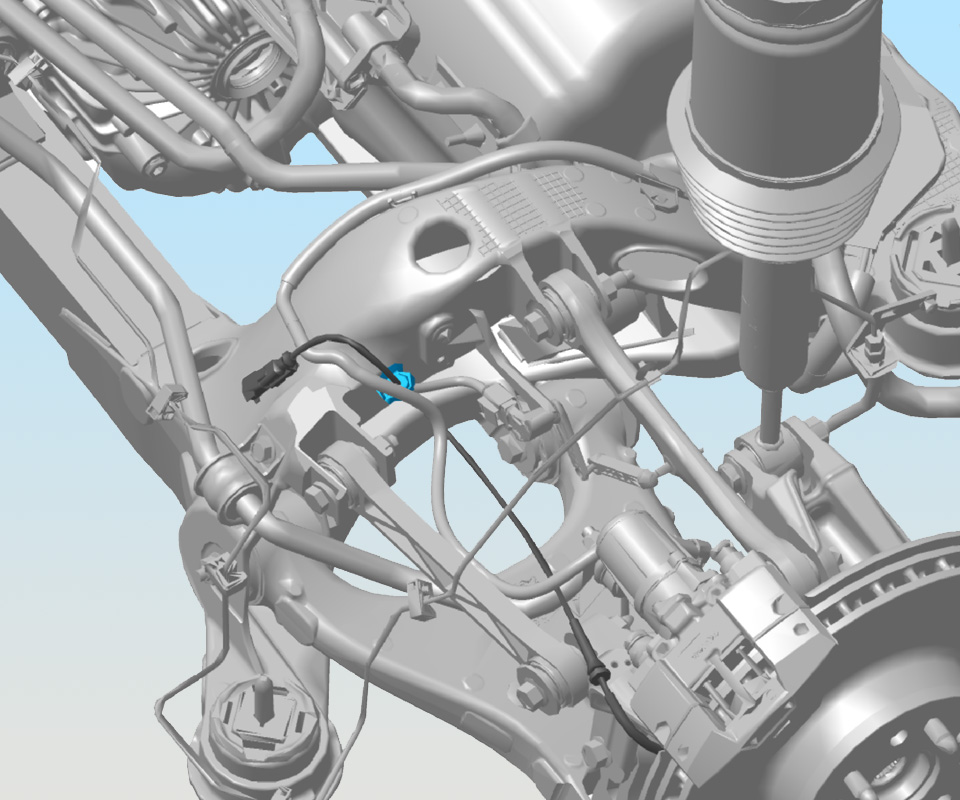

  5. Release the fir tree clip that secures the wheel speed sensor to the rear subframe.
    Note
    Components have been removed in this graphic to aid clarity.
  6. Release the wheel speed sensor from the bracket on the knuckle.
    Note
    Components have been removed in this graphic to aid clarity.
  7. Remove the wheel speed sensor from the vehicle.

Installation

Installation procedure is the reverse of removal, except for the following:
Note
Perform a test drive that includes a minimum speed of 25mph in straight line for at least five seconds to allow the ESP internal system checks to complete. The ESP faults will clear if the vehicle is repaired correctly. If faults are persistent after the test drive, continue troubleshooting the repair.
