Sensor - Parking Distance - S3/S4 - Front (Remove and Replace)

Correction Code 17271011 17271012

This procedure applies to front parking sensors S3 and S4.

Removal

  1. Remove the front fascia assembly Fascia Assembly - Front (Remove and Install).

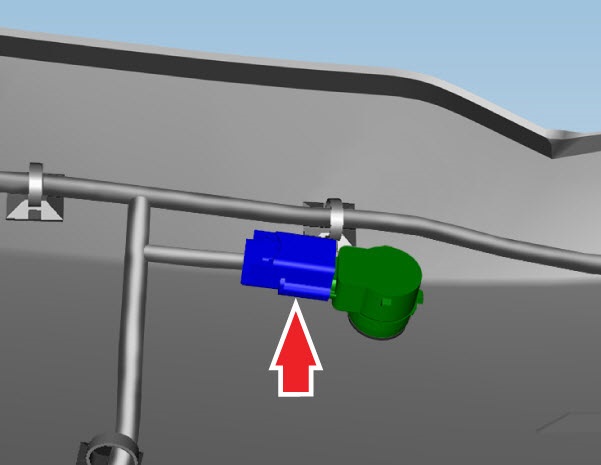

  2. Disconnect the park assist sensor connector.

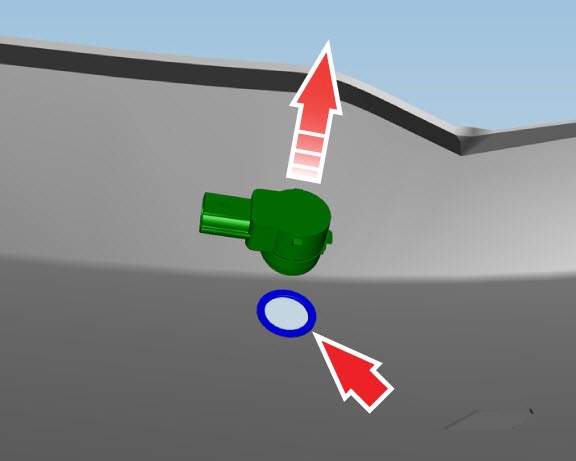

  3. Carefully release the park assist sensor from the fascia retaining ring.
    Note
    Make sure the o-ring is also removed with the sensor.

Installation

Installation procedure is the reverse of removal.
