Hose - Inlet - Small Rear Drive Unit (Remove & Replace)

Correction code 18301722

Removal

  1. Remove the rear drive unit. See GUID-77DF84D4-0A96-418F-92B8-193295D89FA9.html.

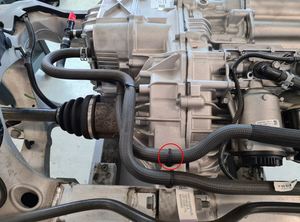

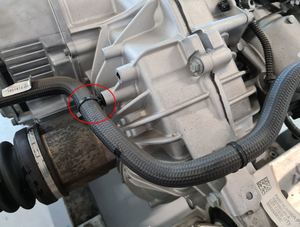

  2. Release the hose clamps (x2) of the inlet hose, and then remove the inlet hose from the ports of the drive unit.
    Informational PurposesAn informational icon, calling your attention
    Note
    Catch any excess cooling fluid.

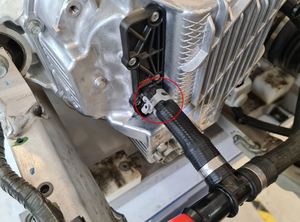

  3. Release the clips (x2) that attach the inlet hose to the drive unit, and then remove the inlet hose assembly.

Installation

Installation is the reverse of removal.
