Assembly - Instrument Panel Side Cover - LH (Remove and Replace)

Correction Code 14054102

Removal

  1. Open the front door.

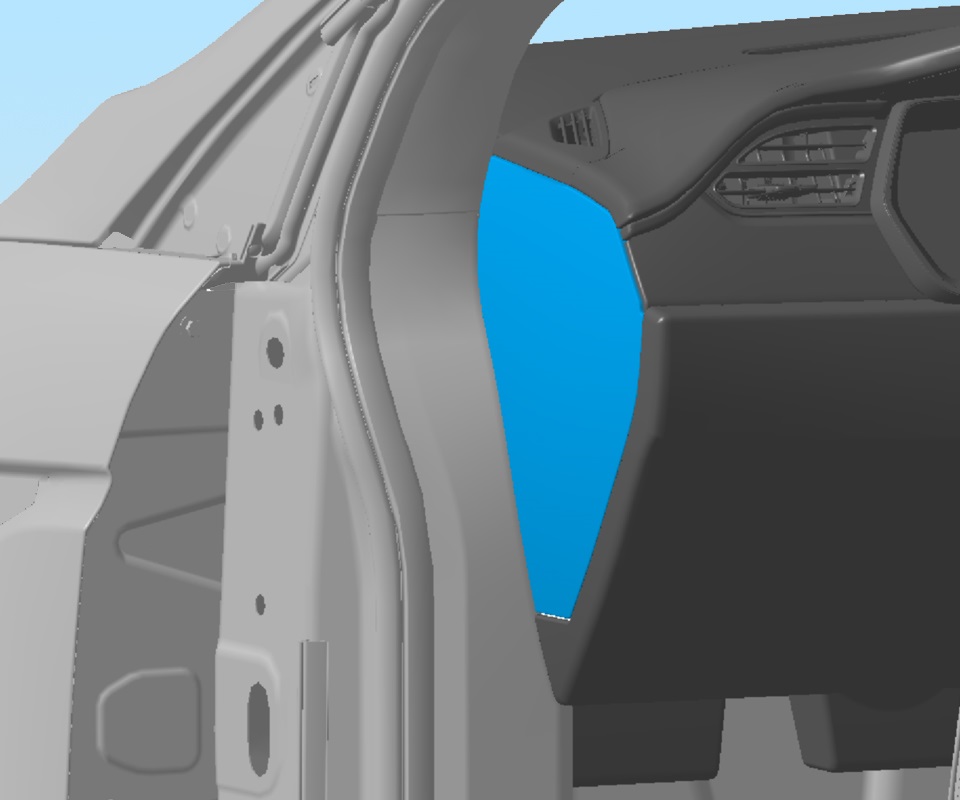

  2. Use a trim tool to release the clips that secure the instrument panel side cover.
    Warning
    Wear cut-resistant gloves when performing this step to avoid personal injury.
    CAUTION
    Replace any broken clips.
  3. Remove the instrument panel side cover from the vehicle.

Installation

Installation procedure is the reverse of removal.
