Floor Panel - 2nd Row - Front (Remove and Replace)

Correction Code 15303002

Removal

  1. Remove the LH and RH front sill trim panels (refer to procedure).
  2. Remove the inboard seat riser (refer to procedure).
  3. Remove the LH and RH outboard seat risers (refer to procedure).
    Note
    The following step requires an assistant.

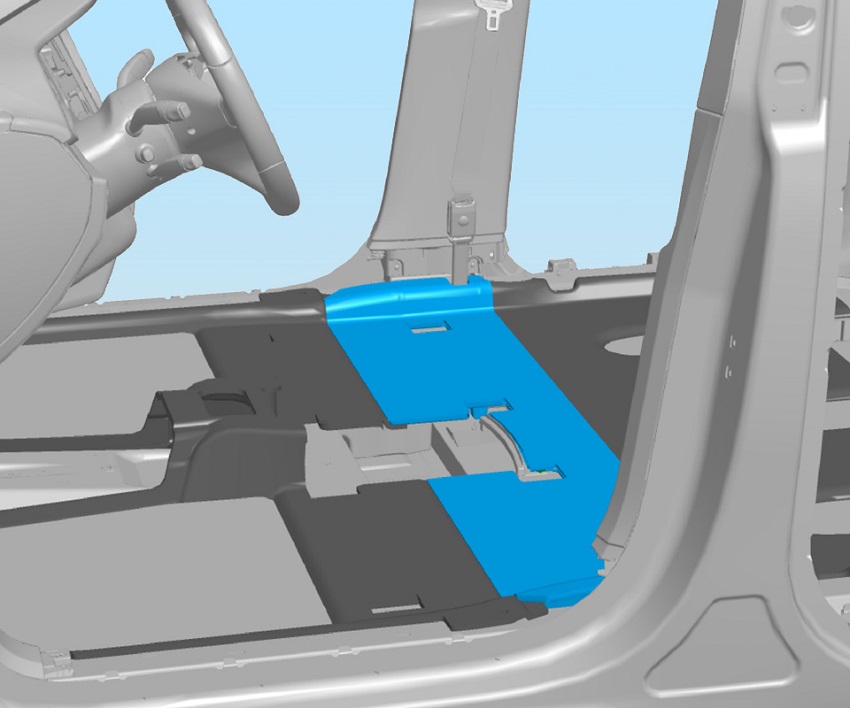

  4. Remove the front 2nd row floor panel from the vehicle.
    Note

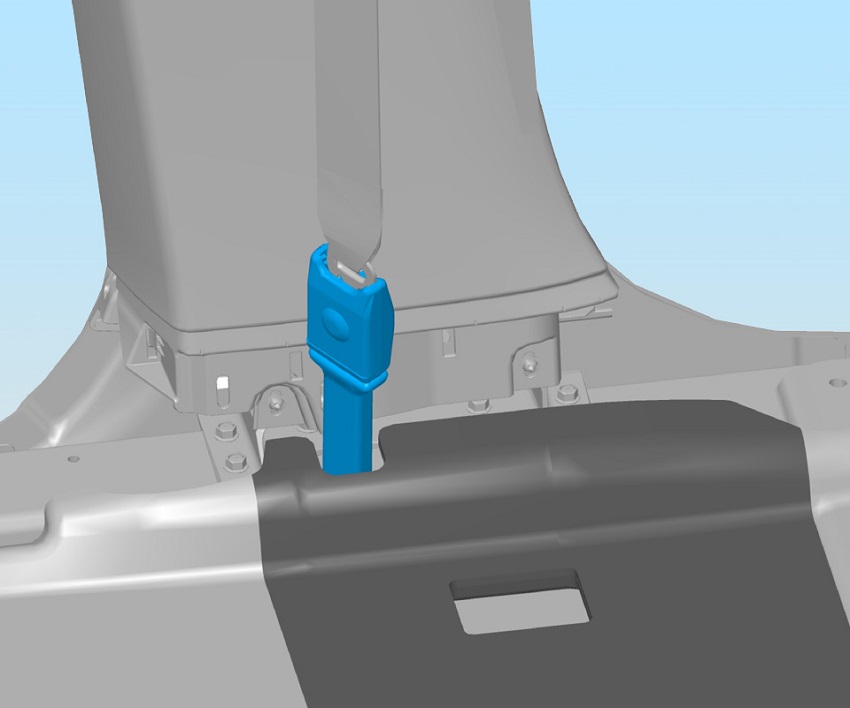

    While lifting the floor panel, carefully twist the seat belt pre-tensioner covers to align with the notches in the floor panel.
    CAUTION
    Take care not to damage component(s).

Installation

Installation procedure is the reverse of removal.
