Hood Assembly (Remove and Install)

Correction Code 10100301

Removal

  1. Remove the LH and RH underhood aprons. See Underhood Apron - LH (Remove and Replace) .
  2. Use tape to mark the position of the hood fasteners.
    Note
    The following steps require an assistant.

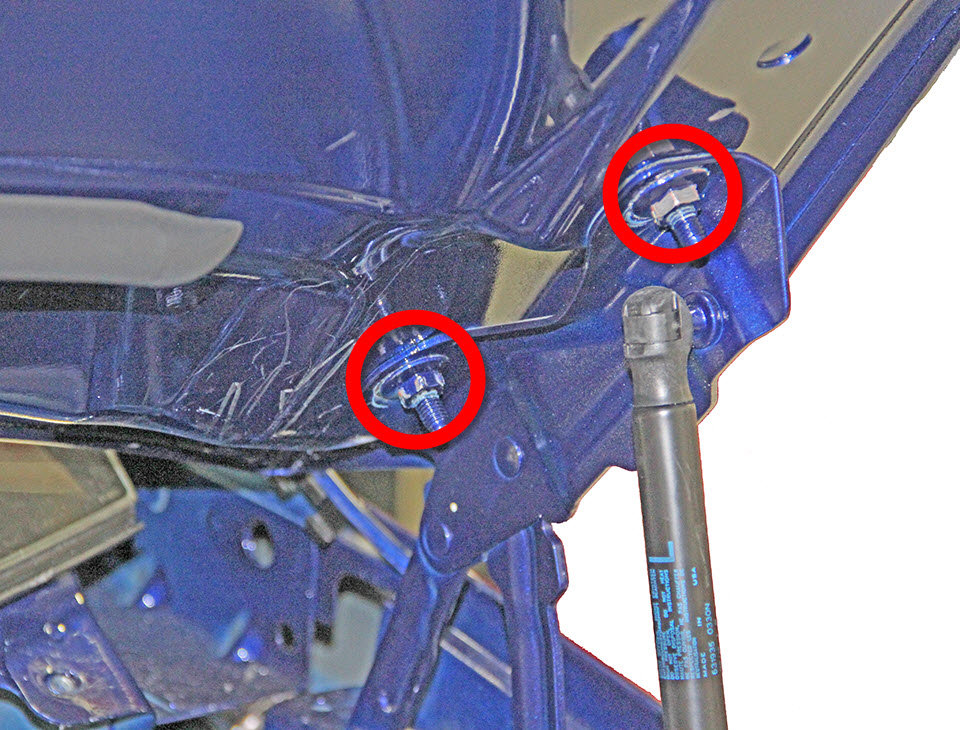

  3. While supporting the weight of the hood, remove the nuts (x4) that secure the hood to the hood hinge (torque 24 Nm).
  4. Remove the hood from the vehicle.
    CAUTION
    Place the hood on a soft, flat surface.

Installation

CAUTION
If using this procedure to install an unpainted part, make sure to apply seam sealer to all seams prior to installing and painting the part. Refer to the Collision Repair manual for more information.

Installation procedure is the reverse of removal, except for the following:

Note
Clean the affected areas before installation.
  1. Check the alignment of the hood to the body and adjust as necessary.
