2026-08-09

Trim - Liftgate - Upper (Remove and Replace)

Correction Code 15111002

Remove

  1. Open the liftgate.
    Tip
    Set the liftgate to a comfortable working height.

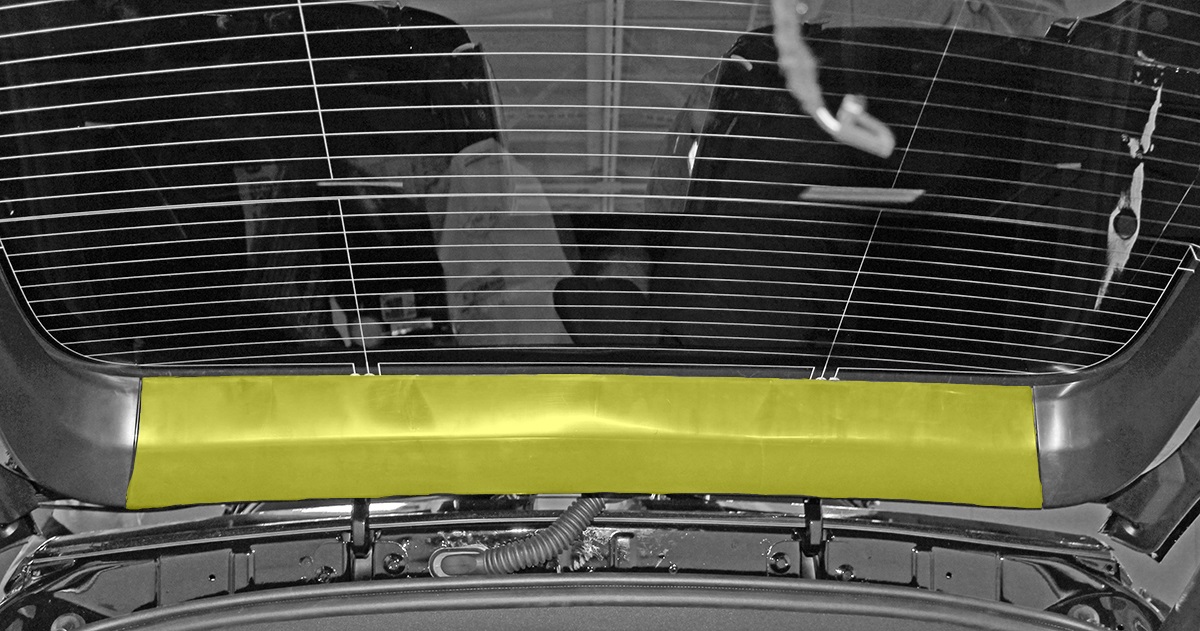

  2. Use a trim tool to release the clips (x9) that secure the upper liftgate trim.

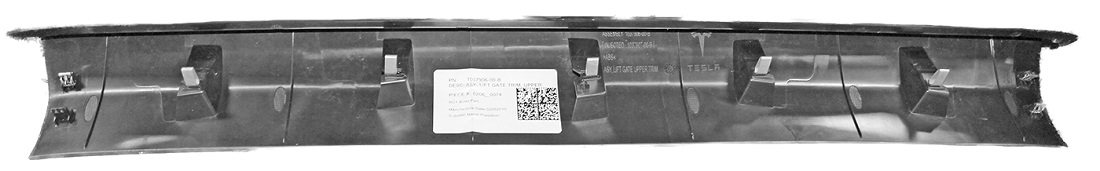

  3. Remove the upper liftgate trim from the vehicle.

Installation

Installation procedure is the reverse of removal, except for the following:
CAUTION
Replace any broken clips.
