Hose - Outlet - Small Rear Drive Unit (Remove & Replace)

Correction code 18302522

Removal

  1. Remove the rear drive unit. See GUID-77DF84D4-0A96-418F-92B8-193295D89FA9.html.

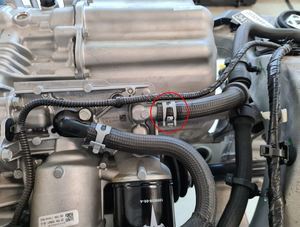

  2. Release the hose clamps (x2) of the outlet hose, and then remove the outlet hose from the ports of the drive unit.
    Informational PurposesAn informational icon, calling your attention
    Note
    Catch any excess cooling fluid.

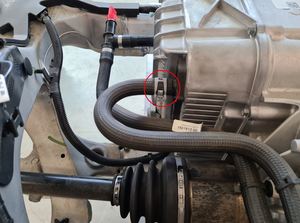

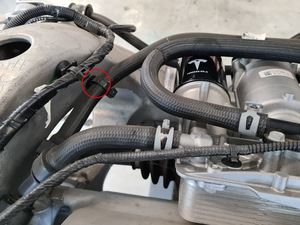

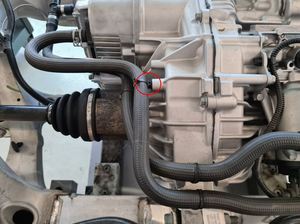

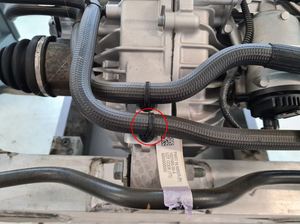

  3. Release the clips (x4) that attach the outlet hose to the drive unit, and then remove the outlet hose assembly.

Installation

Installation is the reverse of removal.
