Clean Radiator (Non-Heat Pump) (Maintenance)

Correction code 18301100 0.90 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2026-04-16: Added the steps of cleaning the bottom of the cooling fan.

Procedure

  1. Place the vehicle on the 2-post lift.
    Informational PurposesAn informational icon, calling your attention
    Note
    Set air suspension to Jack Mode via Via Controls > Service > Jack Mode. Raise the lift until the arms contact the lifting points.
  2. Enable Service Mode. See Service Mode
  3. Remove the front fascia assembly. See Fascia Assembly - Front (Remove and Install)
  4. Remove the active louver assembly. See Active Louver - Center (Remove and Replace)

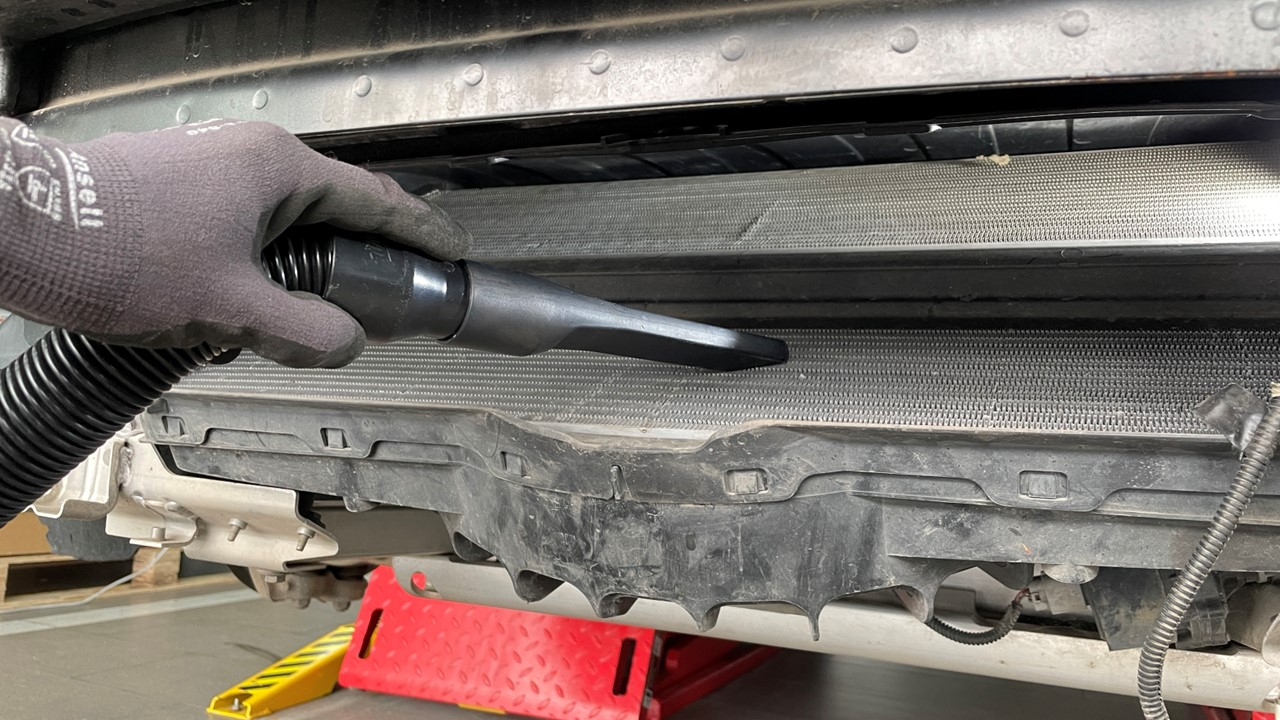

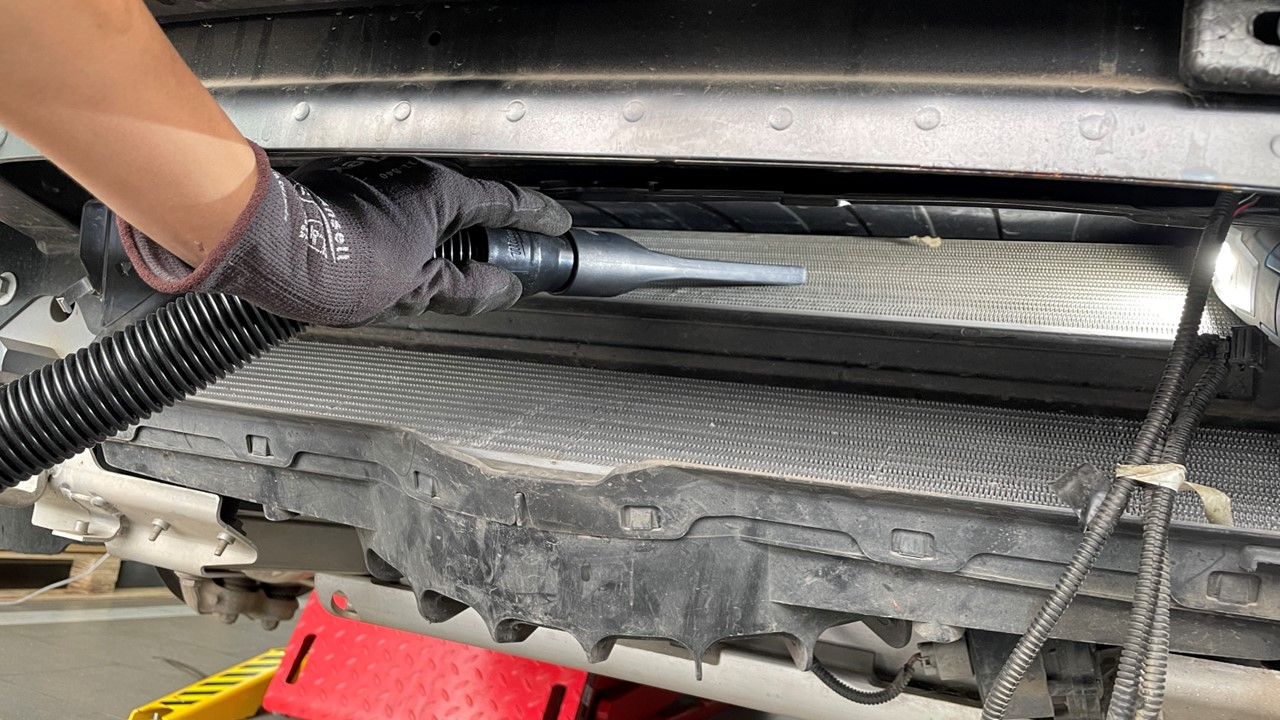

  5. Use a vacuum to clean the dirt on the radiator and condenser.
    Informational PurposesAn informational icon, calling your attention
    Note
    If necessary, remove the large debris.

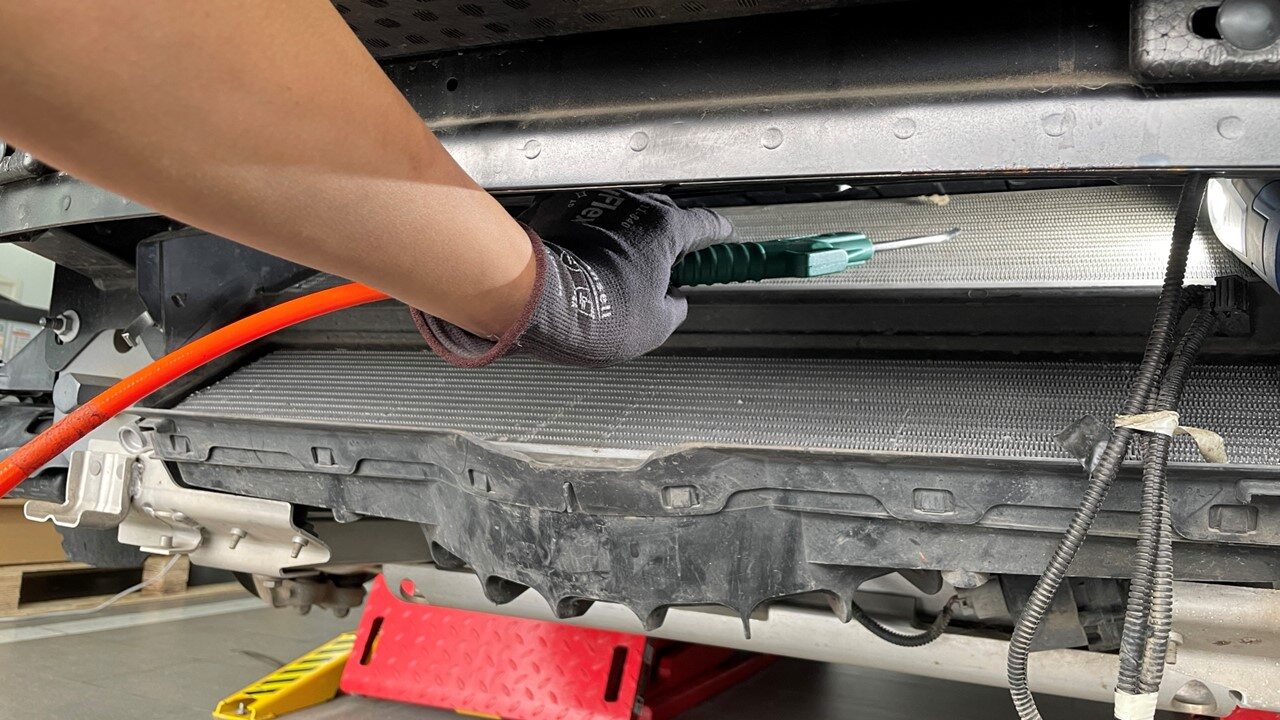

  6. Use a blow gun to clean dirt on the radiator and condenser.
    Informational PurposesAn informational icon, calling your attention
    Note
    Do not get too close to the radiator blades and condenser blades.
  7. Use a blow gun to clean the bottom of the cooling fan.

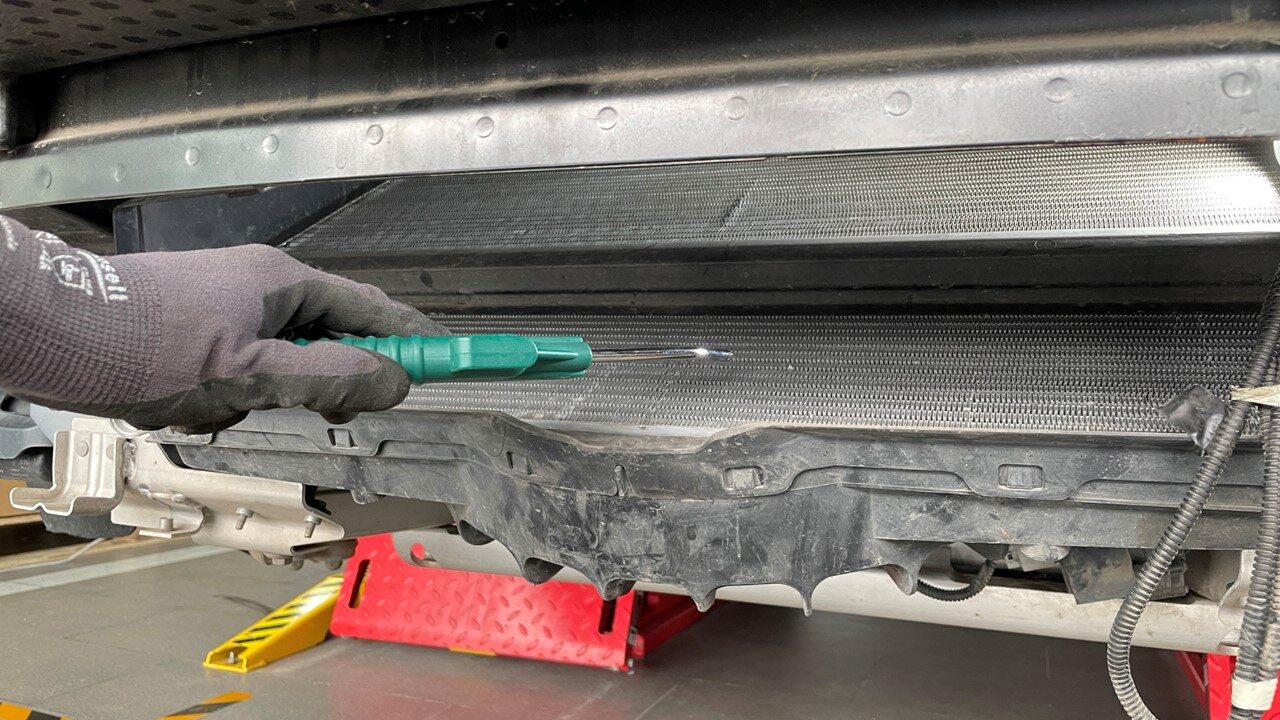

  8. Check if there are any stones at the bottom of the condenser and cooling fan.
  9. Install the active louver assembly. See Active Louver - Center (Remove and Replace)
  10. Install the front fascia assembly. See Fascia Assembly - Front (Remove and Install)
  11. Unlock the vehicle gateway. See Gateway Unlock

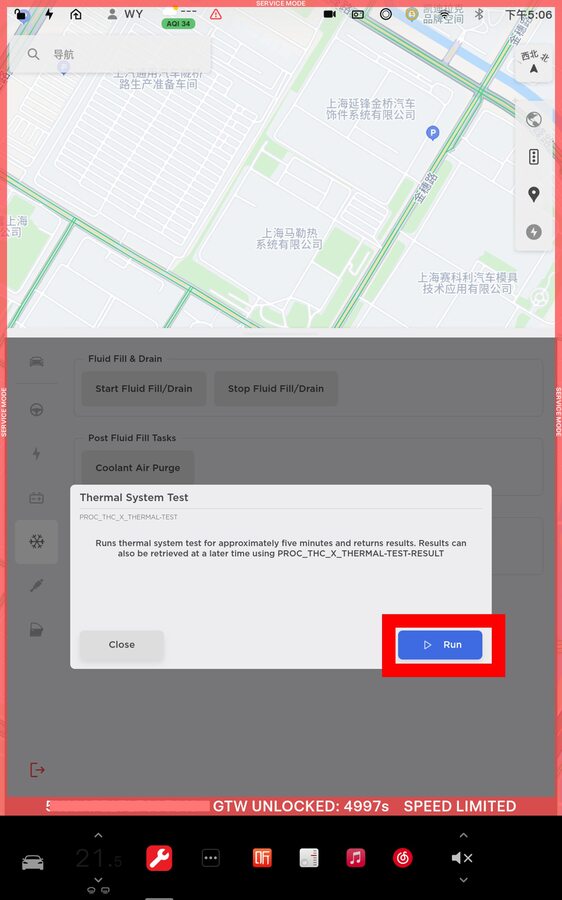

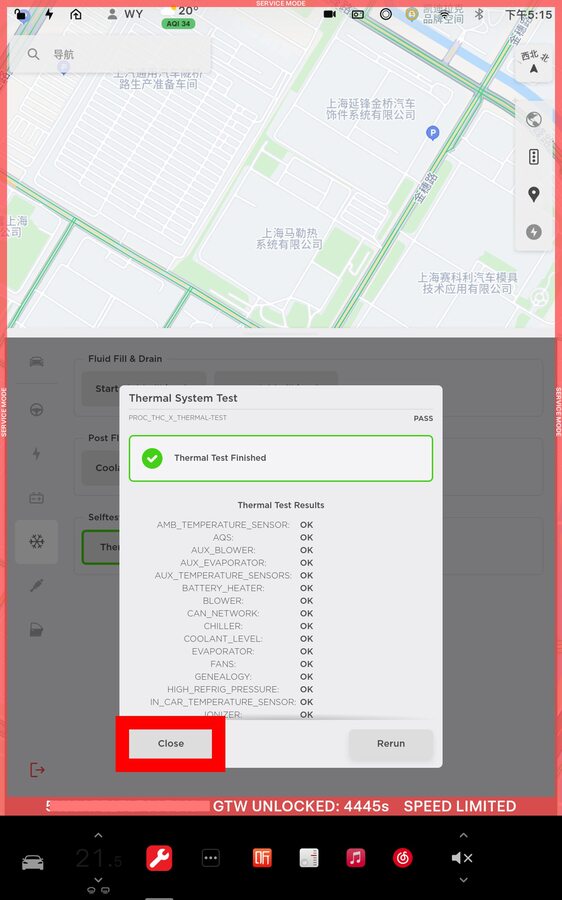

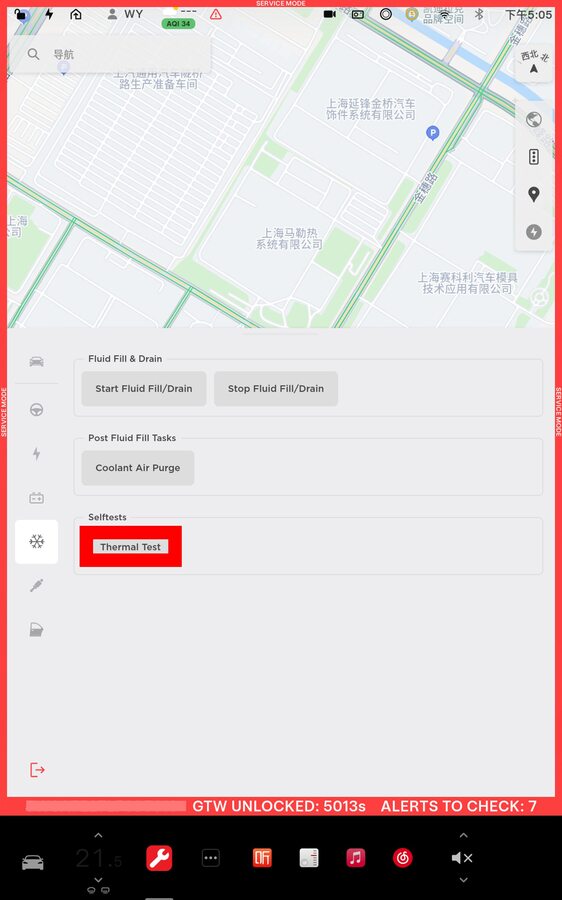

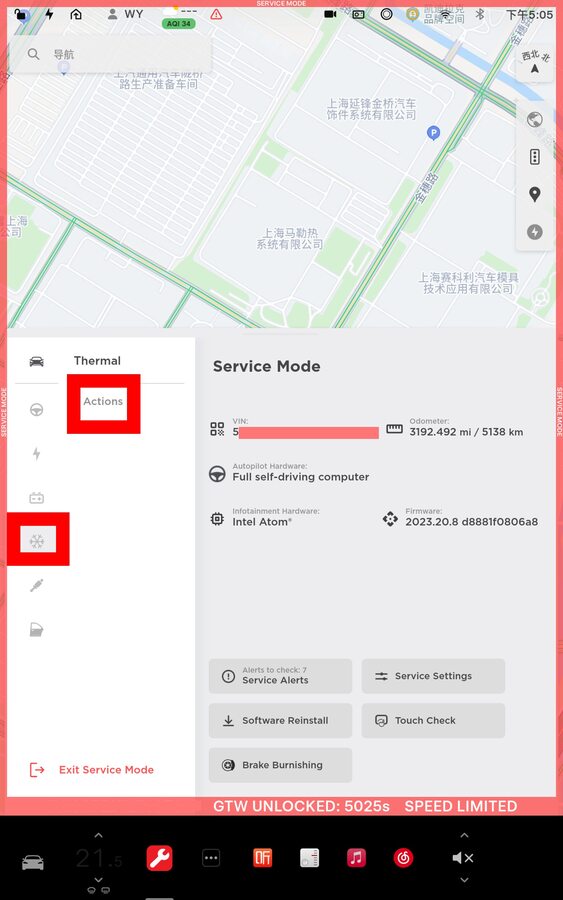

  12. Perform the following routine using Service Mode or Toolbox (see 0005 - Service Modes): TEST-SELF_VCFRONT_X_THERMAL-PERFORMANCEvia Service Mode:Thermal ➜ Actions ➜ Test Thermal Performancevia Service Mode Plus:
    • Drive Inverter ➜ Front Drive Inverter Replacement ➜ Thermal System Test
    • Drive Inverter ➜ Rear Drive Inverter Replacement ➜ Thermal System Test
    • Drive Inverter ➜ Rear Left Drive Inverter Replacement ➜ Thermal System Test
    • Drive Inverter ➜ Rear Right Drive Inverter Replacement ➜ Thermal System Test
    • Drive Unit ➜ Front Drive Unit Replacement ➜ Thermal System Test
    • Drive Unit ➜ Rear Drive Unit Replacement ➜ Thermal System Test
    via Toolbox:(link)
  13. Exit Service Mode. See Service Mode
