X990F

Tesla Part Number

1015287-10-A

Connector

MOLEX 33472-2006

Color

BK

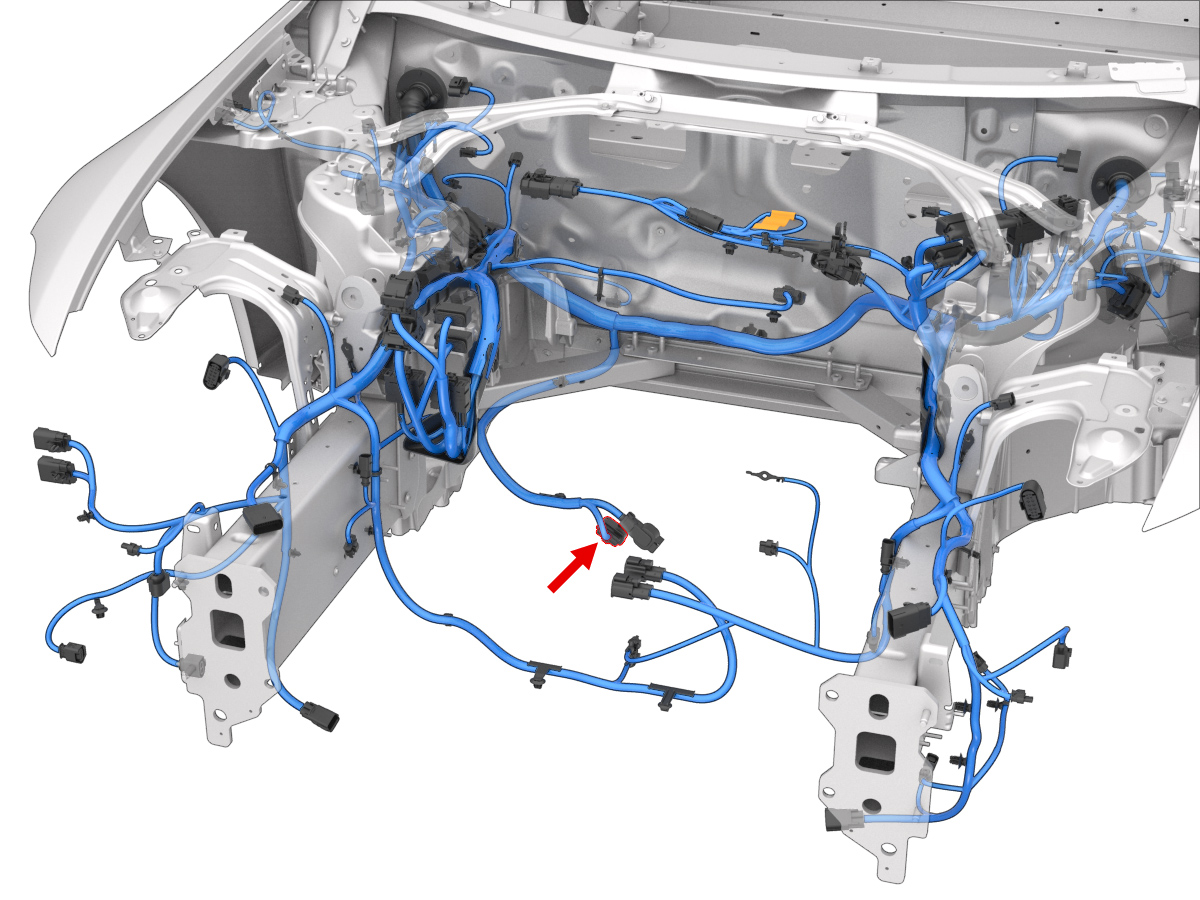

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33012-3004	1.5x0.8F	WH	0.50	TESLA	MAT-120-240	X057	8
2	MOLEX	33012-3004	1.5x0.8F	GY	0.50	TESLA	MAT-120-240	X990F	12
3	MOLEX	33012-3004	1.5x0.8F	BU	0.35	TESLA	MAT-120-240	X954M	15
4	MOLEX	33012-3004	1.5x0.8F	RD	0.35	TESLA	MAT-120-240	X057	15
5	MOLEX	33012-3004	1.5x0.8F	WH	0.35	TESLA	MAT-120-240	X954M	12
6	MOLEX	33012-3004	1.5x0.8F	VT	0.35	TESLA	MAT-120-240	X954M	11
7	MOLEX	33012-3004	1.5x0.8F	GY	0.35	TESLA	MAT-120-240	X954M	14
8	MOLEX	33012-3004	1.5x0.8F	RD	0.35	TESLA	MAT-120-240	X954M	13
9
10	MOLEX	33012-3002	1.5x0.8F	BK	0.75	TESLA	MAT-120-240	G510	9
11	MOLEX	33012-3002	1.5x0.8F	VT	1.00	TESLA	MAT-120-240	X057	26
12	MOLEX	33012-3004	1.5x0.8F	GY	0.50	TESLA	MAT-120-240	X990F	2
13
14
15	MOLEX	33012-3004	1.5x0.8F	BN	0.35	TESLA	MAT-120-240
16	MOLEX	33012-3004	1.5x0.8F	BN/WH	0.35	TESLA	MAT-120-240
17
18
19
20
