X911M

Tesla Part Number

1486225-00-A

Connector

DELPHI 33257537

Color

BK

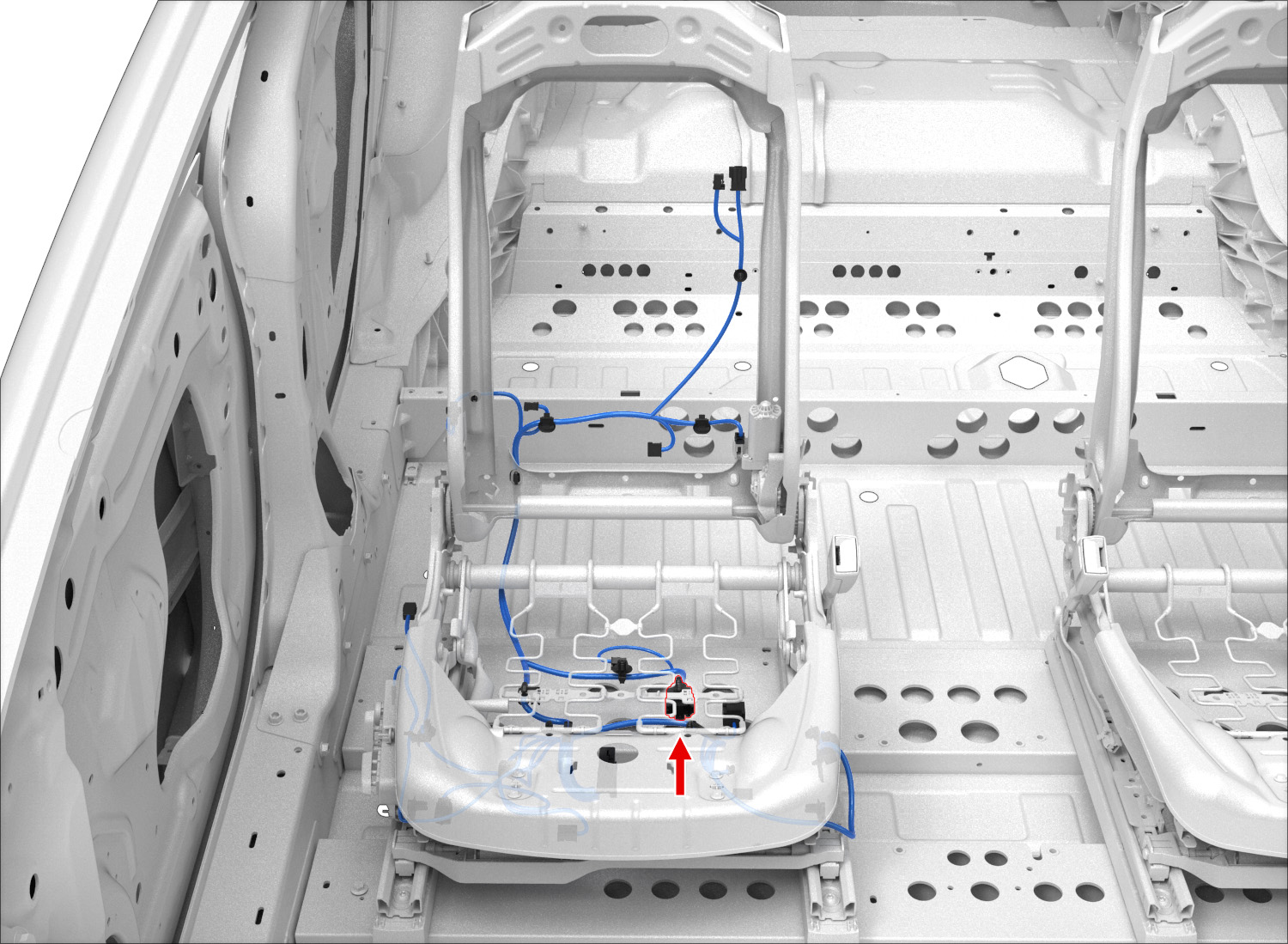

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	35412744	1.2x0.6M	RD	0.35			X1050	2
2	DELPHI	35412744	1.2x0.6M	WH	0.35			X1050	1
3
4
5	DELPHI	35091062	1.2x0.6M	RD	0.50			X1075	1
6	DELPHI	35091062	1.2x0.6M	BK	0.50			X1075	2
7	DELPHI	35091062	1.2x0.6M	GN	0.50			X1075	4
8
9	DELPHI	35412744	1.2x0.6M	YE	0.35			X1050	5
10	DELPHI	35412744	1.2x0.6M	VT	0.35			X1050	4
11
12
13	DELPHI	35412744	1.2x0.6M	WH	0.35			X218	1
14	DELPHI	35412744	1.2x0.6M	BU	0.35			X218	2
15	DELPHI	35412744	1.2x0.6M	BK	0.35			X1050	3
16
