X170

Tesla Part Number
1496688-00-A
Connector
DELPHI 35126369
Color
BK

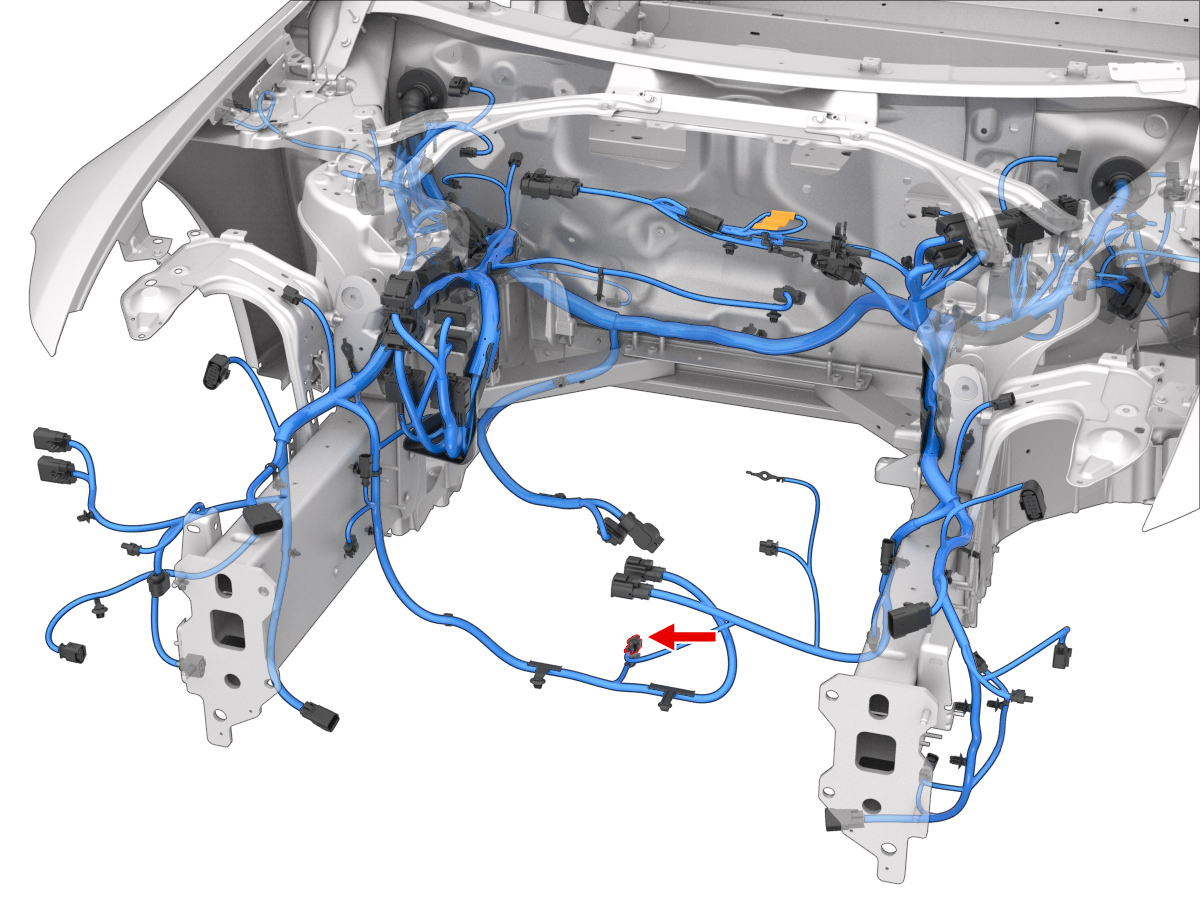

Connector Location:

Connector Pinout

Connector Details

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1DELPHI139591201.2x0.6FSBU0.35DELPHI13887349X010E1
2DELPHI139591201.2x0.6FSGN/WH0.35DELPHI13887349
3DELPHI139591201.2x0.6FSGN0.35DELPHI13887349
