X946F

Tesla Part Number

1048099-00-A

Connector

YAZAKI 7287-1918

Color

WH

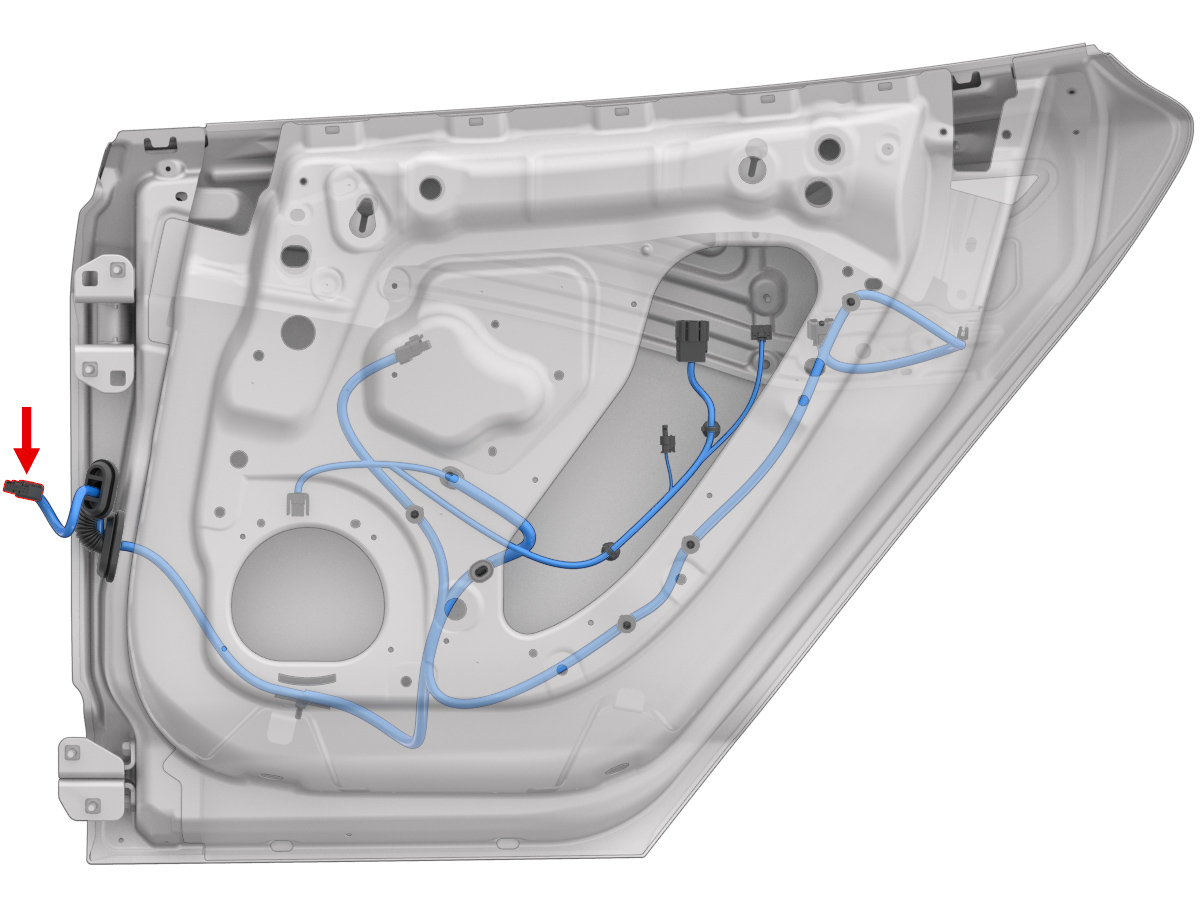

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0214	1.5x0.64F	GN	1.50
2	SUMITOMO	8100-3625	0.64x0.64F	BN	0.50
3	SUMITOMO	8100-3625	0.64x0.64F	RD	0.50			X377	1
4	SUMITOMO	8100-3625	0.64x0.64F	YE	0.50			X377	6
5	SUMITOMO	8100-3625	0.64x0.64F	VT	0.50			X377	2
6	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X369	4
7	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X943M	7
8	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X943M	6
9	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X369	11
10	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X943M	11
11	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X943M	13
12	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X943M	12
13	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X943M	2
14	SUMITOMO	8240-0214	1.5x0.64F	WH	1.50			X377	4
15	SUMITOMO	8240-0214	1.5x0.64F	BN	1.50
16
17	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X943M	4
18	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X369	3
19	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X943M	3
20
21
22	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X247	1
23	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X247	2
24
25	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X943M	10
26	SUMITOMO	8240-0214	1.5x0.64F	YE	1.50			X377	3
