X954F

Tesla Part Number

1486226-01-A

Connector

DELPHI 33239500

Color

NA

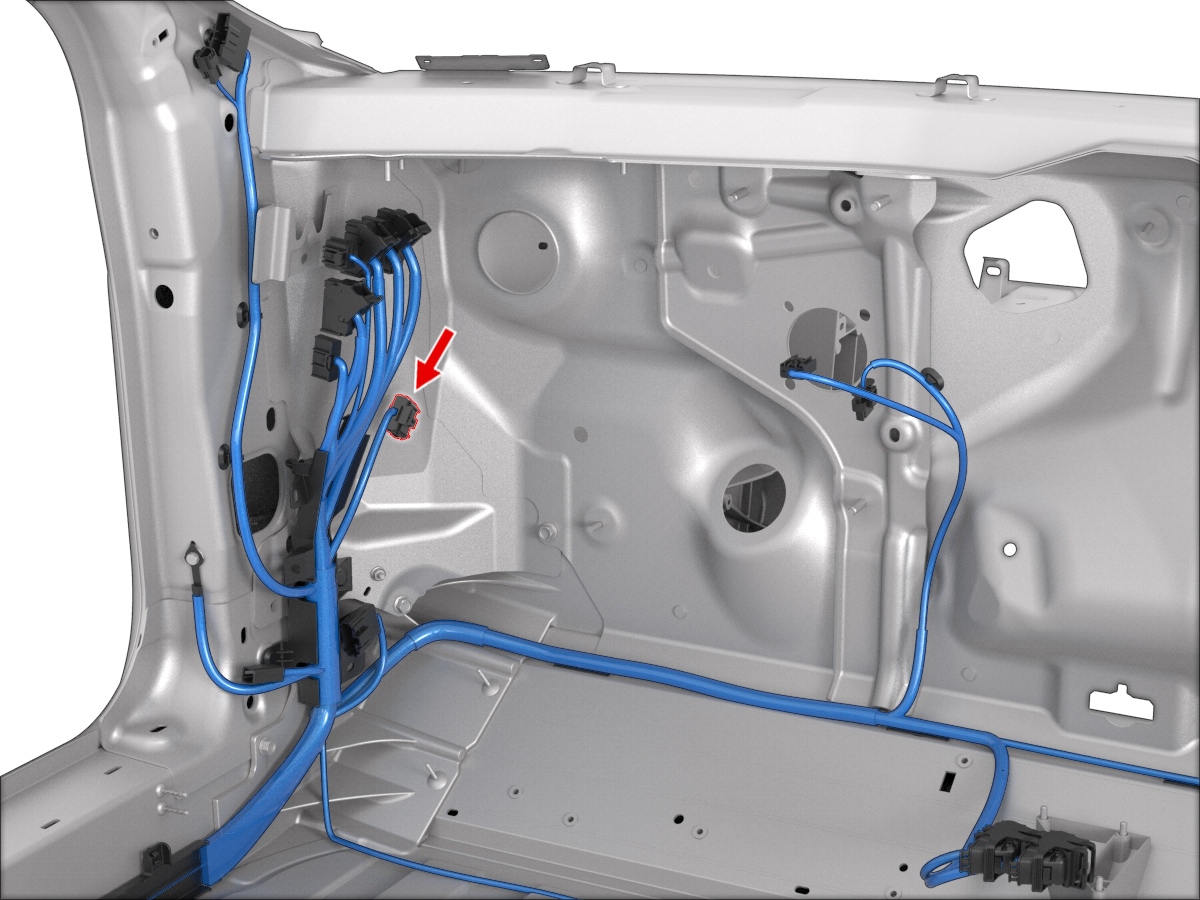

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	35410019	1.2x0.6F	GN/WH	0.35			X975F	2
2	DELPHI	35410019	1.2x0.6F	GN	0.35			X975F	3
3	DELPHI	35410019	1.2x0.6F	GN/WH	0.35			X201	54
4	DELPHI	35410019	1.2x0.6F	GN	0.35			X201	53
5
6
7
8	DELPHI	35410019	1.2x0.6F	YE	0.35			X910F	10
9	DELPHI	35410019	1.2x0.6F	GY	0.35			X910F	9
10
11	DELPHI	35410019	1.2x0.6F	VT	0.35
12	DELPHI	35410019	1.2x0.6F	WH	0.35
13	DELPHI	35410019	1.2x0.6F	RD	0.35			X049	5
14	DELPHI	35410019	1.2x0.6F	GY	0.35			X049	6
15	DELPHI	35410019	1.2x0.6F	BU	0.35			X201	56
16
17	DELPHI	35410019	1.2x0.6F	RD	0.35			X200	27
18
19
20
