X050A

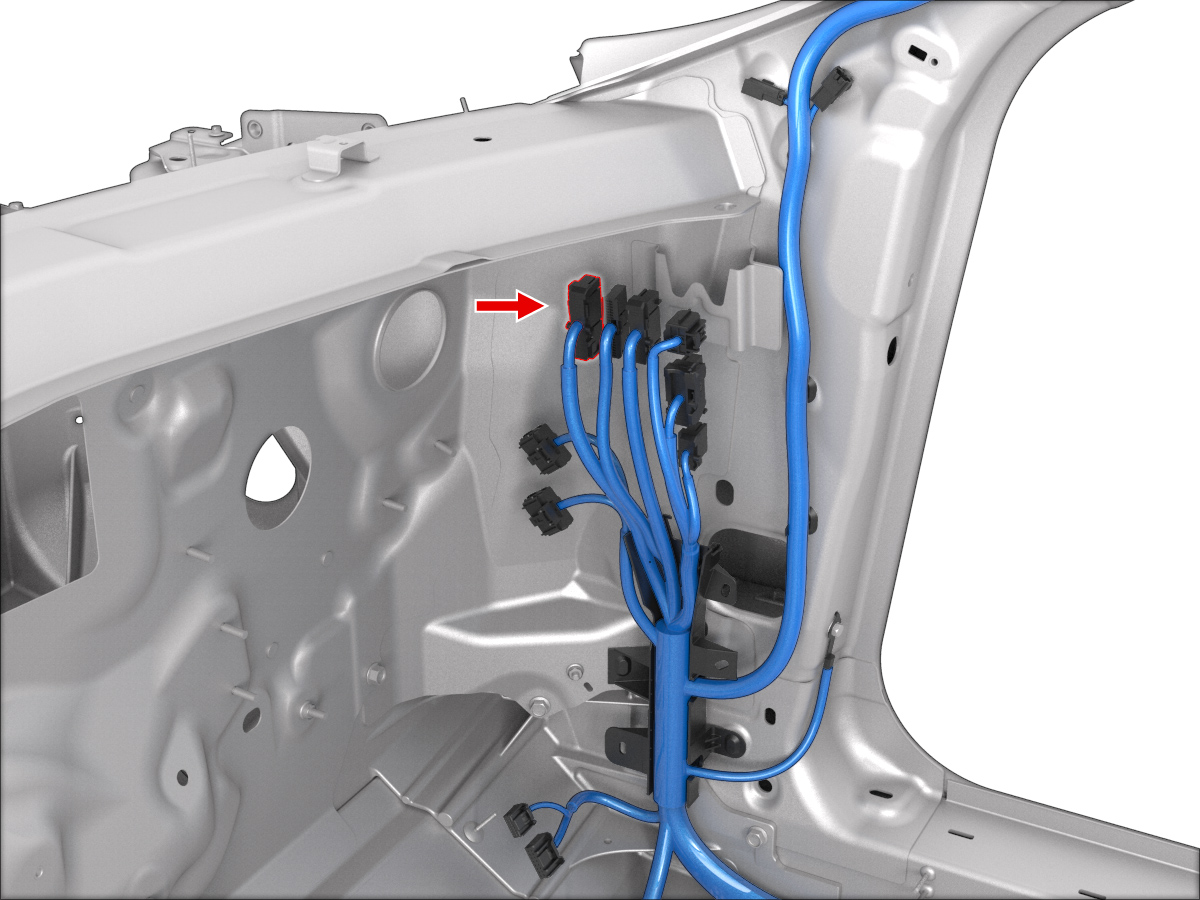

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8100-3625 | 0.64x0.64F | BU | 0.35 | X921M | 14 | ||
| 2 | SUMITOMO | 8100-3625 | 0.64x0.64F | YE | 0.35 | X921M | 6 | ||
| 3 | |||||||||
| 4 | SUMITOMO | 8100-3625 | 0.64x0.64F | GY | 0.35 | X921M | 5 | ||
| 5 | SUMITOMO | 8100-3625 | 0.64x0.64F | TN | 0.35 | X272 | 3 | ||
| 6 | SUMITOMO | 8100-3625 | 0.64x0.64F | WH | 0.35 | X272 | 2 | ||
| 7 | SUMITOMO | 8100-3625 | 0.64x0.64F | VT | 0.50 | X921M | 12 | ||
| 8 | |||||||||
| 9 | |||||||||
| 10 | |||||||||
| 11 | |||||||||
| 12 | |||||||||
| 13 | SUMITOMO | 8100-3625 | 0.64x0.64F | VT | 0.35 | X921M | 7 | ||
| 14 | SUMITOMO | 8100-3625 | 0.64x0.64F | GN | 0.35 | X921M | 13 | ||
| 15 | SUMITOMO | 8100-3625 | 0.64x0.64F | BU | 0.35 | X272 | 1 | ||
| 16 | |||||||||
| 17 | |||||||||
| 18 | |||||||||
| 19 | |||||||||
| 20 | |||||||||
| 21 | |||||||||
| 22 | |||||||||
| 23 | |||||||||
| 24 | |||||||||
| 25 | |||||||||
| 26 | SUMITOMO | 8240-0215 | 1.5x0.64F | VT | 0.50 | X921M | 2 | ||
| 27 | SUMITOMO | 8240-0215 | 1.5x0.64F | BN | 0.50 | X921M | 3 | ||
| 28 | |||||||||
| 29 | SUMITOMO | 8240-0213 | 1.5x0.64F | BU | 0.75 | X096 | 1 | ||
| 30 | SUMITOMO | 8240-0213 | 1.5x0.64F | RD | 0.75 | X977F | 5 | ||
| 31 | SUMITOMO | 8240-0214 | 1.5x0.64F | VT | 1.50 | X976M | 1 | ||
| 32 | SUMITOMO | 8240-0214 | 1.5x0.64F | BU | 1.50 | X976M | 11 |
