G500

Tesla Part Number

1787037-00-A

Connector

KSE K21F00801

Color

GY

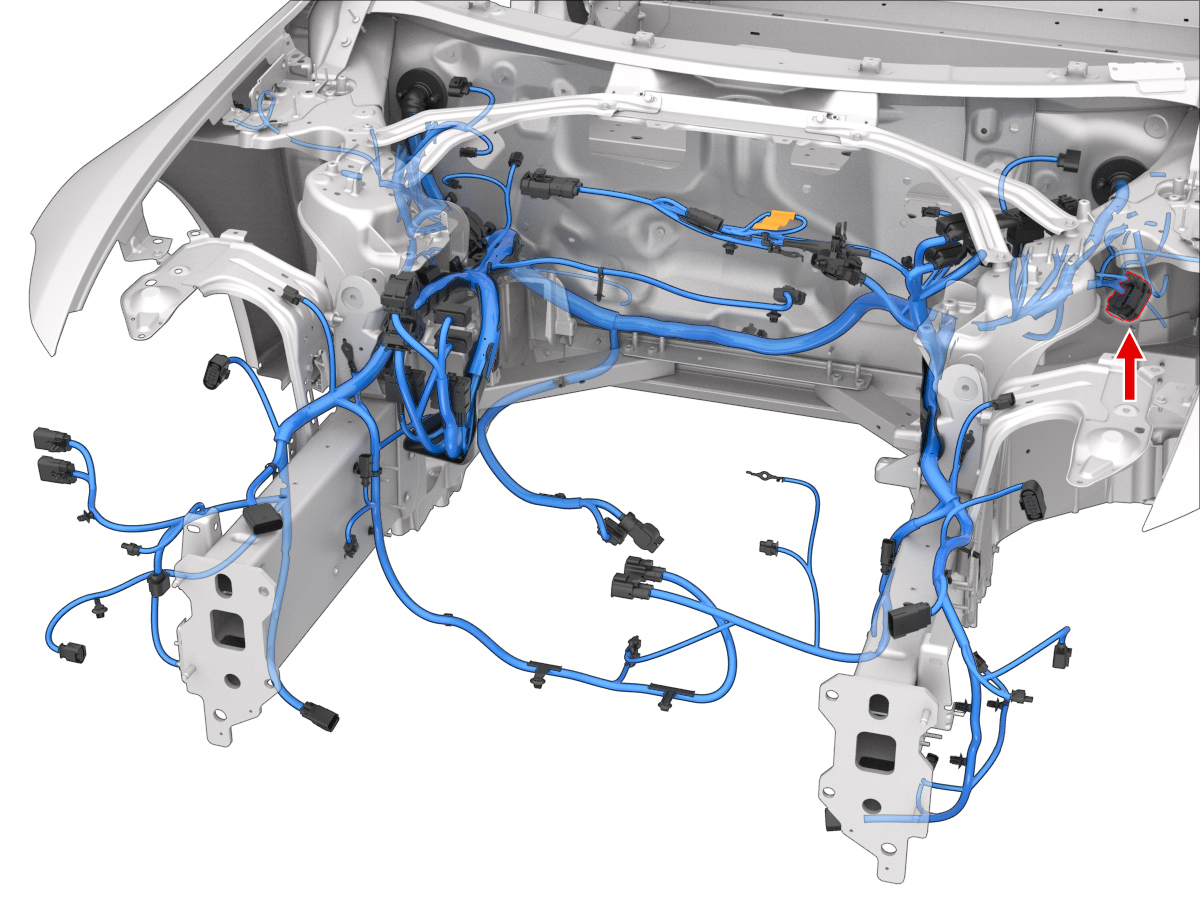

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	10780234	9.5FS	BK	8.00	DELPHI	15327788	G501	1
2	DELPHI	35138799	1.5	BK	1.00	DELPHI	13582730	X484	2
3	DELPHI	35138799	1.5	BK	1.00	DELPHI	13582730	X485	2
4
5	DELPHI	35138799	1.5	BK	1.00	DELPHI	13582730	X261	3
6	DELPHI	13976117	6.3FS	BK	4	DELPHI	15327864	X106	13
7	DELPHI	35138800	1.5	BK	0.50	DELPHI	13582731	X276	2
8
9	DELPHI	35138800	1.5	BK	0.50	DELPHI	13582731	X960M	3
10
11	DELPHI	15446675	2.8FS	BK	2.50	DELPHI	15339838	X562	3
12	DELPHI	15446675	2.8FS	BK	2.00	DELPHI	15339838	X106	38
13	DELPHI	15446675	2.8FS	BK	1.50	DELPHI	15339838	X995F	17
14
15	DELPHI	13976117	6.3FS	BK	4.00	DELPHI	15327864	X532	1
