X910M

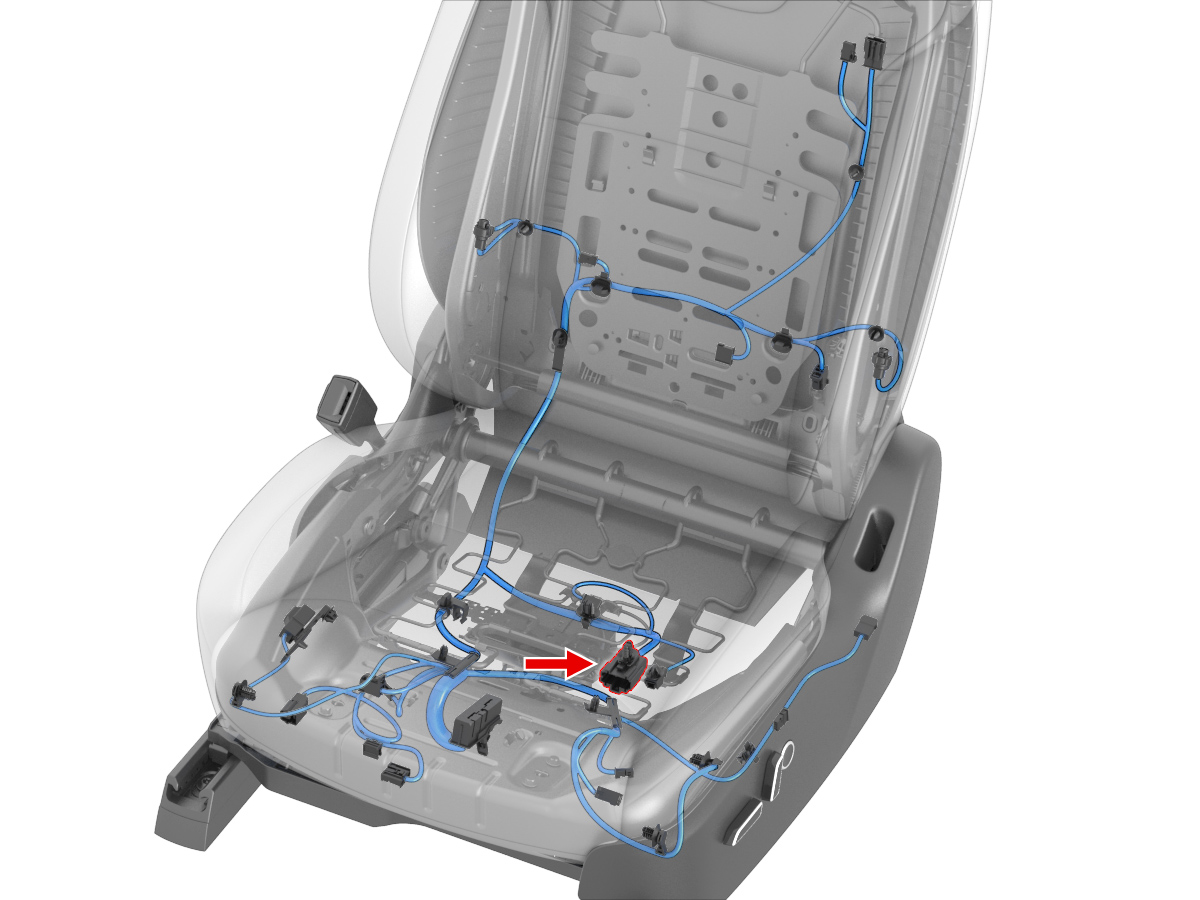

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DELPHI | 35412744 | 1.2x0.6M | RD | 0.35 | X1051 | 2 | ||
| 2 | DELPHI | 35412744 | 1.2x0.6M | WH | 0.35 | X1051 | 1 | ||
| 3 | |||||||||
| 4 | |||||||||
| 5 | |||||||||
| 6 | |||||||||
| 7 | |||||||||
| 8 | |||||||||
| 9 | DELPHI | 35412744 | 1.2x0.6M | GY | 0.35 | X1051 | 5 | ||
| 10 | DELPHI | 35412744 | 1.2x0.6M | YE | 0.35 | X1051 | 4 | ||
| 11 | |||||||||
| 12 | |||||||||
| 13 | DELPHI | 35412744 | 1.2x0.6M | WH | 0.35 | X232 | 1 | ||
| 14 | DELPHI | 35412744 | 1.2x0.6M | BU | 0.35 | X232 | 2 | ||
| 15 | DELPHI | 35412744 | 1.2x0.6M | BK | 0.35 | X1051 | 3 | ||
| 16 |
