X437

Tesla Part Number

1042620-02-A

Connector

SUMITOMO 6098-5620

Color

BU

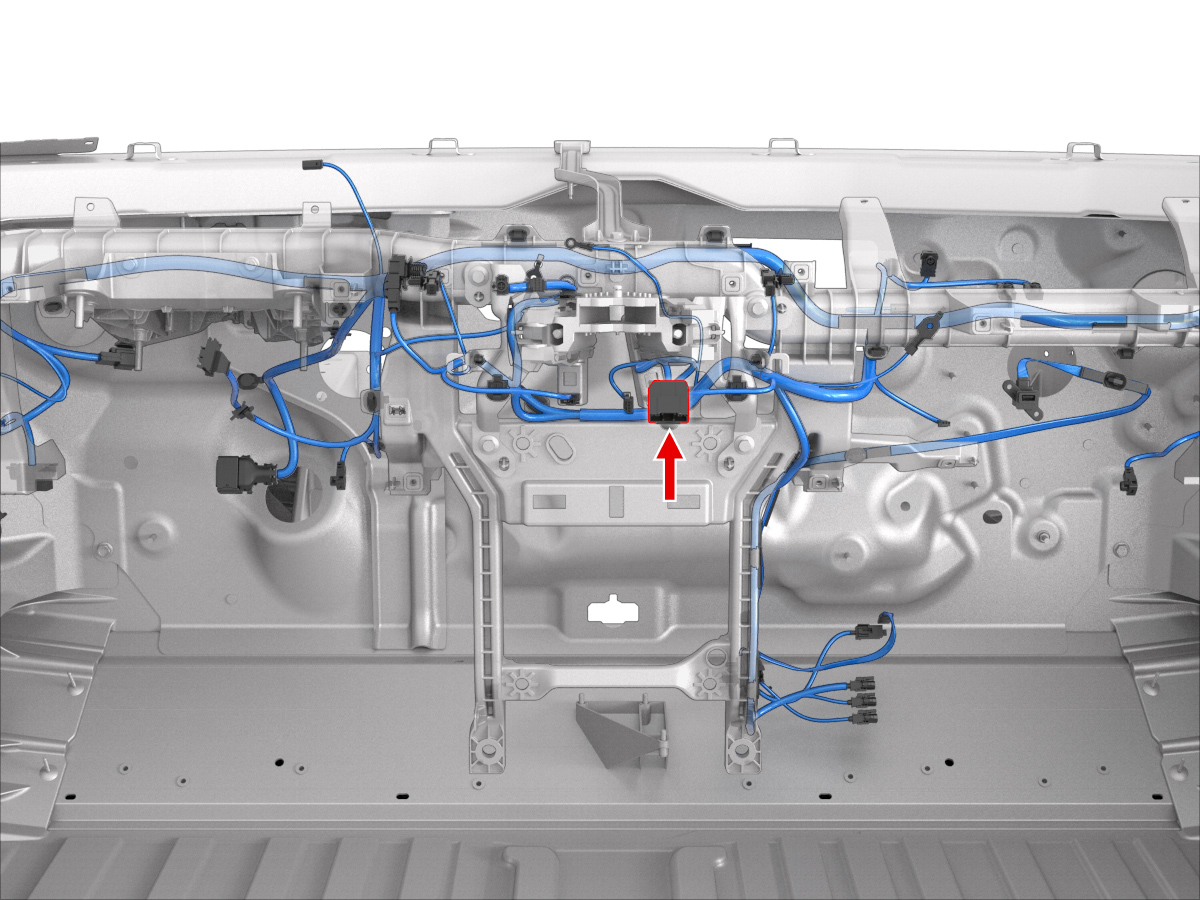

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4925	1.5x0.6M	VT	0.50			X035	9
2
3
4
5
6
7
8
9	SUMITOMO	8100-3623	0.64x0.64M	BN/WH	0.35			X035	44
10	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35			X035	29
11
12
13	SUMITOMO	8100-3623	0.64x0.64M	GN/WH	0.35			X055	8
14	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X055	7
15
16
17
18	SUMITOMO	8100-3623	0.64x0.64M	BU/WH	0.35			X055	14
19	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X055	30
20	SUMITOMO	8230-4925	1.5x0.6M	BK	0.50
