X171

Tesla Part Number
1496688-01-A
Connector
DELPHI 35126370
Color
BK

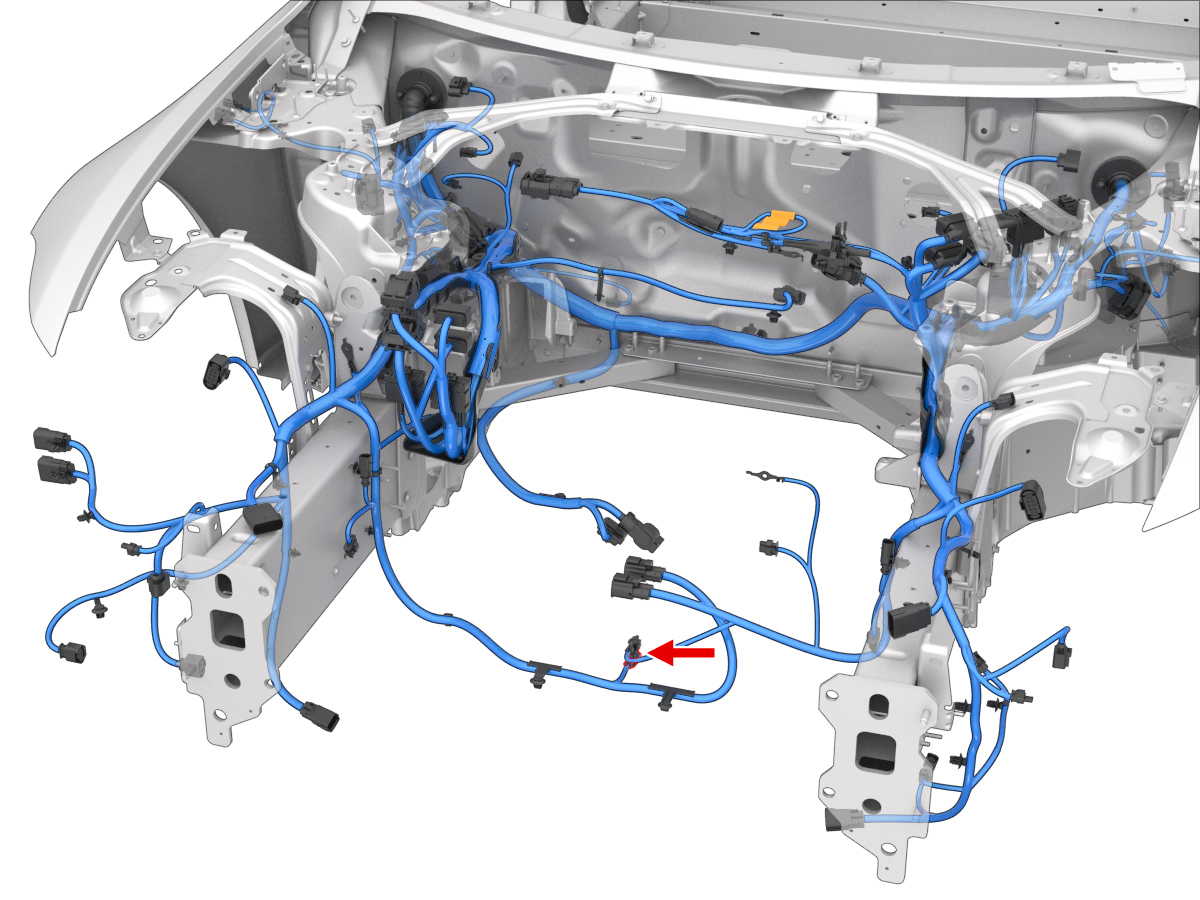

Connector Location:

Connector Pinout

Connector Details

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1DELPHI139591201.2x0.6FSGN0.35DELPHI13887349X025F4
2DELPHI139591201.2x0.6FSYE/WH0.35DELPHI13887349X025F1
3DELPHI139591201.2x0.6FSYE0.35DELPHI13887349X025E1
