X025

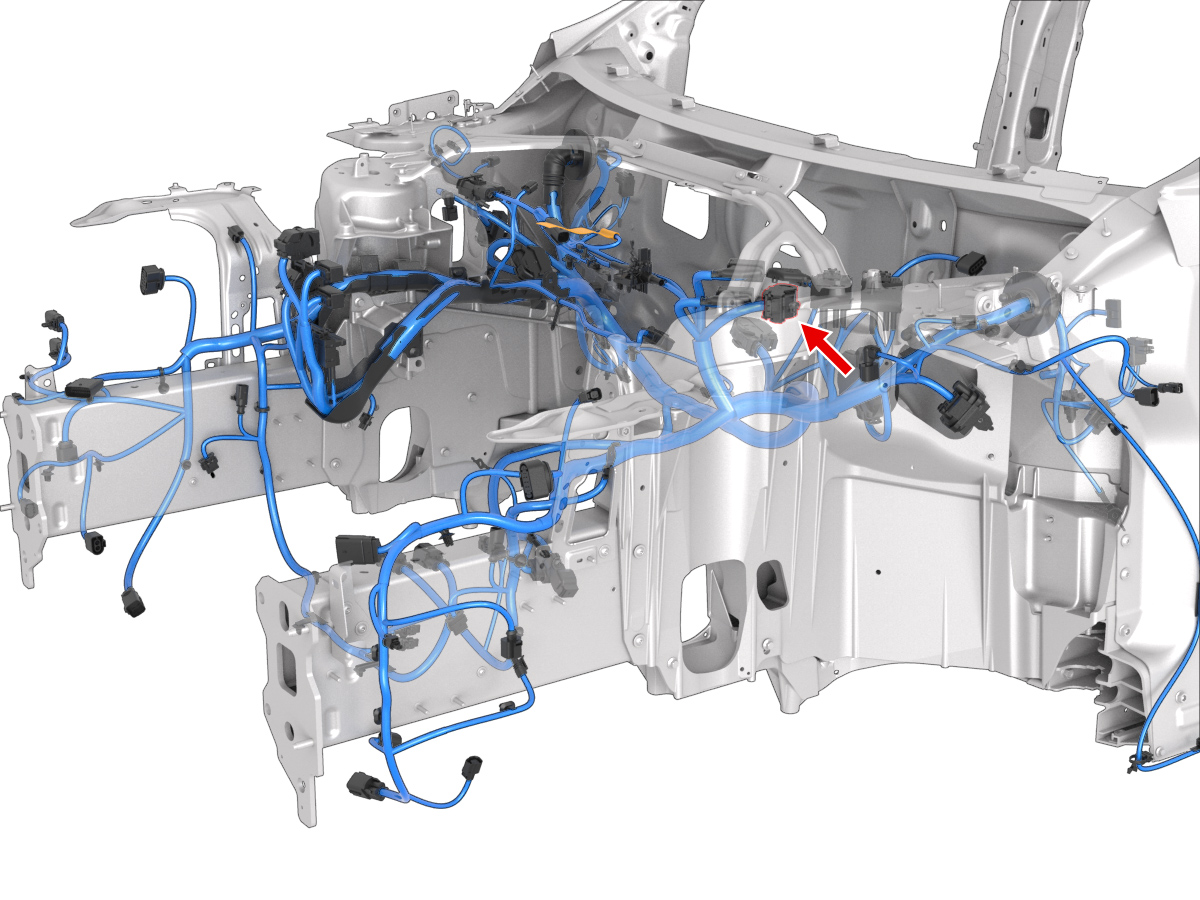

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| A1 | MOLEX | 34805-0412 | 1.5x0.8F | RD | 1.00 | TESLA | MAT-160-280 | X261 | 1 |
| A2 | |||||||||
| A3 | |||||||||
| A4 | |||||||||
| A5 | |||||||||
| B1 | MOLEX | 34805-0413 | 1.5x0.8F | VT | 2.00 | TESLA | MAT-160-280 | X106 | 25 |
| B2 | |||||||||
| B3 | |||||||||
| B4 | |||||||||
| B5 | |||||||||
| C1 | MOLEX | 34803-3411 | 0.64x0.64F | BN | 0.35 | TESLA | MAT-120-190 | ||
| C2 | |||||||||
| C3 | MOLEX | 34803-3412 | 0.64x0.64F | VT | 0.50 | TESLA | MAT-120-190 | X010 | H1 |
| C4 | |||||||||
| C5 | MOLEX | 34803-3412 | 0.64x0.64F | GY | 0.50 | TESLA | MAT-120-190 | X964M | 19 |
| D1 | MOLEX | 34803-3411 | 0.64x0.64F | BN/WH | 0.35 | TESLA | MAT-120-190 | ||
| D2 | MOLEX | 34803-3411 | 0.64x0.64F | GN | 0.35 | TESLA | MAT-120-190 | X037 | 7 |
| D3 | MOLEX | 34803-3411 | 0.64x0.64F | WH | 0.35 | TESLA | MAT-120-190 | X011 | 15 |
| D4 | MOLEX | 34803-3412 | 0.64x0.64F | YE | 0.50 | TESLA | MAT-120-190 | X964M | 12 |
| D5 | MOLEX | 34803-3412 | 0.64x0.64F | GN | 0.50 | TESLA | MAT-120-190 | X276 | 1 |
| E1 | MOLEX | 34803-3411 | 0.64x0.64F | YE | 0.35 | TESLA | MAT-120-190 | X171 | 3 |
| E2 | MOLEX | 34803-3411 | 0.64x0.64F | VT/WH | 0.35 | TESLA | MAT-120-190 | X001 | 5 |
| E3 | MOLEX | 34803-3411 | 0.64x0.64F | GN/BU | 0.35 | TESLA | MAT-120-190 | X011 | 48 |
| E4 | MOLEX | 34803-3411 | 0.64x0.64F | GY | 0.35 | TESLA | MAT-120-190 | X106 | 28 |
| E5 | |||||||||
| F1 | MOLEX | 34803-3411 | 0.64x0.64F | YE/WH | 0.35 | TESLA | MAT-120-190 | X171 | 2 |
| F2 | MOLEX | 34803-3411 | 0.64x0.64F | YE | 0.35 | TESLA | MAT-120-190 | X106 | 14 |
| F3 | MOLEX | 34803-3411 | 0.64x0.64F | VT | 0.35 | TESLA | MAT-120-190 | X001 | 6 |
| F4 | MOLEX | 34803-3411 | 0.64x0.64F | GN | 0.35 | TESLA | MAT-120-190 | X171 | 1 |
| F5 | |||||||||
| G1 | MOLEX | 34803-3411 | 0.64x0.64F | BU | 0.35 | TESLA | MAT-120-190 | X057 | 17 |
| G2 | MOLEX | 34803-3411 | 0.64x0.64F | YE/WH | 0.35 | TESLA | MAT-120-190 | X106 | 26 |
| G3 | MOLEX | 34803-3411 | 0.64x0.64F | YE | 0.35 | TESLA | MAT-120-190 | X117 | 10 |
| G4 | MOLEX | 34803-3411 | 0.64x0.64F | YE | 0.35 | TESLA | MAT-120-190 | X037 | 16 |
| G5 | |||||||||
| H1 | MOLEX | 34803-3411 | 0.64x0.64F | BU/WH | 0.35 | TESLA | MAT-120-190 | X057 | 16 |
| H2 | MOLEX | 34803-3411 | 0.64x0.64F | VT | 0.35 | TESLA | MAT-120-190 | X057 | 1 |
| H3 | MOLEX | 34803-3411 | 0.64x0.64F | YE/WH | 0.35 | TESLA | MAT-120-190 | X117 | 18 |
| H4 | MOLEX | 34803-3411 | 0.64x0.64F | YE/WH | 0.35 | TESLA | MAT-120-190 | X037 | 17 |
| H5 | MOLEX | 34803-3411 | 0.64x0.64F | VT | 0.35 | TESLA | MAT-120-190 | X037 | 24 |
| J1 | |||||||||
| J2 | |||||||||
| J3 | MOLEX | 34803-3411 | 0.64x0.64F | WH | 0.35 | TESLA | MAT-120-190 | X261 | 2 |
| J4 | MOLEX | 34803-3411 | 0.64x0.64F | GN | 0.35 | TESLA | MAT-120-190 | X001 | 7 |
| J5 | |||||||||
| K1 | |||||||||
| K2 | |||||||||
| K3 | MOLEX | 34805-0412 | 1.5x0.8F | BK | 0.75 | TESLA | MAT-160-280 | ||
| K4 | MOLEX | 34805-0412 | 1.5x0.8F | BK | 0.75 | TESLA | MAT-160-280 | ||
| K5 | MOLEX | 34805-0412 | 1.5x0.8F | GN | 1.00 | TESLA | MAT-160-280 | X509 | 1 |
| L1 | MOLEX | 34805-0412 | 1.5x0.8F | WH | 1.00 | TESLA | MAT-160-280 | X507 | 3 |
| L2 | MOLEX | 34805-0412 | 1.5x0.8F | GY | 1.00 | TESLA | MAT-160-280 | X507 | 2 |
| L3 | MOLEX | 34805-0412 | 1.5x0.8F | YE | 1.00 | TESLA | MAT-160-280 | X507 | 1 |
| L4 | MOLEX | 34805-0412 | 1.5x0.8F | VT | 1.00 | TESLA | MAT-160-280 | X509 | 3 |
| L5 | MOLEX | 34805-0412 | 1.5x0.8F | WH | 1.00 | TESLA | MAT-160-280 | X509 | 2 |
