X261

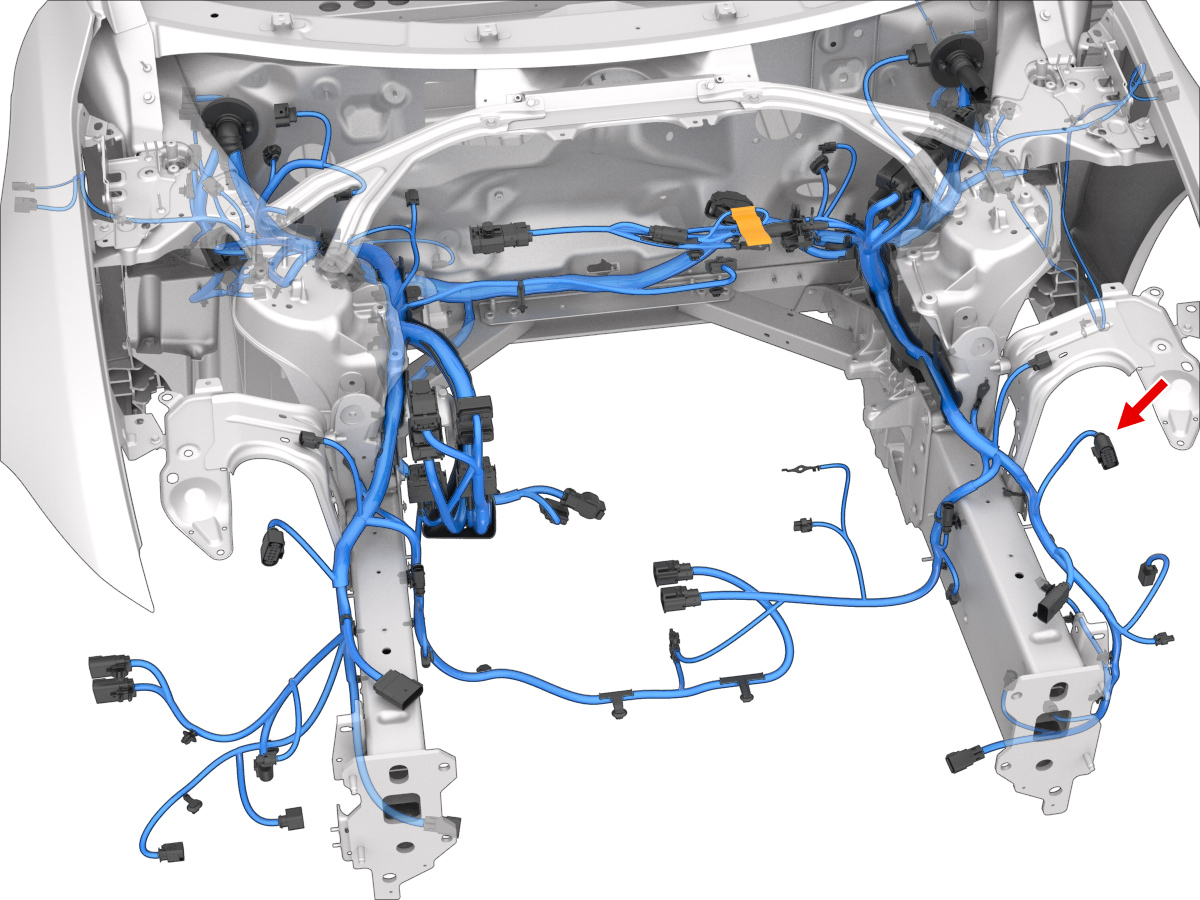

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DELPHI | 35555156 | 1.2x0.6FS | RD | 1.00 | DELPHI | 13887350 | X025 | A1 |
| 2 | DELPHI | 13959120 | 1.2x0.6FS | WH | 0.35 | DELPHI | 13887349 | X025 | J3 |
| 3 | DELPHI | 35555156 | 1.2x0.6FS | BK | 1.00 | DELPHI | 13887350 | G500 | 5 |
