X943F

Tesla Part Number

1486224-00-A

Connector

DELPHI 33257519

Color

BK

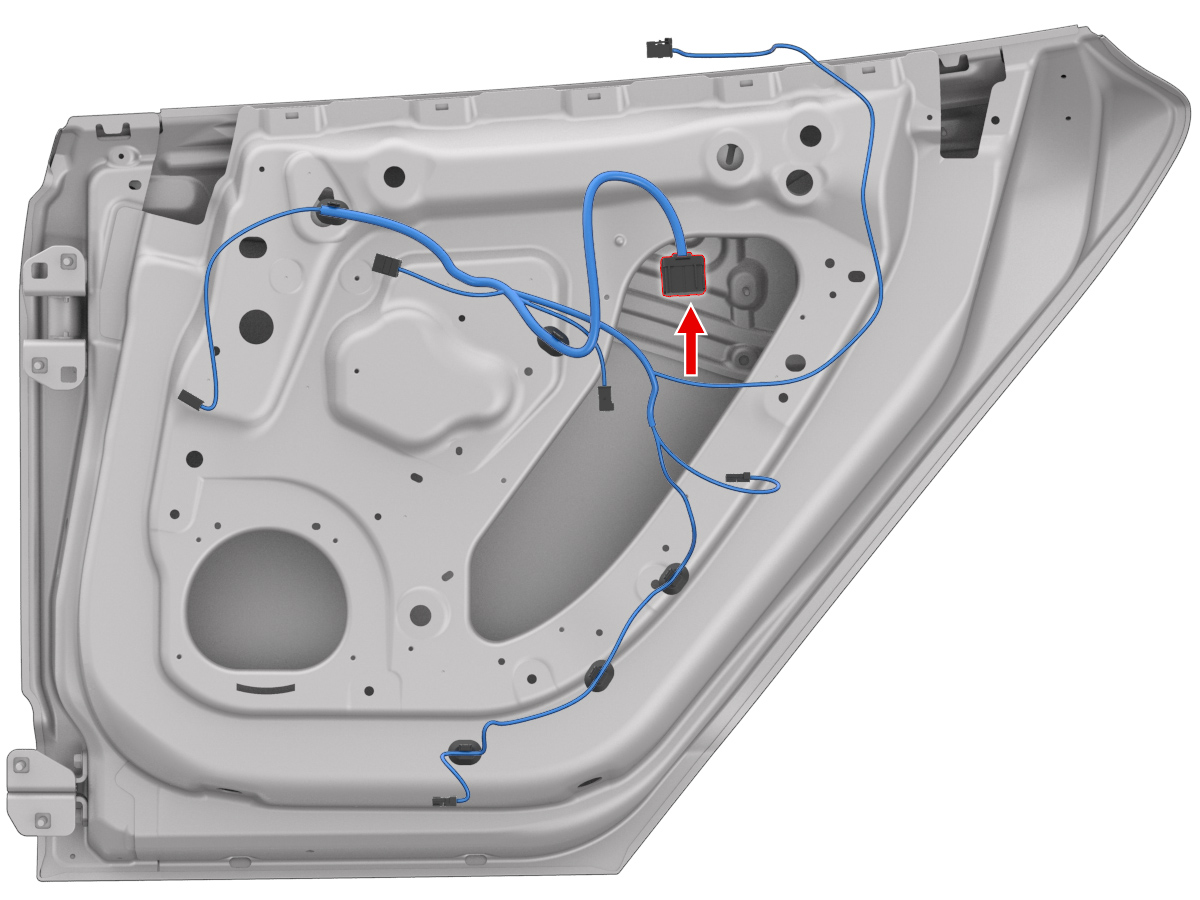

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	35072403	1.2x0.6F	GN	0.50			X413	1
2
3	DELPHI	35410019	1.2x0.6F	BU	0.35			X364	3
4	DELPHI	35410019	1.2x0.6F	VT	0.35			X361	2
5	DELPHI	35072403	1.2x0.6F	BN	0.50
6	DELPHI	35410019	1.2x0.6F	GN	0.35			X361	3
7	DELPHI	35410019	1.2x0.6F	RD	0.35			X368	2
8
9	DELPHI	35072403	1.2x0.6F	BN	0.50			X413	2
10	DELPHI	35410019	1.2x0.6F	VT	0.35			X368	1
11	DELPHI	35410019	1.2x0.6F	RD	0.35
12	DELPHI	35410019	1.2x0.6F	WH	0.35			X363	1
13	DELPHI	35410019	1.2x0.6F	RD	0.35			X361	1
14
15
16
