X265

Tesla Part Number
1496688-01-A
Connector
DELPHI 35126370
Color
BK

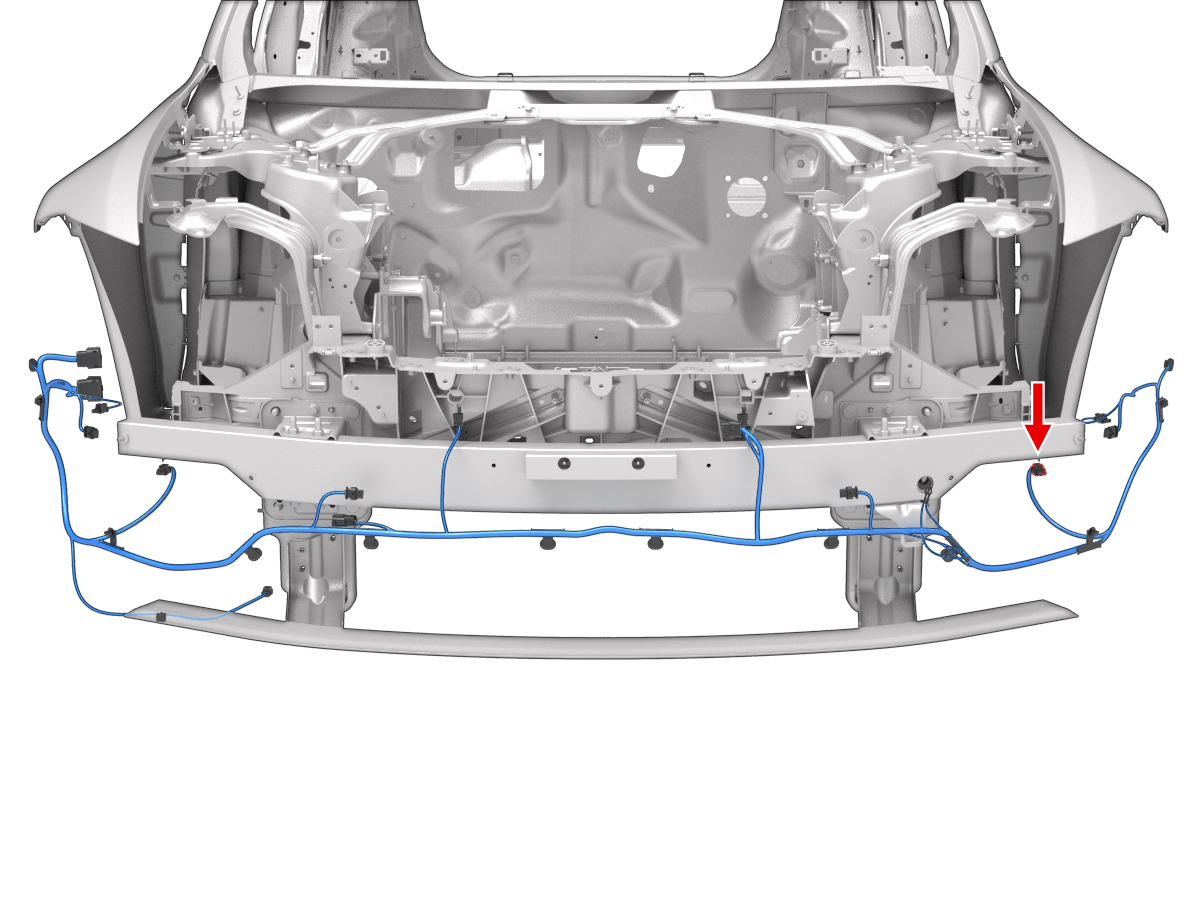

Connector Location:

Connector Pinout

Connector Details

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1DELPHI139591411.2x0.6FSGY0.50DELPHI15327918X964F19
2DELPHI139591411.2x0.6FSYE0.50DELPHI15327918X964F12
3DELPHI139591411.2x0.6FSBK0.50DELPHI15327918
