X314

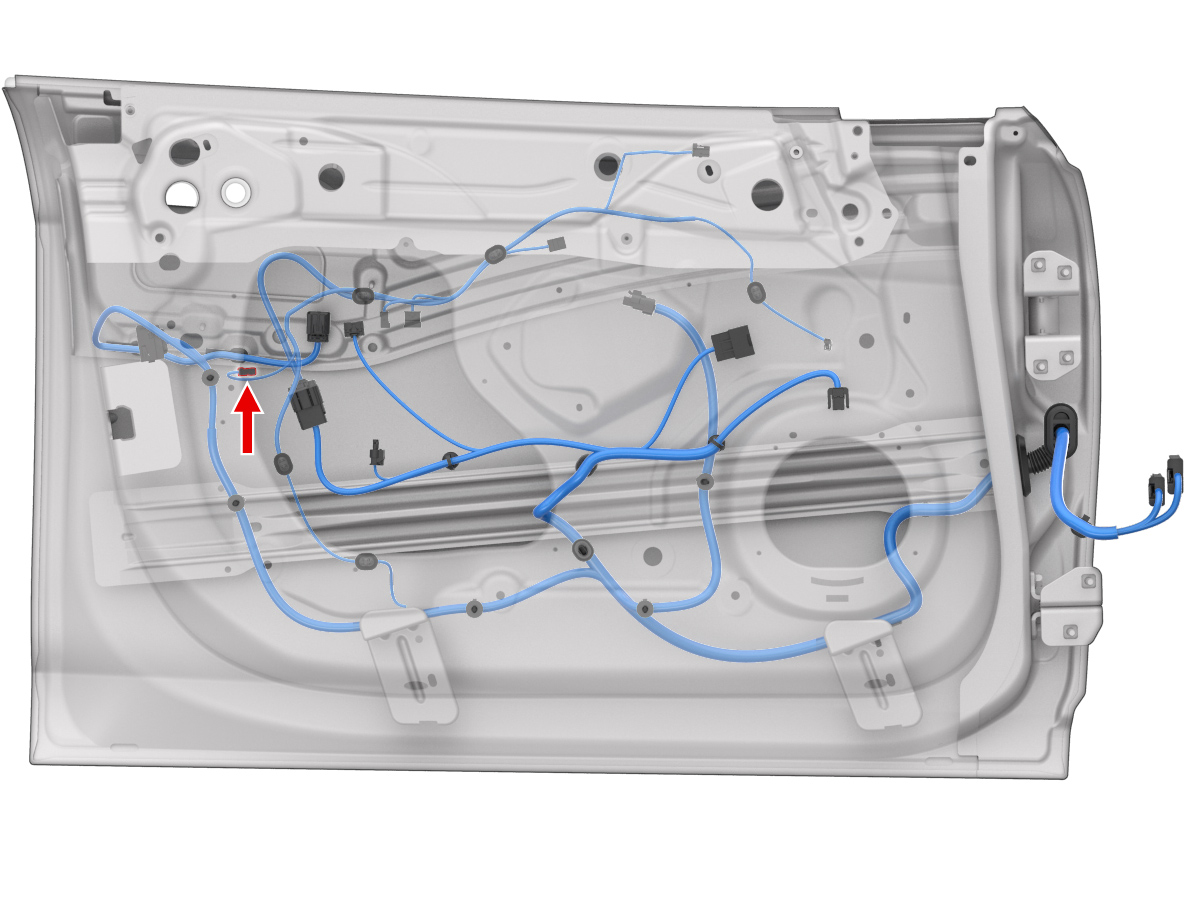

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | MOLEX | 560124-0101 | 0.5F | BU | 0.35 | X927F | 2 | ||
| 2 | MOLEX | 560124-0101 | 0.5F | GY | 0.35 | X317 | 2 | ||
| 3 | MOLEX | 560124-0101 | 0.5F | YE | 0.35 | X927F | 3 | ||
| 4 | MOLEX | 560124-0101 | 0.5F | BN | 0.35 |
