X1481

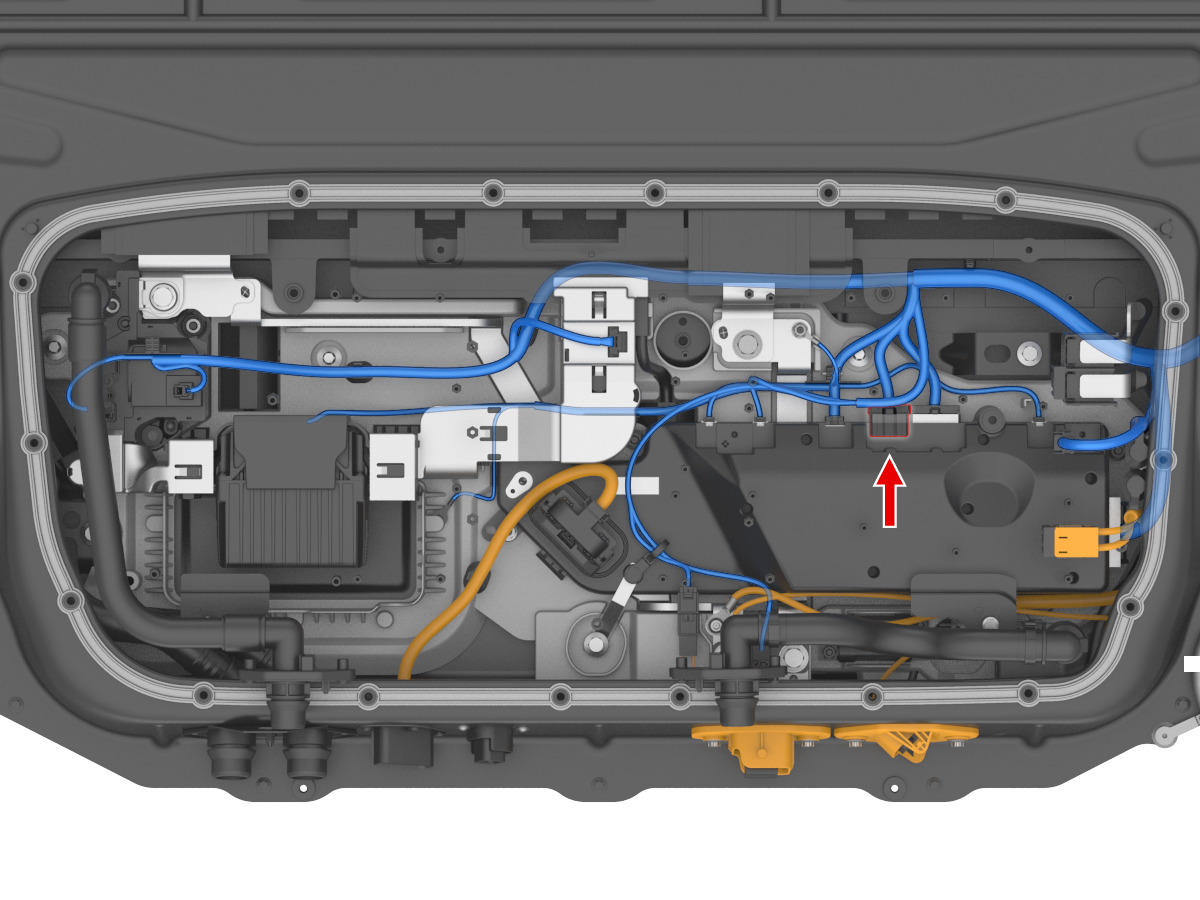

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 173630-1 | 1.8x0.64F | WH | 0.35 | X1475 | 1 | ||
| 2 | |||||||||
| 3 | |||||||||
| 4 | AMP | 173630-1 | 1.8x0.64F | WH | 0.35 | X999M | 25 | ||
| 5 | |||||||||
| 6 | |||||||||
| 7 | AMP | 173630-1 | 1.8x0.64F | GN | 0.35 | X1475 | 4 | ||
| 8 | |||||||||
| 9 | |||||||||
| 10 |
