X499

Tesla Part Number

1496689-00-A

Connector

DELPHI 35126375

Color

BK

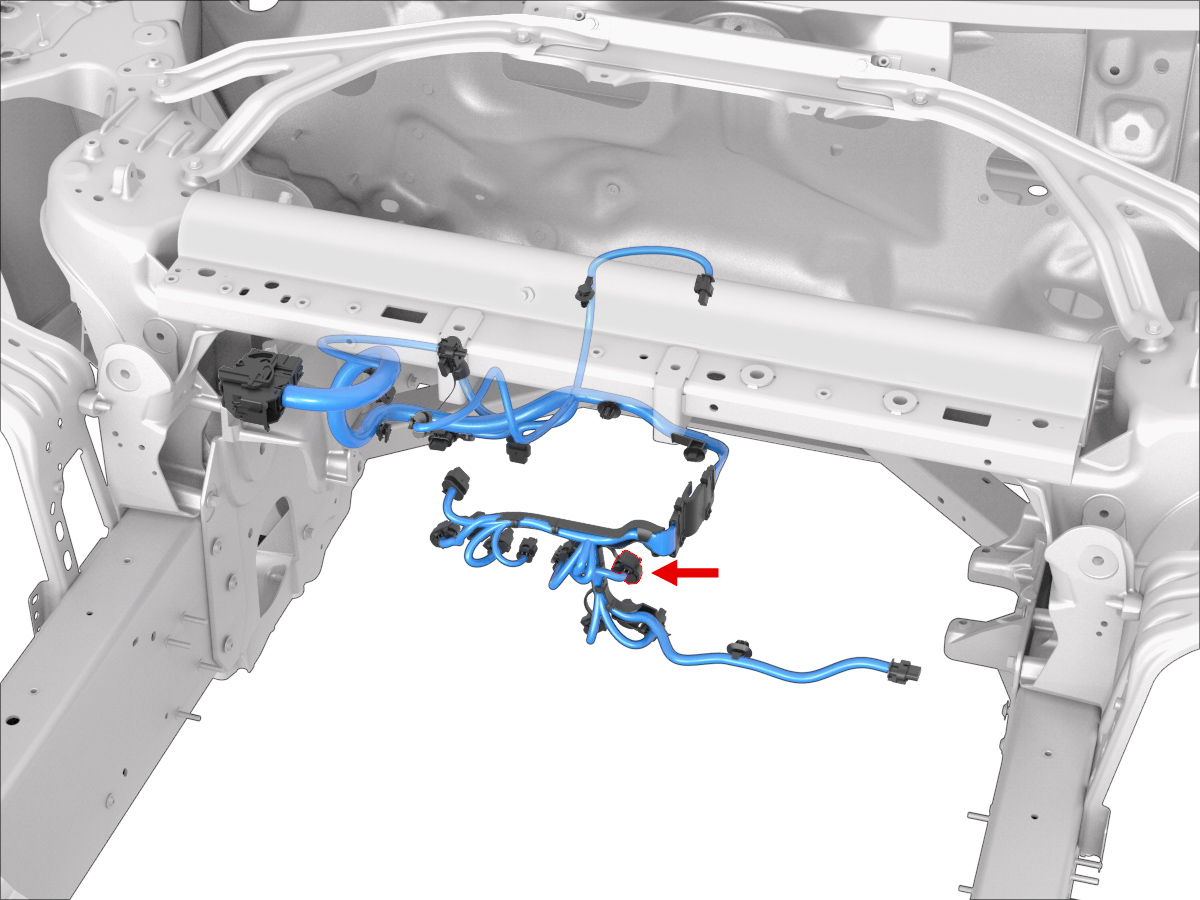

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	13959141	1.2x0.6FS	TN	0.50	DELPHI	13887350	X021	C2
2	DELPHI	13959141	1.2x0.6FS	WH	0.50	DELPHI	13887350	X021	A2
3	DELPHI	13959141	1.2x0.6FS	GY	0.50	DELPHI	13887350	X021	D2
4	DELPHI	13959141	1.2x0.6FS	GN	0.50	DELPHI	13887350	X021	B2
