X436

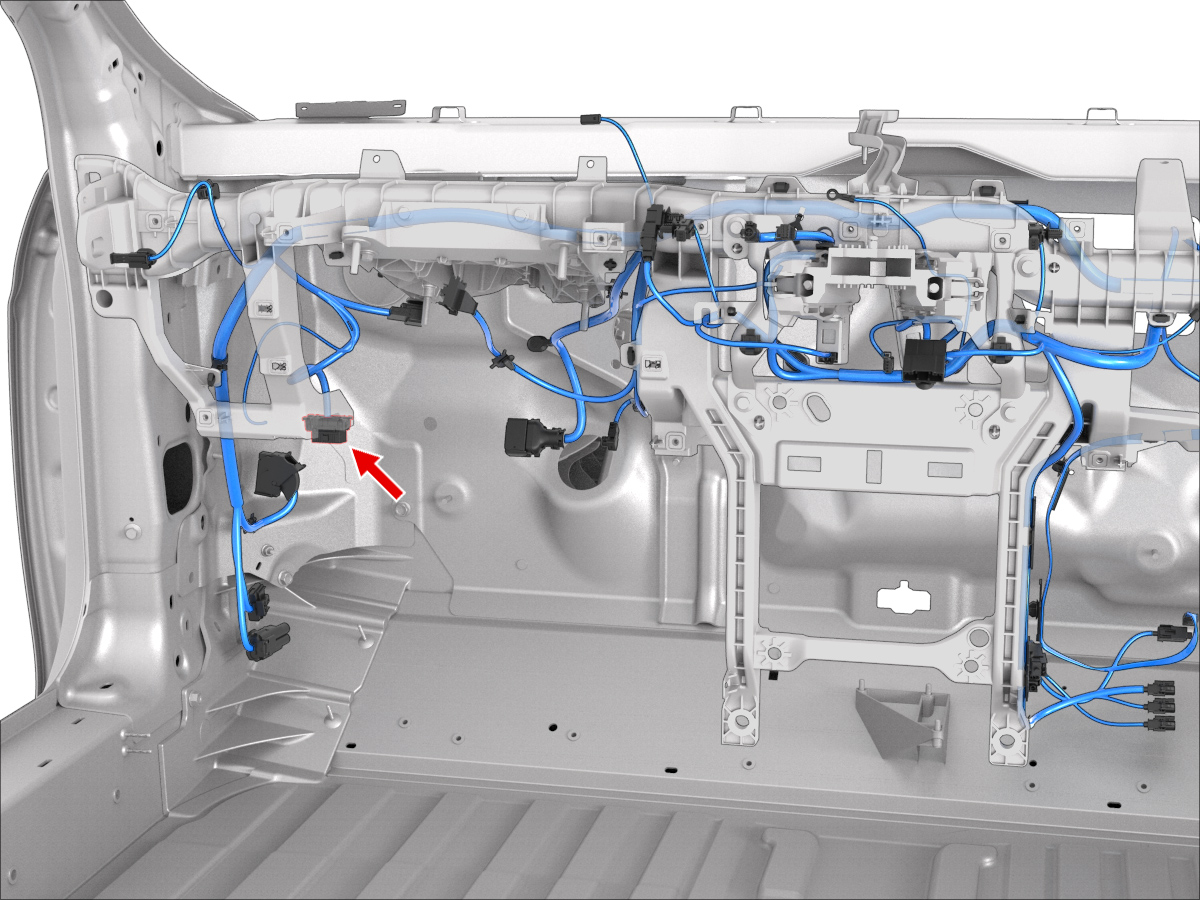

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | |||||||||
| 2 | |||||||||
| 3 | AMP | 776001-1 | 1.5 | GN/WH | 0.35 | X455 | 5 | ||
| 4 | AMP | 776001-1 | 1.5 | BK | 0.50 | ||||
| 5 | AMP | 776001-1 | 1.5 | BK | 0.50 | ||||
| 6 | AMP | 776001-1 | 1.5 | GN | 0.35 | X035 | 23 | ||
| 7 | |||||||||
| 8 | AMP | 776001-1 | 1.5 | BU | 0.35 | X947F | 6 | ||
| 9 | |||||||||
| 10 | |||||||||
| 11 | AMP | 776001-1 | 1.5 | GN | 0.35 | X455 | 1 | ||
| 12 | AMP | 776001-1 | 1.5 | YE/WH | 0.35 | X455 | 2 | ||
| 13 | AMP | 776001-1 | 1.5 | YE | 0.35 | X455 | 6 | ||
| 14 | AMP | 776001-1 | 1.5 | WH | 0.35 | X035 | 24 | ||
| 15 | |||||||||
| 16 | AMP | 776001-1 | 1.5 | YE | 0.50 | X035 | 13 |
