G510

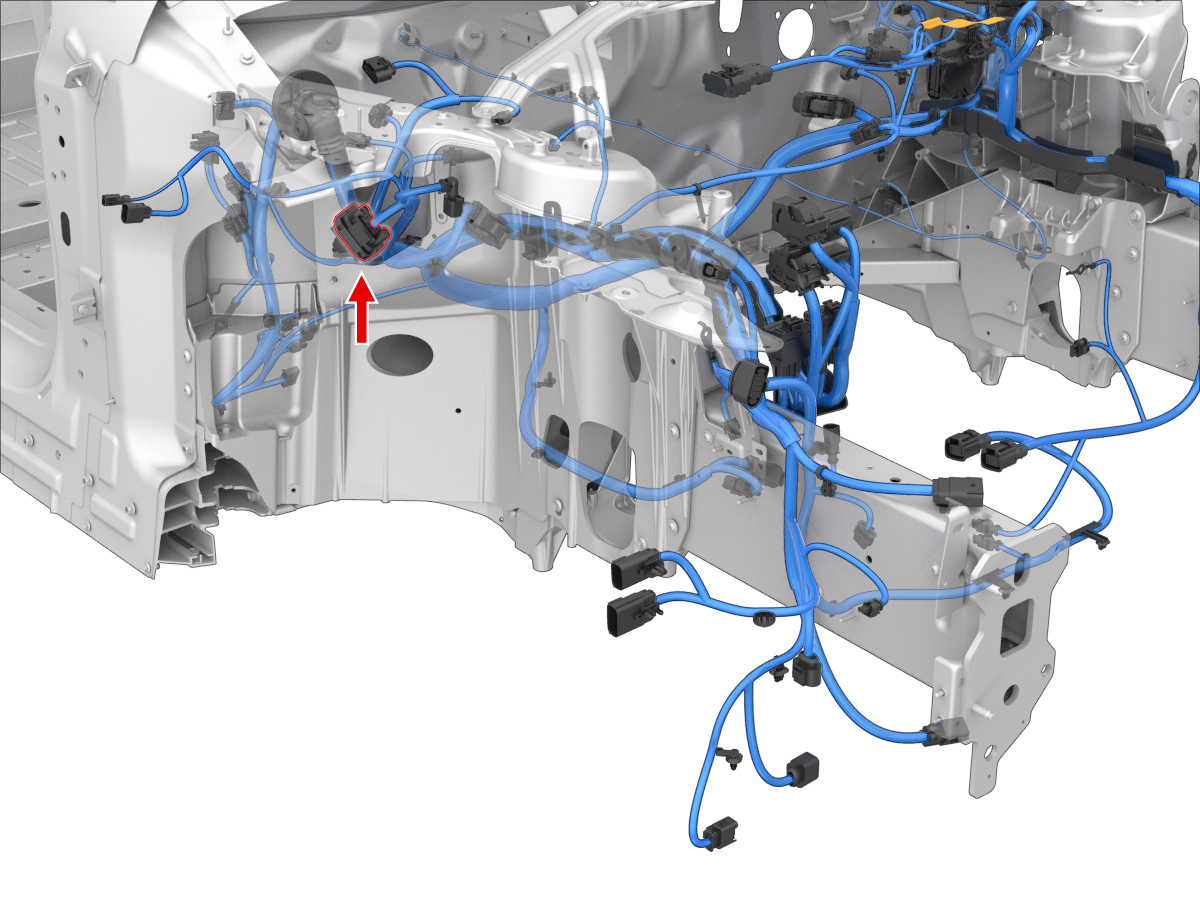

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DELPHI | 10780234 | 9.5FS | BK | 8.00 | DELPHI | 15327788 | G511 | 1 |
| 2 | |||||||||
| 3 | DELPHI | 35138798 | 1.5 | BK | 1.50 | DELPHI | 13582732 | X964M | 1 |
| 4 | |||||||||
| 5 | DELPHI | 35138799 | 1.5 | BK | 1.00 | DELPHI | 13582730 | X262 | 3 |
| 6 | DELPHI | 13976117 | 6.3FS | BK | 4.00 | DELPHI | 15327864 | X117 | 9 |
| 7 | DELPHI | 35138800 | 1.5 | BK | 0.50 | DELPHI | 13582731 | X277 | 2 |
| 8 | |||||||||
| 9 | DELPHI | 35138799 | 1.5 | BK | 0.75 | DELPHI | 13582730 | X990F | 10 |
| 10 | DELPHI | 35138800 | 1.5 | BK | 0.50 | DELPHI | 13582731 | X995F | 10 |
| 11 | |||||||||
| 12 | |||||||||
| 13 | DELPHI | 15446675 | 2.8FS | BK | 2.00 | DELPHI | 15339838 | X177 | 1 |
| 14 | |||||||||
| 15 | DELPHI | 13976117 | 6.3FS | BK | 4.00 | DELPHI | 15327864 | X190A | 2 |
