X1420

Tesla Part Number

1080111-00-A

Connector

AMP 1717106-1

Color

NA

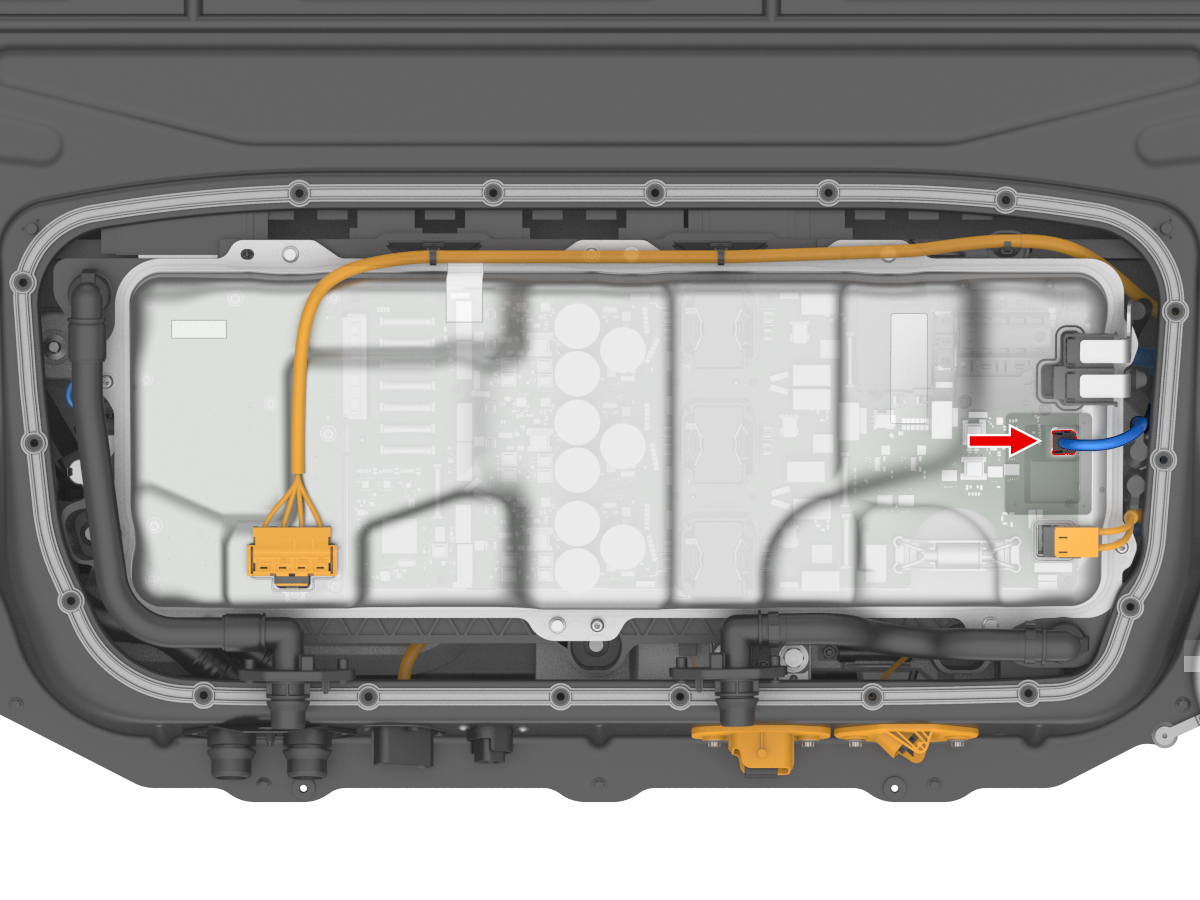

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1				WH	0.35			X1479	29
2				GN	0.35			X1479	6
3				YE	0.35			X1479	5
4				GY	0.35			X1479	1
5				WH	0.35			X1479	15
6				VT	0.35			X1479	2
7
8
9
10				VT	0.35			X1479	26
11				YE	0.35			X1479	12
12				BU	0.35			X1479	30
