Wheelhouse Inner (Front Section)

Parts List

Quantity Description Image / Notes

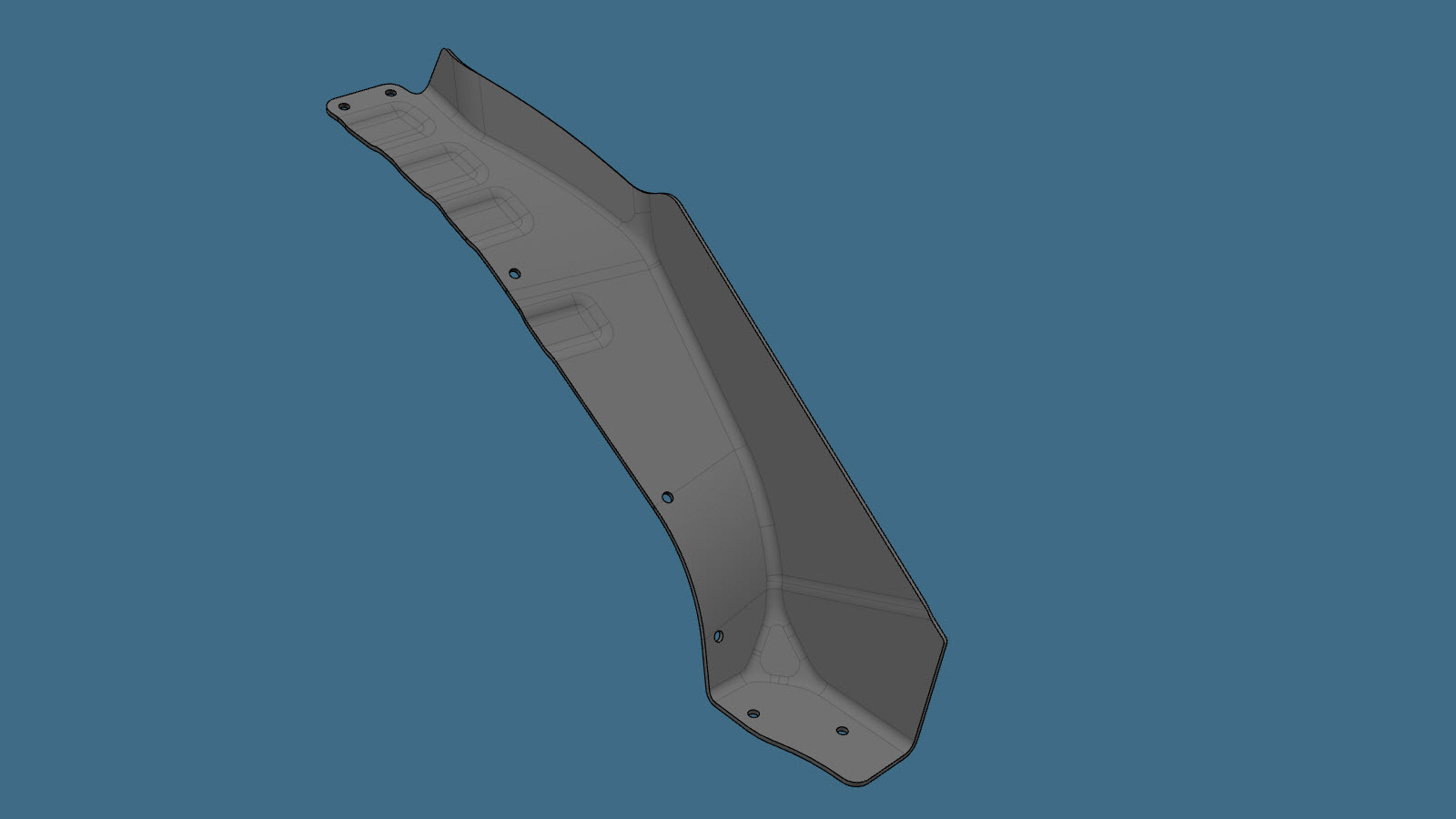

1 MY RUB FRONT WHEELHOUSE SERVICE PANEL (Wheelhouse Front Section)
7 High Strength Structural Rivet, 6.5 mm
1 Flow Form Rivet S38

When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.

Repair Procedure

  1. Remove the Wheelhouse Extension (Front).
  2. Remove the original component.
    Reference Line/Point
    Cut Line

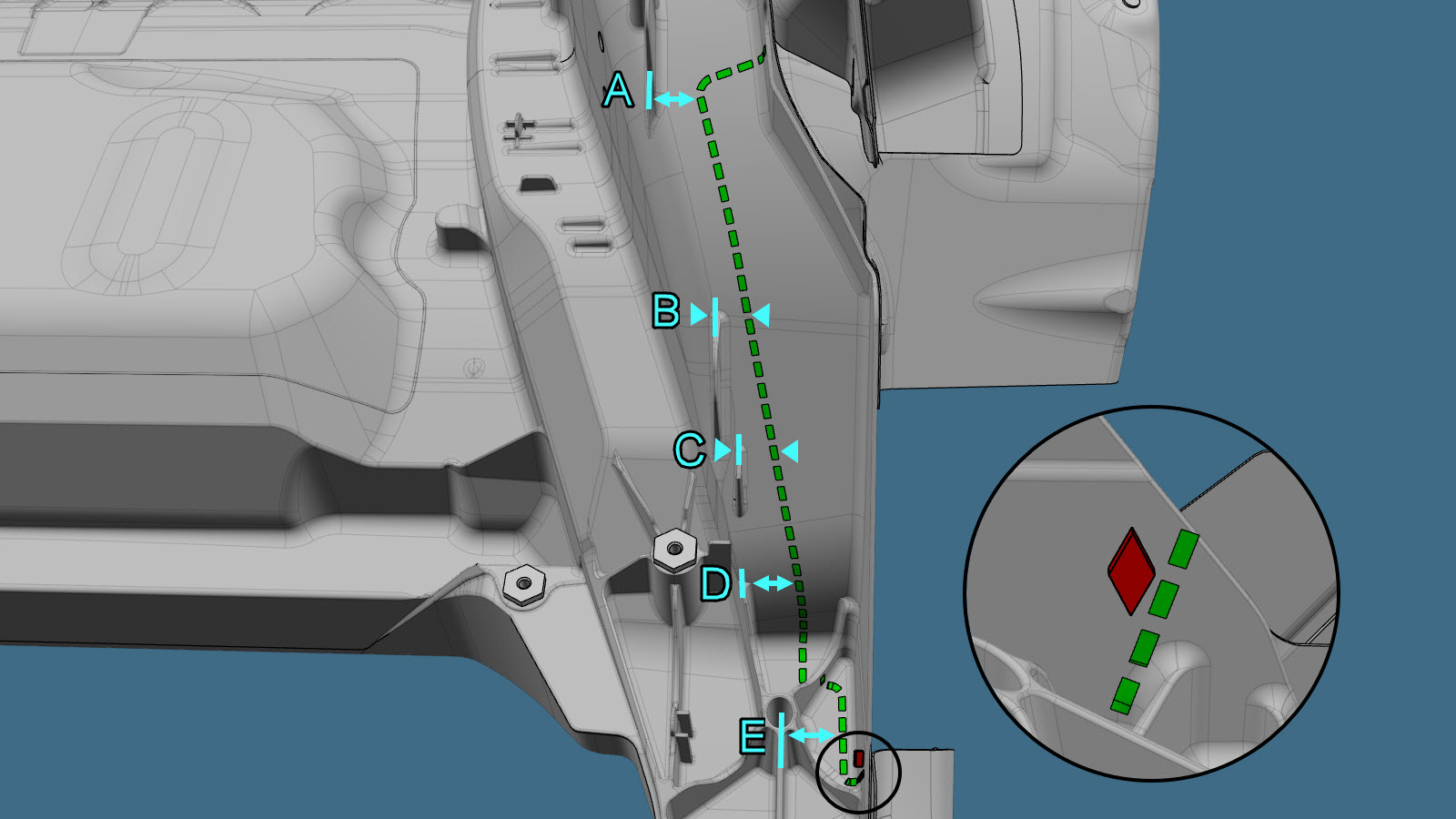

    • A = 30 mm
    • B = 19 mm
    • C = 22 mm
    • D = 39 mm
    • E = 42 mm
    Informational PurposesAn informational icon, calling your attention
    Note
    The measurements shown indicate the outer boundaries (maximum size) of the repair area, and a smaller repair area may be cut. If damage extends beyond this area, contact Tesla Collision Repair for assistance.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use the service part as a reference for material removal from the Cast Rear Under Body. Bulk cut as needed until the service part fits in the repair area.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Warning
    The remaining portion of the wheelhouse must overlap the service part by a minimum of 25 mm in the inboard areas.

    or Factory SPRs

  3. Prepare for installation.
    Informational PurposesAn informational icon, calling your attention
    Note
    The service part is installed from the underside of the wheelhouse.
    Informational PurposesAn informational icon, calling your attention
    Note

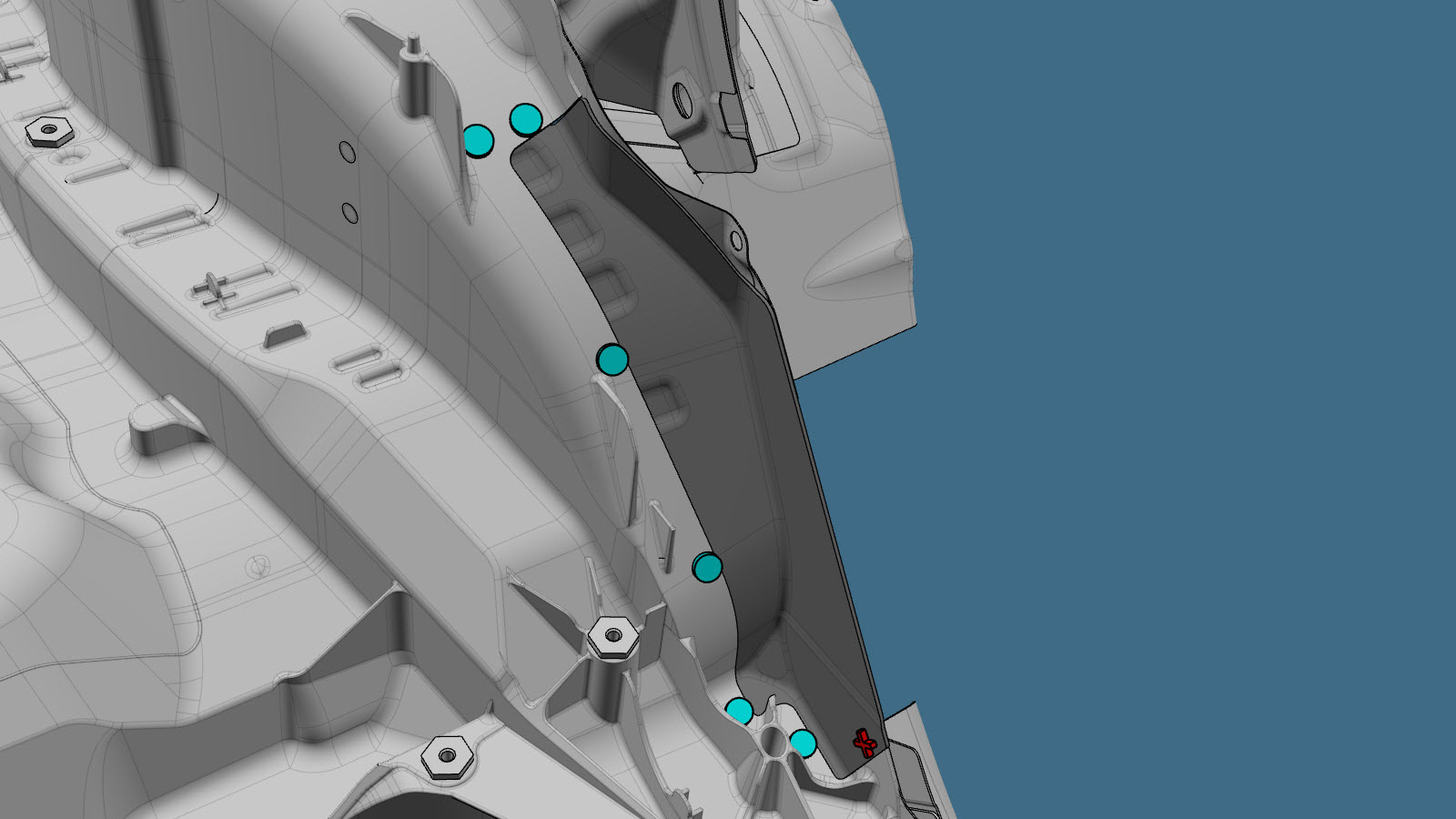

    A red X indicates a location where a factory-installed fastener is not being replaced.

    Reference Line/Point

    Warning IconA warning icon, calling your attention to a possibly risky situation
    Warning
    The remaining portion of the wheelhouse must overlap the service part by a minimum of 25 mm in the inboard areas.

    or High Strength Structural Rivets, 6.5 mm

    or Flow Form Rivets, S38

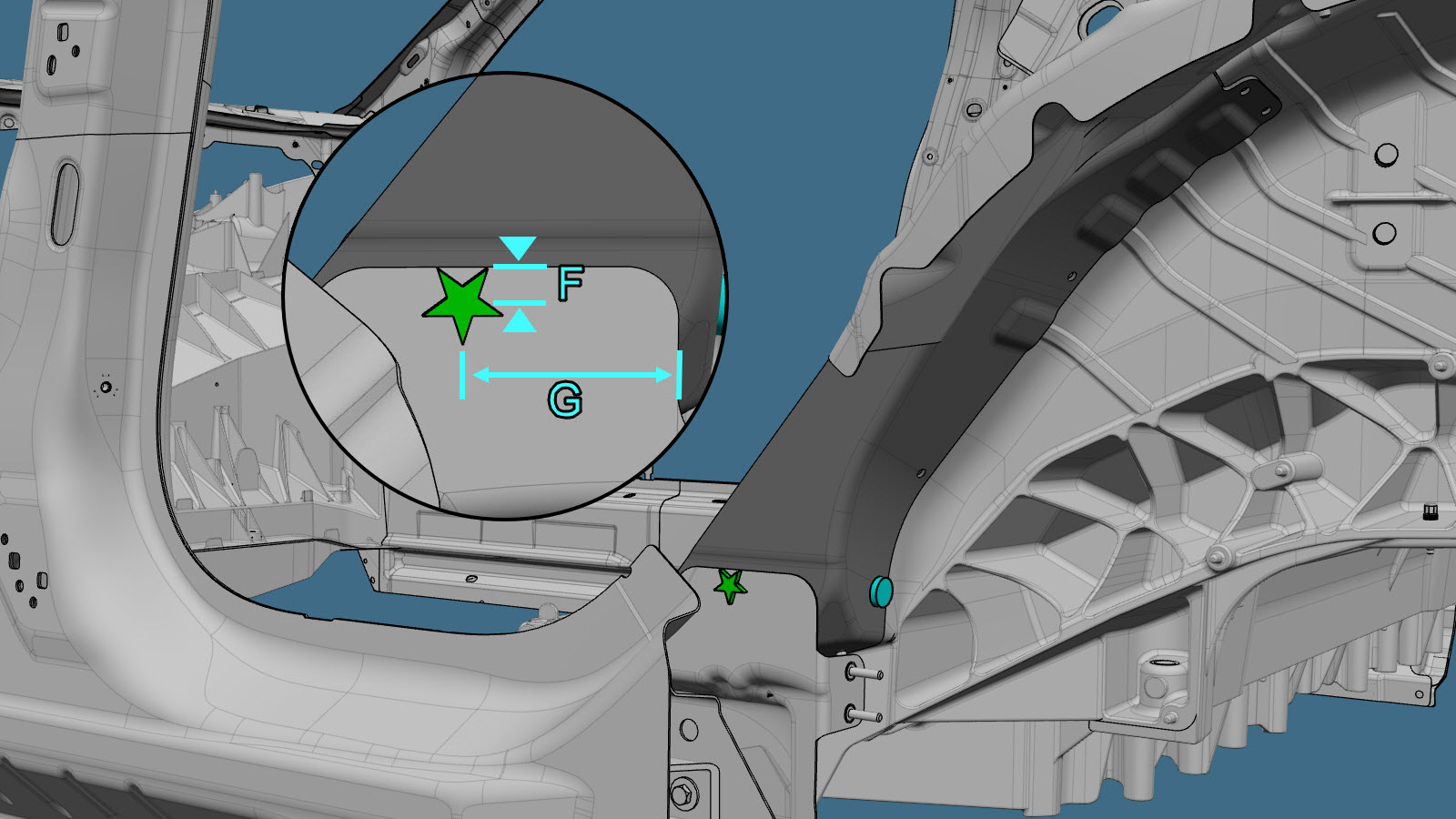

    • F = 10 mm
    • G = 65 mm
  4. Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
  5. Install the new component or components.
  6. Install the Wheelhouse Extension (Front).
  7. Perform any necessary post-repair operations.
