Seal - Body - Side - Front - Primary - LH (Remove and Replace)

Correction code 11700302 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2026-08-12: Added notes to verify that the primary seal is installed behind the header seal.

Remove

  1. Open the LH rear door.

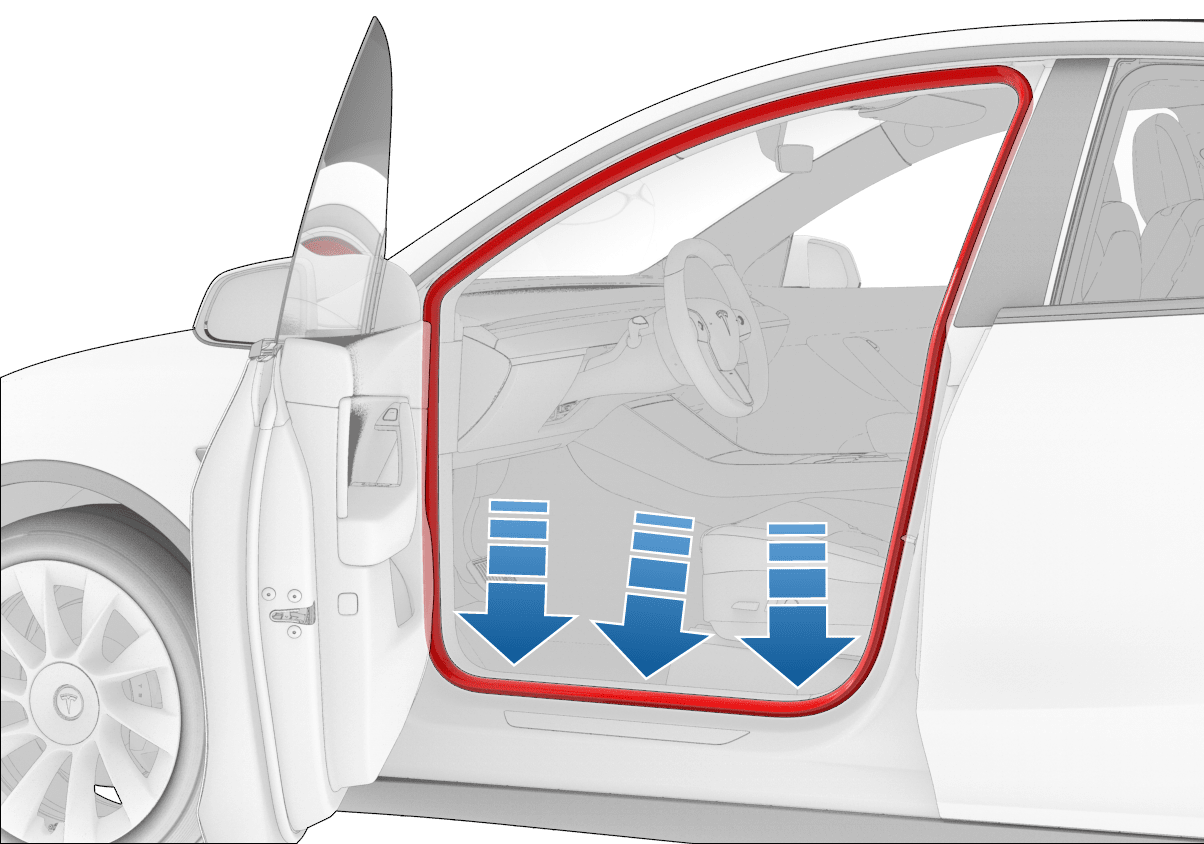

  2. Pull on the LH primary front side body seal to release it from the body.
    Note
    Start in the corner closest to the B-pillar applique and pull straight down to release the upper portion of the trim first.

Install

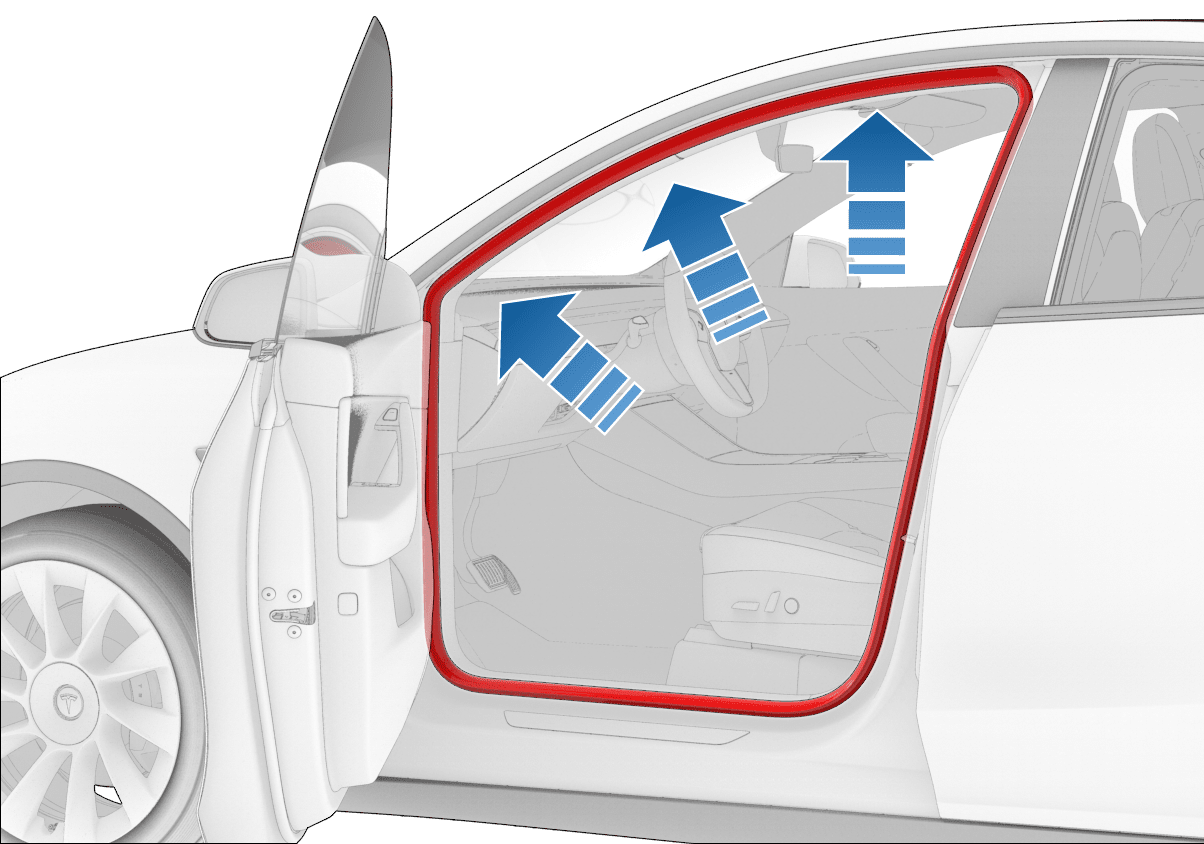

  1. Position the LH primary front body seal to the mid A-pillar trim, and then press the seal into position working along the upper bright trim molding.
    Note

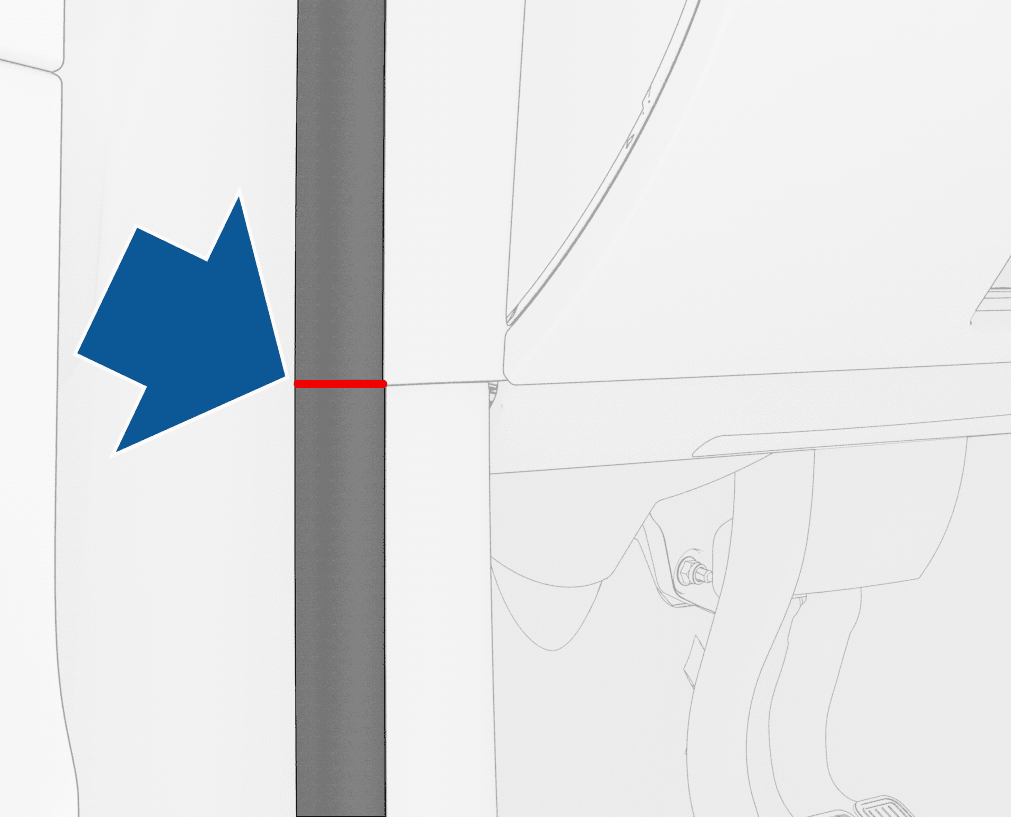

    Ensure the seam on the seal is even with the bottom of the LH lower B-Pillar.
    Note

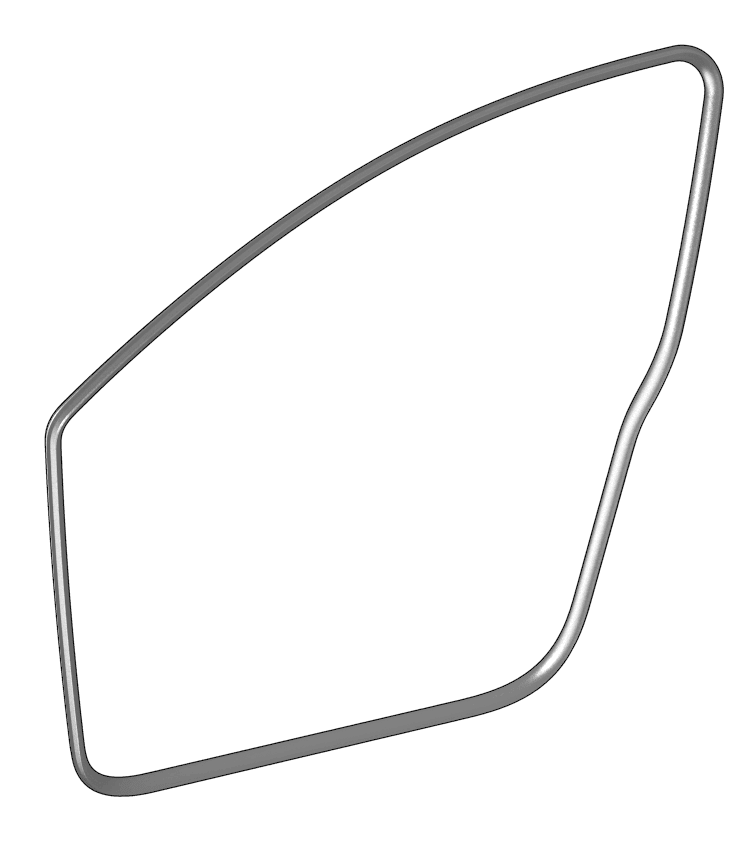

    Ensure the wider side of the seal is seated towards the interior of the vehicle.
    Note
    Make sure that the primary seal is installed behind the header seal.

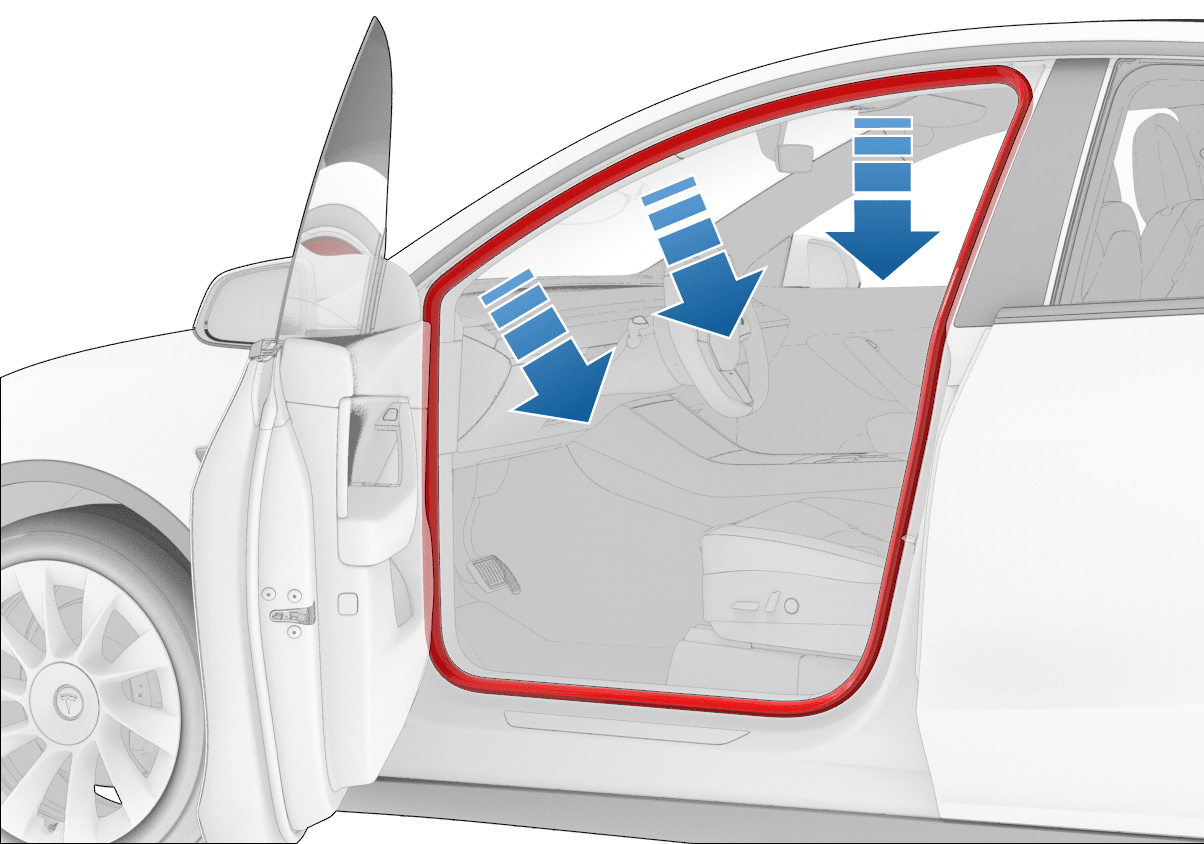

  2. Tuck the seal into the bright trim molding.
    Note
    Make sure that the trim is fitted properly into the trim panels and the headliner

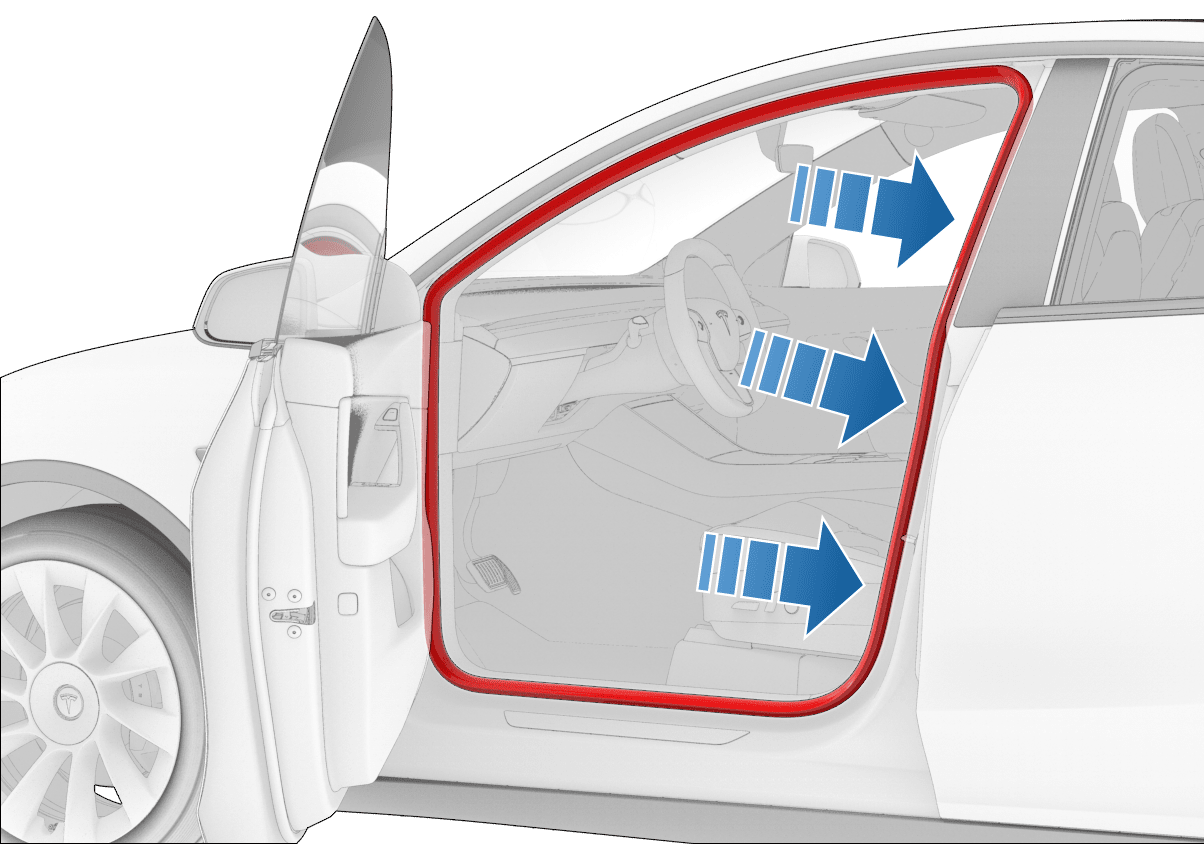

  3. Press the LH primary front body seal into the B-pillar, and work downwards toward the bottom of the A-pillar.
    Note
    If excess material forms along the seal, release the seal and disperse in opposite directions.
    Note
    Make sure that the primary seal is installed behind the header seal.
  4. Calibrate the windows. See Window Regulator (Recalibrate).
  5. Confirm that the window operates correctly and without any abnormal noise.
