Check Base - Magnetic - Sun Visor - LH (Remove and Replace)

Correction code 15051072 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Open the LH front door and lower the LH front window.
  2. Rotate the LH sun visor away from the check base.

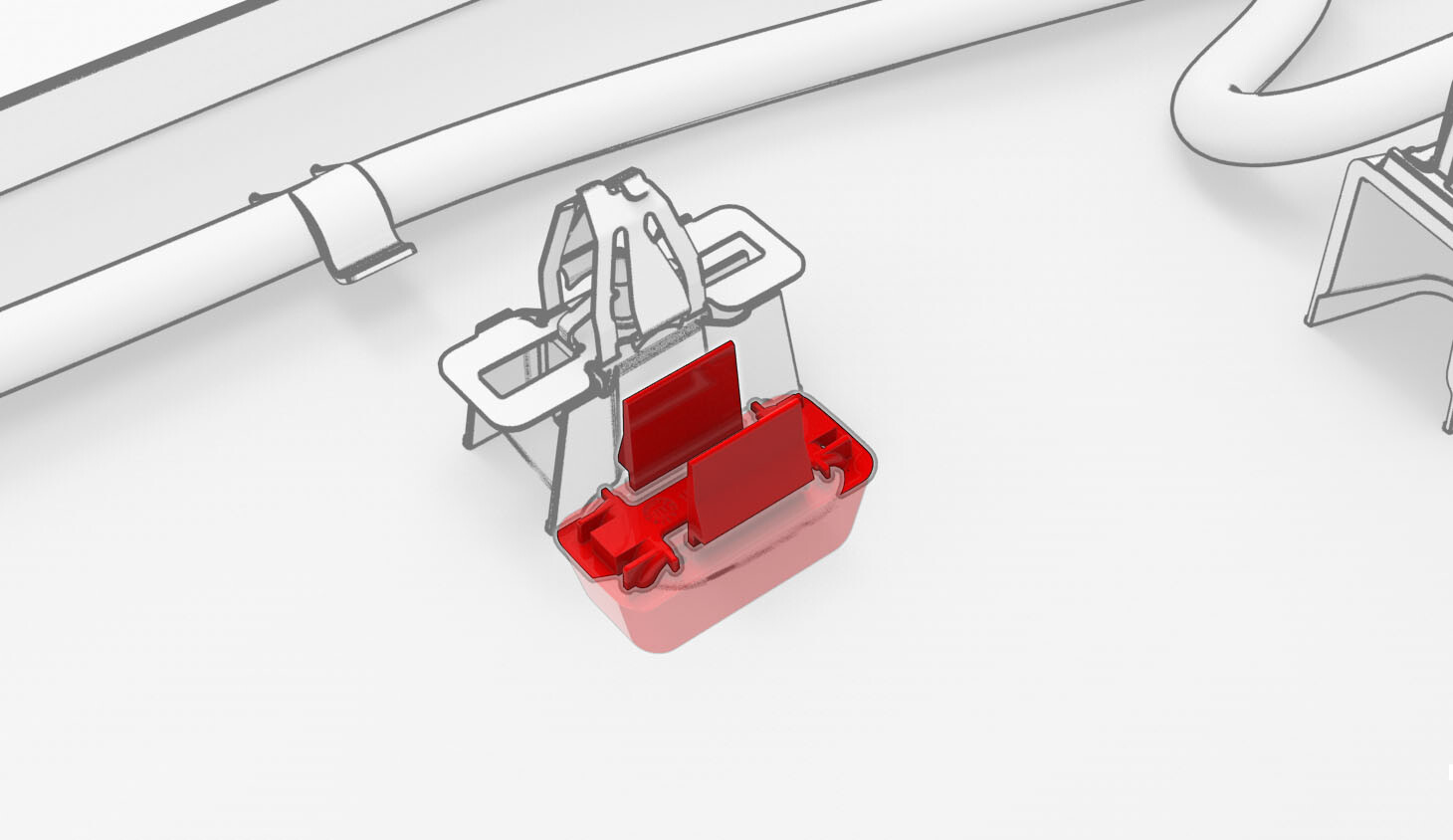

  3. Release the clips that attach the sun visor check to the front headliner, and then remove the sun visor check from the vehicle.

Install

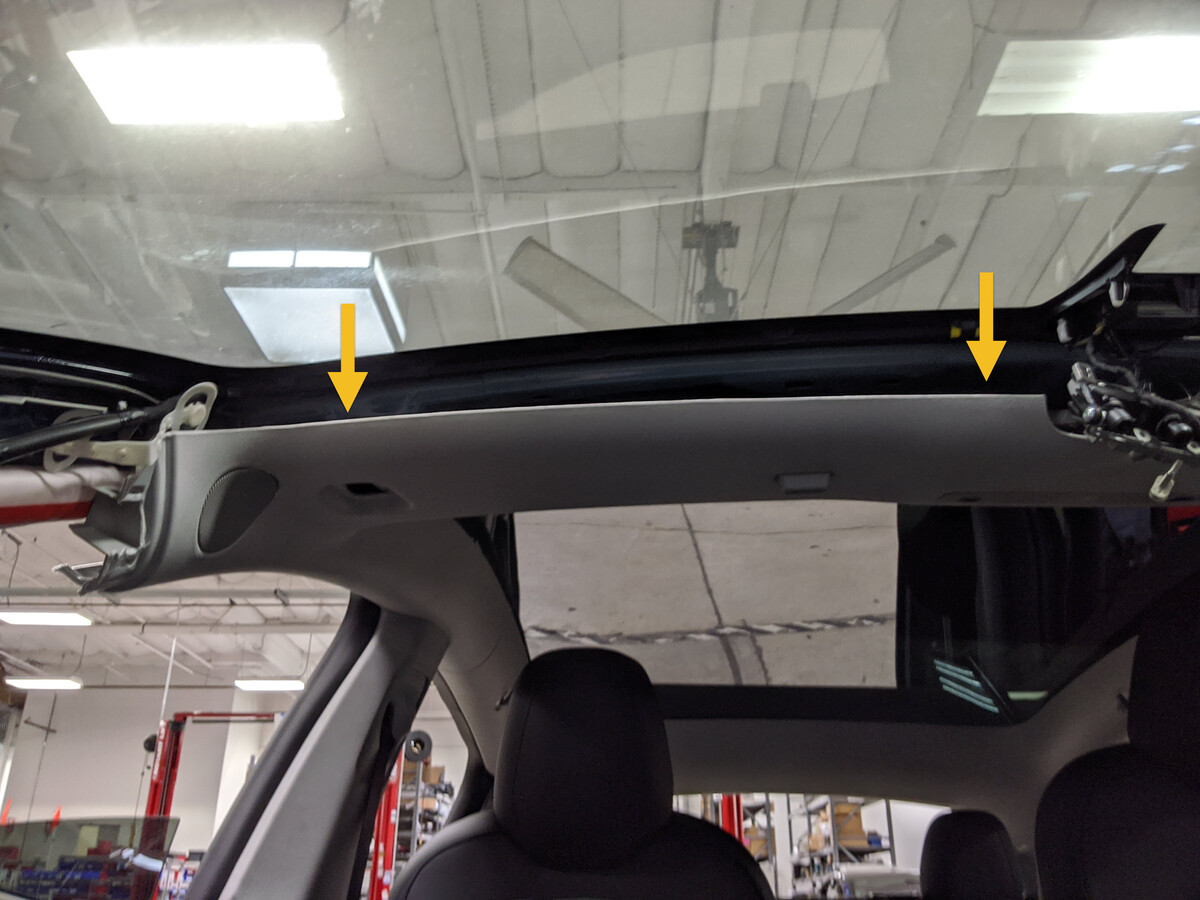

  1. Install the sun visor check to the headliner and secure the tabs.
    Informational PurposesAn informational icon, calling your attention
    Note

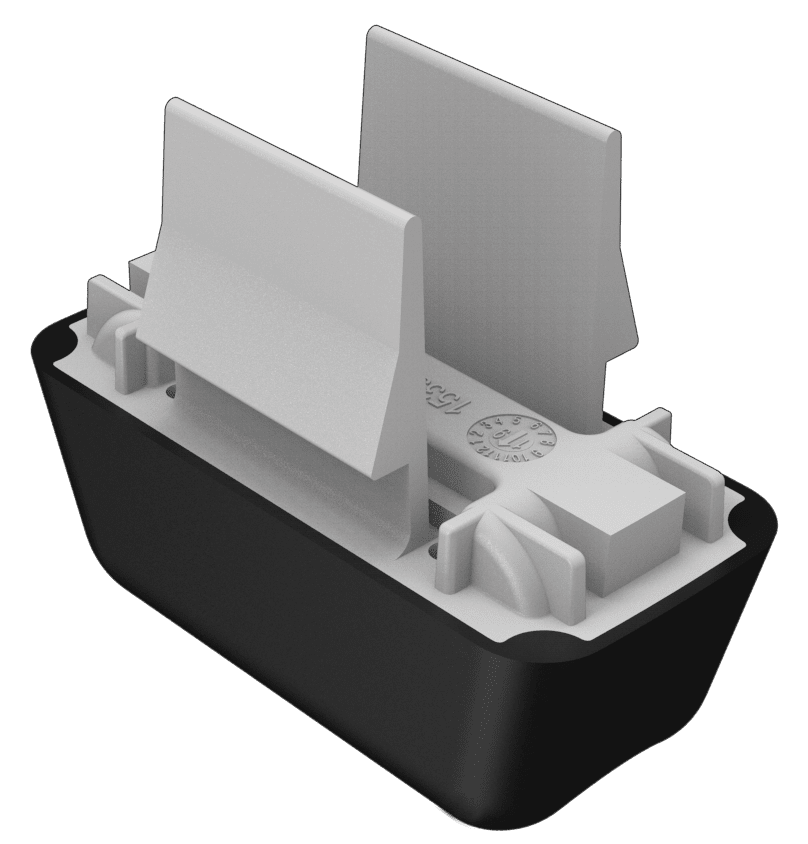

    Make sure the tabs are fully in place.
  2. Rotate the LH sun visor back to the check base.
  3. Raise the LH front window and close the LH front door.
