Torque Specifications - Seats

Table 1. Torque Specifications: Armrest - 2nd Row (Remove and Replace)
Description	Torque Value	Recommended Tools	Reuse/Replace	Notes

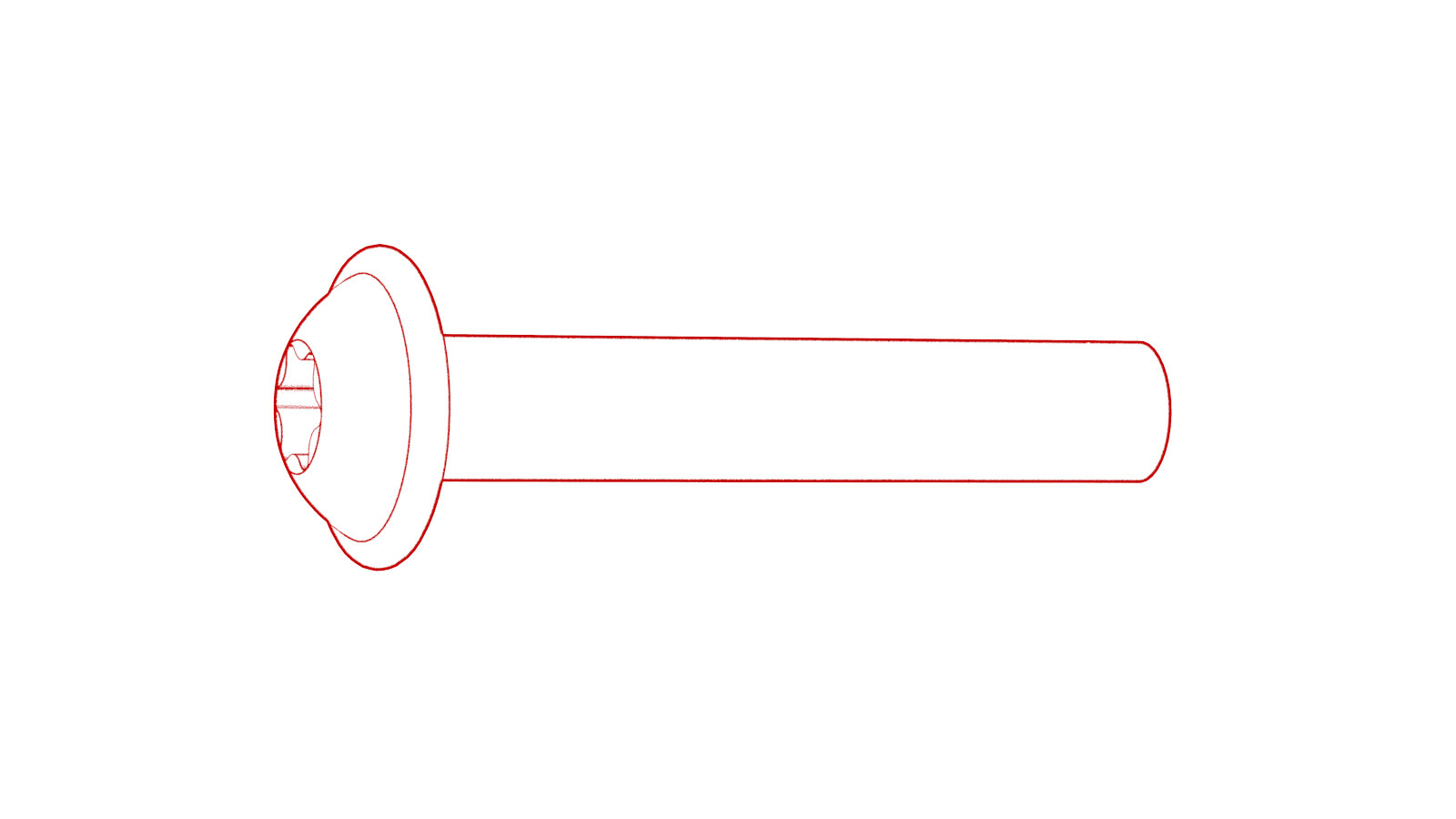

Screw that attaches the LH armrest cover panel to the center 2nd row seat frame	2.5 Nm (1.8 lbs-ft)	Torx T20 socket Flex head ratchet/flex head torque wrench	Reuse

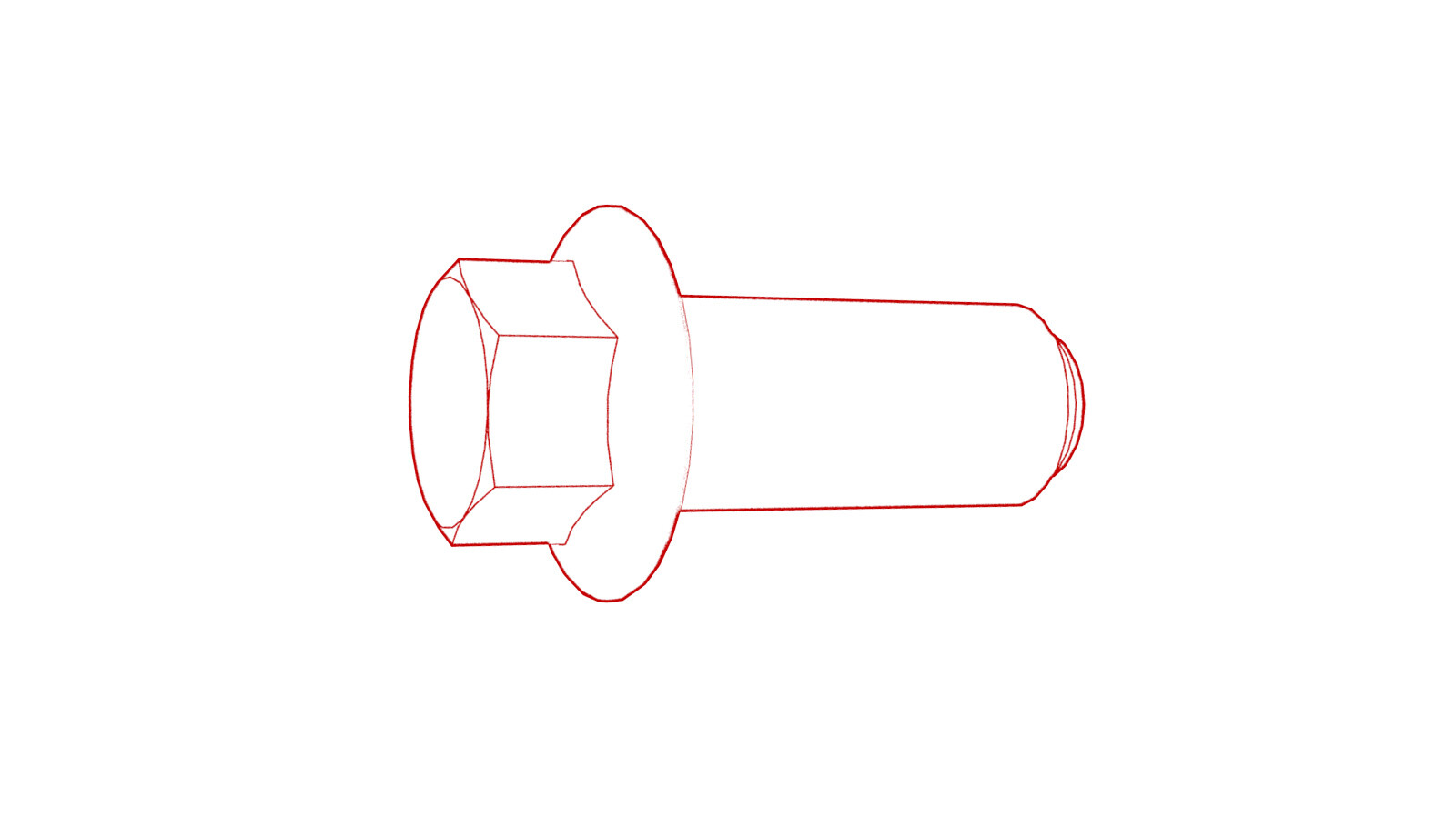

Center 2nd row armrest lobe bolts	12 Nm (8.8 lbs-ft)	10 mm socket Flex head ratchet/flex head torque wrench	Reuse

Table 2. Torque Specifications: GUID-6CACFF10-F6BF-4D91-8DB9-28221D240C8E.html
Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Bolt that attaches the 2nd row seat cushion edge support bracket to the vehicle	10 Nm (7.4 lbs-ft)	10 mm socket 4 in extension Ratchet/torque wrench	Reuse

Table 3. Torque Specifications: Closeout - Armrest - 2nd Row (Remove and Replace)
Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Screw that attaches the 2nd row center/20 lumbar bun to the 2nd row seat	1.5 Nm (1.1 lbs-ft)	Torx T20 socket	Reuse
Screw that attaches the LH armrest cover panel to the center 2nd row seat frame	2.5 Nm (1.8 lbs-ft)	Torx T20 socket Flex head ratchet/flex head torque wrench	Reuse
Center 2nd row armrest lobe bolts	8 Nm (5.9 lbs-ft)	10 mm socket Flex head ratchet/flex head torque wrench	Reuse
Screw that attaches the LH armrest detent to the seat	3.8 Nm (2.8 lbs-ft)	Torx T20 socket	Reuse

Table 4. Torque Specifications: Cover - Seat Back - 2nd Row - LH (5-Seat) (Remove and Replace)
Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Lower anchor bolt that attaches the seat belt to the lower seat frame	40 Nm (29.5 lbs-ft)	13 mm deep socket 6 in extension Flex head ratchet/flex head torque wrench	Replace

Table 5. Torque Specifications: Frame - Seat Cushion - Driver Seat (Remove and Replace)
Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Bolts that attach the driver seat seatback frame to the seat cushion frame	43 Nm (31.7 lbs-ft)	Flex head ratchet/flex head torque wrench Torx T50 socket Cordless Ratchet/Impact Driver	Replace	1128435-00-C
Patch bolt that attaches the seat belt buckle to the seat cushion frame	40 Nm (29.5 lbs-ft)	Flex head ratchet/flex head torque wrench Torx T50 socket Cordless Ratchet/Impact Driver	Replace	1117250-00-A
Bolt that attaches the pre-tensioner to the cushion frame	40 Nm (29.5 lbs-ft)	Cordless Ratchet/Impact Driver Torx T50 socket Flex head ratchet/flex head torque wrench	Replace	1117248-00-A

Table 6. Torque Specifications: Latch - Seat Back - 2nd Row - Center (Remove and Replace)
Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Screw that attaches the 2nd row center/20 lumbar bun to the 2nd row seat	1.5 Nm (1.1 lbs-ft)	Torx T20 socket	Reuse
Screw that attaches the LH armrest cover panel to the center 2nd row seat frame	2.5 Nm (1.8 lbs-ft)	Torx T20 socket Flex head ratchet/flex head torque wrench	Reuse
Center 2nd row armrest lobe bolts	8 Nm (5.9 lbs-ft)	10 mm socket Flex head ratchet/flex head torque wrench	Reuse
Screw that attaches the LH armrest detent to the seat	3.8 Nm (2.8 lbs-ft)	Torx T20 socket	Reuse
Bolts that attach the center 2nd row latch to the latch actuator assembly	22 Nm (16.2 lbs-ft)	Torx T45 socket Flex head ratchet/flex head torque wrench	Reuse

Table 7. Torque Specifications: Lumbar Support - Back Rest - Front Passenger Seat (Remove and Replace)
Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Bolt that attaches the lumbar support assembly to the seat frame	5 Nm (3.7 lbs-ft)	Ratchet/torque wrench 2 in extension 10 mm socket	Reuse

Table 8. Torque Specifications: Motor - Seat Track - Driver Seat (Remove and Replace)
Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Driver seat fasteners (x4)	33.5 Nm (24.7 lbs-ft)	Torx Plus T45 socket Ratchet/torque wrench Cordless Ratchet/Impact Driver Flex head ratchet/flex head torque wrench 6 in extension	Replace	Bolts are patched
Bolts (x2) that attach the driver seat track bridge to the seat cushion frame	23 Nm (17.0 lbs-ft)	Torx T50 Bit Stubby Ratchet/torque wrench 3 in extension Flex head ratchet/flex head torque wrench	Replace	Bolts are patched

Table 9. Torque Specifications: Motor - Seat Track - Front Passenger Seat (Remove and Replace)
Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Front passenger seat fasteners (x4)	33.5 Nm (24.7 lbs-ft)	Torx Plus T45 socket Cordless Ratchet/Impact Driver Flex head ratchet/flex head torque wrench	Replace	Bolts are patched
Bolt that attaches the lift motor assembly to the rear RH link	18 Nm (13.3 lbs-ft)	Torx Bit T45 Stubby Ratchet/torque wrench 3 in extension Flex head ratchet/flex head torque wrench Cordless Ratchet/Impact Driver	Replace	Bolts are patched
Bolts (x2) that attach the RH side track assembly to the RH front seat cushion assembly	23 Nm (17.0 lbs-ft)	Torx T50 Bit Stubby 3 in extension Flex head ratchet/flex head torque wrench Cordless Ratchet/Impact Driver	Reuse	Bolts are patched

Table 10. Torque Specifications: Pivot Bushing - Seat back - 2nd Row - Center (Remove and Replace)
Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Screw that attaches the 2nd row center/20 lumbar bun to the 2nd row seat	1.5 Nm (1.1 lbs-ft)	Torx T20 socket	Reuse

Table 11. Torque Specifications: Recliner Actuator - Seat Back - 2nd Row - LH (Remove and Replace)
Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Screw that attaches the 2nd row center/20 lumbar bun to the 2nd row seat	1.5 Nm (1.1 lbs-ft)	Torx T20 socket	Reuse
Screws that attach the LH 2nd row seat back recliner actuator from the actuator pan	2.5 Nm (1.8 lbs-ft)	8 mm deep socket Flex head ratchet/flex head torque wrench	Reuse

Table 12. Torque Specifications: Recliner Actuator - Seat Back - 2nd Row - RH (Remove and Replace)
Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Bolts that attach the actuator pan to the LH 2nd row seat frame	2.5 Nm (1.8 lbs-ft)	10 mm socket Flex head ratchet/flex head torque wrench 2 in extension	Reuse
Screws that attach the LH 2nd row seat back recliner actuator from the actuator pan	2.5 Nm (1.8 lbs-ft)	8 mm deep socket Flex head ratchet/flex head torque wrench	Reuse

Table 13. Torque Specifications: Riser - Driver Seat - LH (Remove and Replace)
Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Bolts that attach the driver seat LH seat riser to the vehicle	33.5 Nm (24.7 lbs-ft)	11 mm deep socket Flex head ratchet/flex head torque wrench	Replace

Table 14. Torque Specifications: Seat Assembly - 2nd Row - LH (7-Seat) (Remove and Replace)
Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Bolts (x5) that attach the LH 2nd row seat frame to the vehicle	37 Nm (27.3 lbs-ft)	Flex head ratchet/flex head torque wrench 11 mm deep socket	Replace	Part Number: 1508763-00-A/B CAUTION Bolts must be installed in the following sequence: Front Outboard Rear Inboard Rear Outboard Front Inboard

Table 15. Torque Specifications: Seat Back - 2nd Row - LH (Remove and Replace)
Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Bolts (x5) that attach the LH 2nd row seat back frame to the vehicle	37 Nm (27.3 lbs-ft)	11 mm socket 6 in extension 3/8 in std flex head ratchet 3/8 in flex head torque wrench (installation only)	Replace	CAUTION Bolts must be installed in the following sequence: Front Outboard Rear Inboard Rear Outboard Front Inboard

Table 16. Torque Specifications: Seat Back - 2nd Row - RH (Remove and Replace)
Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Bolt that attaches the RH seat back lower frame to the vehicle	37 Nm (27.3 lbs-ft)	11 mm socket 6 in extension 3/8 in std flex head ratchet 3/8 in flex head torque wrench (installation only)	Replace	CAUTION Bolts must be installed in the following sequence: Front Outboard Rear Inboard Rear Outboard Front Inboard

Table 17. Torque Specifications: Sensor - Position - Track - 1st Row Seat - RH (Remove and Replace)
Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Screw that attaches the seat track position sensor to the seat track assembly	2 Nm (1.5 lbs-ft)	Torx T20 socket	Reuse

Table 18. Torque Specifications: Side Shield - Outboard - Driver Seat (Remove and Replace)
Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Bolt that attaches the outboard side shield to the seat frame	4 Nm (2.9 lbs-ft)	Torx T20 socket ¼ in std ratchet ¼ in torque wrench (installation only) 2 in extension	Reuse

Table 19. Torque Specifications: Suspension - Seat Cushion - Driver Seat (Remove and Replace)
Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
LH front seat fasteners (x4)	33.5 Nm (24.7 lbs-ft)	Torx Plus T45 socket Ratchet/torque wrench Cordless Ratchet/Impact Driver Flex head ratchet/flex head torque wrench	Replace	Bolts are patched

Table 20. Torque Specifications: Frame - Seat Cushion - Driver Seat (Remove and Replace)
Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
	94 Nm (69.3 lbs-ft)	Reuse

Table 21. Torque Specifications: Pivot Clamps - Seat Back - 2nd Row - Center/20 (Remove and Replace)
Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Bolts that attach the center 2nd row seatback pivot clamps to the vehicle	22 Nm (16.2 lbs-ft)	Torx T40 socket Flex head ratchet/flex head torque wrench	Reuse

Table 22. Torque Specifications: Seat Assembly - 1st Row - LH (Remove and Replace)
Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Front seat to body bolt	33.5 Nm (24.7 lbs-ft)	Torx Plus T45 socket 3/8 in std flex head ratchet 3/8 in flex head torque wrench (installation only)	Replace	Bolts are patched

Table 23. Torque Specifications: Lumbar Bun - 2nd Row - Center/20 (Remove and Replace)
Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Screw that attaches the 2nd row center/20 lumbar bun to the 2nd row seat	1.5 Nm (1.1 lbs-ft)	Torx T20 socket	Reuse
