Assembly - Filter - HEPA (Remove and Replace)

Correction code 18105402 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2026-07-14: Updated the cabin filter health score reset method.
  • 2026-01-16: Removed the steps about the washer tank neck.
  • 2024-09-12: Fixed erroneous Removal instruction in step 2 of Installation procedure.
  • 2024-06-06: Added cabin filter health score reset for SW versions 2024.14+
  • 2023-09-12: Corrected the torque information of the bolts (x2) that attach the HEPA filter assembly to the vehicle.
Table 1. Torque Specifications: Assembly - Filter - HEPA (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Bolt that attaches the underhood storage unit to the washer fluid reservoir neck
5 Nm (3.7 lbs-ft)
  • 10 mm socket
 Reuse
Bolts (x2) that attach the HEPA filter assembly to the vehicle
5 Nm (3.7 lbs-ft)
  • 10 mm socket
 Reuse

Remove

  1. Open the LH front door and fully lower the LH front window.
  2. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).

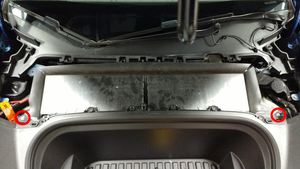

  3. Remove the bolt that attaches the underhood storage unit to the washer fluid reservoir neck.
    Informational PurposesAn informational icon, calling your attention
    Note
    Some vehicles may gave a push clip in this location.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket

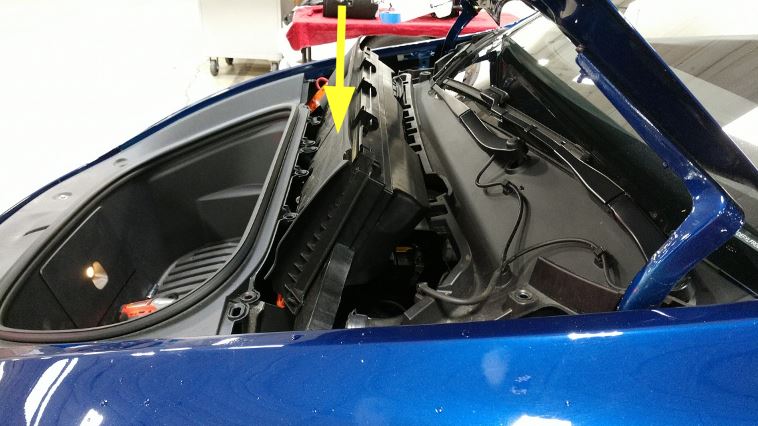

  4. Remove the bolts (x2) that attach the HEPA filter assembly to the vehicle, and then remove the assembly from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Pivot the rear edge of the assembly upward to clear the brake reservoir, and then lift the assembly upward to clear the underhood storage unit.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket

Install

  1. To position the HEPA filter assembly for installation, place the forward edge of the filter assembly under the underhood storage unit, and then carefully move the rear edge of the filter assembly past the brake fluid reservoir.
  2. Install the bolts (x2) that attach the HEPA filter assembly to the vehicle.
    5 Nm (3.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    Pivot the forward edge down past the frunk assembly, and then carefully move the rear edge past the brake reservoir and into position. Gently press on the RH side of filter to seat seal onto duct. Rework requires new bolts.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
  3. Install the bolt that attaches the underhood storage unit to the washer fluid reservoir neck.
    5 Nm (3.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    Some vehicles may gave a push clip in this location.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
  4. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  5. Perform the following steps to record the HEPA maintenance details and reset the filter health score:
    1. Enable Service Mode. See Service Mode.
    2. In the Service Mode menu, touch Controls (vehicle icon) > Service > Maintenance > HEPA Filter Replacement > Record > Confirm to record the maintenance details and reset the HEPA filter health score.
  6. Raise the LH front window and close the LH front door.
