Table 1. Torque Specifications: Armrest - Center Console (Remove and Replace)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes

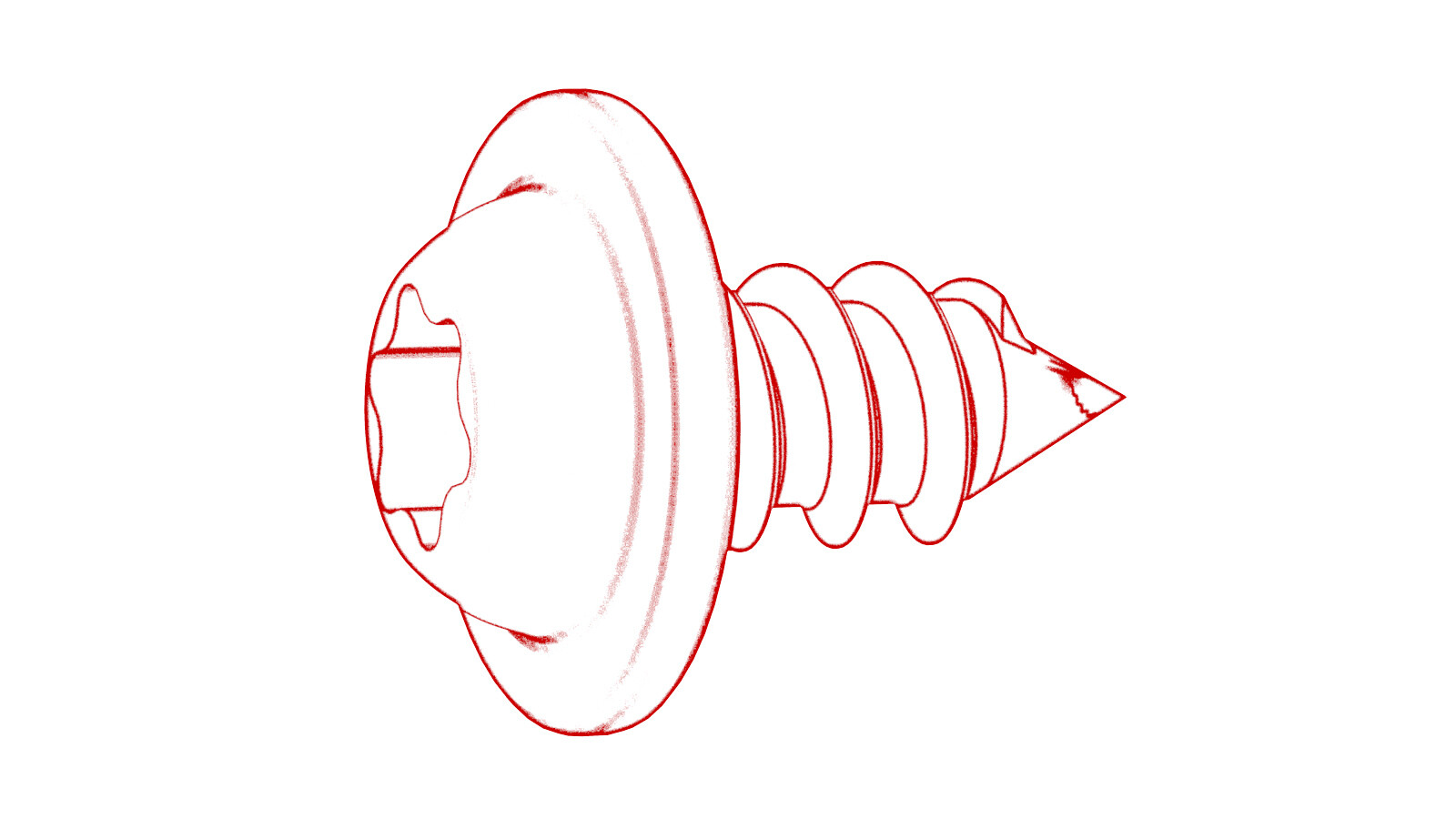

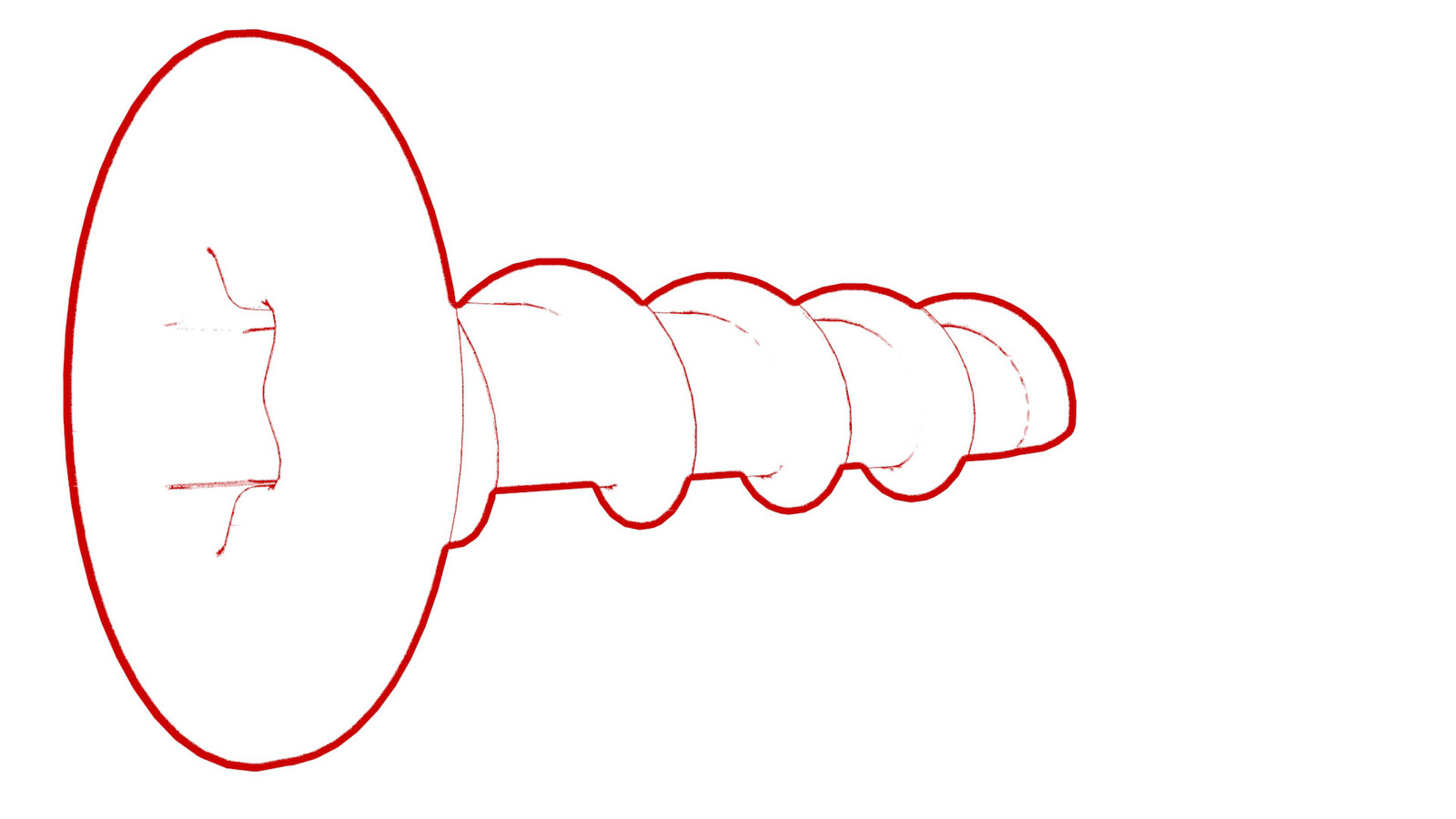

Screw that attaches the cap of the arrest hinge pin to the center console	1.6 Nm (1.2 lbs-ft)	Torx T15 socket 4 in extension	Reuse

Table 2. Torque Specifications: GUID-261409E0-9179-4E6F-B980-16FA10224950.html

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes

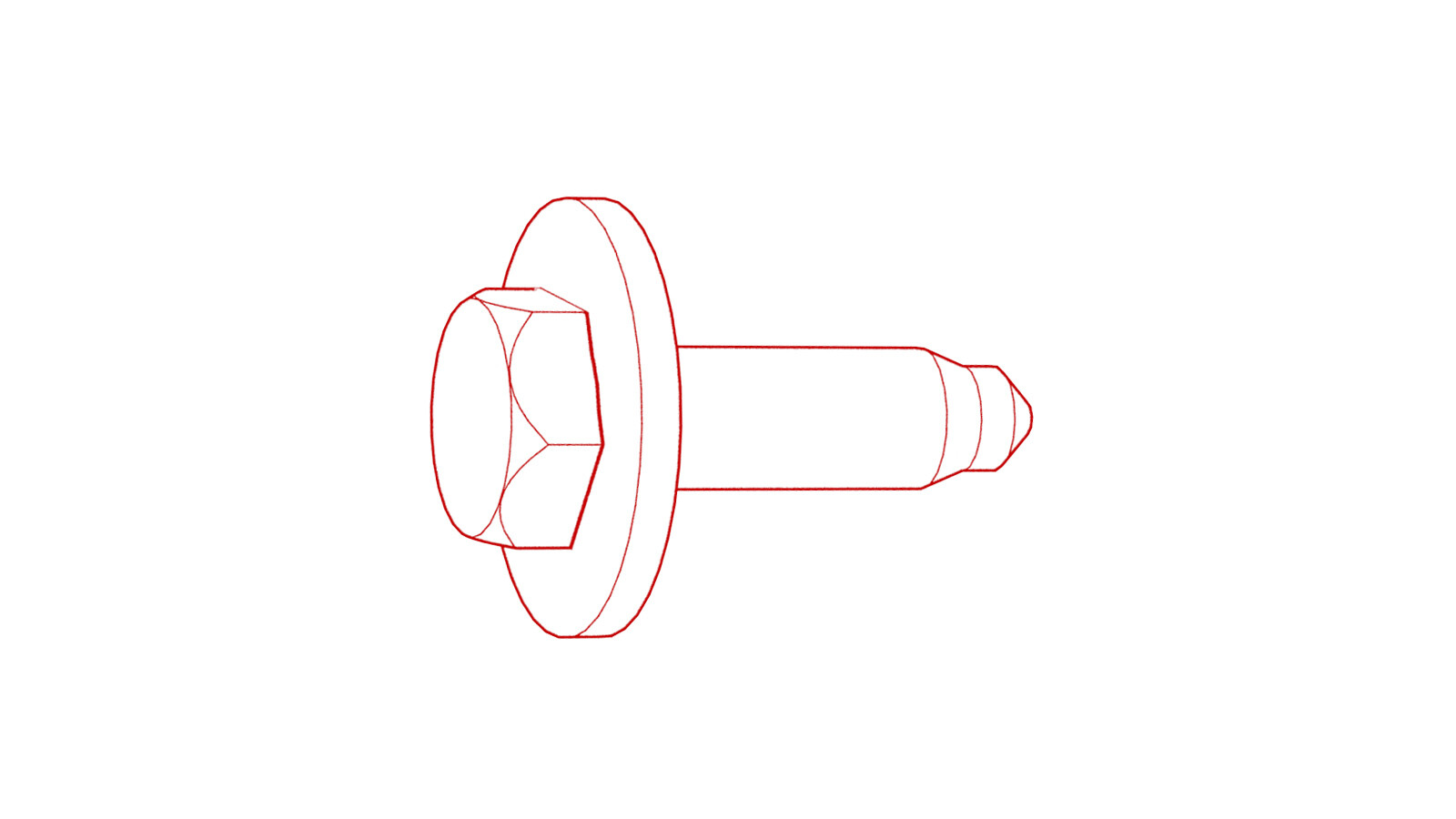

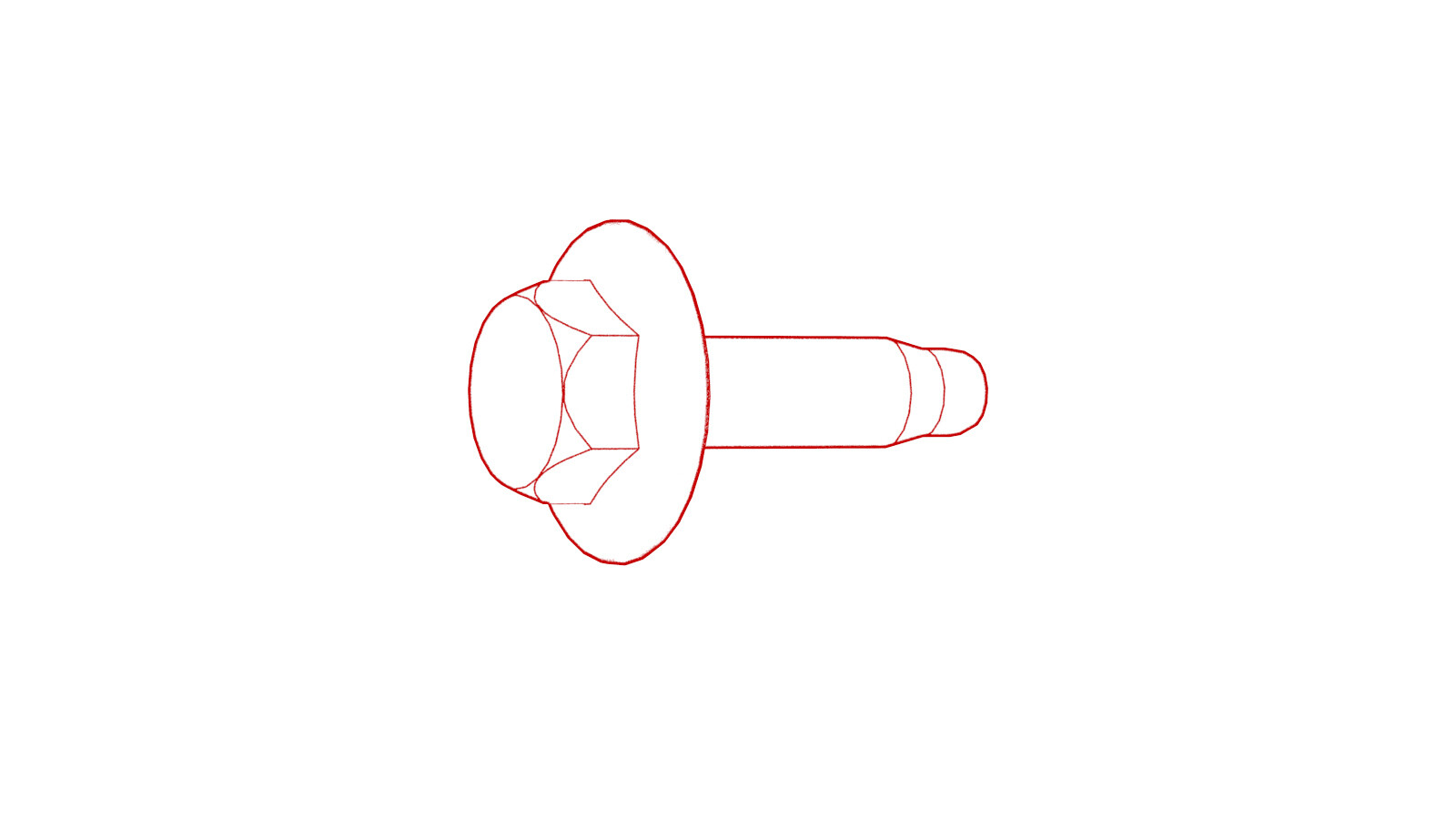

Bolt that attaches the LH bag holder hook to the frunk assembly	5 Nm (3.7 lbs-ft)	10 mm socket 4 in extension Ratchet/torque wrench	Reuse

Table 3. Torque Specifications: Bright Strip - Center Console - LH (Remove and Replace)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes

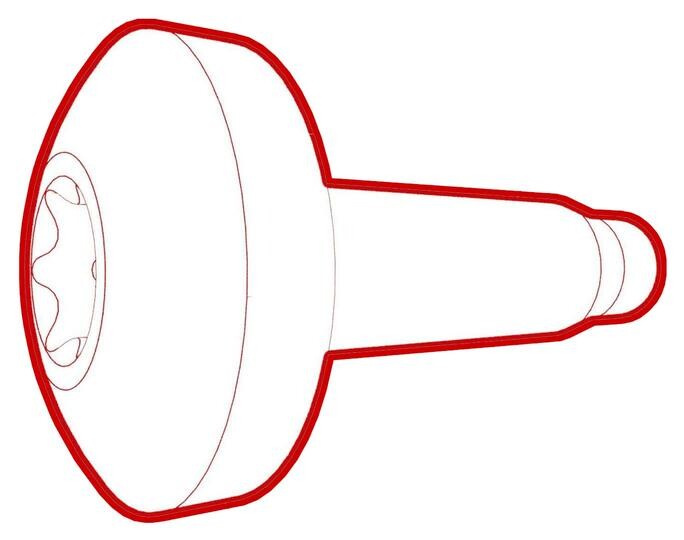

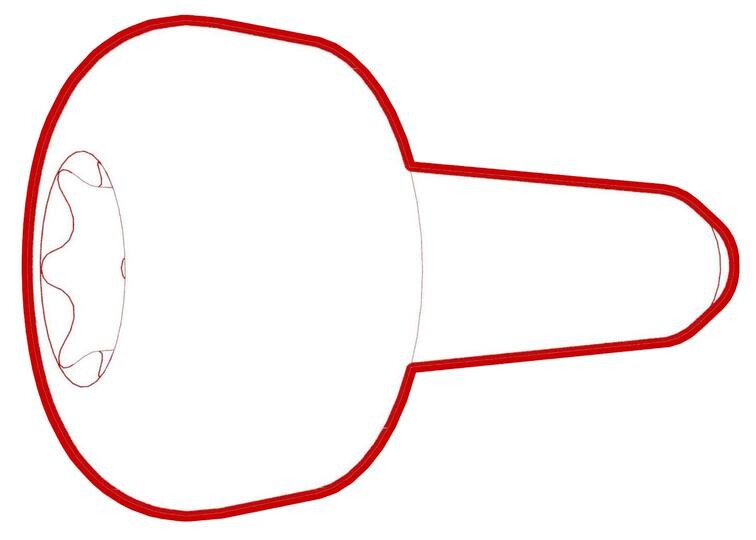

Screws that attach the LH center console bright trim to the center console	1.6 Nm (1.2 lbs-ft)	Torx T20 socket 4 in extension	Reuse

Table 4. Torque Specifications: Center Console (Remove and Replace)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes

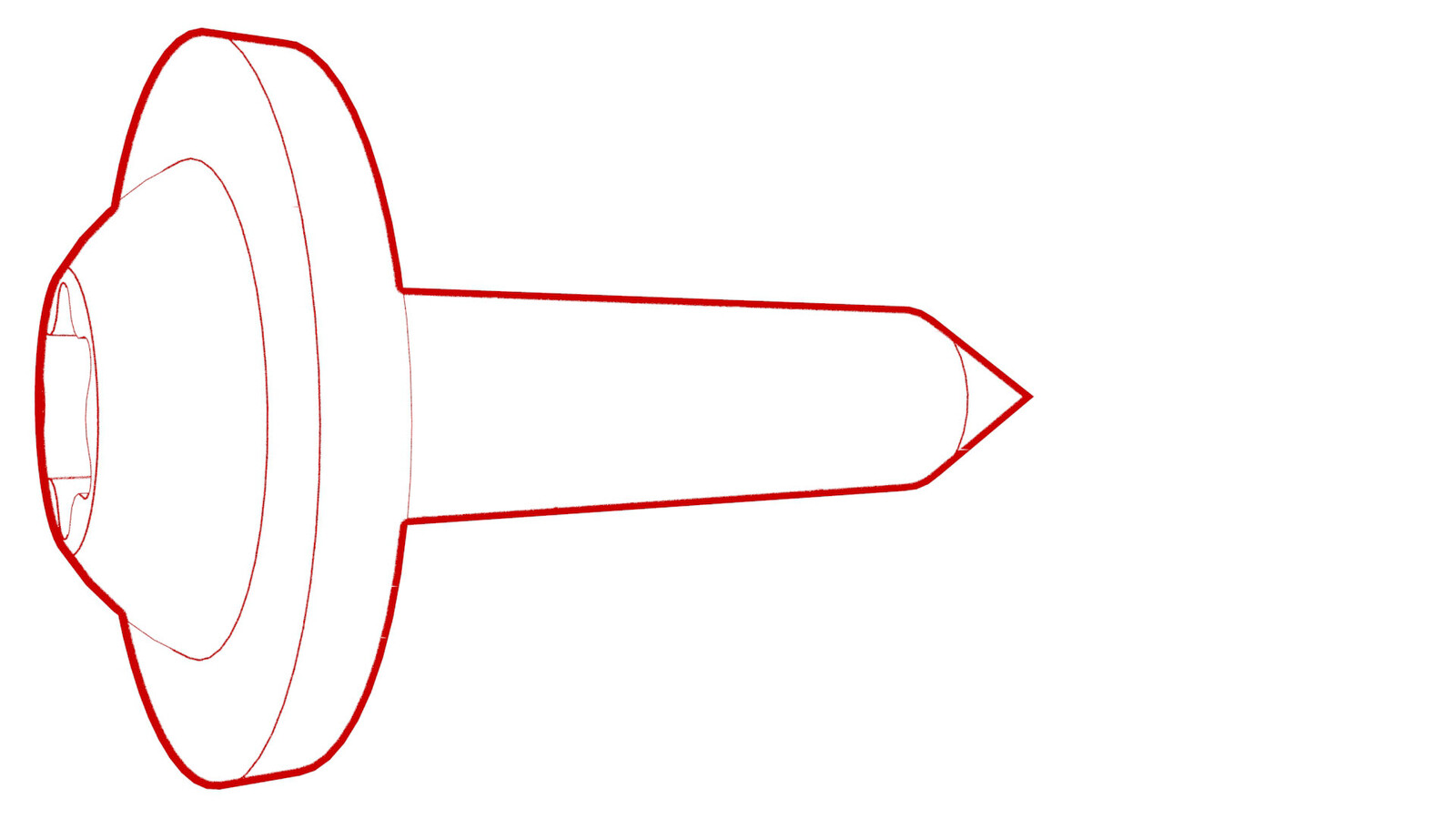

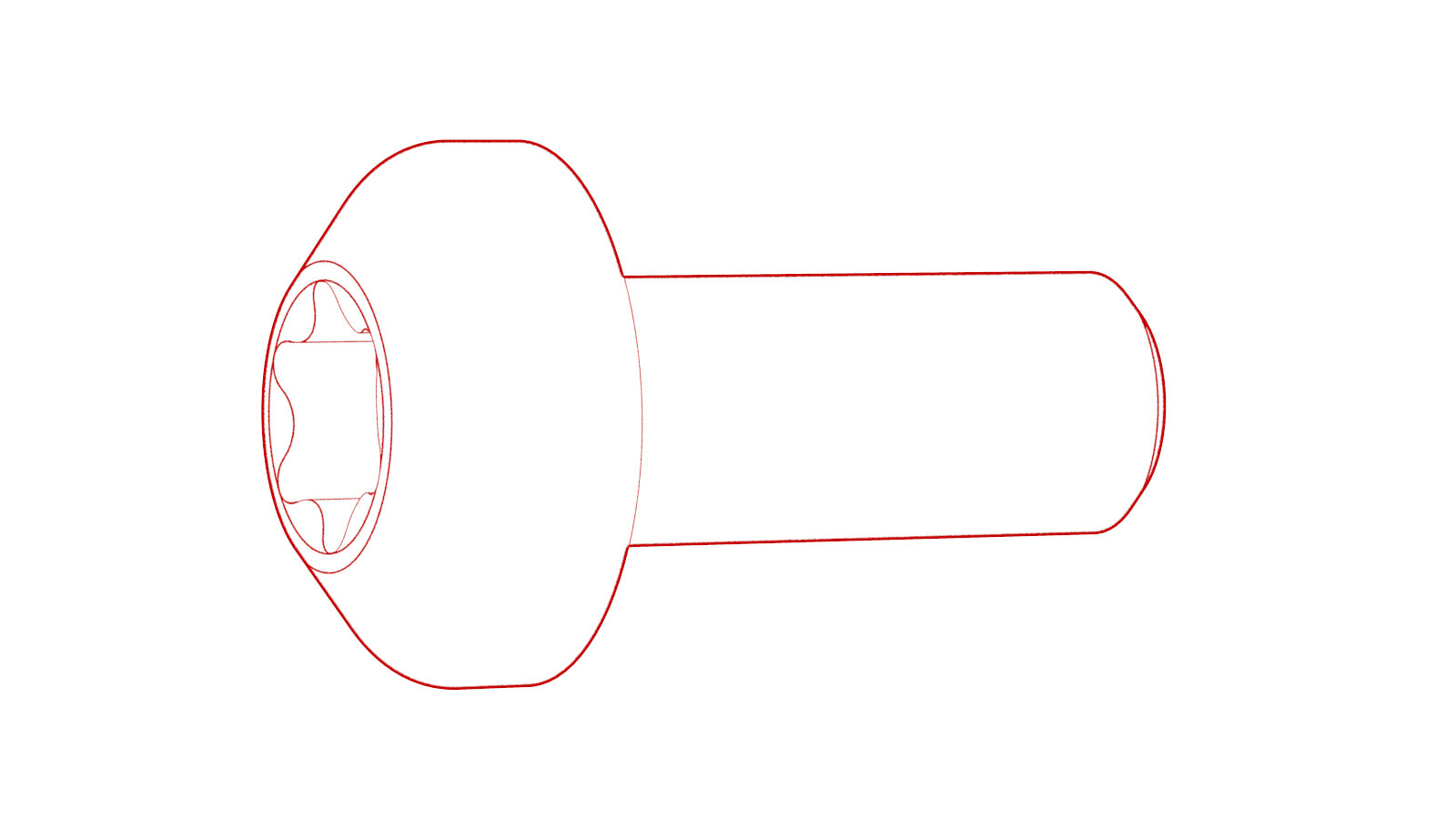

Screws that attach the security body controller to the cup holder decor panel	1.6 Nm (1.2 lbs-ft)	Torx T20 socket	Reuse
Screws (x4) that attach the center console bright strip to the center console assembly	1.6 Nm (1.2 lbs-ft)	Torx T20 socket	Reuse

Table 5. Torque Specifications: Center Console (Remove and Install)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes

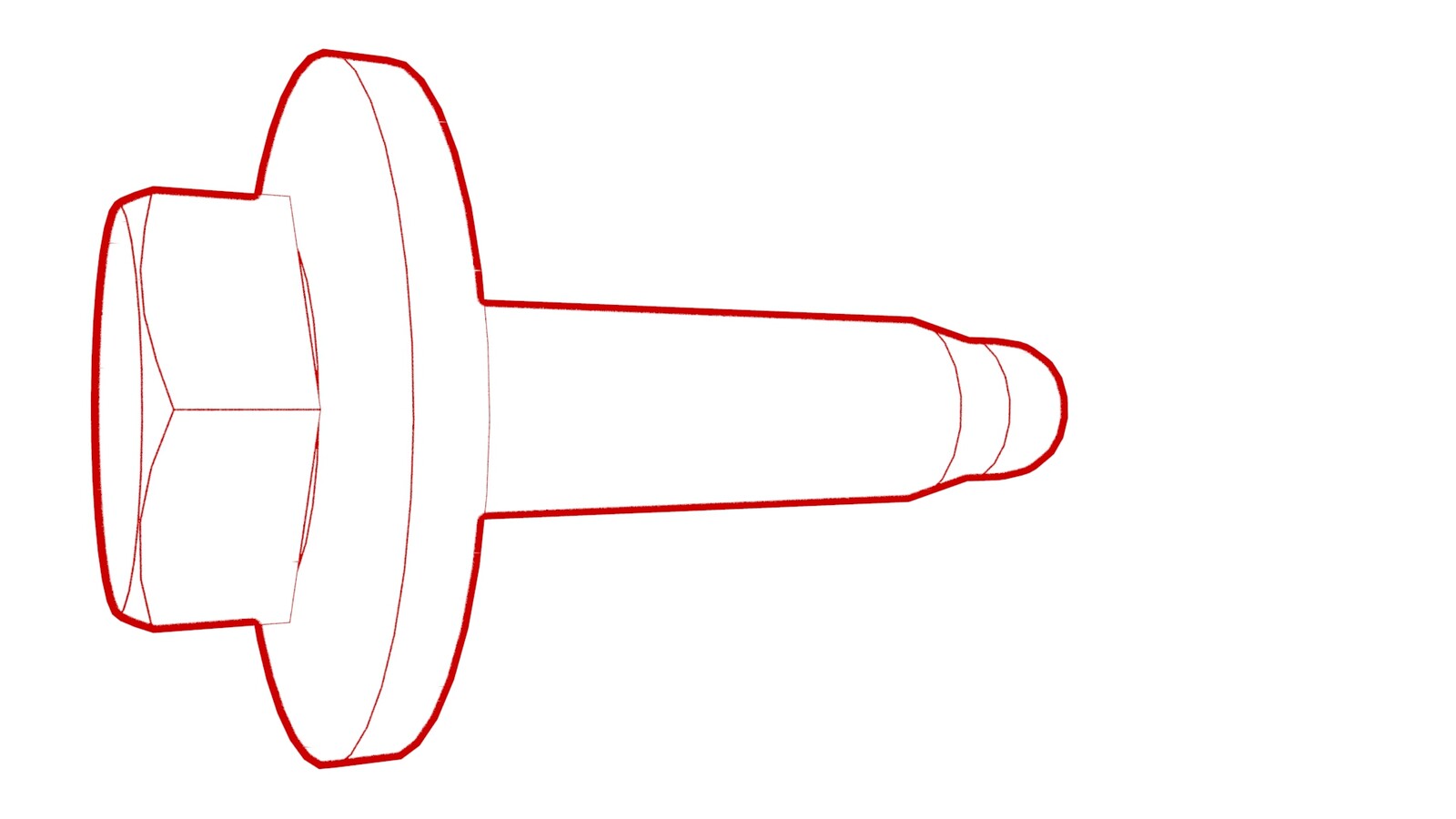

Center console side and rear corner to body bolts	7 Nm (5.2 lbs-ft)	10 mm socket 4 in extension ¼ in std ratchet ¼ in torque wrench (installation only)	Reuse
Inner front center console to body screws	1.7 Nm (1.3 lbs-ft)	Torx T20 socket 4 in extension ¼ in std ratchet Wiha TorqueVario-S 0.8 Nm - 2.0 Nm screwdriver (installation only) Wiha ¼ in bit holder adapter Wiha torque setter	Reuse

Table 6. Torque Specifications: Check Base - Sun Visor - LH (Remove and Replace)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Bolt that attaches the sun visor check base to the body	0.8 Nm (7 lbs-in)	Torx T15 socket ¼ in std ratchet ¼ in torque wrench (installation only)	Reuse

Table 7. Torque Specifications: Coat Hook - Rear - LH (Remove and Replace)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Screws that attach the LH coat hook assembly to the rear headliner	1 Nm (.7 lbs-ft)	Torx T20 socket Flex head ratchet/flex head torque wrench	Reuse

Table 8. Torque Specifications: Cup Holder (Remove and Replace)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Screws that attach the cup holder lower assembly to the center console	1.1 Nm (.8 lbs-ft)	Torx T20 socket 4 in extension	Reuse
Screw that attaches the armrest latch grommet to the cup holder	1.6 Nm (1.2 lbs-ft)	Torx T15 socket 2 in extension	Reuse

Table 9. Torque Specifications: GUID-BF1A1A80-6B15-4ABE-973D-7E2FA066A4CD.html

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Screws that attach the sliding lid to the center console	1.1 Nm (.8 lbs-ft)	Torx T20 socket 4 in extension ¼ in std ratchet	Reuse

Table 10. Torque Specifications:End Panel - Center Console (Remove and Replace)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Bolts that attach the center console end panel to the center console	1.1 Nm (.8 lbs-ft)	Torx T20 socket 4 in extension	Reuse

Table 11. Torque Specifications: Headliner - Front (Remove and Replace)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Screw that attaches the LH rear coat hook to the body	1 Nm (.7 lbs-ft)	Torx T20 socket Wiha TorqueVario-S 0.8 Nm - 2.0 Nm screwdriver (installation only) 2 in extension	Reuse
Bolts (x10) that attach the front headliner to the rear headliner	0.9 Nm (8 lbs-in)	Torx T20 bit Wiha TorqueVario-S 0.8 Nm - 2.0 Nm screwdriver (installation only)	Reuse

Table 12. Torque Specifications: Headliner - Rear (Remove and Replace)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Screw that attaches the LH rear headliner tether to the roof clip	1.5 Nm (1.1 lbs-ft)	Torx T20 bit Wiha TorqueVario-S 0.8 Nm - 2.0 Nm screwdriver (installation only) Wiha ¼ in bit holder adapter	Reuse
Screw that attaches the RH rear headliner tether to the roof clip	1.5 Nm (1.1 lbs-ft)	Torx T20 bit Wiha TorqueVario-S 0.8 Nm - 2.0 Nm screwdriver (installation only) Wiha ¼ in bit holder adapter	Reuse
Screw that attaches the safety strap to the headliner	2 Nm (1.5 lbs-ft)	Torx T30 socket Wiha TorqueVario-S 0.8 Nm - 2.0 Nm screwdriver (installation only)	Reuse

Table 13. Torque Specifications: Insert - Front Bin - Center Console (Remove and Replace)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Screws that attach the LH center console bright trim to the center console	1.6 Nm (1.2 lbs-ft)	Torx T20 socket 4 in extension	Reuse
Screws that attach the cup holder lower assembly to the center console	1.1 Nm (.8 lbs-ft)	Torx T20 socket 4 in extension	Reuse
Screws that attach the center console front bin insert to the center console	1.1 Nm (.8 lbs-ft)	Torx T20 socket 4 in extension	Reuse

Table 14. Torque Specifications: Mirror - Rear View (Remove and Replace)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Rear view mirror to windshield mount bolt	2.5 Nm (1.8 lbs-ft)	Ratchet/torque wrench Torx T20 bit	Replace	1090553-00-B

Table 15. Torque Specifications: Panel - Door Trim - Rear - LH (Remove and Install)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Rear door trim panel to rear door screws	6 Nm (4.4 lbs-ft)	Torx T30 socket ¼ in std ratchet 2 in extension ¼ in torque wrench (installation only)	Reuse	CAUTION Use ONLY the following fastener PN(s): 1526998-99-A or later. Confirm bolt size of M6-1.0x28 before installing.

Table 16. Torque Specifications: Panel - Door Trim - Front - LH (Remove and Install)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Front door trim panel to front door screws	6 Nm (4.4 lbs-ft)	Torx T30 socket 4 in extension ¼ in std ratchet ¼ in torque wrench (installation only)	Reuse	CAUTION Use ONLY the following fastener PN(s): 1526998-99-A or later. Confirm bolt size of M6-1.0x28 before installing.

Table 17. Torque Specifications: Trunk Assembly - Lower (Remove and Replace)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Bolts that attach the rear diffuser to lower trunk assembly	4 Nm (2.9 lbs-ft)	10 mm deep socket	Reuse
Corner bolts that attach the lower trunk assembly to the vehicle	30 Nm (22.1 lbs-ft)	13 mm deep socket 4 in extension	Reuse
Middle bolt that attach the lower trunk assembly to the vehicle	10 Nm (7.4 lbs-ft)	EP 14 socket 4 in extension	Reuse

Table 18. Torque Specifications: Underhood Storage Unit (Remove and Replace)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Underhood storage unit to body fasteners	5 Nm (3.7 lbs-ft)	10 mm socket ¼ in std ratchet 2 in extension	Reuse

Table 19. Torque Specifications: Glare Shield (Remove and Replace)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Front camera glare shield to windshield bracket fasteners	1 Nm (.7 lbs-ft)	Wiha TorqueVario-S 0.8 Nm - 2.0 Nm screwdriver (installation only) Wiha torque setter T10 blade attachment	Replace	Fasteners have patch material

Table 20. Torque Specifications: Phone Tray - Center Console (Remove and Replace)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Screws that attach the center console phone tray to the center console	1 Nm (.7 lbs-ft)	Torx T20 socket 4 in extension	Reuse

Table 21. Torque Specifications: Sun Visor - LH (Remove and Replace)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Bolt that attaches the sun visor to the vehicle	3.5 Nm (2.6 lbs-ft)	Torx T25 socket ¼ in std ratchet ¼ in torque wrench (installation only) 2 in extension	Reuse

Table 22. Torque Specifications: Trim - C-Pillar - Upper - LH (Remove and Replace)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Bolt that attaches the 2nd row LH lower seat belt anchor to the body	35 Nm (25.8 lbs-ft)	15 mm socket 3 in extension	Replace
