Stiffener - Sideshield - 1st Row Seat - Outer (Remove and Replace)

Correction code 13073102 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Remove the outboard side shield. See Side Shield - Outboard - Driver Seat (Remove and Replace).
    Informational PurposesAn informational icon, calling your attention
    Note
    During removal, certain steps require extra care. See the animation(s) for detailed guidance.

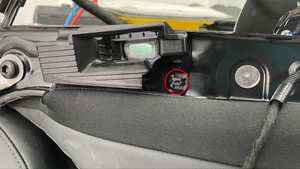

  2. Remove the outer sideshield stiffener clip.

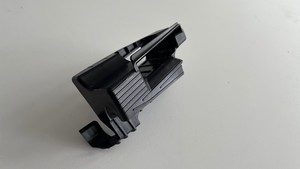

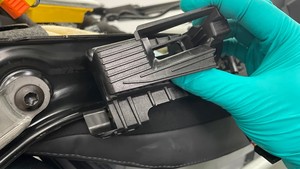

  3. Remove the 1st row outer sideshield stiffener.
