Puddle Lamp - Center Console (Remove and Replace)

Correction code 15196602 0.30 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Remove the center console brightwork. See Brightwork - Center Console (2.0) (Remove and Replace).

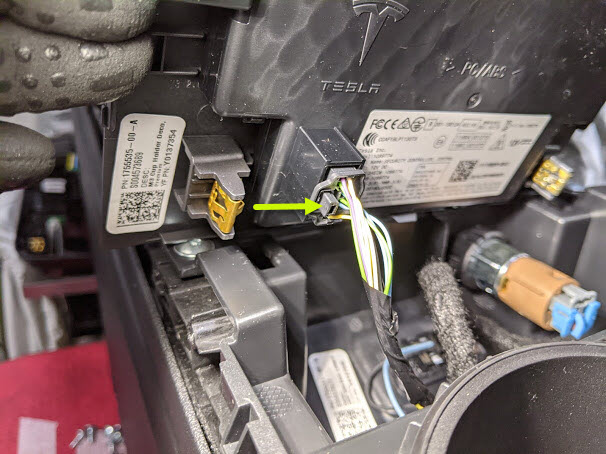

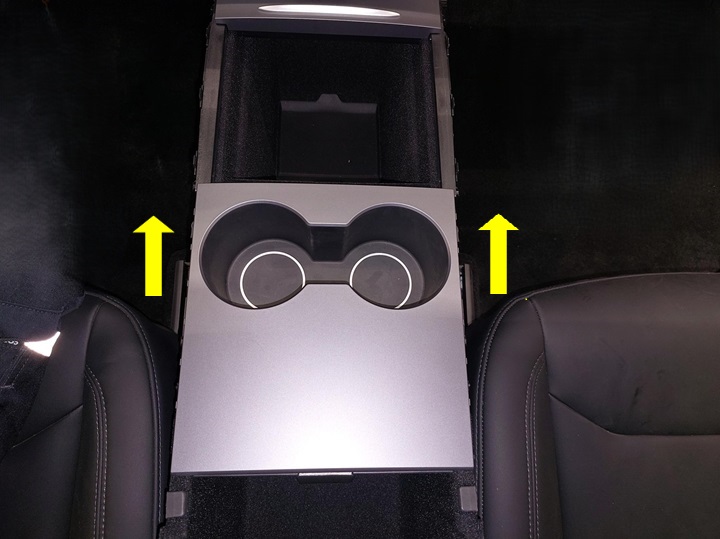

  2. Release the clips (x6) to release the cup holder décor, and then disconnect the connector.

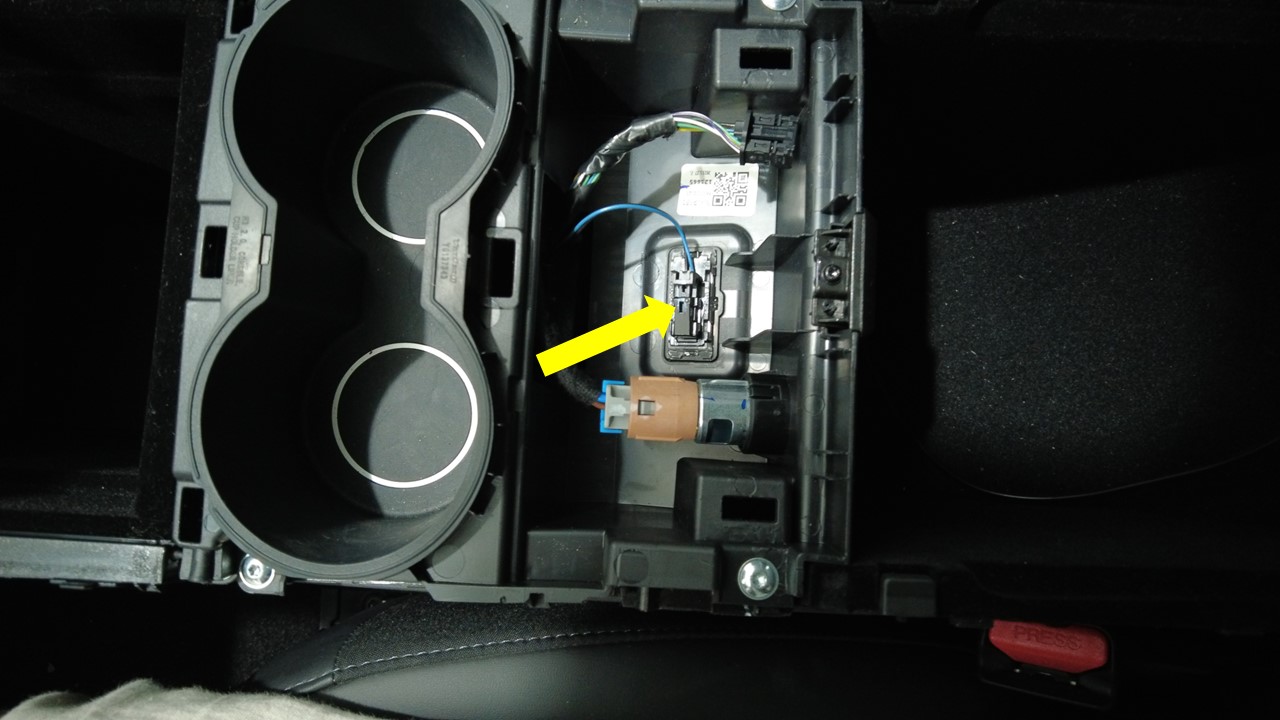

  3. Disconnect the puddle lamp connector.

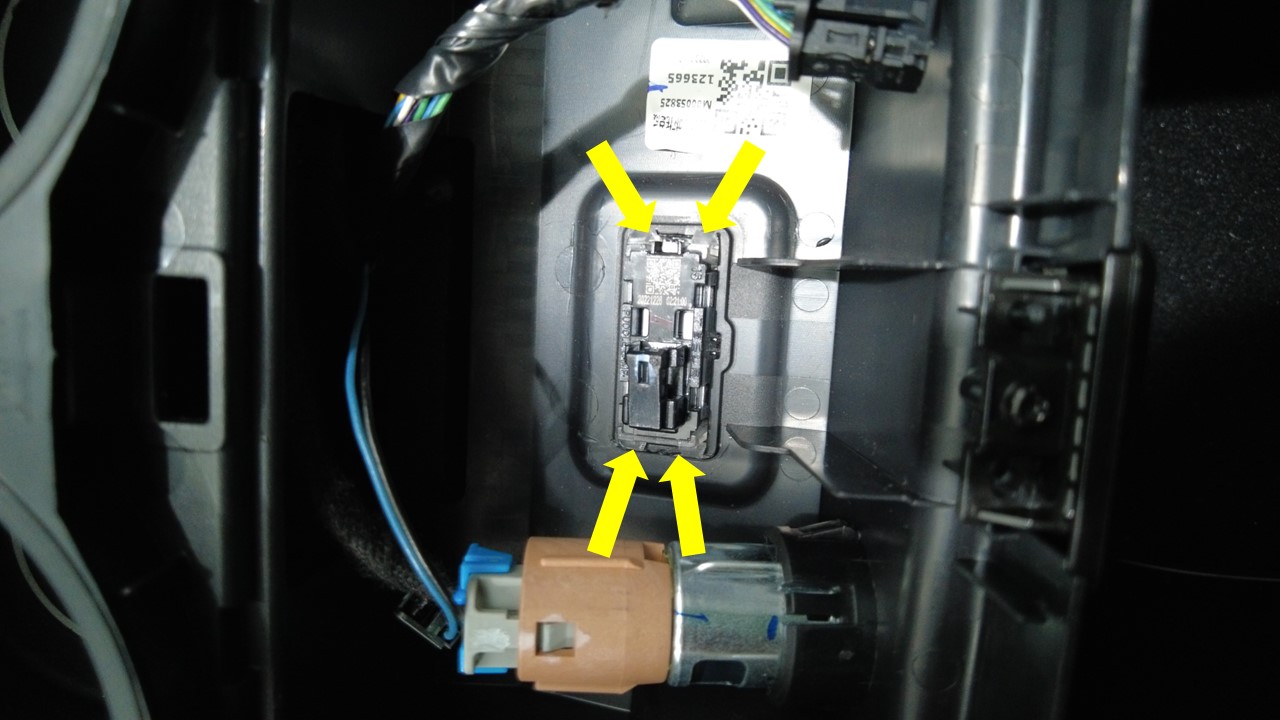

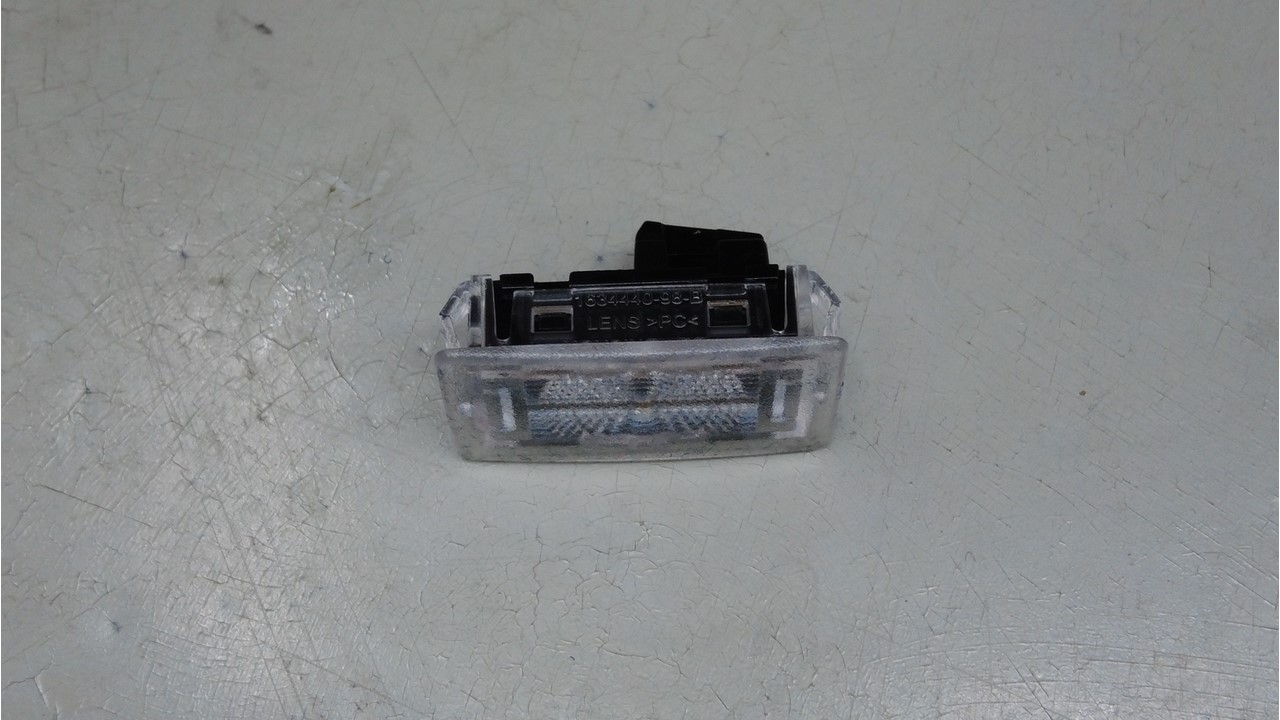

  4. Release the clips (x4) to remove the puddle lamp from the center console.
    Informational PurposesAn informational icon, calling your attention
    Note
    Press the clips to release the locking.

Install

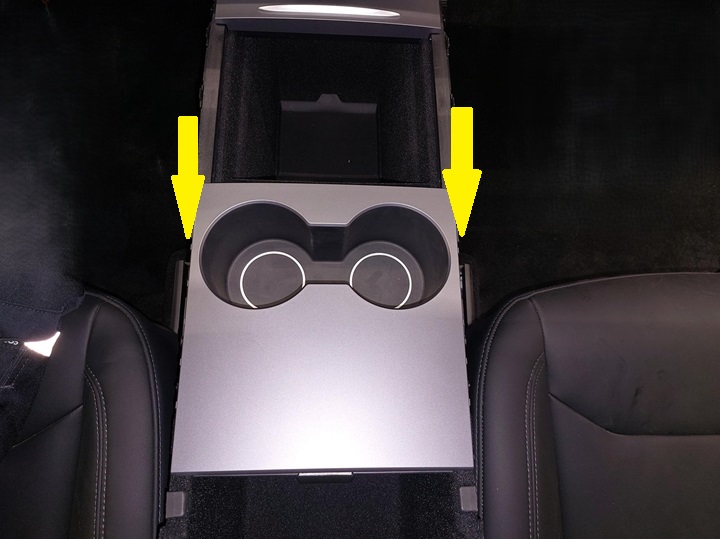

  1. Secure the clips (x4) to install the puddle lamp to the center console.
    Informational PurposesAn informational icon, calling your attention
    Note
    Securing all clips and ensure the puddle lamp is at the correct position.
  2. Connect the puddle lamp connector.
  3. Connect the electrical connector, and then secure the clips (x6) to install the cup holder décor.
  4. Install the center console brightwork. See Brightwork - Center Console (2.0) (Remove and Replace).
