Correction code 17102802 0.90 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. See Ergonomic Precautions for safe and healthy working practices.

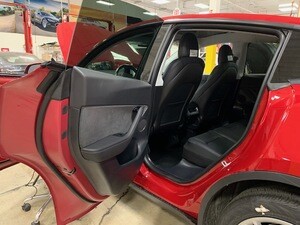

1. Open LH rear door
2. Lower LH rear window

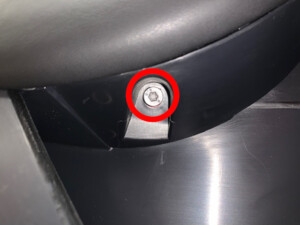

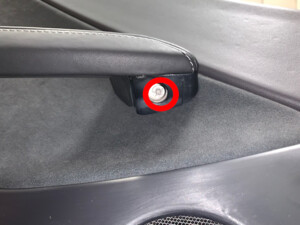

3. Remove fasteners securing LH rear door panel under armrest and door trim handle
   Note

   2x bolts, T30, 6 Nm

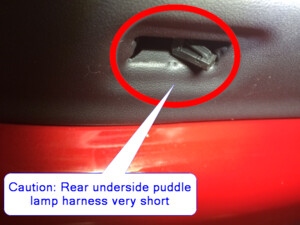

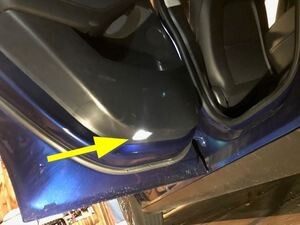

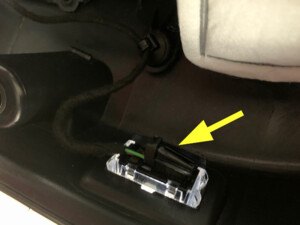

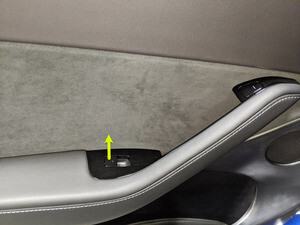

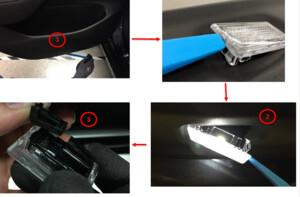

4. Remove underside white task light from LH rear door panel
   Note

   4x clips, 1x connector, Insert the trim tool to release C-notch toward front of door, then disconnect white task light with small flat screwdriver before removing it, Caution: harness very short

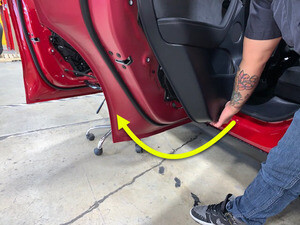

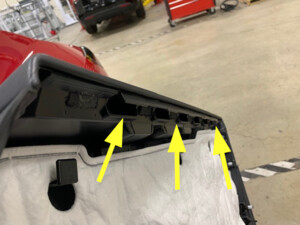

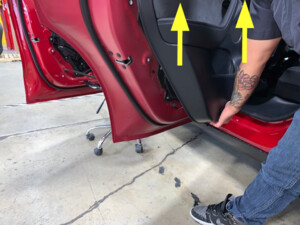

5. Remove LH rear door panel assembly
   Note

   10x clips, 3x fir tree clips, 3x connectors, Pull outwards and up from underside white task light to release clips securing panel to door, then remove top portion from door seal, Remove harness from trim panel

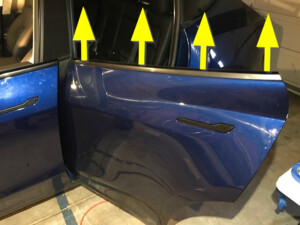

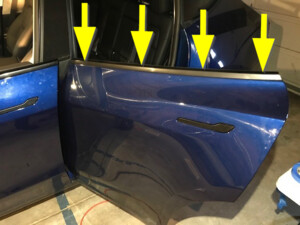

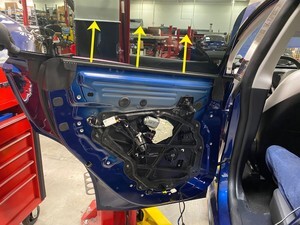

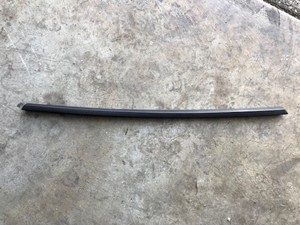

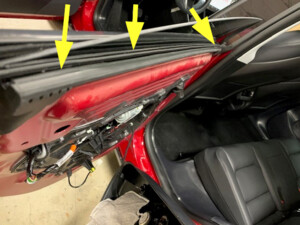

6. Release inner belt seal from LH rear door
   Note

   6x clips, Pull up to release seal, Remove clips left behind and reinstall onto seal

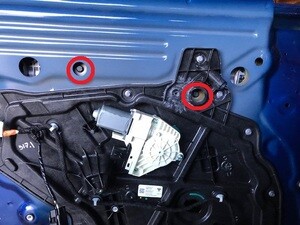

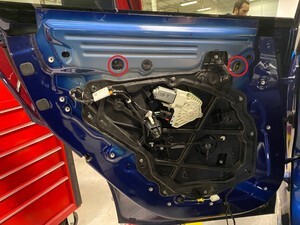

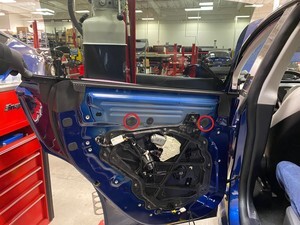

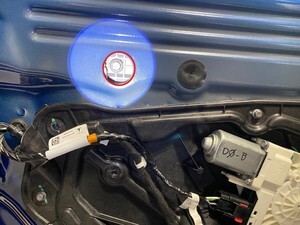

7. Remove circle button plugs covering openings in door for access to regulator guide blocks
   Note

   2x plugs

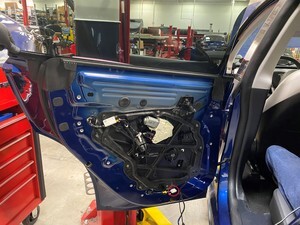

8. Temporarily connect underside white task light to LH rear door harness
   Note

   1x connector, Caution: route harness/lamp so it will not be damaged when closing door

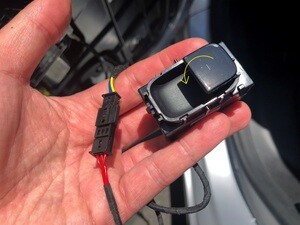

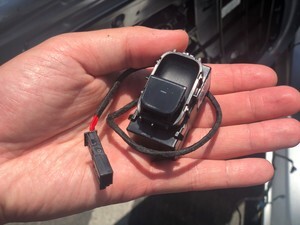

9. Connect window switch special tool to LH rear door harness
   Note

   1x connector





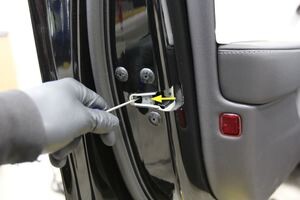

10. Close LH rear door latch to allow window to raise fully
    Note

    Do not close door with window in this position, as upper bright trim will be damaged



11. Raise window for access to regulator guide blocks

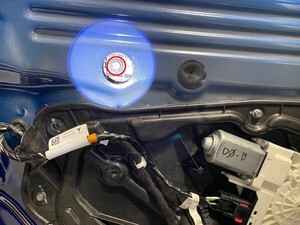

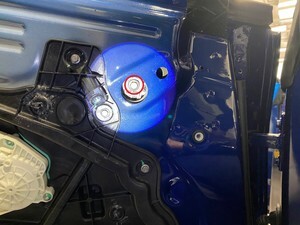

12. Remove bolt securing forward most regulator guide block
    Note

    1x bolt, 10mm, 12 Nm



13. Remove bolt securing forward most regulator guide block
    Note

    1x bolt, 10mm, 12 Nm

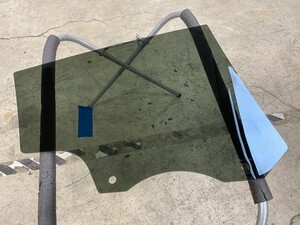

14. Remove window glass from LH rear door
    Note

    It is suggested to ask another colleague to help

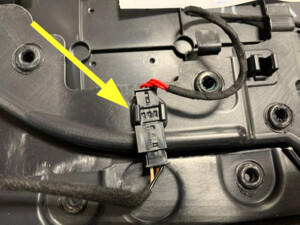

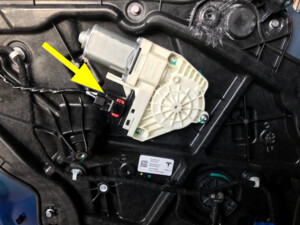

15. Disconnect rear window motor connector
    Note

    1x connector, Disengage locking tab, then release connector body

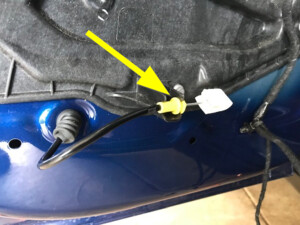

16. Remove the manual latch release cable from window regulator panel
    Note

    1x clip

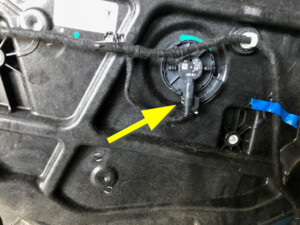

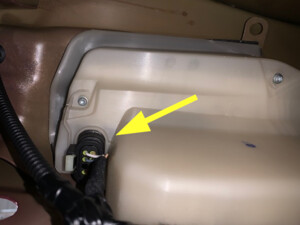

17. Disconnect harness from LH rear pressure sensor
    Note

    1x connector, Pull back on locking tab, then release connector body

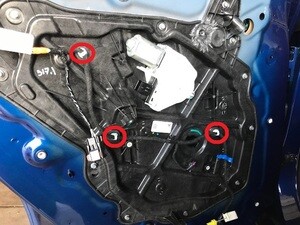

18. Release clips securing door harness to closeout panel
    Note

    3x clips

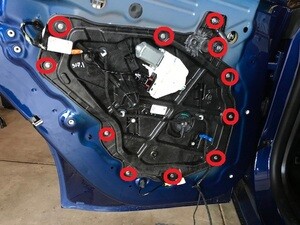

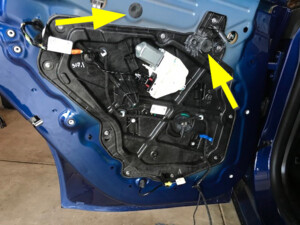

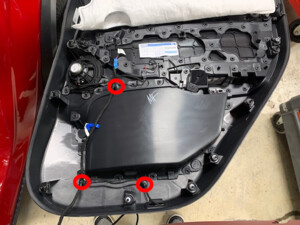

19. Remove bolts securing the window regulator to door assembly
    Note

    11x bolts, 8mm, 4 Nm



20. Remove plugs covering regulator rail fasteners
    Note

    2x plugs

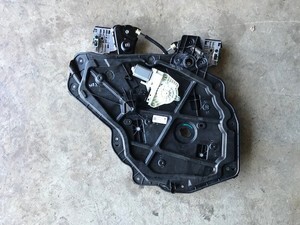

21. Remove closeout panel assembly from door
    Note

    2x bolts, 10mm, 8 Nm, Remove bolts, then slide closeout panel assembly down and out, Window regulator and closeout panel come out as one piece

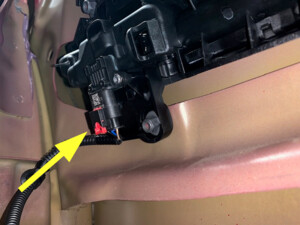

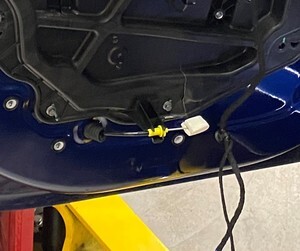

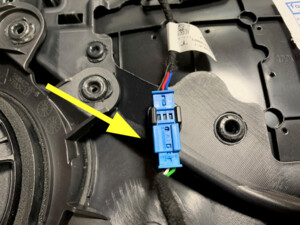

22. Disconnect LH rear outer door handle connector
    Note

    1x connector, Pull to disengage locking tab, Pull again to release connector body

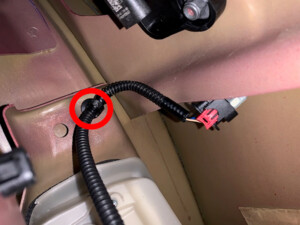

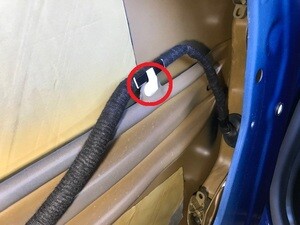

23. Release upper clip securing LH rear door harness
    Note

    1x clip



24. Disconnect the LH front door latch
    Note

    1x connector, Disengage locking tab, then release connector

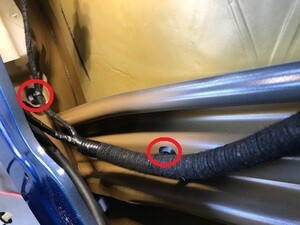

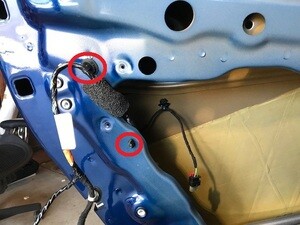

25. Release clips securing LH rear door harness along door side
    Note

    3x clips





26. Release harness clips along bottom of LH rear door
    Note

    3x clips





27. Open LH front door

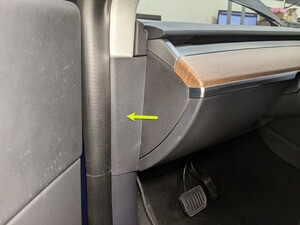

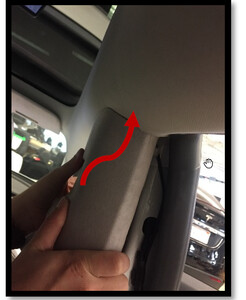

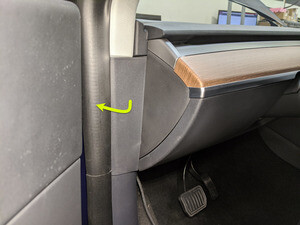

28. Remove LH mid A-pillar assembly
    Note

    1x clip, 1x tab, Release the upper clip then pull mid A-pillar upward to remove



29. Remove clip securing LH lower A-pillar trim
    Note

    1x push clip



30. Remove LH lower A-pillar trim
    Note

    6x clips, 2 guide tabs, Pull rear of lower A-pillar upward to release clip then pull rearward to release trim panel

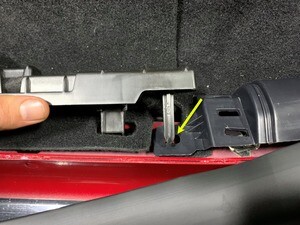

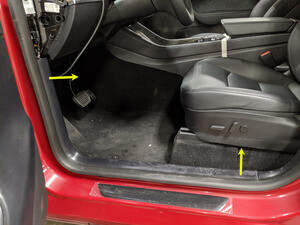

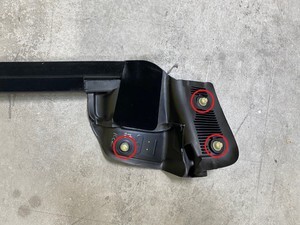

31. Release LH front seat harness and guide from body
    Note

    3x clips, 1 datum, Datum goes through access hole on LH lower B-pillar





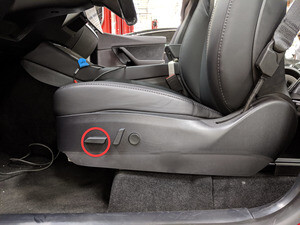

32. Move LH front seat forward

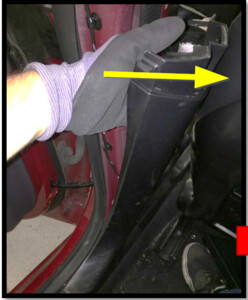

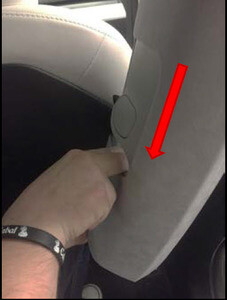

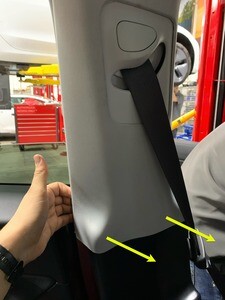

33. Release LH upper B-pillar assembly and move aside
    Note

    4x clips, Pull the bottom of the upper B-pillar toward inside of the vehicle then pull the top to release the remaining clips

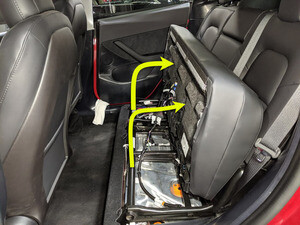

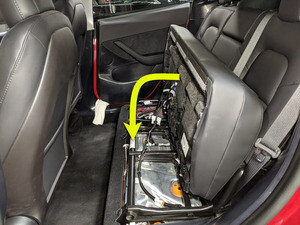

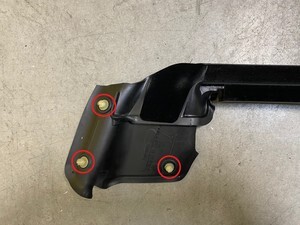

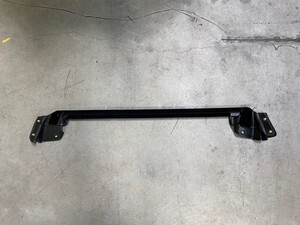

34. Release 2nd row seat cushion
    Note

    Lift front edge of seat cushion upward to release foam from frame, Pull towards front of vehicle then tilt bench against 40/60 back



35. Partially remove LH rear door seal

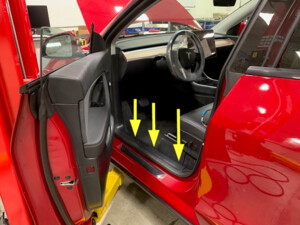

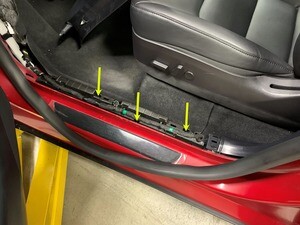

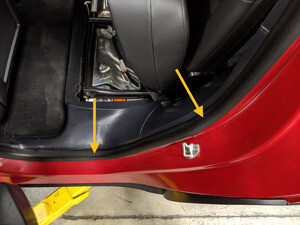

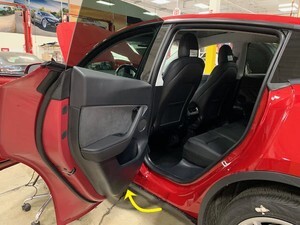

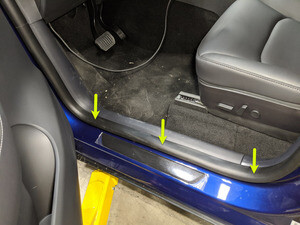

36. Remove LH rear sill trim
    Note

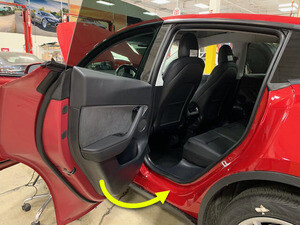

    5x clips, Rear edge is mated with groove in trunk side trim, Release clips at the front of LH rear sill trim working your way back towards rear of sill trim

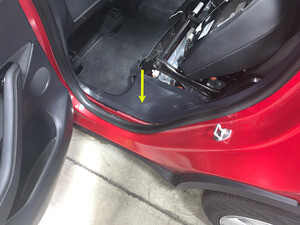

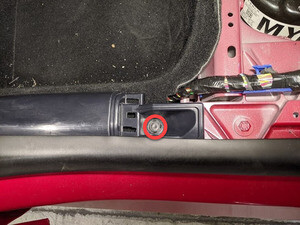

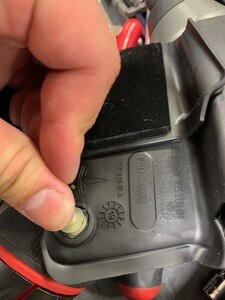

37. Remove clip securing LH lower B-pillar to body
    Note

    1x push clip, Clip secures lower B-pillar and rear cabin carpet to body



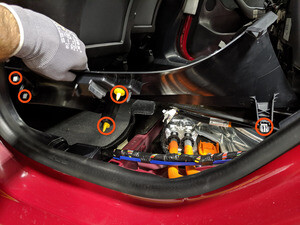

38. Remove the LH lower B-pillar assembly
    Note

    6x clips, Pull the top of B-pillar to release top clips then work your way to bottom clips

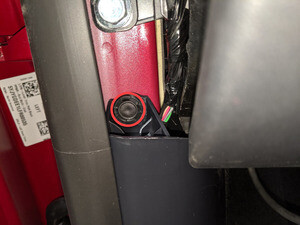

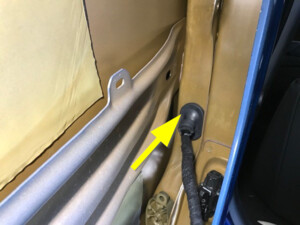

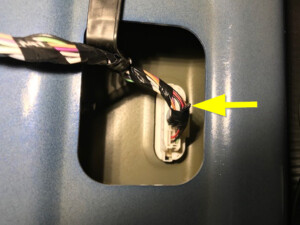

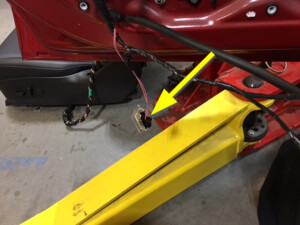

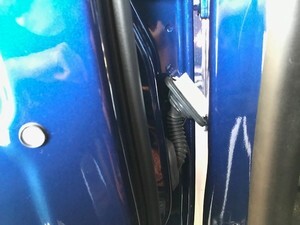

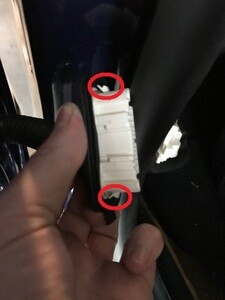

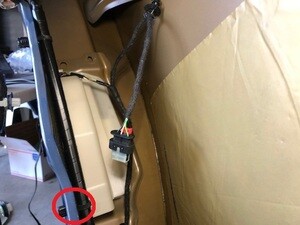

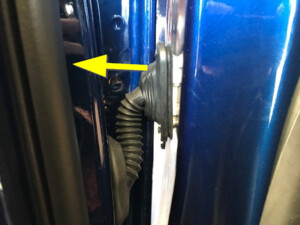

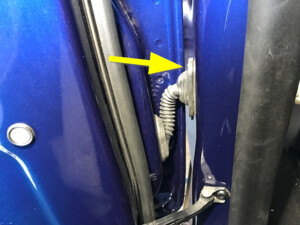

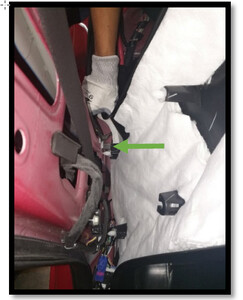

39. Release grommet connector then remove LH rear door harness from the B-pillar area
    Note

    1x connector, 2x clips, 1x grommet, Pry at both the top and then the bottom of rear door harness grommet while pulling away from B-pillar to release door harness

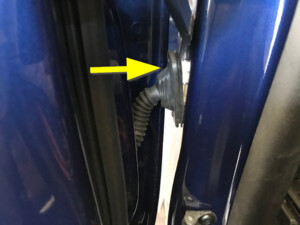

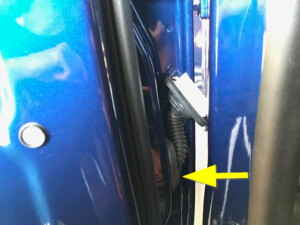

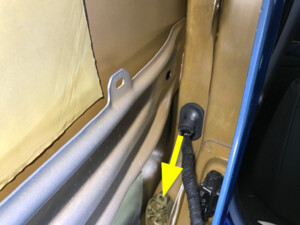

40. Remove rubber grommet from LH rear door assembly
    Note

    1x grommet, Pull grommet through LH rear door assembly from within door

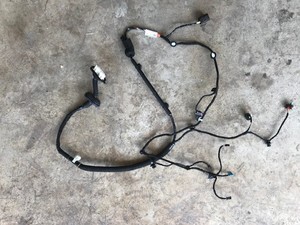

41. Remove LH rear door harness from door assembly



42. Position LH rear door harness into door assembly



43. Install rubber grommet to LH rear door assembly
    Note

    1x grommet

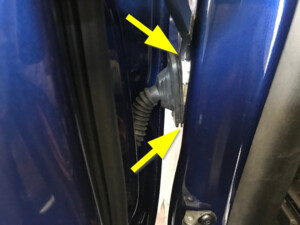

44. Install LH rear door harness to B-pillar
    Note

    1x connector, 2x clips, 1x grommet, Press LH rear door harness connector to body harness connector, Hold body harness connector in place till audible click is heard, Gently pull body harness connector to ensure its secure, Ensure door harness grommet is seated to B-pillar









45. Install the LH lower B-pillar assembly
    Note

    6x clips, Align the bottom guide tab to its slot then press the bottom clips, Work your way to top clips



46. Install clip securing LH lower B-pillar to body
    Note

    1x push clip, Clip secures lower B-pillar and rear cabin carpet to body



47. Install LH rear sill trim
    Note

    5x clips, Rear edge is mated with groove in trunk side trim, Install rear edge of LH rear sill trim into trunk side trim and work your way forward securing clips





48. Reseat LH rear door seal
    Note

    Seat pillar and sill trim tabs underneath seal



49. Reposition 2nd row seat cushion
    Note

    Slide cushion rearward then align with buckles and foam with seat rail, Make sure cushion is fully seated with push & pull test

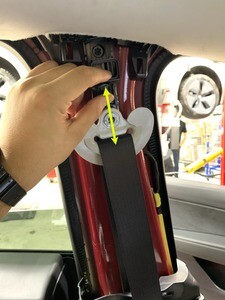

50. Install the LH upper B-pillar assembly
    Note

    4x clips, Lower the seat belt slider to align it with the B-pillar panel, Insert top portion of upper B-pillar under the headliner to align the clips, Press the bottom to fully seat upper B-pillar to lower B-pillar, Make sure the seal correctly overlaps the trim







51. Move LH front seat to original position
52. Secure LH front seat harness and guide to body
    Note

    3x clips, 1x datum, Datum goes through access hole on LH lower B-pillar





53. Install LH lower A-pillar trim
    Note

    6x clips, 2 locating pins, Align front locating pin first



54. Install clip securing LH lower A-pillar trim
    Note

    1x push clip

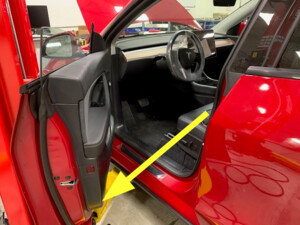

55. Reseat LH front door seal along lower A-pillar trim



56. Install LH mid A-pillar assembly
    Note

    1x clip, 1x tab, Align the bottom tab then push the top clip to fully seat mid A-pillar, Pull seal over trim



57. Close LH front door
58. Install harness clips along LH rear door assembly
    Note

    3x clips





59. Install harness clips along LH rear door side
    Note

    3x clips





60. Connect the LH rear door latch
    Note

    1x connector, Fully seat connector, then engage locking tab



61. Install upper clip securing LH rear door harness
    Note

    1x clip



62. Connect harness to door handle assembly
    Note

    1x connector, Fully seat connector, then engage locking tab



63. Install closeout panel assembly
    Note

    2x bolts, 10mm, 8 Nm, Slide window regulator rail up against inside of door and seat closeout panel outside, Install and torque bolts that secure window regulator rails





64. Install regulator rail bolt plugs
    Note

    2x plugs



65. Install bolts securing the window regulator panel to door assembly
    Note

    11x bolts, 8mm, 4 Nm, Hand start bolts to avoid stripping out the threads



66. Install clips securing door harness to closeout panel
    Note

    3x clips



67. Connect door harness to LH rear pressure sensor
    Note

    1x connector, Fully seat connector, then engage locking tab



68. Install the manual latch release cable to window regulator panel
    Note

    1x clip



69. Connect rear window motor harness connector
    Note

    1x connector, Fully seat connector, then engage locking tab



70. Install window glass to LH rear door
    Note

    It is suggested to ask another colleague to help



71. Secure window glass to guide block clamps hand tight
    Note

    2x bolts, 10mm, 12 Nm, Make sure guide blocks are not bottomed out on the regulator, this will allow for adjustment if needed





72. Lower window fully

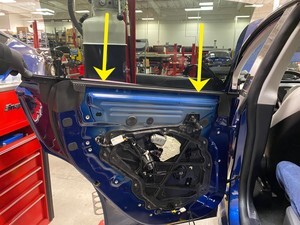

73. Install inner belt seal onto LH rear door
    Note

    6x clips, Push down to secure

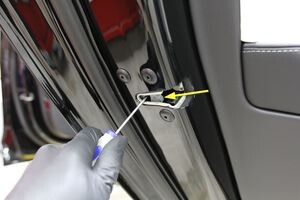

74. Release LH rear door latch by pulling emergency release cable





75. Close LH rear door
76. Open LH front door
77. Fully raise LH rear window

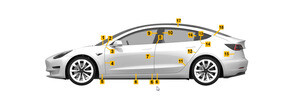

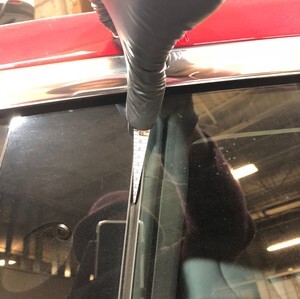

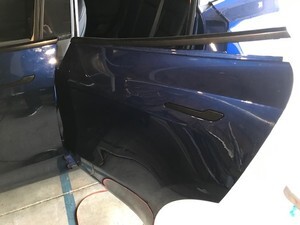

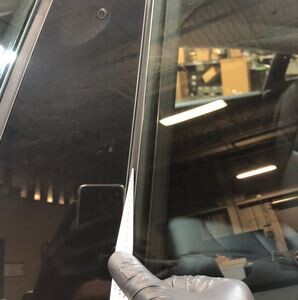

78. Check gap and flushness
    Note

    Refer to CVIS for current spec, Stop procedure and re-adjust if necessary



79. Open LH rear door
80. Close LH rear door latch to allow window height adjustment
    Note

    Do not close door with window fully raised, as upper bright trim will be damaged



81. Adjust glass for access to regulator guide blocks





82. Loosen bolts securing window glass to regulator guide blocks about half a turn to maintain position but still allow adjustment
    Note

    2x bolts, 10mm, 12 Nm

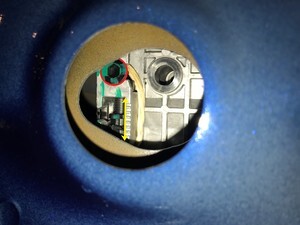

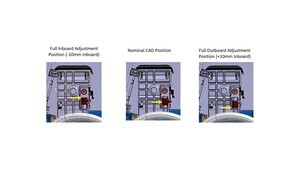

83. Adjust the front of moving glass to achieve flush target to B-Pillar applique
    Note

    1x bolt, Use a 5mm hex socket to adjust the friction pad to tilt the glass inboard or outboard, Turn clockwise to achieve outboard adjustments and turn counter clockwise to achieve inboard adjustments

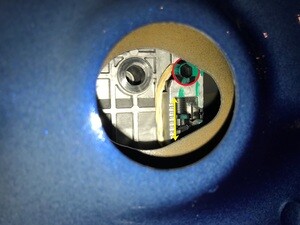

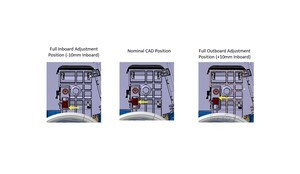

84. Adjust the rear of moving glass to achieve flush target to quarter glass assembly
    Note

    1x bolt, Use a 5mm hex socket to adjust the friction pad to tilt the glass inboard or outboard, Turn clockwise to achieve outboard adjustments and turn counter clockwise to achieve inboard adjustments







85. Adjust moving glass to achieve gap target and hand tighten bolts
    Note

    2x bolts, 10mm, 12 Nm





86. Release LH rear door latch by pulling emergency release cable





87. Close LH rear door
88. Check gap and flushness
    Note

    Readjust if necessary







89. Open LH rear door
90. Close LH rear door latch to allow window height adjustment
    Note

    Do not close door with window fully raised, as upper bright trim will be damaged



91. Adjust glass for access to regulator guide blocks





92. Torque bolts securing window glass to regulator guide blocks
    Note

    2x bolts, 10mm, 12 Nm





93. Release LH rear door latch by pulling emergency release cable





94. Lower LH rear window



95. Disconnect window switch special tool
    Note

    1x connector





96. Install circle button plugs covering openings in door for regulator guide blocks
    Note

    2x plugs



97. Disconnect underside white task light from LH rear door
    Note

    1x connector

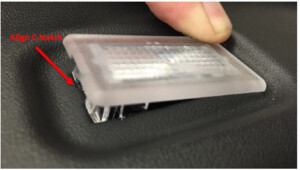

98. Install underside white task light to rear door panel
    Note

    1x connector, Make sure the white task light C notch is pointing toward front edge of door trim





99. Install LH rear door panel assembly
    Note

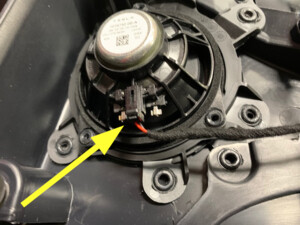

    10x clips, 3x fir tree clips, 4x connectors, Secure harness clip first to make sure speaker connector and underside white task light connector are not swapped, then make harness connections, Slide top portion of panel into door seal first, then swing bottom into place, Ensure all clips are seated

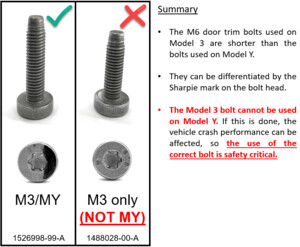

100. Install fasteners securing door panel to rear door
     Note

     2x bolts, T30, 6 Nm, Do not use M3 door fasteners which are shorter in length







101. Raise LH rear window



102. Close LH rear door
103. Calibrate the LH rear window. See Window Regulator (Recalibrate).
