Table 1. Torque Specifications: ABS Modulator (Remove and Replace)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Nuts that attach the ABS modulator to the bracket	8 Nm (5.9 lbs-ft)	10 mm deep socket 2 in extension	Reuse
Bolts that attach the ABS modulator to the LH frame rail	10 Nm (7.4 lbs-ft)	10 mm socket 6 in extension Flex head ratchet/flex head torque wrench	Reuse
Bolt that attaches the steering gear assembly to the intermediate shaft assembly	18 Nm (13.3 lbs-ft)	13 mm socket	Reuse
Master cylinder primary pipe nut to the ABS modulator	16 Nm (11.8 lbs-ft)	12 mm flare nut wrench 12 mm flare nut crowfoot socket 6 in extension	Reuse
Master cylinder secondary pipe nut to the ABS modulator	16 Nm (11.8 lbs-ft)	12 mm flare nut wrench 12 mm flare nut crowfoot socket 6 in extension	Reuse
LH front brake pipe nut to the ABS modulator	16 Nm (11.8 lbs-ft)	12 mm flare nut wrench 12 mm flare nut crowfoot socket	Reuse
RH rear brake pipe nut to the ABS modulator	16 Nm (11.8 lbs-ft)	12 mm flare nut wrench 12 mm flare nut crowfoot socket	Reuse
LH rear brake pipe nut to the ABS modulator	16 Nm (11.8 lbs-ft)	12 mm flare nut wrench 12 mm flare nut crowfoot socket	Reuse
RH front brake pipe nut to the ABS modulator	16 Nm (11.8 lbs-ft)	12 mm flare nut wrench 12 mm flare nut crowfoot socket	Reuse
Bolts that attach the LH and RH sides of the shock tower brace	See image in procedure for proper torque specifications	15 mm deep socket Flex head ratchet/flex head torque wrench	Reuse
Outer bolt that attaches the shock tower brace to the vehicle	62 Nm (45.7 lbs-ft)	15 mm deep socket Flex head ratchet/flex head torque wrench	Reuse
Inner bolts that attach the shock tower brace to the vehicle	55 Nm (40.6 lbs-ft)	15 mm deep socket Flex head ratchet/flex head torque wrench	Reuse

Table 2. Torque Specifications: ECU - ABS (Non-Structural Pack) (Remove and Replace)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Bolt securing the steering gear assembly to the intermediate shaft assembly	18 Nm (13.3 lbs-ft)	13 mm socket Ratchet/torque wrench	Reuse
Fasteners securing the hydraulic control unit to the hydraulic control unit bracket	8 Nm (5.9 lbs-ft)	10 mm deep socket 10 in extension Ratchet/torque wrench	Replace
Bolts securing the hydraulic control unit to the frame rail	10 Nm (7.4 lbs-ft)	10 mm socket 6 in extension locking Ratchet/torque wrench	Reuse

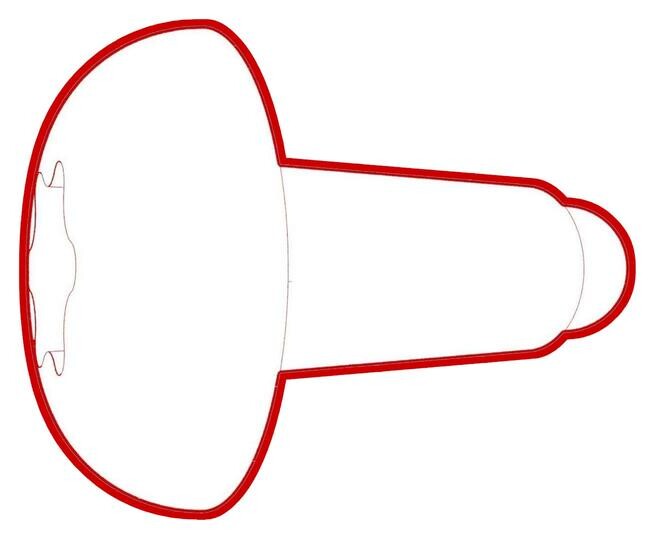

Upper bolts securing the hydraulic control unit ECU to the hydraulic control unit	3 Nm (2.2 lbs-ft)	External Torx E5 2 in extension Flex head ratchet/flex head torque wrench	Replace

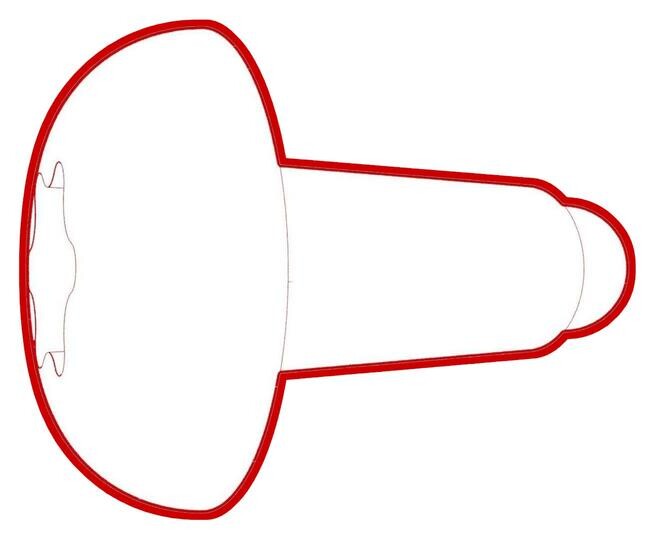

Lower bolts securing the hydraulic control unit ECU to the hydraulic control unit	3 Nm (2.2 lbs-ft)	External Torx E5 2 in extension Flex head ratchet/flex head torque wrench	Replace

Table 3. Torque Specifications: Electromechanical Brake Booster Assembly (Non-Structural Pack) (LHD) (Remove & Replace)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Forward brake line fastener	16 Nm (11.8 lbs-ft)	12 mm 12pt combination wrench 12 mm flare nut crowfoot socket	Reuse
Rear brake line fastener	16 Nm (11.8 lbs-ft)	12 mm 12pt combination wrench 12 mm flare nut crowfoot socket	Reuse

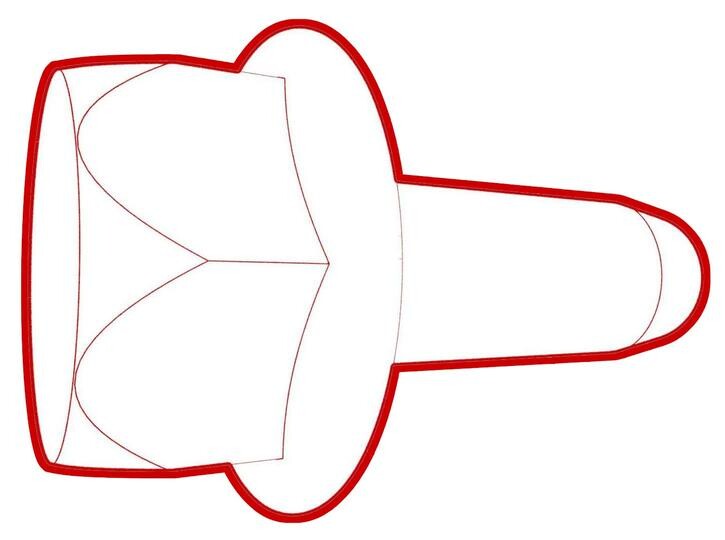

Nuts that attach the brake booster to the bulkhead	16.5 Nm (12.2 lbs-ft)	13 mm deep socket 6 in extension	Replace

Table 4. Torque Specifications: Bracket - Brake Caliper - Rear - LH (Remove and Replace)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Bolts (x2) that attach the LH rear brake caliper to the LH rear brake caliper bracket	26.5 Nm (19.5 lbs-ft)	14 mm socket	Reuse

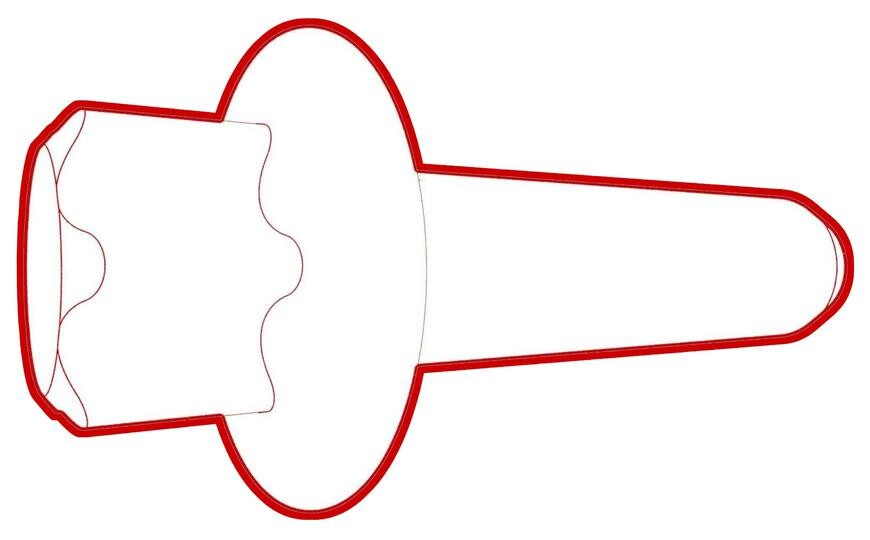

Bolts (x2) that attach the LH rear brake caliper bracket to the LH rear knuckle	83 Nm (61.2 lbs-ft)	External Torx E18	Replace

Table 5. Torque Specifications: Brake Caliper - Front - LH (Remove and Replace)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Bolts that attach the LH front brake caliper to the LH front knuckle	94 Nm (69.3 lbs-ft)	Cordless Ratchet/Impact Driver 3/8 in to ½ in adapter External Torx E18 Ratchet/torque wrench	Replace	1088969-00-B

Table 6. Torque Specifications: Brake Caliper - Rear

Description	Torque Value	Reuse/Replace	Notes
LH rear brake caliper bracket to the knuckle	83 Nm (61.2 lbs-ft)	Replace

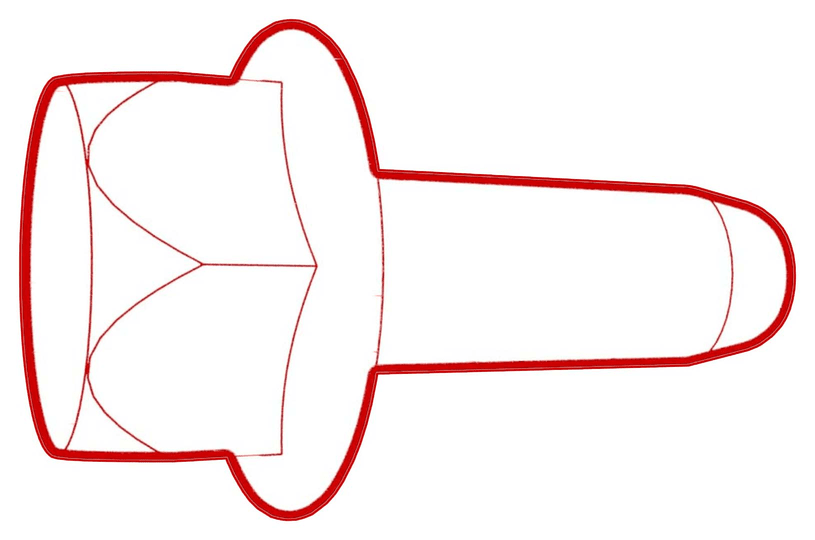

Brake hose to the LH rear brake caliper	42 Nm (31.0 lbs-ft)	Replace
LH rear brake caliper electrical harness clips	5 Nm (3.7 lbs-ft)	Reuse

Table 7. Torque Specifications: Brake Pad Kit - Front (Remove and Replace)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Bolts that attach the LH front brake caliper to the LH front knuckle	94 Nm (69.3 lbs-ft)	External Torx E18 Cordless Ratchet/Impact Driver	Replace
Bolt that attaches the LH front brake hose bracket to the LH front knuckle	5 Nm (3.7 lbs-ft)	10 mm socket 4 in extension	Reuse

Table 8. Torque Specifications: Brake Pad Kit - Rear (Base Brakes) (Remove and Replace)

Description	Torque Value		Reuse/Replace	Notes
LH rear brake caliper to the LH rear brake caliper bracket	26.5 Nm (19.5 lbs-ft)	14 mm socket	Reuse
Bolt that attaches the LH rear EPB harness bracket to the LH rear caliper	5 Nm (3.7 lbs-ft)	10 mm socket 4 in extension	Reuse

Table 9. Torque Specifications: Brake Pad Kit - Rear (Sport Brakes) (Remove and Replace)

Description	Torque Value	Reuse/Replace	Notes
LH/RH rear caliper to the LH/RH rear caliper bracket, lower bolt	71 Nm (52.4 lbs-ft)	Reuse
LH/RH rear caliper to the LH/RH rear caliper bracket, upper bolt	34 Nm (25.1 lbs-ft)	Reuse

Table 10. Torque Specifications: Brake Rotor - Front - LH (Remove and Replace)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
LH front brake hose bracket to the LH front knuckle	5 Nm (3.7 lbs-ft)	10 mm socket Flex head ratchet/flex head torque wrench 4 in extension	Reuse
LH front caliper to the LH front knuckle	94 Nm (69.3 lbs-ft)	External Torx E18 Ratchet/torque wrench	Replace	1088969-00-B
Brake rotor to the hub	5 Nm (3.7 lbs-ft)	10 mm socket Flex head ratchet/flex head torque wrench 2 in extension	Reuse

Table 11. Torque Specifications: Brake Rotor - Rear - LH (Measure Runout)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Bolts that attach the brake rotor camping plate to the rotor	100 Nm (73.7 lbs-ft)	21 mm deep socket	Reuse
Bolt that attaches the front rotor to the knuckle	5 Nm (3.7 lbs-ft)	10 mm socket	Reuse

Table 12. Torque Specifications: Brake Rotors - Rear - LH

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
LH rear caliper to the LH rear knuckle	83 Nm (61.2 lbs-ft)	External Torx E18 Ratchet/torque wrench	Replace
Brake rotor to the hub	5 Nm (3.7 lbs-ft)	10 mm socket 2 in extension Ratchet/torque wrench	Reuse

Table 13. Torque Specifications: Motor - Brake Caliper - Rear - LH (Remove and Replace)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Bolt that attaches the LH rear EPB harness bracket to the LH rear caliper	5 Nm (3.7 lbs-ft)	10 mm socket	Reuse
Bolts (x2) that attach the LH rear brake caliper motor to the brake caliper	10.8 Nm (8.0 lbs-ft)	5 mm hex	Reuse

Table 14. Torque Specifications: Shield - Dust - Brake - Front - LH (RWD) (Remove and Replace)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
LH front brake dust shield to the knuckle	8 Nm (5.9 lbs-ft)	T30 socket 4 in extension	Reuse

Table 15. Torque Specifications: Shield - Dust - Brake - Rear - LH (Remove and Replace)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
LH rear brake dust shield to the knuckle	8 Nm (5.9 lbs-ft)	Torx T30 socket 4 in extension Ratchet/torque wrench	Reuse
Hub to the knuckle	78 Nm (57.5 lbs-ft)	18 mm socket 3 in extension Ratchet/torque wrench	Reuse
LH rear drive unit halfshaft nut	300 Nm (221.2 lbs-ft)	32 mm deep impact socket Breaker bar	Replace
Bolts that attach the rear brake caliper to the knuckle	83 Nm (61.2 lbs-ft)	External Torx E18 Ratchet/torque wrench	Replace

Table 16. Torque Specifications: Sensor - Wheel Speed - ABS - Front - LH (Remove and Replace)/ Sensor - Wheel Speed - ABS - Rear - LH (Remove and Replace)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Bolt that attaches the ABS wheel speed sensor to the knuckle	5 Nm (3.7 lbs-ft)	10 mm deep socket 4 in extension Ratchet/torque wrench	Reuse
