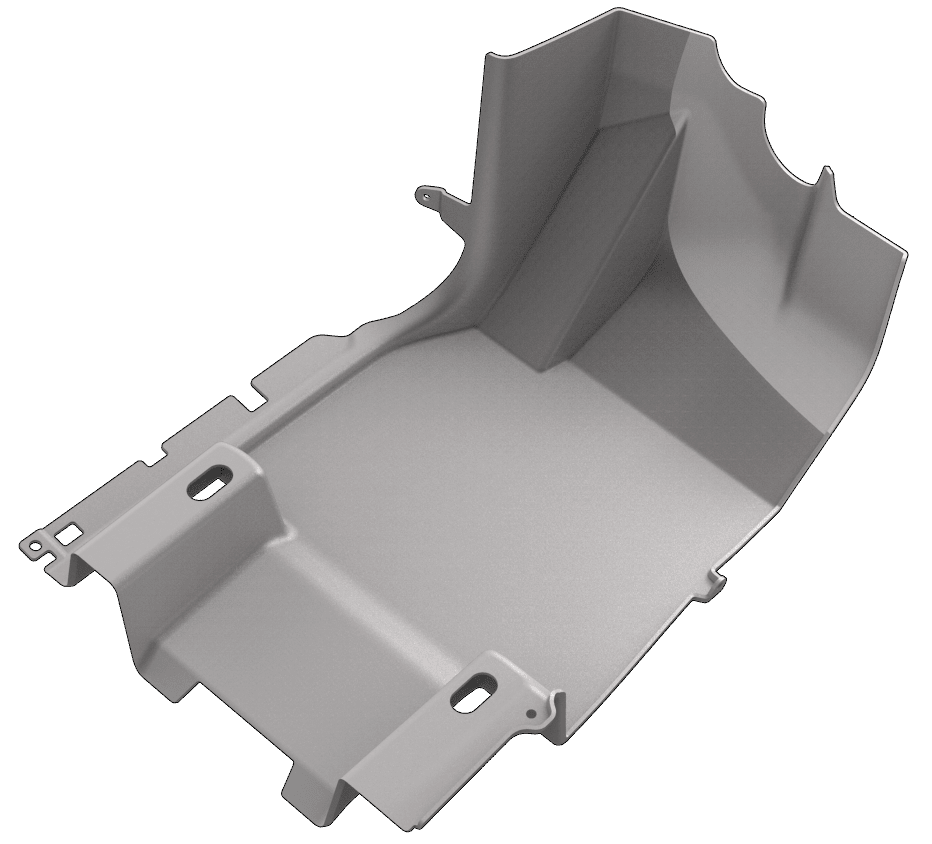

Carpet - Front - LH (Remove and Replace)

Correction code 15303002 0.66 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2026-07-10: Simplified the procedure from full seat disassembly to removal of the seat patch bolts (x4) only.
Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
Seat base edges are sharp and can cause personal injury. Wear cut resistant gloves when removing the seat from the vehicle, and while performing procedures that involve work on or near the seat base.

Remove

  1. Open all doors and lower all windows.
  2. Move the steering column to the high and most inward position.
  3. Remove the driver footwell cover. See Cover - Footwell - Driver (Remove and Replace).
  4. Remove the LH lower A-pillar trim. See Trim - A-Pillar - Lower - LH (Remove and Replace).
  5. Partially release the LH front primary door seal.
  6. Remove the push clip that attaches the LH front cabin carpet to the body.
  7. Pull the LH front cabin carpet away from the A-pillar to access the LH front seat connector.
  8. Remove and discard the patch bolts (x4) that secure the front seat. See Seat Assembly - 1st Row - LH (Remove and Replace).
  9. Remove the center console. See Center Console (Remove and Install).
  10. Release the LH front seat harness bracket from body (3x clips, 1 datum).
    Informational PurposesAn informational icon, calling your attention
    Note
    The datum goes through the access hole on the LH lower B-pillar.
  11. Pull the LH front seat harness from the under LH front cabin carpet.
  12. Use cloth to cover the rear seat to prevent damages.
  13. Tilt the LH front seat backwards. Pay attention not to touch the steering wheel.

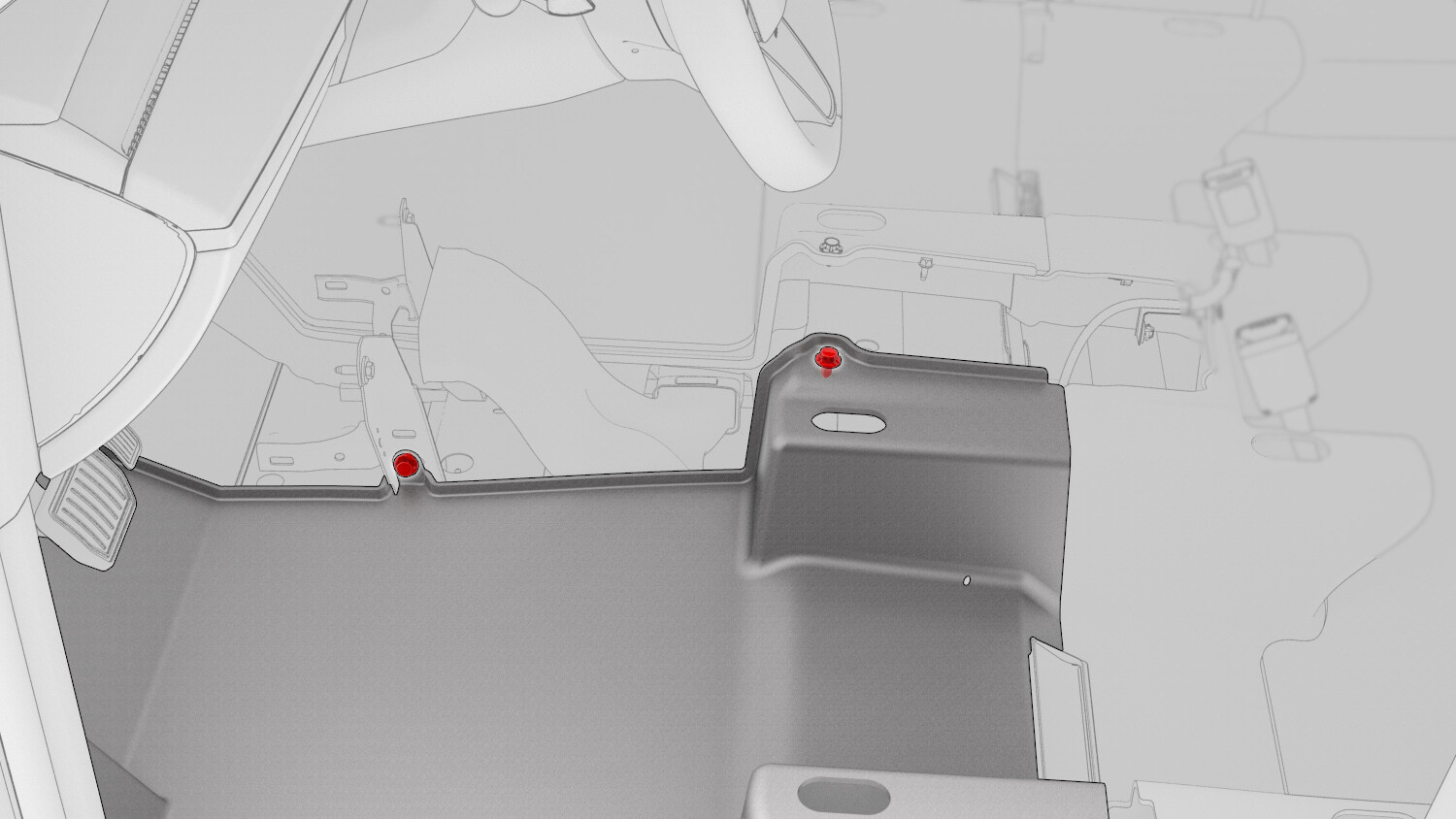

  14. Release the push clips (x3) that attach the LH front carpet to the body, and then remove the LH front carpet from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Lift the rear edge of the carpet, and then slide the carpet out rearward.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Be careful not to catch the foam underneath the carpet on the seat risers.

Install

  1. Install the push clips (x3) that attach the LH front carpet to the body.
  2. Position the LH front seat and remove the seat protection cloth.
  3. Install the center console. See Center Console (Remove and Install).
  4. Install the LH front seat harness bracket to the body (3x clips, 1 datum).
    Informational PurposesAn informational icon, calling your attention
    Note
    The datum goes through the access hole on the LH lower B-pillar.
  5. Pull the LH front cabin carpet away from the A-pillar to access the LH front seat connector.
  6. Install the push clip that attaches the LH front cabin carpet to the body.
  7. Install the LH lower A-pillar trim. See Trim - A-Pillar - Lower - LH (Remove and Replace).
  8. Reseal the LH front primary door seal.
  9. Connect 12V power. See 12V/LV Power (Disconnect and Connect).
  10. Install new patch bolts (x4) that secure the front seat. See Seat Assembly - 1st Row - LH (Remove and Replace).
  11. Install the driver footwell cover. See Cover - Footwell - Driver (Remove and Replace).
  12. Move the steering column to original position.
  13. Close all doors and raise all windows.
