X981M

Tesla Part Number

1849225-00-B

Connector

KSE K30M31011

Color

NA

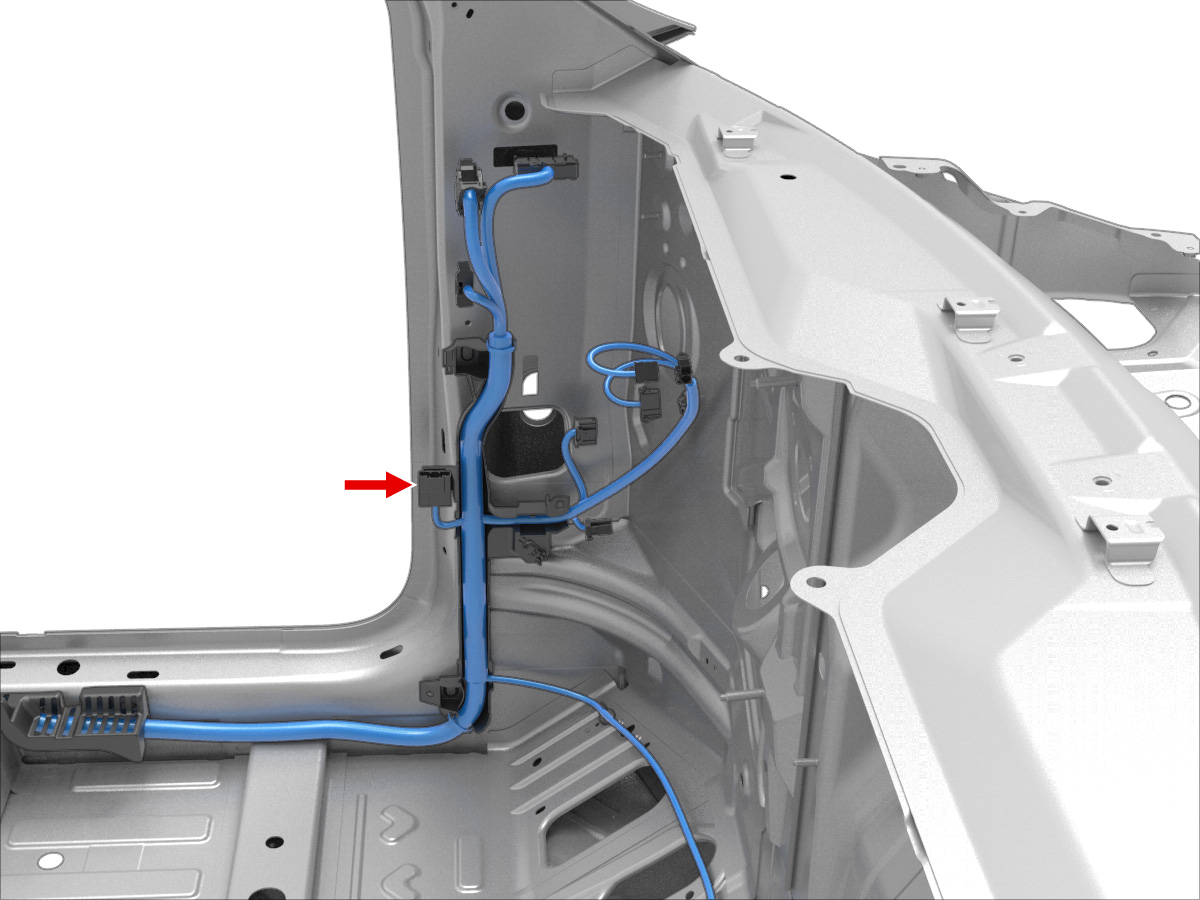

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1
2	SUMITOMO	8100-3623	0.64x0.64M	GN	0.50			X935F	5
3	SUMITOMO	8100-3623	0.64x0.64M	GY	0.50			X935F	6
4
5	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X935F	53
6	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35			X935F	52
7
8	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X030A	26
9	SUMITOMO	8100-3623	0.64x0.64M	YE/GN	0.35			X030A	6
10	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35			X039	9
11
12
13	SUMITOMO	8100-3623	0.64x0.64M	WH	0.50			X935F	8
14	SUMITOMO	8100-3623	0.64x0.64M	BN	0.50			X935F	9
15	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X935F	58
16	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X935F	57
17
18
19
20
