X201

Tesla Part Number

1475379-10-B

Connector

BOSCH 1928407809;10

Color

BK

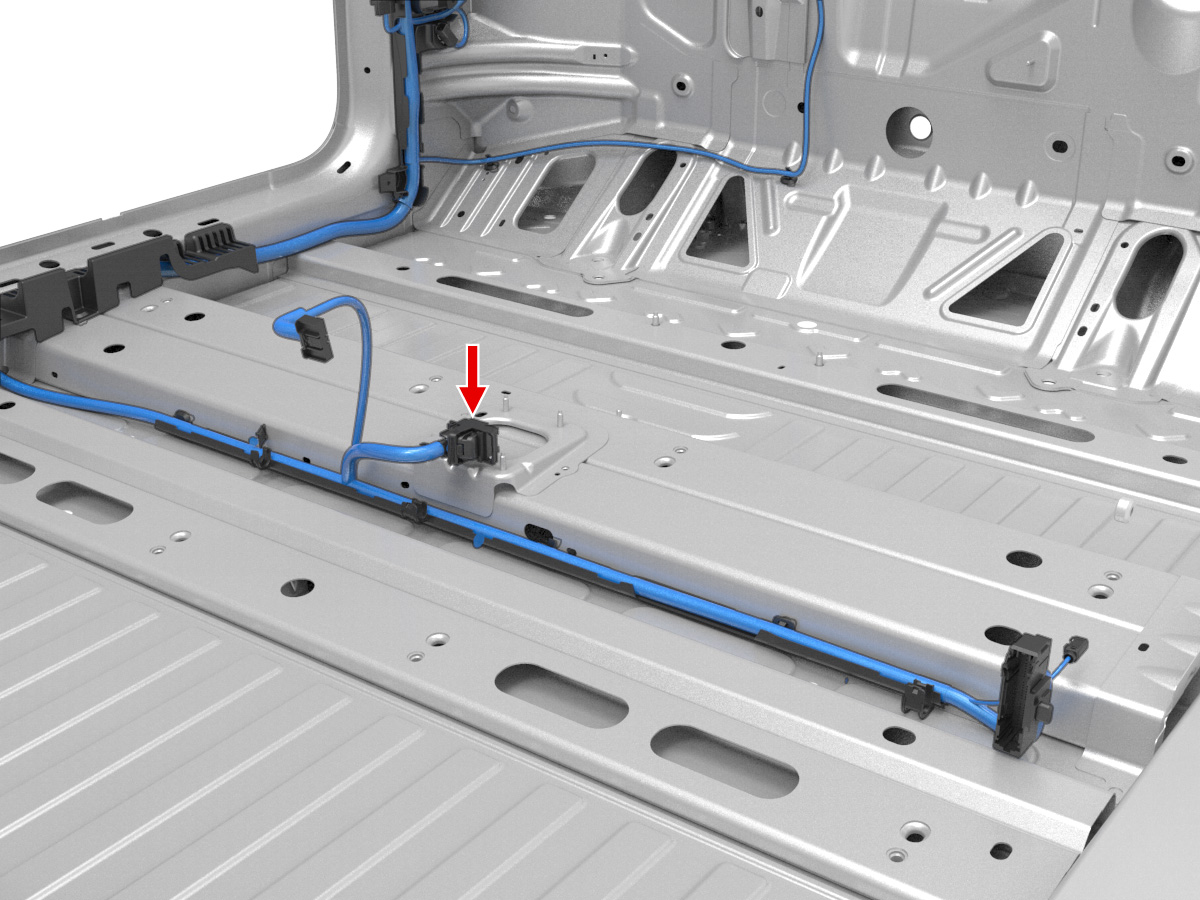

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	BOSCH	1928492898	0.50x0.40F	GN	0.35	TESLA	MAT-110-130	X935F	14
2	BOSCH	1928492898	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X935F	15
3	BOSCH	1928492898	0.50x0.40F	YE	0.35	TESLA	MAT-110-130	X217	2
4	BOSCH	1928492898	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X217	1
5	BOSCH	1928492898	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X909F	10
6	BOSCH	1928492898	0.50x0.40F	YE	0.35	TESLA	MAT-110-130	X909F	9
7	BOSCH	1928492898	0.50x0.40F	GY	0.35	TESLA	MAT-110-130	X909F	6
8	BOSCH	1928492898	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X909F	5
9	BOSCH	1928492898	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X935F	23
10	BOSCH	1928492898	0.50x0.40F	BK	0.35	TESLA	MAT-110-130	X935F	22
11	BOSCH	1928492898	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X225	2
12	BOSCH	1928492898	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X225	1
13	unused
14	unused
15	BOSCH	1928492898	0.50x0.40F	TN	0.35	TESLA	MAT-110-130	X935F	56
16	BOSCH	1928492898	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X935F	55
17	BOSCH	1928492898	0.50x0.40F	GN	0.35	TESLA	MAT-110-130	X221	1
18	BOSCH	1928492898	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X221	2
19	BOSCH	1928492898	0.50x0.40F	GY	0.35	TESLA	MAT-110-130	X935F	42
20	BOSCH	1928492898	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X935F	43
21	BOSCH	1928492898	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X219	2
22	BOSCH	1928492898	0.50x0.40F	GN	0.35	TESLA	MAT-110-130	X219	1
23	unused
24	unused
25	unused
26	unused
27	unused
28	unused
29
30
31	unused
32	unused
33	unused
34	unused
35
36
37	BOSCH	1928492898	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X935F	27
38	BOSCH	1928492898	0.50x0.40F	BN	0.35	TESLA	MAT-110-130	X935F	26
39	BOSCH	1928492898	0.50x0.40F	GY	0.35	TESLA	MAT-110-130	X206	1
40	BOSCH	1928492898	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X206	2
41	BOSCH	1928492898	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X935F	21
42	BOSCH	1928492898	0.50x0.40F	GN	0.35	TESLA	MAT-110-130	X935F	20
43	BOSCH	1928492898	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X924M	18
44	BOSCH	1928492898	0.50x0.40F	BN	0.35	TESLA	MAT-110-130	X924M	19
45	BOSCH	1928492898	0.50x0.40F	YE	0.35	TESLA	MAT-110-130	X909F	14
46	BOSCH	1928492898	0.50x0.40F	TN	0.35	TESLA	MAT-110-130	X909F	7
47	BOSCH	1928492898	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X909F	1
48	BOSCH	1928492898	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X909F	2
49	unused
50	unused
51	unused
52	unused
53	BOSCH	1928492898	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X031	45
54	BOSCH	1928492898	0.50x0.40F	VT/WH	0.35	TESLA	MAT-110-130	X031	44
55	BOSCH	1928492898	0.50x0.40F	BK	0.35	TESLA	MAT-110-130	G031	12
56	BOSCH	1928492898	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X935F	50
57	unused
58	unused
59	unused
60	unused
61	unused
