X940F

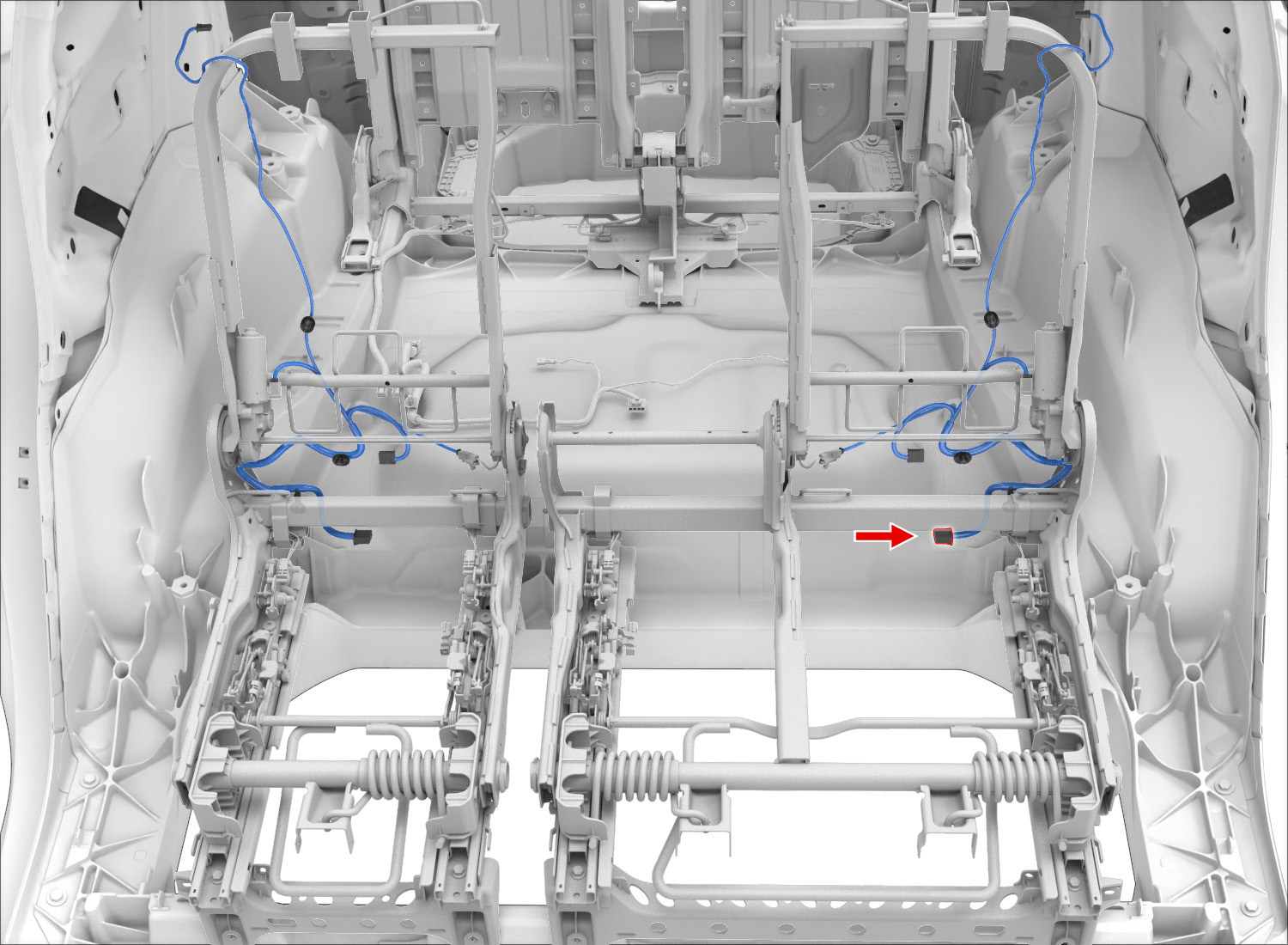

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8240-0215 | 1.5x0.64F | VT | 0.35 | X665 | 1 | ||
| 2 | SUMITOMO | 8240-0215 | 1.5x0.64F | BN | 0.35 | ||||
| 3 | SUMITOMO | 8240-0215 | 1.5x0.64F | GY | 0.35 | X642 | 1 | ||
| 4 | SUMITOMO | 8240-0215 | 1.5x0.64F | BK | 0.50 | X676 | 1 | ||
| 5 | SUMITOMO | 8240-0215 | 1.5x0.64F | BU | 0.35 | X669 | 2 | ||
| 6 | SUMITOMO | 8240-0214 | 1.5x0.64F | GY | 2.00 | X669 | 3 | ||
| 7 | SUMITOMO | 8240-0215 | 1.5x0.64F | RD | 0.50 | X676 | 2 | ||
| 8 | |||||||||
| 9 | |||||||||
| 10 | |||||||||
| 11 | |||||||||
| 12 | SUMITOMO | 8240-0214 | 1.5x0.64F | YE | 2.00 | X669 | 1 |
