X895A

Tesla Part Number
2289574-04-A
Connector
AMP 2599990-5
Color
GN

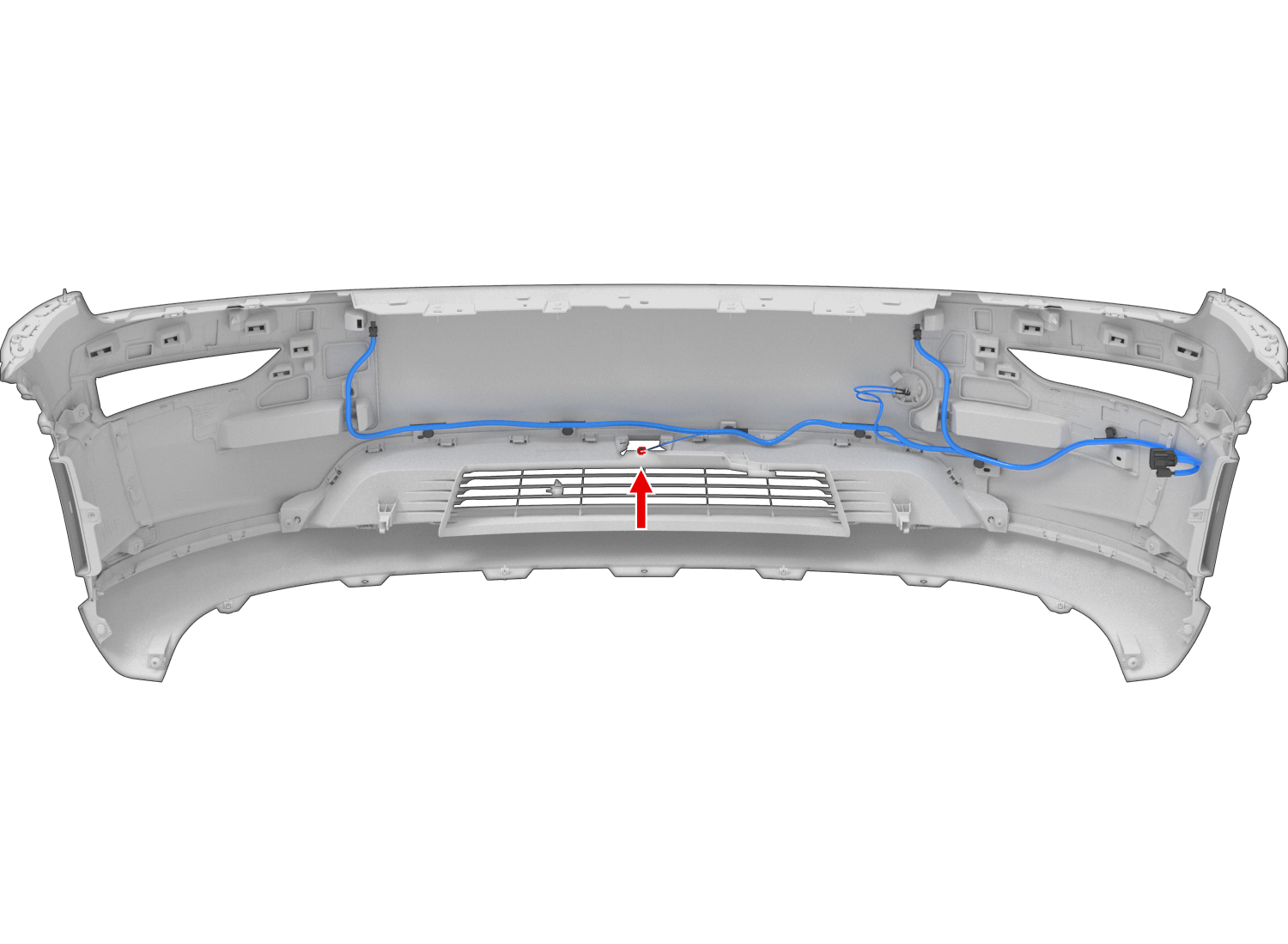

Connector Location:

Connector Pinout

Connector Details

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP2439501-2COAXBKD302PIAPIA-SEALX887F1
